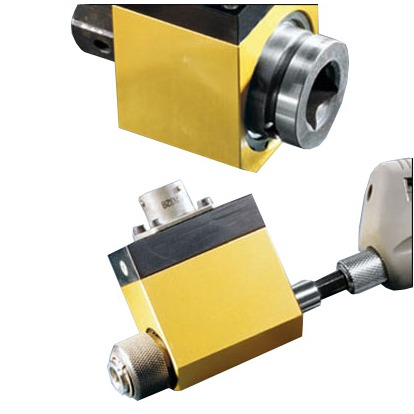

RTSX Rotary Torque Transducer for hand & power tools


The Rotary Torque Transduceror can be used with most hand tools, power tools or rotational measurement applications and is deployed for the connection of the power tool with the joint.

Moreover this torque transducer monitors actual torque being applied from the driver to the fastener and comes with an instant auto-recognition system of the RTSX connected to the PTT & LTT.


Features
  • Use with most hand tools, power tools or rotational measurement applications.
  • Accuracy +/-.25% of full scale.
  • Connects between the power tool and the joint. Monitors actual torque being applied from the driver to the fastener.
  • Bi-directional.

Torque ranges
Default Values Oz-in Lb-in Lb-ft cN-m N-m

Model Range Input Drive Output Drive
RTSX10i-H 0.11 - 1.1 N-m 1/4" M/Hex 1/4" F/Hex
RTSX10i 0.11 - 1.1 N-m 1/4" F/Sq 1/4" M/Sq
RTSX50i-H 0.56 - 5.6 N-m 1/4" M/Hex 1/4" F/Hex
RTSX50i 0.56 - 5.6 N-m 1/4" F/Sq 1/4" M/Sq
RTSX100i-H 1.12 - 11.2 N-m 1/4" M/Hex 1/4" F/Hex
RTSX100i 1.12 - 11.2 N-m 1/4" F/Sq 1/4" M/Sq
RTSX200i-H 2.25 - 22.5 N-m 1/4" M/Hex 1/4" F/Hex
RTSX200i 2.25 - 22.5 N-m 3/8" F/Sq 3/8" M/Sq
RTSX50F 6.8 - 67.8 N-m 3/8" F/Sq 3/8" M/Sq
RTSX100F 13.6 - 136 N-m 1/2" F/Sq 1/2" M/Sq
RTSX400F 54.2 - 542.4 N-m 3/4" F/Sq 3/4" M/Sq
RTSX738F 100 - 1000 N-m 1" F/Sq 1" M/Sq
RTSX1500F 203.3 - 2033 N-m 1 1/2" F/Sq 1 1/2" M/Sq

Video


Related Products

PTT PTT Torque Analyzer


  • System Accuracy +/- 0.5% of reading from 20% to 100% of full scale
  • Selection of six operating modes: Track, Peak, First Peak, Audit, Torque + Angle, and Tool Test.

More details

PTT PTT Torque Analyzer

LTT Torque and Angle Analyzer with USB Output


  • Accuracy +/- 0.5% of reading from 20% to 100% of full scale.
  • Provides “EZ-Plug & Play.” Features an instant auto-recognition system of the transducer connected to the LTT.

More details

LTT Torque and Angle Analyzer with USB Output

Specifications
Output at Rated Capacity > 6 Nm [53 lbf.in] rated torque 2 mV/V
Interchanegeability Matched for mv/v and shunt calibration +0.3% FS
Nonlinearity +0.2% FS
Excitation Recommended 10V DC or AC RMS
Bridge Resistance 350 ohms
Usable Temperature Range 41-122 degrees F
Safe Overload 125% of rated output

Buy Now
Products

Product
Price
Quantity
RTSX10i-H Transducer (11 - 113 N-cm)
€ 3.078,00
RTSX50i-H Transducer (56.5 - 565 N-cm)
€ 2.814,00
RTSX100F Inline Torque Transducer (13.6 - 136 N-m)
€ 3.129,00
RTSX400F Inline Torque Transducer (54.2 - 542.4 N-m)
€ 3.720,00

Accessories

Product
Price
Quantity
RTSX-PTT/LTT Connection cable
€ 199,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
