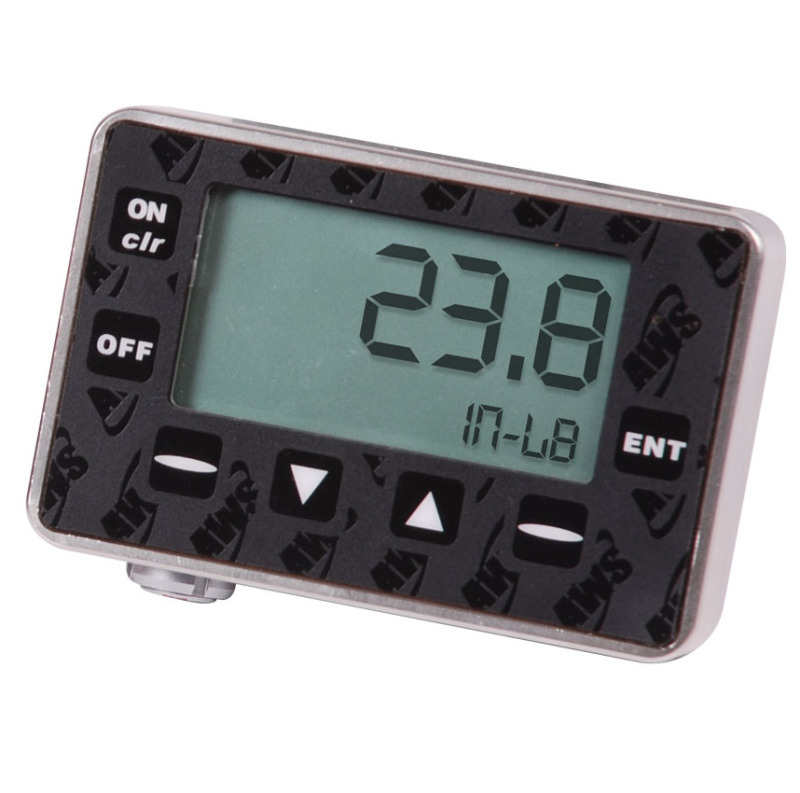

AWS-4050LC small portable torque display


Made in the USAThis pocket sized display is very convenient for use alongside any metrology grade tester and represents our smallest display to date.

Though small in size, it ensures a high accuracy, ease of use and superior quality of all our products.

Test parameters can be changed within a few seconds and it can be operated via one button or an automatic mode. The Intellect Transducer interface allows for any compatible transducer to be connected  to the AWS-4050LC without requiring any further input from the operator.

Reliability and ease of use are enhanced with features such as: Sign Lock, Peak Blanking, Auto Clear, One Button scroll-through memory, and a Menu Lock-Out.


Features
  • One button access to all functions.
  • Bidirectional accuracy of ±0.5% of indicated reading with AWS transducers, ±1% of indicated reading with rotary transducers.
  • # Eight (8) available engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm.
  • 3 modes of operation: Track, Peak and 1st Peak.
  • RS-232 output.
  • Machined aluminum case.
  • NiMH rechargeable batteries provide at least 8-10 hours continuous use.
  • Selectable power tool filtering speeds: 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz.
  • Can be calibrated to virtually any manufacturer’s strain gauge transducers.
  • For testing click, dial, and digital wrenches, plus most power tools including impulse and DC electric.

Related Products

AWS-4050 Digital Torque Display


  • Eight (8) available engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm.
  • Can be calibrated to virtually any manufacturer’s strain gauge transducers.
  • Bidirectional accuracy of ±0.5% of indicated reading with AWS transducers, ±1% of indicated reading with rotary transducers.
  • 3 modes of operation: Track, Peak and 1st Peak.
  • Selectable power tool filtering speeds: 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz.

More details

AWS-4050 Digital Torque Display

Series IT Bench Mounted Torque Sensor



More details

Series IT Bench Mounted Torque Sensor

Specifications
Line Input Power12 VDC
Battery Input PowerNiMH
Operating Temp0-50°C
Weight1.3 lbs
Dimensions5.5" x 2.5" x 1.5" (LxWxH)

Buy Now
Product

Product
Price
Quantity
132639
AWS-4050LC - Portable Torque Display with Intellect and Memory
€ 1.360,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
