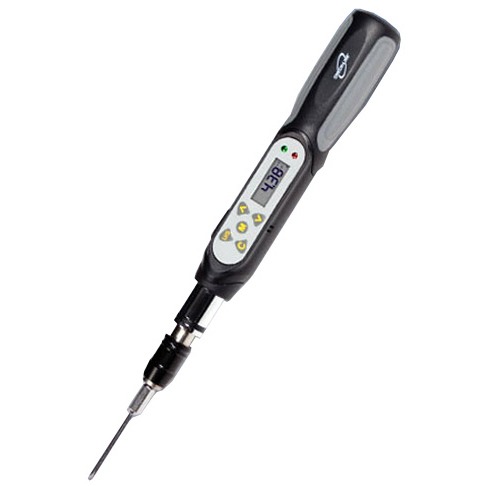

TSD Torque Screwdriver


The new TSD manual torque measuring screwdriver is designed for accurate measurement of application and removal torque of screws and fasteners. An LCD display measures bi-directional torque in real-time or peak modes.

2 models
TSD-50: Measuring Range: 5.0 - 50.0 cN-M
TSD-400: Measuring Range: 40.0 - 400.0 cN-M

The TSD has an accuracy of CW +/- 2% & CCW +/- 3% of indicated reading and has 9 programmable setpoints that provide both an audible beep and green/red LED indicator for precision torque application.

tsd-2 display


Features
  • Clockwise & Counter Clockwise Torque Measurement
  • Real time & Peak Torque Measurement
  • 9 Programmable Target Torque Setpoints

Tension Ranges
ModelRanges Resolution
TSD-50 0,45 - 45 lb-in
5 - 50 cN-M
0,5 - 5 kg-cm
0.01 lb-in
0.1 cN-M
0.01 kg-cm

TSD-400 3,5 - 35 lb-in
40 - 400 cN-M
4 - 40 kg-cm
0.01 lb-in
0.1 cN-M
0.01 kg-cm


Related Products

DID-4 Digital Torque Screwdriver


  • Peak, Real Time and Peak Down measuring mode (selectable)
  • Both CW and CCW ratchett and fixed operation
  • 800 data memory for recall or for SPC download
  • Runs on internal NiCad batteries (for 8 hours) Auto shut-off after 10 min. of non-use

More details

DID-4 Digital Torque Screwdriver

Complete Kit

The TSD is supplied as a complete kit in hard plastic case, including:
- Torque screw driver,
- Phillips size 0 bit (55mm length)
- Instruction manual,
- Factory calibration certificate
- 1 AAA battery



Specifications
Accuracy
Clockwise: +/- 2% of indicated reading +/- 1 LSD (between 20 - 100% of capacity)
CounterClockwise: +/- 3% of indicated reading +/- 1 LSD (between 20 - 100% of capacity)
Display
4 digit LCD
GO/NO GO testing
9 Programmable setpoints with both audible beep and Green/Red LED indicator
Memory
50 readings
Power Supply
One (1) AAA Battery (included)
Auto Power Save
Automatic switch off after 5 minutes of non-use
Operating Modes
Peak and Track
Working Time
12 hours continuous use
Bit Size
1/4 Inch - 6.35 mm Hex
Weight
430g
Dimensions
Length (without bit): 200mm / Diameter at largest point: 29.5mm
Warranty
1 Year

Buy Now
Products

Product name
Price
Quantity
TSD-50 - Digital Torque Screwdriver - 5 - 50 cN-M
€ 295,00
TSD-400 - Digital Torque Screwdriver - 40-400 cN-M
€ 295,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
