TD-1-TE Tension Indicator

The TD-1-TE Tension Indicator is no longer available and has been replaced by SC-PM.
Click here to see the SC-PM.

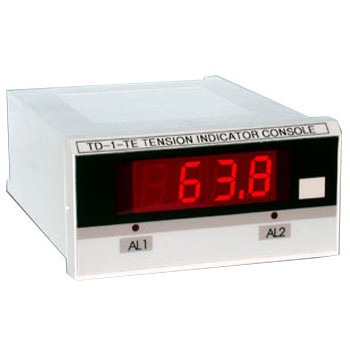

Made in the USAProvides an accurate tension display for all Check-Line sensors on a bright LED display. It is easy to set up and use, and permits easy flush panel mounting in a 1/8 DIN cutout.

  • User-set High & Low Alarm Limits with relays
  • TD-1 provides regulated +5 V DC for SR sensors
  • 4-20 mA and 0-10 VDC analog output for recording and control purpose
  • TD-1-TE provides regulated +15 V DC for THR Sensors (requires option "A" on Tension Sensor)
  • Optional Connecting Cable for Sensor

Display Range 0-1999
Display 3½-digit Red LED, 14.4 mm high
Decimal Point User selected via internal jumper
Power For Sensors + 5 V DC, regulated (TD-1)
+ 15 V DC, regulated (TD-1-TE)
Analog Output 4-20 m A or 0-10 V DC, user selected
Frequency Response 100 Hz
Enclosure High-Impact Plastic
Dimensions 96 mm Lx 48 mm H x 103 mm D
(3.78" L x 1.89" H x 4.04" D)
Panel Cutout (TD-1) 92 x 44mm
Operation Temperature 0-50° C (32 to 122° F)
Relay Operation Hi-Hi/Hi or Hi-Lo
Relay Rating 1 Amp @ 250 V AC/30 V DC, normally open
Power Required 115/230 VAC ±10%, 50/60 Hz
