G1086 Coefficient of Friction Fixture

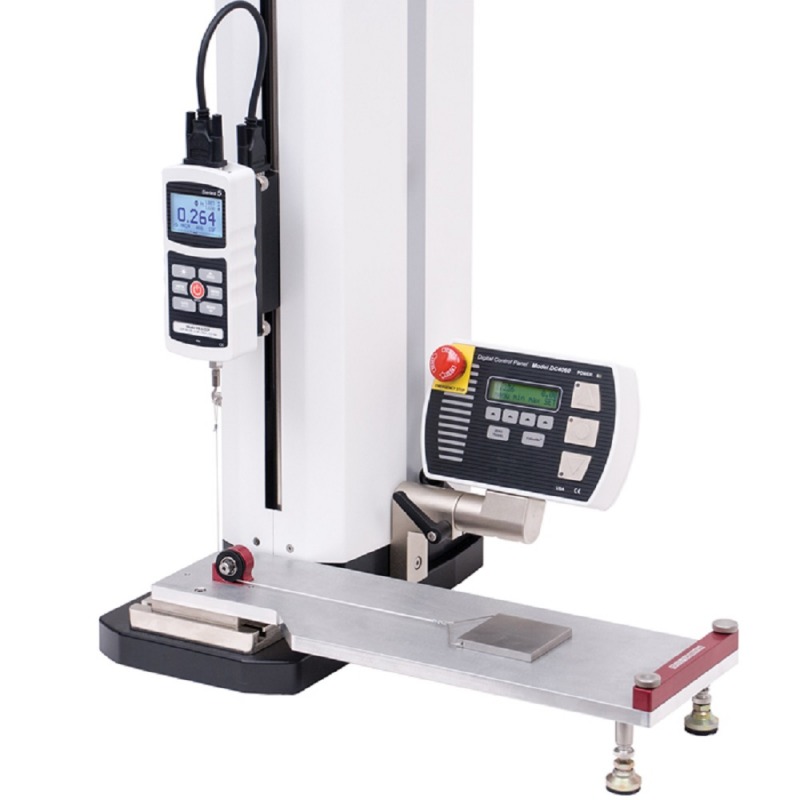

Made in the USAThe G1086 COF Fixture is an integral component of a Coefficient Of Friction (COF) testing setup, which also comprises a COF gauge and/or a test stand.

Designed to work seamlessly with the following test stand models: F105, F305, F505, F755, F755S, ESM303. Adapters are readily available for other compatible models.
In situations where the Series F test stand with IntelliMesur is utilized, the gauge is already integrated, necessitating only the addition of a force sensor.

This fixture is comprised of various components, with the bed constructed from durable 6061 T6 aluminum. Adjustable mounting feet guarantee a level working surface, while an integrated clamp securely fastens the base material in place.

A 200-gram sled is connected to the load cell of the measuring device via a cable, which passes through a low-friction pulley. As the test stand crosshead ascends, the cable is pulled around the low-friction pulley, propelling the sled across the test material. The gauge records both static and kinetic coefficients of friction, depending on the specific gauge in use.

The versatility of the G1086 allows it to be employed across a wide range of materials, and it adheres to the testing standards set forth by ASTM D1894 and other relevant regulations.

For your convenience, the G1086 is available in a comprehensive kit, along with the M5-2-COF gauge, designated as COF-K1.


Features
  • Mount directly to frame models: F105, F305, F505, F755, F755S, ESM303, ESM301. Adapters available for other models.
  • COF-K1, Fixture + Gauge, Kit is available.
  • Allows for static and kinetic COF measurements.
  • Includes 200 g sled and sample clamp.
  • Maximum sled distance is 265 MM

Dimensions
Dimensions-G1086


Dimension s for the G1086 COF fixture.

All dimensions are in inch and [mm]


Complete Kit

The G1086 COF comes with:

  • a large work table
  • sample clamp
  • adjustable mounting feet
  • level
  • 200 g sled
  • cable
  • low-friction pulley


Video G1086-COF


Accessories

M5-2-COF Coëfficiënt Of Friction Gauge


  • Calculates static and kinetic coefficients of friction
  • Configurable sled weight (100 - 1000 g)
  • USB, RS-232, Mitutoyo, and analog outputs

More details

M5-2-COF Coëfficiënt Of Friction Gauge 127255

ESM303 Motorized Teststand with PC Control


  • Selectable speed setting
  • Adjustable, removal controller with intuitive menu navigation
  • Stepper motor-driven, producing smooth and quiet operation with no speed variation under load

More details

ESM303 Motorized Teststand with PC Control 127201

Series F test frames with IntelliMESUR® F105 / F305 / F505 / F505H


  • Set up, run, and analyze data via the integrated IntelliMESUR® control panel
  • Integrated motion control and data collection solution with seamless interface for FS05 force sensor without cables
  • Plug & Test® system can work with third-party load cells through PTAF adapter

More details

Series F test frames with IntelliMESUR® F105 / F305 / F505 / F505H 127400

Mesurgauge / Mesurgauge plus Load & Travel Analysis Software


  • Sends data from a force or torque gauge and travel display to a PC for further analysis

More details

Mesurgauge / Mesurgauge plus Load & Travel Analysis Software 126514

Specifications
Maximum sled travel:265 mm (10.5 in)
Table surface material:6061 T6 aluminum
Sled material:303 SS
Weight:3.4 kg (7.4 lb)
Shipping weight4,5 kg (10 lb)
