G1077 Clevis Grip

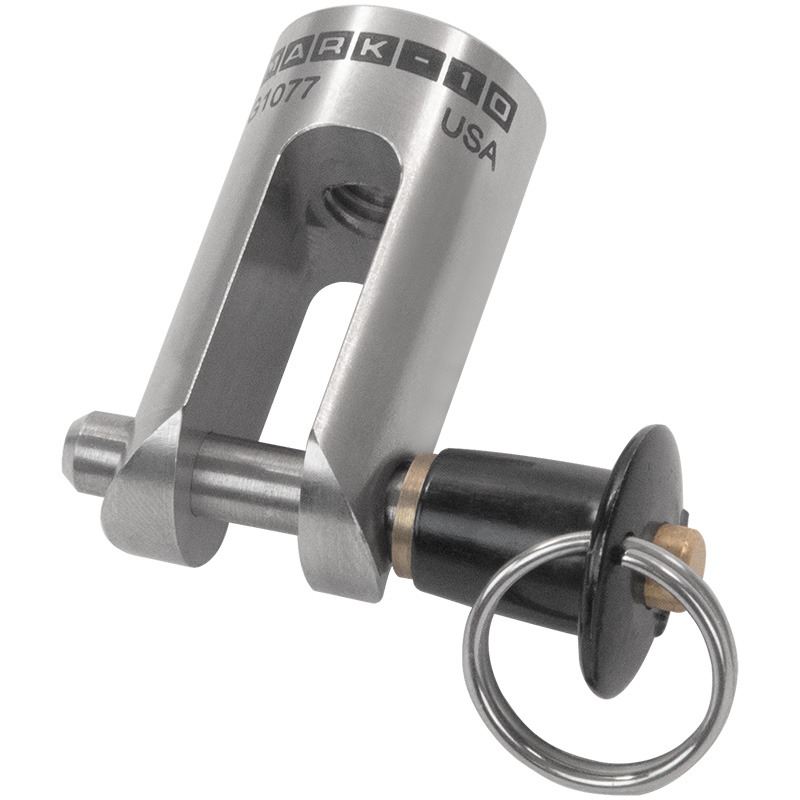

Made in the USAThe G1077 Clevis Grip is designed as an intermediate connection between a force gauge or load cell and a chain, strap, hook or other pulling fixture.
It basically forms a connection between a threaded and a not threaded pulling feature.

The G1077 has a capacity of 2,2 kN and supports an opening of 9,7 mm on the business end.

A spring loaded pin with ball plunger locks into place, for added safety during testing.

Delivery Includes a 5/16-18M to #10-32F thread adapter, 5/16-18 M/M stud with jam nuts, and #10-32 M/M stud with jam nuts

You can find this fixture Included with all Mark-10 ergonomics testing kits.


Features
  • Secures a spring, chain, or other sample during tensile testing
  • A spring-loaded pin with ball plunger locks the pin in position

Dimensions
Dimensions-G1077


A (mm)B (mm)C (mm)ØD (mm)E (mm)ØF (mm)
43,231,89,721,636,86,3

Specifications
Capacity2200 N
Weight130 g
Shipping Weight500 g
