IBE Circular Internal Brush Electrodes


Made in GermanyInternal Circular Brush Electrodes for Porosity Holiday Detectors, Disk & Spiral Wound Brushes

Available in diameters of 2" (50mm) to 20" (508mm)

Applications
Verification of porosity or holidays in the interior of pipelines or circular surfaces.


Features

  • Suitable for all High Voltage Porosity detectors, holiday detectors, spark testers and jeepers.
  • The circular disk brushes are available in standard sizes of 4" (102mm) to 20" (508mm) diameters. Larger sizes available upon request.
  • The 2" (51mm), 2-1/2" (63mm) & 3" (76mm) diameter brushes are spiral wound.
  • 1/2 and 1/3 circumference brushes also available.

Buy Now

Products


Product name
Price
Quantity
0151 - 2in / 51mm Circular Internal Brush Electrodes
€ 80,00

0152 - 2.5in / 63mm Circular Internal Brush Electrodes
€ 85,00

0153 - 3in / 76mm Circular Internal Brush Electrodes
€ 90,00

0154 - 4in / 102mm Circular Internal Brush Electrodes
€ 100,00

0155 - 5in / 127mm Circular Internal Brush Electrodes
€ 105,00

0156 - 6in / 152mm Circular Internal Brush Electrodes
€ 115,00

0157 - 8in / 203mm Circular Internal Brush Electrodes
€ 125,00

0158 - 10in / 254mm Circular Internal Brush Electrodes
€ 135,00

0159 - 12in / 305mm Circular Internal Brush Electrodes
€ 145,00

0160 - 14in / 356mm Circular Internal Brush Electrodes
€ 155,00

0161 - 16in / 406mm Circular Internal Brush Electrodes
€ 165,00

0162 - 18in / 457mm Circular Internal Brush Electrodes
€ 175,00

0163 - 20in / 508mm Circular Internal Brush Electrodes
€ 185,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request

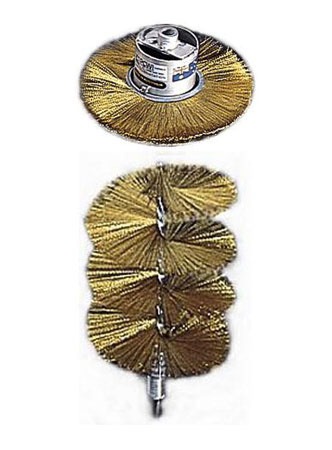

Note: Internal Brushes from 2" to 3" are Spiral wound. Internal Brushes from 4" up are Discs.
