EKM5 Myometer Kit
The EKM5 Myometer Kit with the Series-5-200 Digital Force Gauge is developed to facilitate ergonomic studies, and a wide range of strength assessments. With this kit compression and tension can be measured up to 100 kg (1 kN).
The Force Gauge has a sampling rate of 7.000 Hz, an accuracy of ±0,1% of full scale and a resolution of 1/5000which make it capable of highly accurate force measurements.
The easy menu navigation makes for efficient use of the extensive features and configurable parameters of this device.
The EKM5 accommodates a memory up to 1000 measurements with statistical calculations, average force over-time and data output.
Data connectivity is provided through RS-232, Mitutoyo (Digimatic), USB or analog outputs.
This kit comes with MESUR® Lite data acquisition software.
MESUR® Lite tabulates continuous or single point data. One-click export to Excel allows for further data manipulation.
The Series-5 Force Gauge in de kit is compatible with a wide range of attachments to expand its possibilities, making it ideal for ergonomists and other professionals.
Features
- 1,000 N force capacity
- Measures real time, average, and peak pull and push forces
- Accuracy of ±0.1% of full scale
- Sampling rate of 7,000 Hz
- USB, RS-232, and analog outputs
- High / low limit indicators, for pass / fail and minimum force testing
- 1,000-point data memory with statistical calculations. Data may be bulk downloaded to included MESUR® Lite data collection software.
- Force gauge is compatible with other Mark-10 grips and attachments
The EKM5 Myometer kit comes with:
- M5-200 advanced force gauge
- Carrying case

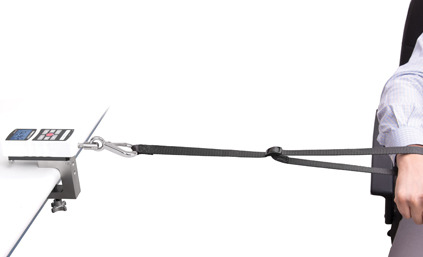

- Tabletop mounting kit for force gauge, for vertical or horizontal orientations
- Adjustable length looped strap
- G1107 snap hook
- AC adapter/charger
- MESUR® Lite data collection software
- USB cable
- NIST-traceable certificate of calibration with data
Dimensions
Series-5 Force Gauge model M5-200 dimensions
All dimensions are noted in Inches with metric sizes in (mm) behind.
Load Cell Thread: 5/16-18 UNC
Hex size: 11/32 [8.74]
| EK3 kit (Series-3) | EKE kit (Series E) | EKM5 Myometer (Series-5) | |
|---|---|---|---|
| Accuracy | ±0.3% | ±0.2% | ±0.1% |
| Sampling rate | 2000 Hz | 7000 Hz | 7000 Hz |
| Units of measurement | lbF, kgF, N | lbF, ozF, kgF, N, kN | lbF, ozF, kgF, N, kN |
| Data outputs | USB | USB | USB, RS-232, Mitutoyo, analog |
| Averaging mode | - | Yes | Yes |
| On-board data memory & statistics | - | Yes up to 5000 readings | Yes 1.000 readings, with output |
| Continuous data capture | - | Yes | Yes |
| Accessory mounting | Traditional mounting threads | Click-LockTM Technology | Traditional mounting threads |
| Password protection | - | Yes | Yes |
| Available accessories: | - | - | - |
| - Single handle grip | Yes | Yes (in professional kit) | Option |
| - Double handle grip | Yes | Yes (both kits) | Option |
| - Padded attachment, curved | Yes | Yes (both kits) | Option |
| - Padded attachment, flat | Yes | Yes (both kits) | Option |
| - Padded attachment, square | Yes | Yes (in professional kit) | Option |
| - Padded attachment, circular | - | Yes (in professional kit) | - |
| - Hook | - | Yes (both kits) | - |
| - Chain / hook assembly | - | Yes (in professional kit) | - |
| - Pistol grip | - | Yes (in professional kit) | Option |
| Myometer kit | - | Option | Yes |
| MESUR-Lite software included | Yes | Yes | Yes |
Series E - Ergonomics Force Gauge for Compression and Traction
- Data memory for 5000 measured values - measured values can be stored manually or continuously with up to 7000 Hz
- Measures compressive and tensile force peak values
- Statistical functions for stored measured values
More details
EK3 Ergonomic Testing Kit
- High-speed 2,000 Hz sampling rate
- USB data output of continuous or individual data points
- Ultra compact size
More details
Accessories
Mesurgauge / Mesurgauge plus Load & Travel Analysis Software
- Sends data from a force or torque gauge and travel display to a PC for further analysis
More details
Cic-Force Calibration Force Gauge
- Easy planning of calibration
- Short turnaround
- Exclusively in accordance with Deutscher Kalibrierdienst (DKD) working standards, class F1; calibration-no: 19026 - 07
More details
Specifications
| Accuracy | ±0.1% of full scale |
| Sampling rate | 7,000 Hz |
| Power | AC or rechargeable battery. Multi-step low battery indicator is displayed. Gauge shuts off automatically when power is too low. |
| Battery life | Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use |
| Capacity x Resolution | 200 x 0.05 lbF 3200 x 1 ozF 100 x 0.02 kgF 1000 x 0.2 N 1 x 0.0002 kN |
| Outputs | USB/RS-232: Configurable up to 115.200 baud. Automatic output available up to 250 Hz. Including Gauge Control Language 2 for full computer control. Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices. Analog: ±1 VCD, ±0,25% of full scale at capacity General purpose:Three open drain outputs, one input Set points: Three open drain lines |
| Safe overload | 200% of full scale (display shows “OVER” at 110% and above) |
| Warranty | 3 years |
Buy Now
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
