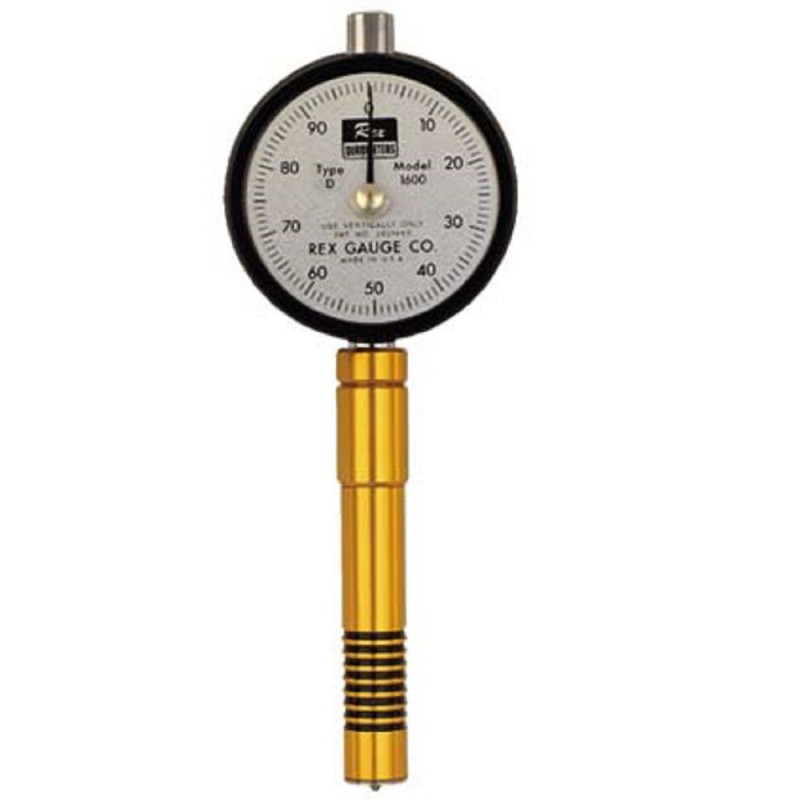

RX-1600 Precision Durometer


Made in the USAThe Checkline RX-1600 Durometer is the standard model for good reason. The gauge features a full-sized dial face for readability to within 1/2 point. The RX-1600 offers the maximum accuracy available in a dial model gauge at a minimum cost.

Type M Durometers require test stand RX-OS-3 per ASTM D2240.

Available Scales: A, B, CF, D, DO, M, O, OO, OOO, OOO-S, RR (Asker, ISO, DIN & JIS Scales also available, inquire)

All RX-1600 models are supplied with a NIST traceable calibration certificate.


Features

  • Includes NIST-Traceable Calibration Certificate
  • One year warranty
  • Conforms to ASTM D-2240
  • Full 360 degree sweep
  • Minimum Sample Thickness -Type A = 6 mm (1/4") -Type M = 1.25 mm (0.050")
  • Optional Removable Stainless Steel Barrel for Medical and Food Applications

Operating Principle


Related Products

RX-DD Digital Durometer


  • Includes NIST-Traceable Calibration Certificate
  • One year warranty
  • Optional Removable Stainless Steel Barrel for Medical and Food Applications

More details

RX-TBK-A Type A Durometer Test Block Kit


  • Enables the user to perform a quick check for proper durometer operation

More details

RX-BF 'Big Foot' Durometer Foot Adapter


  • The Big Foot increases the diameter of the foot from 1/2" to 1 3/8" diameter

More details

RX-CLW Constant Load Weight for Types A, B, O, OO & OOO


  • The Constant Load Weight for gauges with an 822g springload (types A, B, O) slides onto the lower barrel of the gauge, gives it a wider foot, and raises the mass of the gauge to the suggested 1kg

More details

RX-ORF O-Ring Fixturing Set


  • Measures O-Rings 1/16" to 1/4"
  • 5 standard English sized fixtures and set plug included
  • Stainless steel construction

More details

Cic-Duro Durometer Calibration


  • Exclusively NIST-certified testing equipment
  • Possibility to adjust and repair

More details


Accessories

RX-DIN-FA ASTM to DIN 53505 Adapter for RX durometers


  • Special attachment gives you two gauges in one model.
    With attached, the gauge confirms to DIN 55305 norm.
    When taken off, the gauge is conform ASTM D2240.

More details


Durometer Test Stands


durometer test stands We offer a complete line of durometer test stands. The stand, when used in conjunction with a Durometer, eliminates operator error sometimes associated with hand-held durometer testing. Our stands feature a load weight for the proper testing pressure as noted in ASTM D2240, and a quick-lock column for easy adjustment. Click here for more info on Durometer Test Stands.


Available Models

Type



Indentor Shape Force
A

Flat cone point, 35º Included Angle
Soft rubber, plastics, and elastomers, printer's rolls.
822 Gr
B

Sharp cone point, 30º Included Angle
Harder elastomers and plastics. Paper and fibrous materials, Use above 93 Duro A.
822 Gr
C

Flat cone point, 35º Included Angle
Medium hard elastomers and plastics. Also useful to avoid surface marks.
4536 Gr
D

Sharp cone point, 30º Included Angle
Hard rubber and plastics such as thermo plastics, flooring and bowling balls.
4536 Gr
DO

3/32" Spherical
Dense granular material, textile windings.
4536 Gr
O

3/32" Spherical
Very soft elastomers, textile windings, soft granular materials. Use below 20 Duro A.
822 Gr
OO

3/32" Spherical
Light foams, sponge rubber gels, animal tissue.
113 Gr
OOO

1/2" Spherical
Ultra soft gels and sponge rubber.
113 Gr
M

Sharp cone point, 30º Included Angle
Materials as thin as .050"
-



Type



Comparison Table
A 10 20 30 40 50 60 70 80 90 100
B 10 20 30 40 50 6 0 70 80 90 100
C 10 20 30 40 50 60 70 80 90 100
D 10 20 30 40 50 60 70 80 90 100
DO 10 20 30 40 50 60 70 80 90 100
O 10 20 30 40 50 60 70 80 90 100
OO 10 20 30 40 50 60 70 80 90 100
OOO Not inside scale
M 30 40 50 60 70 80 90

This chart is for comparison purposes only.
It cannot be used for conversion reference.




Slim Probe Durometers
SlimProbe Durometers
We offer custom slim probe versions of most durometer models and types. The slim probe attachment can be modified to fit your specific needs or applications.



Click here for more information


Dimensions


Complete Kit

The RX-1600 will be delivered as a complete kit including:

- RX-1600 durometer
- Carrying case



Specifications

Measuring Range
0 - 100 units
Accuracy*
±1 durometer unit (A,B,C,D,E,O,DO)
±2 durometer units (OO,OOO)
±4 durometer units (M)
Dimensions
2.25" x 6.125"H
Weight
6 oz.
* Note
per ASTM D 2240-05, Sect 9.3: It is accepted that durometer readings below 20 or above 90 are not considered reliable. It is suggested that readings in these ranges be omitted.

Buy Now

Products


Product name
Price
Quantity
RX-1600-A Type A Durometer
€ 385,00

RX-1600-D Type D Durometer
€ 385,00

RX-1600-B Type B Durometer
€ 449,00

RX-1600-C Type C Durometer
€ 449,00

RX-1600-DO Type DO Durometer
€ 449,00

RX-1600-O Type O Durometer
€ 449,00

RX-1600-OO Type OO Durometer
€ 449,00

RX-1600-OOO Type OOO Durometer
€ 808,00

RX-1600-M Type M Durometer
€ 808,00

RX-1600-E Type E Durometer
€ 808,00

RX-1600-ASK-D - RX-1600 Asker D Durometer
€ 808,00

RX-1600-AM ISO 7619 Durometer
€ 1.223,00



Accessories


Product name
Price
Quantity
RX-DIN-FA - ASTM to DIN 53505 foot adapter
€ 132,00

€ 0,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
