Series-2 Economical Digital Force Gauges


Made in the USA

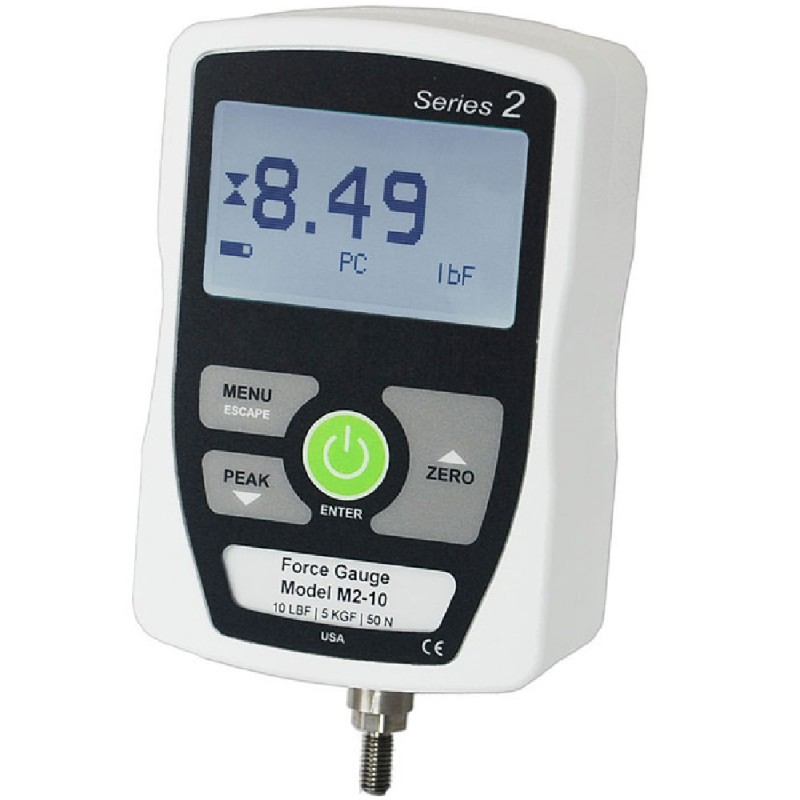

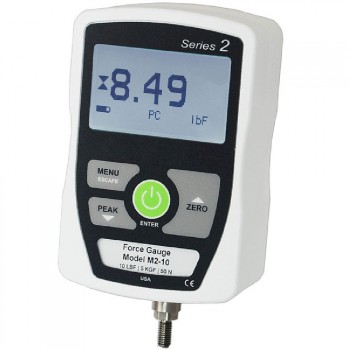

The Economical Series-2 Digital Force Gauges are developed as an entry gauge for basic force testing applications.
With its accuracy of ±0,5% and a 500Hz sampling rate and peak readings this device captures reliable readings for applications in both production and laboratory environments.

The compact Series-2 Digital Force Gauge comes in 8 force versions ranging from 10 to 2500N.
It features a backlit graphic display comes in an aluminum reversible housing and can be used as hand held or fixture mounted device.
Series-2 Force Gauges are compatible with a wide range of test stands and gripping fixtures.

The Digital Mark-10 Series Force Gauge range is available in a variation of 5 gauges with each gauge type available in a scale of force ranges.
Each type of gauge has its own specifications, the table below shows the main specifications of each gauge type.
All gauges types are equipped with a rechargeable battery, a back lit display and reversible aluminum housing.
The Series-# Digital Force Gauges are designed  to be used for measuring tension and compression forces.

Mark-10 Digital Force Gauges are versatile instruments, in general they are combined with additional equipment to a purposely build system to perform the required tasks.

We are happy to assist you in finding the most suitable configuration for your needs. Please contact us for more information.


Features
  • Calculates peak tension and compression values
  • 3 selectable units of measurement
  • Ultra-compact, ergonomic housing
  • Configurable default measurement unit and mode
  • 500 Hz sampling rate
  • Large, backlit graphic display with auto-dimming
  • Powered by rechargeable battery or AC adapter
  • Reversible housing for alternate load cell orientation
  • 3 Year Warranty

Force Ranges, Capacity & Resolutions
ModellbFkgFN
M2-22 x 0,0021 x 0,00110 x 0,01
M2-55 x 0,0052.5 x 0,00225 x 0,02
M2-1010 x 0,015 x 0,00550 x 0,05
M2-2020 x 0,0210 x 0,01100 x 0,1
M2-5050 x 0,0525 x 0,02250 x 0,2
M2-100100 x 0,150 x 0,05500 x 0,5
M2-200200 x 0,2100 x 0,11000 x 1
M2-500500 x 0,5250 x 0,22500 x 2

Load Cell Thread Specifications
GaugeM2-2 – M2-100M2-200 - M2-500
Load Cell Thread #10-32 UNF5/16-18 UNC

LCD Display

Display


Reversible housing

reversible housing


Complete Kit

The Series-2 is supplied as a kit including:

  • force gauge
  • AC adapter
  • battery
  • quick-start guide
  • resource CD (user's guide)
  • NIST-traceable certificate of calibration (data is available for an additional charge)


Dimensions
Dimensions-Series-2


Series-2 force gauge models M2-2 tot M2-500 all have the same dimensions

All dimensions are noted in Inches with metric sizes in (mm) behind.


Accessories

Category Mark-10 Attachments


More details

Category  Mark-10 Attachments 1074

Cic-Force Calibration Force Gauge


  • Easy planning of calibration
  • Short turnaround
  • Exclusively in accordance with Deutscher Kalibrierdienst (DKD) working standards, class F1; calibration-no: 19026 - 07

More details

Cic-Force Calibration Force Gauge 127037

G1024-G1031 Extension Rods



    More details

    G1024-G1031 Extension Rods 126108

    G1026-G1033 Cones



      More details

      G1026-G1033 Cones 126111

      G1025-G1032 Chisels



        More details

        G1025-G1032 Chisels 126109

        G1027-G1034 V-Grooves


        • 200 lb / 500 lb capacity,
        • Compression testing

        More details

        G1027-G1034 V-Grooves 126112

        G1029-G1036 Flat Head


        • General compression testing
        • Compatible with Checkline force gauges
        • 200 lb / 500 lb capacity

        More details

        G1029-G1036 Flat Head 126107

        G1028-G1038-G1035-G1042 Hooks


        • General tensile testing
        • Bluedot Capacities up to 1,000 lb
        • Select from four sizes, snap hook is available

        More details

        G1028-G1038-G1035-G1042 Hooks 126110

        G Series Thread Adapters & Couplings



          More details

          G Series Thread Adapters & Couplings 126105

          Specifications
          Accuracy±0,5% of full scale
          Sampling Rate500 Hz
          PowerAC or rechargeable battery.
          Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
          Battery LifeBacklight on: up to 24 hours of continuous use
          Backlight off: up to 92 hours of continuous use
          Measurement UnitsN, lbF, kgF
          Safe Overload200% of full scale (display shows “OVER” at 110% and above)
          WeightM2-2 – M2-100: 0,33 kg [0.7 lb]
          M2-200 – M2-500: 0,41 kg [0.9 lb]
          Environmental Requirements0 - 40°C, max. 96% humidity, non-condensating
          Warranty3 years
          Country of OriginUSA

          Force Gauge comparison table
           Series-7 ProfessionalSeries-5 AdvancedSeries-4 PerformanceSeries-3 BasicSeries-2 Economical
          Accuracy±0,1%±0,1%±0,2%±0,3%±0,5%
          Sampling rate14.000 Hz7.000 Hz3.000 Hz2.000 Hz500 Hz
          Resolution1/5.0001/5.0001/2.0001/1.0001/1.000
          Units of measurementlbF, ozF, gF, kgF, N, kN, mN (depending on model)lbF, ozF, gF, kgF, N, kN, mN (depending on model)lbF, ozF, gF, kgF, N, kN, mN (depending on model)lbF, gF, kgF, N (depending on model)lbF, kgF, N
          OutputsUSB, RS-232, Mitutoyo, AnalogUSB, RS-232, Mitutoyo, AnalogUSB, RS-232, Mitutoyo, AnalogUSBNo
          - RS-232Configurable up to 230.400 baudConfigurable up to 115.200 baudConfigurable up to 115.200 baudNoN/A
          - USBConfigurable up to 230.400 baudConfigurable up to 115.200 baudConfigurable up to 115.200 baudConfigurable up to 115.200 baudN/A
          - Mitutoyo (Digimatic)Serial BCD suitable for all Mitutoyo SPC-compatible devicesSerial BCD suitable for all Mitutoyo SPC-compatible devicesSerial BCD suitable for all Mitutoyo SPC-compatible devicesNoN/A
          - Analog±1 VDC, ±0,25% FS at capacity. Positive for compression, negative for tension±1 VDC, ±0,25% FS at capacity. Positive for compression, negative for tension±1 VDC, ±0,25% FS at capacity. Positive for compression, negative for tensionN/ANo
          - General purpose I/OThree open drain outputs, one inputThree open drain outputs, one inputThree open drain outputs, one inputN/ANo
          - Set pointThree open drain linesThree open drain linesThree open drain linesN/ANo
          Mesur-Lite software includedYesYesYesYesNo
          Data output functionalityAutomatic output or by pressing DATA button, or requesting from a PC or other device.Automatic output or by pressing DATA button, or requesting from a PC or other device.By pressing DATA button, or requesting from a PC or other device (currently displayed reading only).By pressing DATA button, or requesting from a PC or other device (currently displayed reading only).N/A
          ASCII command set for external controlFull command setFull command set“?” only (request current reading)“?” only (request current reading)N/A
          Interface w/MESUR® gauge and MESUR® LiteFull communicationFull communicationSingle point or continuous data output onlySingle point or continuous data output onlyN/A
          Interface with ESM303 / 750 / 1500 test standsFull communication, including PC controlFull communication, including PC controlLimited to force data, overload protection, and force set pointsN/ANo
          Data memory5.000 readings, with output1.000 readings, with output50 readings, with outputNoNo
          Data memory deletionAny individual data point, or clear allAny individual data point, or clear allAny individual data point, or clear allN/AN/A
          Statistic calculations and output to PCMax, min, mean, std. dev., number of readings, with outputMax, min, mean, std. dev., number of readings, with outputMax, min, mean, std. dev., number of readings, with outputN/AN/A
          Break detectionYesNoNoNoNo
          1st / 2nd peak detectionYesNoNoNoNo
          Programmable footswitch command stringYesNoNoNoNo
          Averaging modeYesYesNoNoN/A
          External trigger modeYesYesNoNoNo
          Analog load bar graph shown on displayYesYesYesYesNo
          Set points (for pass / fail indication)Yes with high / low indicators, markers on analog bar graph, and outputsYes with high / low indicators, markers on analog bar graph, and outputsYes with high / low indicators, markers on analog bar graph, and outputsYes with high / low indicators, markers on analog bar graph, and outputsNo
          Password protectionYes, for calibration and individual keysYes, for calibration and individual keysNoNoNo
          Peak readings always displayedYesYesYesYesNo (Peak mode must be selected)
          Programmable audible tonesYesYesYesYesNo
          Calibration procedureConfigurable number of data points (up to 10 in each direction)Configurable number of data points (up to 10 in each direction)Configurable number of data points (up to 10 in each direction)Configurable number of data points (up to 10 in each direction)Configurable number of data points (up to 10 in each direction)
          Overload outputsDedicated pins for tension and compressionDedicated pins for tension and compressionDedicated pins for tension and compressionNoN/A
          Safe overloads200% of full scale (display shows warning at 110% and above)200% of full scale (display shows warning at 110% and above)200% of full scale (display shows warning at 110% and above)200% of full scale (display shows warning at 110% and above)200% of full scale (display shows warning at 110% and above)
