PZX-7DL Data-Logging Precision Ultrasonic Wall Thickness Gauge with USB Output


Range with Standard Delay Line Transducer

0.150 - 25.40 mm

Range with Contact Transducers
up to 915.0 mm

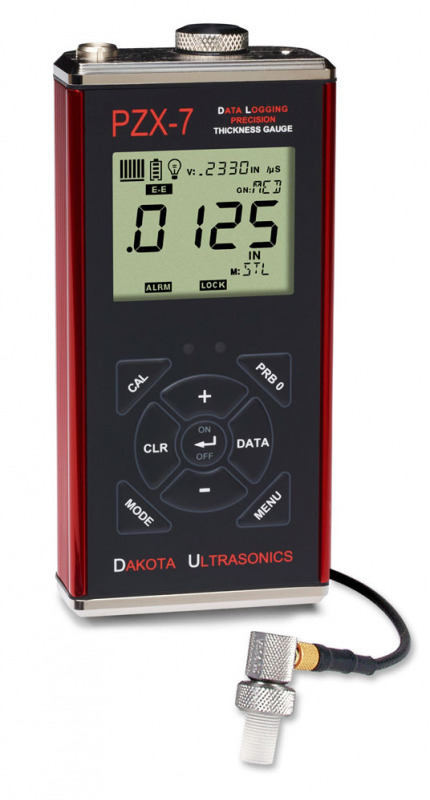

The Dakota PZX-7DL is a precision ultrasonic wall thickness gauge designed for high-resolution measurements on thin-wall metal and plastics. It is packaged in a sturdy extruded aluminum housing which is sealed for excellent environmental protection assuring trouble-free use even in the toughest field and production environments.

The built-in datalogger has a capacity of 10,000 data values stored in up to 40 batches with 250 values/batch which is transferred via the USB port using the supplied cable. The Dakota PZX-7DL does not require any software, it will be shown as a drive when connected to a PC allowing convenient drag-n-drop into your program of choice. Data is saved in a comma deliminated file format (.csv) which makes it compatible with all programs and software.

The PZX-7DL has measuring range in steel from 0.0060 to 1.0000 inch, (0.15 to 25.40 mm). Using a single element delay tip transducer, the gauges will measure thin materials and automatically remove any coatings in Echo-Echo Mode (E-E) as well as automatically switch to Interface Echo Mode (I-E)when measuring thicker materials, For measurement of plastics, the user would select Plastic Mode (PLAS) and use the option Graphite Delay Line Tip (p/n X-633-0000).

Additional Measuring Modes include Differential (DIFF) where a user sets a "nominal value" and the gauge displays the ± difference between then nominal and actual wall thickness, Alarm (user-set Hi/Low Limits) trigger Hi/Lo LED's when the measured values are out of tolerance and Velocity Mode

The PZX-7DL can also be used with single element contact transducers for wall thickness measurements up to 36 inches (923 mm).


Features
  • Total Measuring Range(Steel): 0.150 - 25.40 mm (depending on transducer/probe type and material)
  • Sequential data storage, 40 files of 250 readings per file, for 10,000 readings
  • Resolution of 0.001 mm
  • Measuring unit switchable between mm and inch
  • High visibility LCD Display is readable in all lighting conditions and temps as low -30 °C
  • Selectable Backlight ON/OFF/AUTO
  • Impact-resistant and environmentally sealed (IP 65) extruded aluminum housing
  • 5 Year Warranty

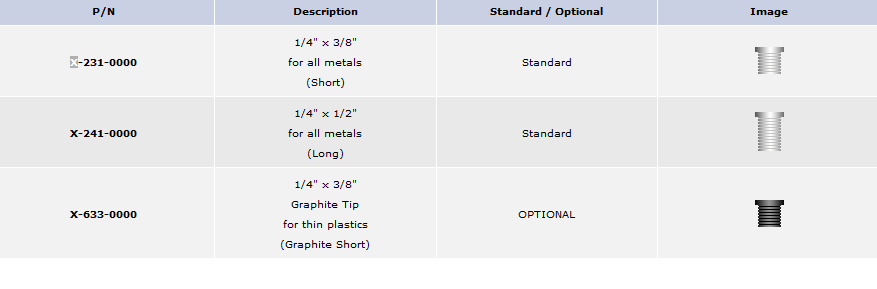

Delay Line Tips for PZX-7DL


Complete Kit
  • The PZX-7DL is supplied as a complete kit
  • with the PZX-7DL gauge
  • T-402-5507 probe
  • 120 ml bottle of coupling fluid
  • USB-C Data transfer cable
  • 2 AA batteries
  • NIST Traceable Calibration Certificate
  • Instruction Manual
  • (all in a foam-fitted carrying case)


Related Products

TI-007DLX for high-resolution measurements on thin-wall materials


  • Data storage for 10,000 measured values, in 40 stacks of 250 measured values each
  • 3 exchangeable measurement modes: Pulse-Echo (P-E), Interface-Echo (I-E) and Plastics (PLAS)
  • Resolution of 0.001mm

More details

TI-007DLX for high-resolution measurements on thin-wall materials

TI-PVX Precision Ultrasonic A-scan Wall Thickness Gauge


  • Multiple calibration options: One Point, Two Point, or selection from a Material List.
  • 16 factory setups and 48 user-defined setups. User defined setups can be edited for custom applications.
  • Hardware AGC gain control for multiple echo and thru-paint measurement.

More details

TI-PVX Precision Ultrasonic A-scan Wall Thickness Gauge

A-302-6002 Protection for TI series gauges



More details

A-302-6002 Protection for TI series gauges

Category Ultrasonic Thickness Gauge Accessories


More details

Category  Ultrasonic Thickness Gauge Accessories Ultrasonic Thickness Gauge Accessories

Specifications
Total Measuring Range with standard probe on steel: 0.15 - 924 mm
Probe (Standard): 1/4" diameter, 15 MHz delay line transducer with cable (p/n T-402-5507)
Probes (optional): Various Single Element Delay Line and Contact Transducers (5 to 20MHz)
Display Backlight: Backlight is selectable on/off/auto, and selectable brightness (Lo, Med, Hi) options
Operating Temperature: -30 to 75C
Measuring Modes: Pulse-Echo (P-E), Echo-Echo (E-E), Interface Echo (I-E) and Plastics (PLAS), Differential, Alarm, Scan and Velocity (VX)
Pulse Repetition Frequency (PRF): 200 Hz (200 pulses/sec)
Output: USB single value only (no internal memory)
Output Optional: RS-232 and Bluetooth
Display Update Rate: Display Update Rate
Housing: Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed)
Housing Protection: IP65
Battery Type: 2x AA 1.5V alkaline, 1.2V NiCad, or 1.5V lithium AA cells (rechargeable batteries can be used)
Keypad: Sealed membrane that is resistant to both water and petroleum products Seven or eight tactile-feedback keys
Cable: 1.2 m
Dimensions: 64 x 131 x 32 mm
Certifications: NIST Traceable and MIL-STD-45662A
Warranty: Gauge: 5 Years Probes: 90 Days

Buy Now
Product

Product
Price
Quantity
PZX-7DL Wall Thickness Gauge With Data Logging
€ 1.949,00

Accessories

Product
Price
Quantity
A-302-6002 - Protective Rubber Boot For TI-Series Small
€ 87,00
