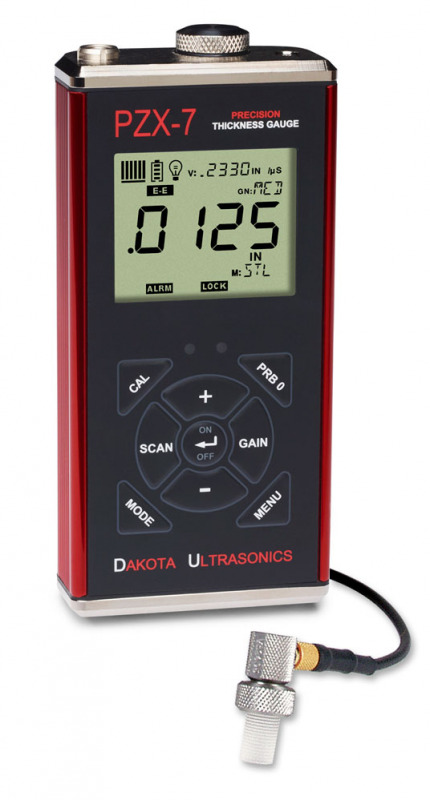

PZX-7 Precision Ultrasonic Wall Thickness Gauge


The PZX-7 is a precision ultrasonic wall thickness gauge designed for high-resolution measurements on thin-wall metal and plastics. The housings is made of  sturdy extruded aluminum with sealing for perfect protection assuring even in high-demaning field and production environments.

Measuring range:

Range with Standard Delay Line Transducer
0.150 - 25.40 mm

Range with Contact Transducers
up to 915.0 mm

With a single element delay tip transducer, the PZX-7 Precision Ultrasonic Wall Thickness Gauge will measure thin materials and automatically remove any coatings in Echo-Echo Mode (E-E) as well as automatically switch to Interface Echo Mode (I-E) when measuring thicker materials. The Plastic Mode (PLAS) is used for measuring thickness of plastic in combination with the option Graphite Delay Line Tip.

The PZX-7 can also be used with single element contact transducers for wall thickness measurements up to 923 mm. This gauge has a USB port enabling data transfer in single values (value on the display) is possible via the to a PC or compatible data collector. The PZX-7 Precision Ultrasonic Wall Thickness Gauge i comes with a guarantee of 5 years.


Features
  • Measuring range on steel:
    0.15-25.40 mm with standard delay line transducer
  • Resolution of 0.001 mm
  • Measuring unit switchable between mm and inch
  • High visibility LCD Display is readable in all lighting conditions and temps as low -30 °C
  • Selectable Backlight ON/OFF/AUTO
  • Impact-resistant and environmentally sealed (IP 65) extruded aluminum housing
  • 5 Year Warranty

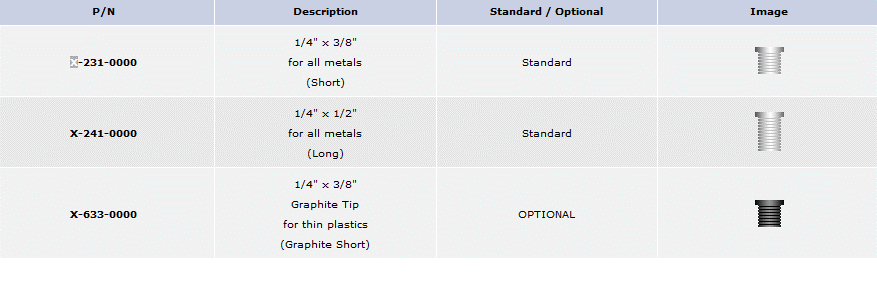

Delay Line Tips for PZX-7


Complete Kit
The PZX-7 is supplied as a complete kit
  • with the gauge,
  • probe,
  • 120 ml bottle of coupling fluid,
  • USB-C Data transfer cable,
  • 2x AA batteries,
  • NIST Traceable Calibration Certificate
  • and Instruction Manual - all in a foam-fitted carrying case.


Related Products

TI-PVX Precision Ultrasonic A-scan Wall Thickness Gauge


  • Multiple calibration options: One Point, Two Point, or selection from a Material List.
  • 16 factory setups and 48 user-defined setups. User defined setups can be edited for custom applications.
  • Hardware AGC gain control for multiple echo and thru-paint measurement.

More details

TI-PVX Precision Ultrasonic A-scan Wall Thickness Gauge

A-302-6002 Protection for TI series gauges



More details

A-302-6002 Protection for TI series gauges

Category Ultrasonic Thickness Gauge Accessories


More details

Category  Ultrasonic Thickness Gauge Accessories Ultrasonic Thickness Gauge Accessories

Specifications
Measurement range with standard probe: 0.15-25.40 mm with standard delay line transducer in steel
Probe (standard): 1/4" diameter, 15 MHz delay line transducer with cable (p/n T-402-5507)
Velocity Range: 305 to 18,542 m/sec
Resolution: 0.001 mm. 0.01 mm user-selected units and resolution
Display: Multi-function 7 segment 4.5 digit liquid crystal display with Back-light
Pulse Repetition Frequency (PRF): 200 pulses/sec
Measurement modes: Pulse-Echo (P-E), Echo-Echo (E-E), Interface Echo (I-E) and Plastics (PLAS)
Cable length: 1.2 m
Display refresh rate: 10 updates/sec
Battery Type: 2x AA 1.5V alkaline, 1.2V NiCad, or 1.5V lithium AA cells (rechargeable batteries can be used)
Battery Life: 35 hours on alkaline and 18 hours on NiCad
Housing: Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed)
Housing Protection: IP65
Weight: 308 grams
Dimensions: 64 x 131 x 32 mm
Certificates: NIST Traceable
Guarantee: Gauge: 5
Probes: 90 Days
