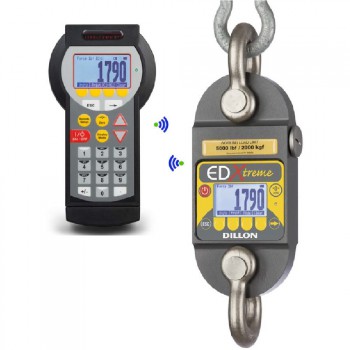

EDXTREME Red Heavy Duty Digital Dynamometer


Made in the USAThe EDxtreme exemplifies the trademark precision and rugged construction of Dillon dynanometers. Its highly refined design draws on the inherent strengths of premium-grade materials to achieve a 5:1 minimum factor of safety.

While the EDxtreme may be configured for something as simple as a digital hanging scale, it offers a higher level of intelligence. With user-defined functions and sophisticated communication options, the EDxtreme readily adapts to multi-tasking operations or multi-link systems capable of monitoring a series of critical stress points from a single locations - it is the definition of application versatility.



Xtreme Engineering

Building a precision instrument that can survive real-world punishment requires masterful engineering. This is where Dillon's experience shines through. The engineers assigned to the EDxtreme drew on a depth of industrial application knowledge and conducted exhaustive materials testing to achieve the highest structural integrity.

  • Superior strength and corrosion resistance - High capacity models are constructed of electroless nickel-plated aircraft-quality alloy steel. Lower capacity models are anodized aircraft-quality aluminum
  • 5:1 factor of safety - This measure of strength and safety is maintained at all capacities. Computer modeling confirms the low stress and long product life that is inherent in the EDxtreme design.
  • Retained hardware - Allows permanent attachment of centering spacers, which eliminates fumbling during high capacity rigging.
  • NEMA 4X/IP55 - The EDxtreme is clearly the choice for reliability in any environment - in-plant or out on the job site.
Xtreme Accuracy: 0.1%

High resolution and accurate repeatable readings are essential to proper weighing. The higher standards set for the EDxtreme meant taking the time to ensure that material characteristics, load element design and strain gage meshed perfectly. The result of that effort is a typical accuracy of 0.1% of full scale capacity. The enhanced resolution mode of 1 part in 5000 provides the level of readability needed for refined weighing.



Xtreme Ease



  • Exclusive SOFTKEY interface -Dillon has eliminated confusing menus for faster setup and simple operation. IN addition to lbf, kgf and Newtons, programmable functions can correct for gravitational variations and allow the use of custom units of measurements.
  • Wide-angle LCD -Provides improved readability over a wider viewing angle and is available with back lighting for low light conditions.
  • Battery operation -The EDxtreme is powered by two standard C-cell batteries. Batteries are easily accessible for fast replacement.

NIST Traceable - The EDxtreme comes with a NIST traceable calibration certificate.



Tension Ranges
ModelRangesStd.
Res.*
Enh.
Res.*
Body Construction
EDx-1T 2,500 lbf
1,000 kgf
10,000 N
2
1
10
0.5
0.2
2
Aircraft quality
2024 Aluminum
700% overload

EDx-2T 5,000 lbf
2,000 kgf
20,000 N
5
2
20
1
0.5
5
Aircraft quality
2024 Aluminum
700% overload

EDx-5T 10,000 lbf
5,000 kgf
50,000 N
10
5
50
2
1
10
Aircraft quality
2024 Aluminum
700% overload

EDx-10T 25,000 lbf
10,000 kgf
100,000 N
20
10
100
5
2
20
Aircraft quality
E4340 Alloy Steel
500% over

EDx-25T 55,000 lbf
25,000 kgf
250,000 N
50
20
200
10
5
50
Aircraft quality
E4340 Alloy Steel
500% over

EDx-50T 100,000 lbf
50,000 kgf
500,000 N
100
50
500
20
10
100
Aircraft quality
E4340 Alloy Steel
500% over

EDx-75T 160,000 lbf
75,000 kgf
100
50
50
20
Aircraft quality
E4340 Alloy Steel
400% over

EDx-100T 220,000 lbf
100,000 kgf
200
100
50
20
Aircraft quality
E4340 Alloy Steel
400% over

EDx-150T 330,000 lbf
150,000 kgf
200
100
100
50
Aircraft quality
E4340 Alloy Steel
400% over

EDx-250T 550,000 lbf
250,000 kgf
500
200
200
50
Aircraft quality
E4340 Alloy Steel
400% over

*Std. Res. = Standard Resolution
*Enh. Res. = Enhanced Resolution
Standard vs Extended resolution can be selected by an option in the menu.

Related Products

EDX-COMM Remote Communicator for EDXtreme



More details

EDX-COMM Remote Communicator for EDXtreme

Cic-Force Calibration Force Gauge


  • Short turnaround
  • Exclusively in accordance with Deutscher Kalibrierdienst (DKD) working standards, class F1; calibration-no: 19026 - 07
  • Possibility to adjust and repair

More details

Cic-Force Calibration Force Gauge

Specifications
EnclosureDesigned to NEMA4X/IP55
Suitable for continuous outdoor use.
Accuracy0.1% of capacity up to EDx-50T
0.3% of capacity for EDx-75T and above
Repeatability.1% of capacity up to EDx-50T
0.3% of capacity for EDx-75T and above
Proof load150% of capacity up to EDx-75T. 110% of capacity EDx-100T and above.
Safe Overload200% of capacity
Body ProtectionAluminum capacities are anodized. Alloy steel capacities are elctroless-nickel plated.
BearingsUnmatched repeatability attained by needle bearings in shackle pin holes up to EDx-5T. Shackle pin acts as inner race.
ShacklesForged industry standadrd anchor shackles. Models up to EDx-5T use precision machined shackle pin. Higher capacities use bar stock pin.
Display128 x 64 dot-graphic LCD display shows up to 6 digits 1.0" (26 mm) high plus annunciators and softkeys. Digits are .11 inches (3 mm) thick for unmatched readability.
Display update rate2 times per second
RS-232 / RS-485 communicationPrint or extract data easily. Continuous output can drive a scoreboard. Configurable poll character.
CalibrationTraceable to the NIST. Certificate included with curve of readings. Passes only with threee consecutive confirming runs, with all points in specification.
Battery life320 hours typical use with two C-cell alkaline batteries. 40 hours typical with Radio Link system.
Operating Temperature-4º F to 140º F (-20º to 60º C)
Calibration CertificateNIST Certified Certificate Included

Buy Now
Products

Product
Price
Quantity
138056
EDx-1T - EDxtreme 1.000KG - With shackles
€ 2.235,00
132364
EDx-1T - EDXtreme 1.000KG - Radio communication with communicator / with shackles
€ 3.340,00
137223
EDx-2T - EDxtreme 2.000KG - With shackles
€ 2.295,00
132365
EDx-2T - EDXtreme 2.000KG - Radio communication with communicator / with shackles
€ 3.400,00
137541
EDx-5T - EDxtreme 5.000KG - With shackles
€ 2.560,00
132366
EDx-5T - EDxtreme 5.000KG - Radio communication with communicator / with shackles
€ 3.665,00
137542
EDx-10T - EDxtreme 10.000KG - With shackles
€ 3.345,00
131993
EDx-10T - EDxtreme 10.000KG - Radio communication with communicator / without shackles
€ 4.060,00
137543
EDx-25T - EDxtreme 25.000KG - With shackles
€ 3.375,00
132367
EDx-25T - EDxtreme 25.000KG - Radio communication with communicator / without shackles
€ 4.480,00
138057
EDx-35T - EDxtreme 35.000KG - Radio-ready / without shackles
€ 4.530,00
132368
EDx-50T - EDxtreme 50.000KG - Radio communication with communicator / without shackles
€ 5.125,00
132369
EDx-75T - EDxtreme 75.000KG - Radio communication with communicator / without shackles
€ 6.065,00
132370
EDx-100T - EDxtreme 100.000KG - Radio communication with communicator / without shackles
€ 8.775,00
132371
EDx-150T - EDxtreme 150.000KG - Radio communication with communicator / without shackles

132372
EDx-250T - EDxtreme 250.000KG - Radio communication with communicator / without shackles


Accessories

Product
Price
Quantity
132386
EDx-COMM-RB - EDxtreme Communicator with radio and backlight
€ 1.150,00
132374
EDx-S Cable - computer serial with 9-pin D connector, 12-ft (3.6 m)
€ 235,00
135556
EDx-KLAXON - Alarm installed into communicator
€ 955,00
132375
EDx-COMBO Cable, 100-240 VAC power supply and 5V to RS-232 for "Red" EDx
€ 560,00
137119
AWT05-509279 - Data export pack
€ 435,00
132419
EDCOMM-50 Cable, Communicator to EDxtreme cable, 50-ft (15 m)
€ 295,00
139704
DELTALOCK - Bow shackle with screw collar pin - 12 ton
€ 65,00
139760
DELTALOCK - Bow shackle with screw collar pin - 25 ton
€ 195,00
139816
DELTALOCK - Bow shackle with screw collar pin - 35 ton
€ 195,00
139761
DELTALOCK - Bow shackle with Nut Bolt - 55 tons
€ 815,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
