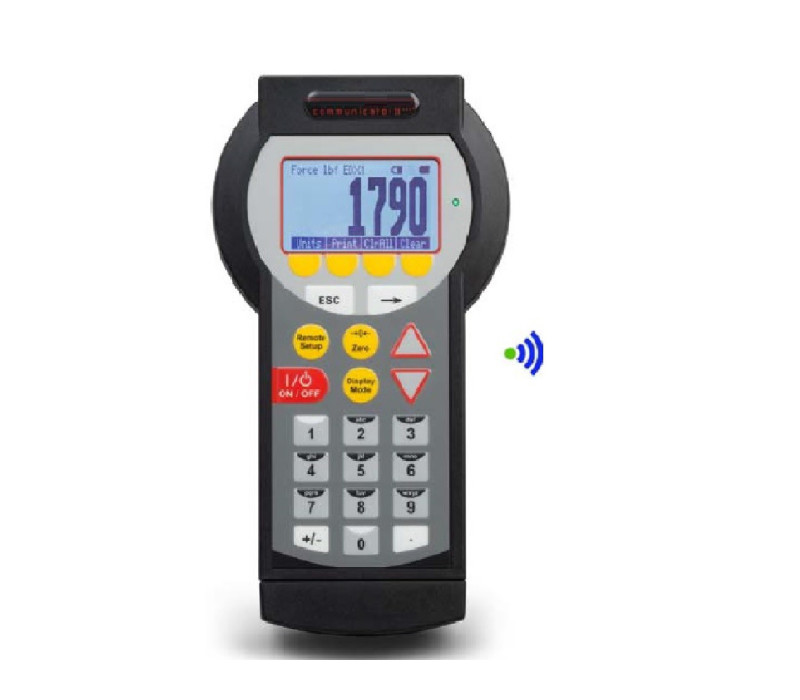

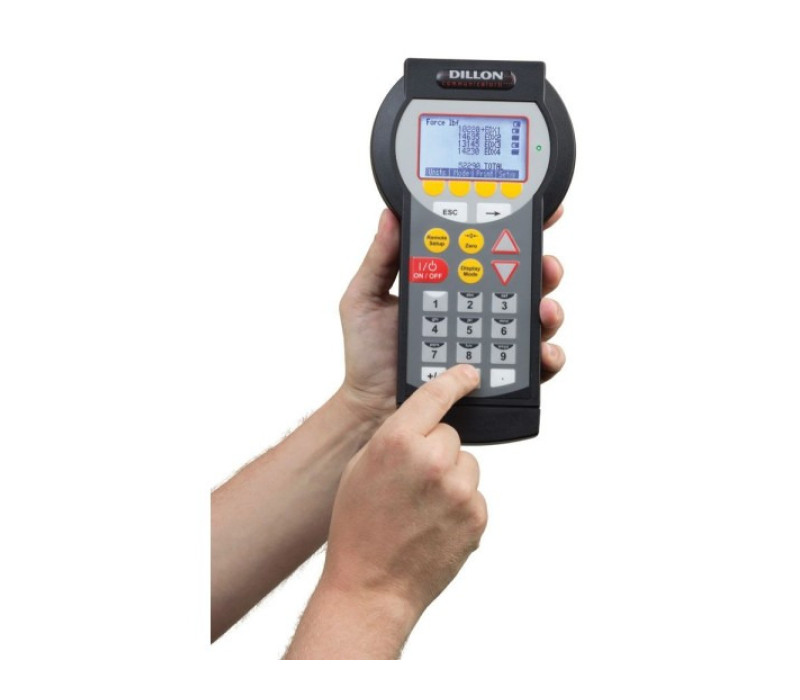

    EDX-COMM Remote Communicator for EDXtreme

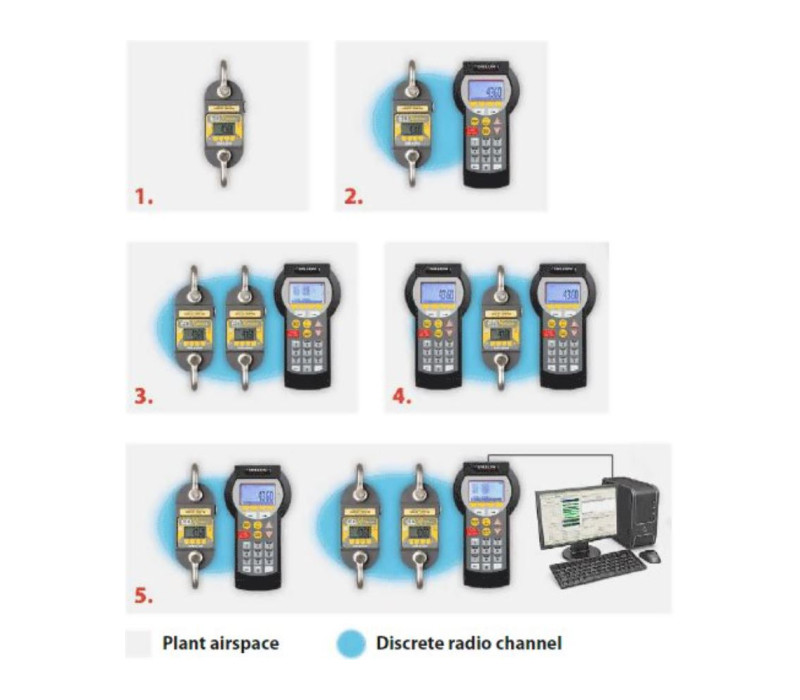

    The Communicator can remotely view and control one or several EDxtreme instruments simultaneously. It connects by wire to the connector on the back of the EDxtreme. If equipped with radio, the remote cable can be eliminated (radio options must beinstalled in both the EDxtreme and Communicator). Information is easily sent to computer from the Communicator

    Request price >>

    EnclosureDesigned to NEMA 3 / IP44 with optional sleeve. Suitable for protected outdoor use
    Dimensions9.0 x 4.6 x 1.8 inch (228 x 117 x 45mm)
    Display128 x 64 dot-graphic LCD display can show full readings up to 5 instruments
    Battery life:40 hours radio or 45 wireline using four AA alkaline batteries under typical use
    Operating temperature-4° F to 140° F (-20° to 60° C)
    ConnectorsSealed connectors may be used for serial communications and wired connection to an EDxtreme dynamometer
    RS-232 communicationPrint or extract data easily. Continuous output can drive a scoreboard. Configurable poll character
    Number of Links Remote Can ControlUp to 15 addresses (devices)
    AccessoriesRubberized case protector sleeve. Remote wall mount bracket. Serial and remote cable assemblies

    Related Products

    Browse Related Products

    EDxtreme Red Heavy Duty Digital Dynamometer

    EDxtreme Red Heavy Duty Digital Dynamometer

    Cic-Force Calibration Force Gauge

    Cic-Force Calibration Force Gauge

    Order Now

    Products
    Item Product
    132386EDx-COMM-RB - Standard Communicator II handheld unit with radio & display backlight
    137563EDx-COMM-RB-AL - Standard Communicator II with radio, display backlight and 105dB audible alarm
    Accessories
    Item Product
    132418Communicator to EDxtreme cable, 50-ft (15 m)
    132417Mains Power supply, 100-240 VAC/5V to RS-232 for "Red" EDXtreme/Communicator II/Quick check
    132420Data export pack incl cables and interfaces

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
