ZT-DPU Digital Force Gauge with Remote Sensor

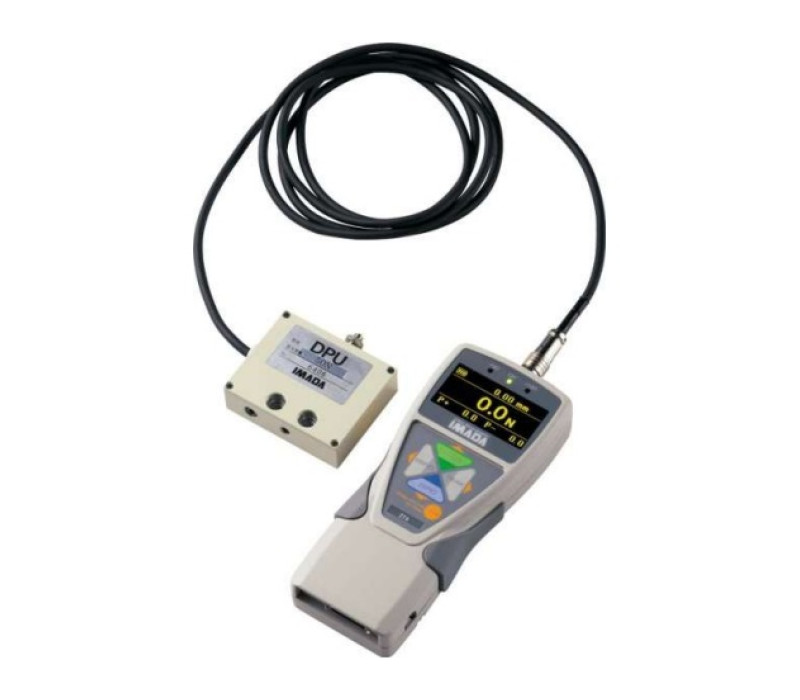

The ZT-DPU digital force gauge

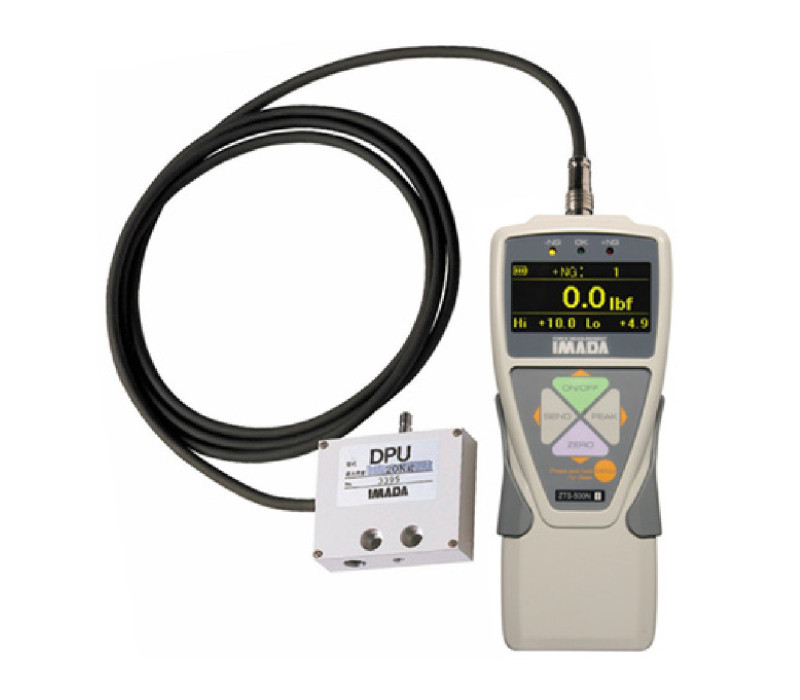

ZT-DPU Digital Force Gauge with Remote Sensor

The ZT-Series Force Gauge is designed with EL electro luminescent display, and is therefore highly visible in dark locations. The meter with the separate sensor is ideal for use in confined spaces or difficult to reach measurements. It it available in the ranges from 2N up to 20 kN.
All standard sensors are good for both compression and tension. A standard cable with a length of 2 meter, connects the gauge to the sensor. It is a very user friendly meter with his easy-to-use menus. It has Multi-language program menus: English, Spanish, French, Chinese, German, Italian, Korean and Japanese.
The data logger software, ZT-Logger which is included, can transfer data to PC by one click all at once

Displayed value at when you press SEND button
Continuous data (10 data / sec). (You can make a graph with Excel later)
Data saved in internal memory

You can use it by hand-held for basic compression/tension tests, but we recommend that you combine the force gauge with a test stand.

The ZT-Series Force Gauge are available in 2 versions:
Series ZTS (Standard) & Series ZTA (Advanced)

The ZTA (advanced) has more useful functions:
Feature 1: Displacement I/O becomes possible, this means that you can input/output displacement as well as force when you combine with a test stand having a linear scale by a dedicated cable or DMK scale.

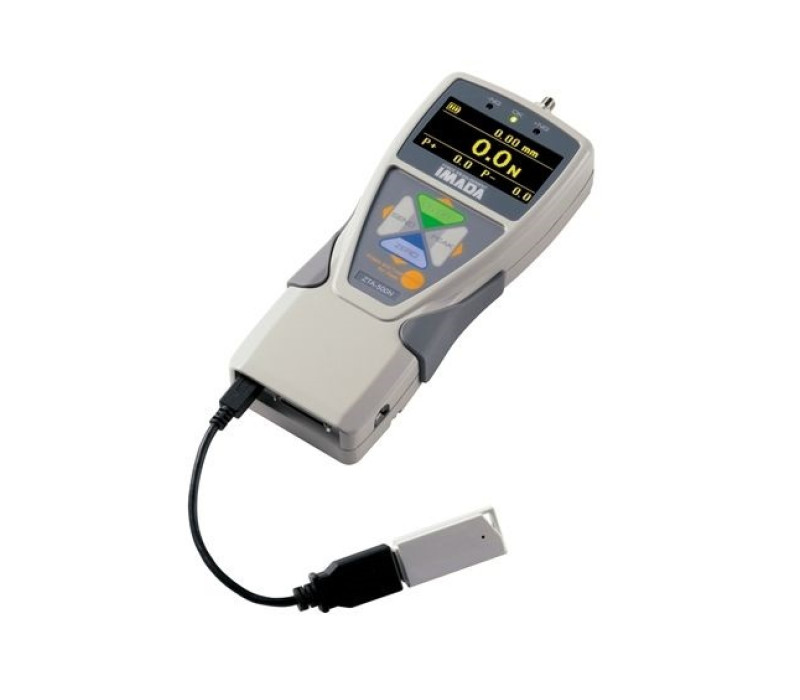

Feature 2: Continuous data (100data / sec) can be saved in USB flash drive, this means that You can save 100 data / sec at real time in USB flash drive in CSV format. You can also transfer internal memory data to USB flash drive.
Even in the case when you cannot connect PC during measurement, you can save data in USB flash drive, and later transfer data to PC via the USB drive. On PC you can draws the data into a graph with Excel.
Feature 3: Maximum/minimum value among internal memory data can be indicated. An average value among internal memory data can be indicated. You can set a certain load value (A), and it can capture 2 peak values right before the certain load value dropped.

Price from € 1.178,00

Shop now

Sensor (load cell) separated
Various types of sensors available to suit your measurement conditions
Multi-language program menus: English, Spanish, French, Chinese, German, Italian, Korean, Japanese
Color-coded LED indicators and output signal for Go/No-Go testing
High sampling rate (Max.2000 data / sec.) : Captures force value more precisely
EL electro luminescent display is highly visible in dark locations
Internal Ni-MH batteries or AC adapter
Ergonomic design with non-slip grips, heavy duty metal construction
Fits for measurements at limited areas
kgf, lbf, and N units are selectable
Easy-to-use menus: make programming simple in eight languages. Select units, reverse display, set high/low setpoints, and all other functions in plain language.
Capacity up to 20kN (push/pull)
Overload alarm and output signal

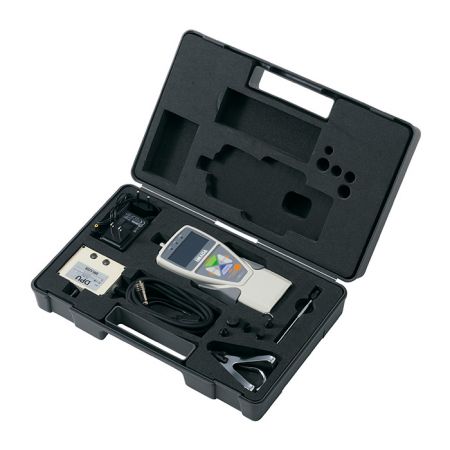

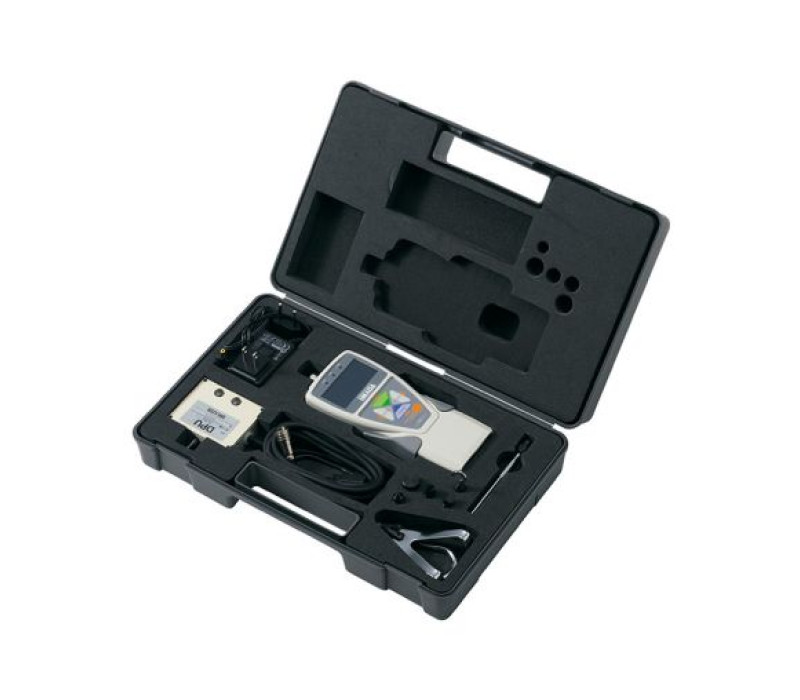

The ZT-DPU is delivered as a complete kit, including:

Force gauge
Remote sensor
Full set of attachments
ZT Logger data acquisition software
USB cable
AC adapter/charger
Calibration certificate traceable to NIST
Carrying case

ZT-Series Features

Functions	ZTS (Standard)	ZTA (Advanced)
Functions
Peak hold
OK/NG judgment
Reverse display
Sensitivity	4 steps	4 steps
Multi display
Internal memory	1000 data	1000 data
+/- Force
Auto zero timer
+NG alarm
Auto shut off
Calendar
1st./2nd peak drop
Displacement detection at force peak
Displacement reset
Output
Serial (RS232C)
Mitutoyo digimatic [*4]
Analog	+/- 2V F.S. approx.	+/- 2V F.S. approx.
USB
High/low set points
Overload warning
High/low output
Memory in USB flash drive [USB flash drive is not included]
Displacement

Tension Ranges

Model	Ranges	Capacity	Resolution	Thread	Included attachment
ZTS/ZTA-DPU-2N	2 N 200 gf 7 ozf	2.000 N 200.0 gf 7.00 ozf	0.001 N 0.1 gf 0.01 ozf	M6	A1 to A8
ZTS/ZTA-DPU-5N	5 N 500 gf 18 ozf	5.000 N 500.0 gf 18.00 ozf	0.001 N 0.1 gf 0.01 ozf	M6	A1 to A8
ZTS/ZTA-DPU-10N	10 N 1 kgf 2.2 lbf	10.00 N 1.000 kgf 2.200 lbf	0.01 N 0.001 kgf 0.001 lbf	M6	A1 to A8
ZTS/ZTA-DPU-20N	20 N 2 kgf 4.4 lbf	20.00 N 2.000 kgf 4.400 lbf	0.01 N 0.001 kgf 0.001 lbf	M6	A1 to A8
ZTS/ZTA-DPU-50N	50 N 5 kgf 11 lbf	50.00 N 5.000 kgf 11.00 lbf	0.01 N 0.001 kgf 0.01 lbf	M6	A1 to A8
ZTS/ZTA--DPU-100N	100 N 10 kgf 22 lbf	100.0 N 10.00 kgf 22.00 lbf	0.01 N 0.01 kgf 0.01 lbf	M6	A1 to A8
ZTS/ZTA-DPU-200N	200 N 20 kgf 44 lbf	200.0 N 20.00 kgf 44.00 lbf	0.01 N 0.01 kgf 0.01 lbf	M6	S1 to S8
ZTS/ZTA-DPU-500N	500 N 50 kgf 110 lbf	500.0 N 50.00 kgf 110.0 lbf	0.1 N 0.01 kgf 0.01 lbf	M6	S1 to S8
ZTS/ZTA-DPU-1000N	1000 N 100 kgf 220 lbf	1000 N 100.0 kgf 220.0 lbf	1 N 0.1 kgf 0.1 lbf	M10	B1 to B8
ZTS/ZTA-DPU-2000N	2000 N 200 kgf 440 lbf	2000 N 200.0 kgf 440.0 lbf	1 N 0.1 kgf 0.1 lbf	M10	B1 to B8
ZTS/ZTA-DPU-5000N	5000 N 500 kgf 1100 lbf	5000 N 500.0 kgf 1100 lbf	1 N 0.1 kgf 1 lbf	M10	B1 to B8
ZTS/ZTA-DPU-10kN	10 kN 1000 kgf 2200 lbf	10.00 kN 1000 kgf 2200 lbf	1 N 1 kgf 1 lbf	N/A*	None
ZTS/ZTA-DPU-20kN	20 kN 2000 kgf 4400 lbf	20.00 kN 2000 kgf 4400 lbf	1 N 1 kgf 1 lbf	N/A*	None

Video

▶

Datasheet ZT-DPU

Datasheet Attachments

Accuracy	± 0.2% F.S., ± 1 LSD
Selectable Units	Newtons, kgf(gf) or lbf(ozf)
Overload Capacity	200% of F.S. (Overload indicator flashes beyond 110% of F.S.)
Power	Rechargeable Ni-MH battery pack or AC adapter
Battery Indicator	Indicates three charge states high, med and low
Memory	Non-volative, recall up to 1,000 data
Setpoints	Programmable high/low setpoints w/ color-coded LEDs & output signal
Outputs	Outputs USB (virtual COM port), RS-232C, Digimatic and ± 2 VDC analog output, Comparator 3 steps (-NG/OK/+NG)
Operating Temperature	0 to 40 °C (32 to 100 °F)
Display	4-digit Organic EL
Display update	10 / sec
Sampling rate	2000 data / sec at maximum
Weight	Indicator: Approx.490g (Load cell: Please refer to each load cell’s specifications)
Warranty	1 year

Products

Item	Product	Price
134417	ZTA-2N-DPU Digital Force Gauge with USB output	€ 1.296,00
134429	ZTA-5N-DPU Digital Force Gauge with USB output	€ 1.296,00
134428	ZTA-10-DPU Digital Force Gauge with USB output	€ 1.296,00
134407	ZTS-20N-DPU Digital Force Gauge with USB output	€ 1.178,00
134427	ZTA-20N-DPU Digital Force Gauge with USB output	€ 1.296,00
134426	ZTA-50N-DPU Digital Force Gauge with USB output	€ 1.296,00
134409	ZTS-100N-DPU Digital Force Gauge with USB output	€ 1.178,00
134425	ZTA-100N-DPU Digital Force Gauge with USB output	€ 1.296,00
134424	ZTA-200N-DPU Digital Force Gauge with USB output	€ 1.296,00
134423	ZTA-500N-DPU Digital Force Gauge with USB output	€ 1.296,00
134412	ZTS-1000-DPUH Digital Force Gauge with USB output	€ 1.443,00
134422	ZTA-DPU-1000N Digital Force Gauge with USB output
134413	ZTS-2000-DPU Digital Force Gauge with USB output
134421	ZTA-DPU-2000N Digital Force Gauge with USB output
134420	ZTA-DPU-5000N Digital Force Gauge with USB output
134415	ZTS-10K-DPUH Digital Force Gauge with USB output	€ 1.531,00
134419	ZTA-10K-DPUH Digital Force Gauge with USB output	€ 1.573,00
134418	ZTA-20K-DPUH Digital Force Gauge with USB output	€ 1.573,00

Accessories

Item	Product	Price
131527	ISO-17025 ISO/IEC 17025 Long-form Certificate & Test Data
131526	FOH-1 Handle for Mechanical Force Gauges FB, PS, DPS, DS2, DST, DSV, Z2, ZP, ZTS and ZTA	€ 112,00
134387	CB-108 Analog Output Cable for ZTS & ZTA	€ 87,00
134388	CB-208 RS232 Serial Output Cable with Sub D 9 plug	€ 87,00
134389	CB-308 Digimatic SPC Cable for ZTS & ZTA	€ 87,00
134390	ZT-RL Software Force Recorder Software for ZTS & ZTA - Light Edition
134391	ZT-RS Software Force Recorder Software for ZTS & ZTA - Standard Edition
134392	Software „Force Recorder Professional” for models ZTS, ZTA, ZTS-DPU, ZTA-DPU, HTGS, HTGA, DTXS and DTXA	€ 682,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out

ZT-DPU Digital Force Gauge with Remote Sensor

Features

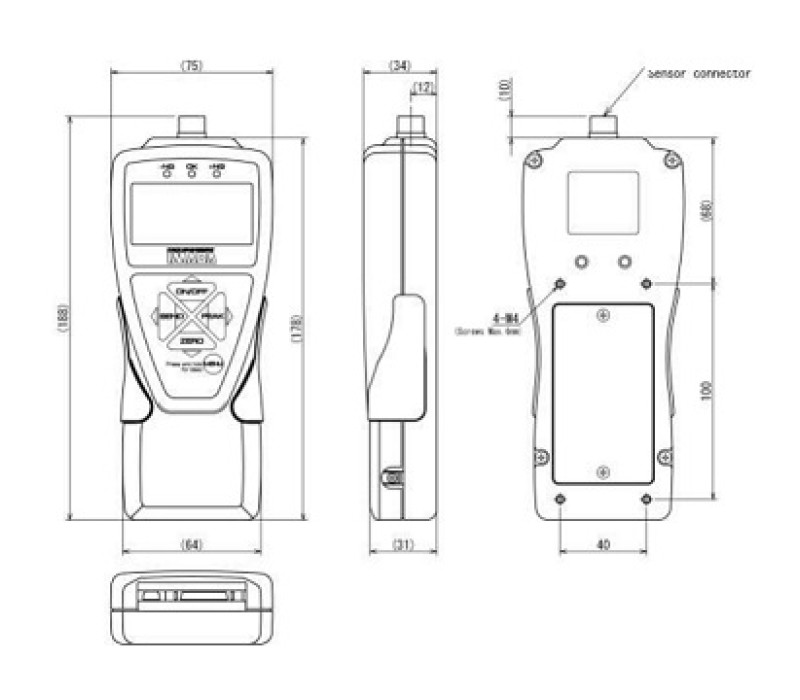

Dimensions

Specifications

ZT-Series Features

ZT Digital Force Gauge with Luminescent EL Display

Buy Now

ZT-DPU Digital Force Gauge with Remote Sensor

Features

Dimensions

Specifications

ZT-Series Features

Tension Ranges

Related Products

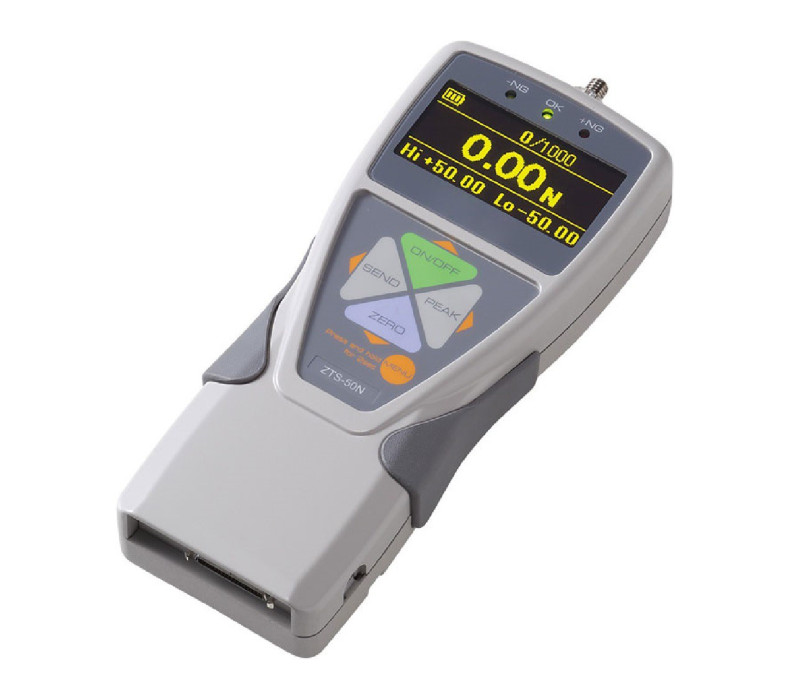

ZT Digital Force Gauge with Luminescent EL Display
