WTT-HD Horizontal Wire Terminal Tester

WTT-HD Horizontal Wire Terminal Tester

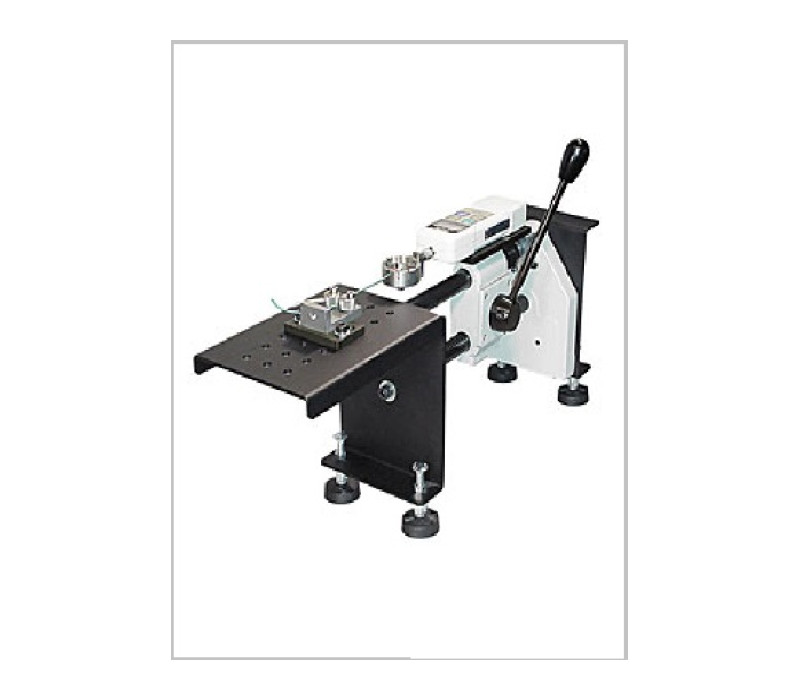

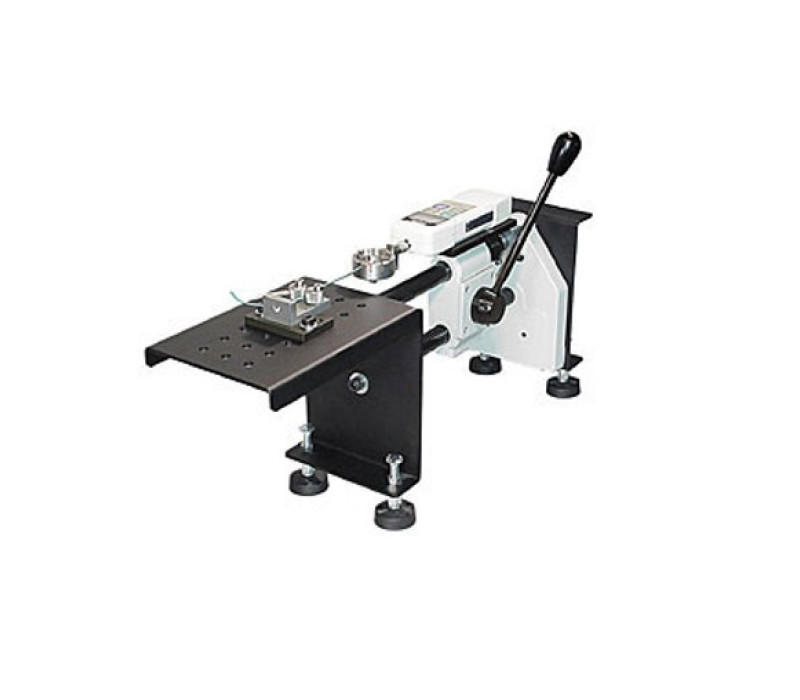

The WTT-HD wire terminal crimp tester is a digital pull tester for checking the pull-off force values of electrical leads, crimped terminals, connectors, and all other pull tests.

The WTT-HD system comes standard with:
Test Stand: NLH-220
Force Gauge: DS2-220
Slotted Terminal Grip: WG-3

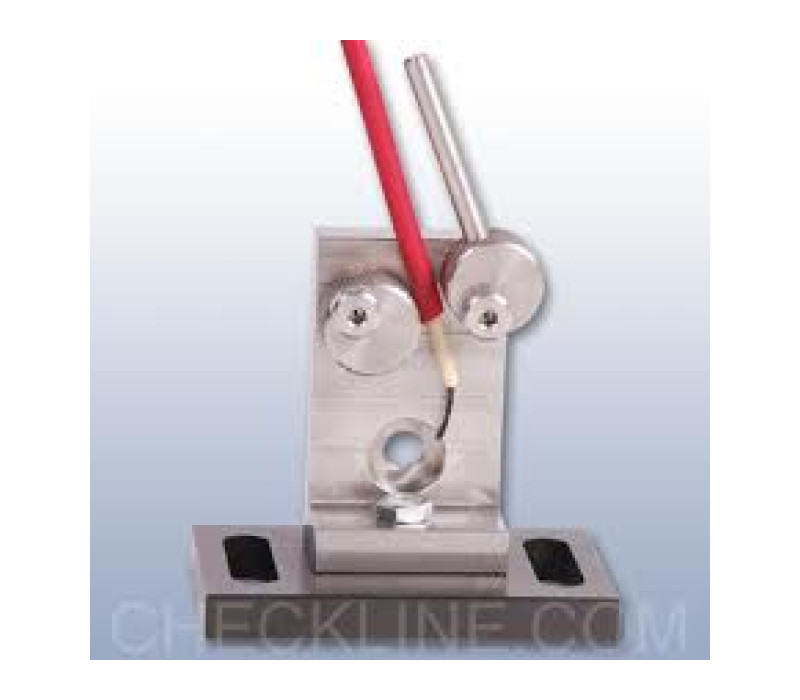

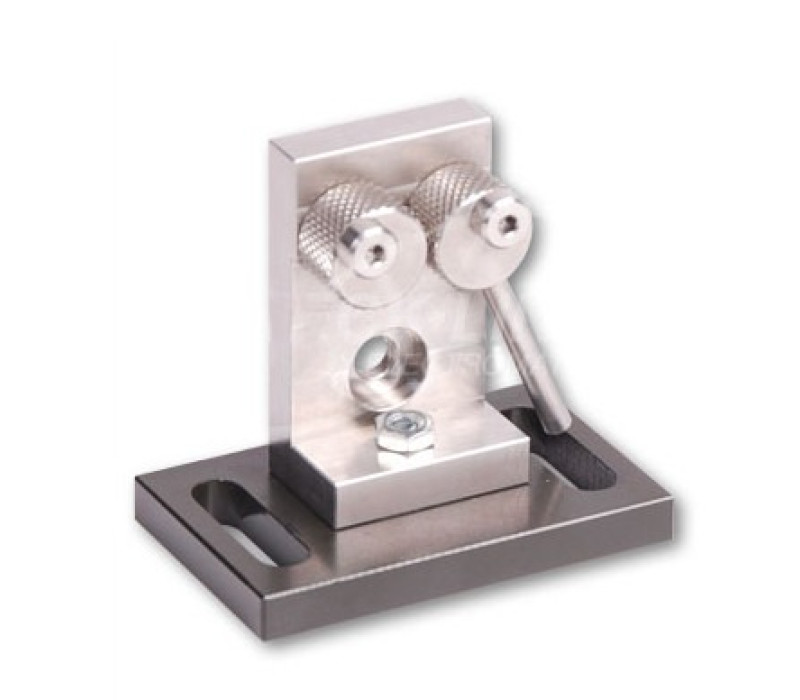

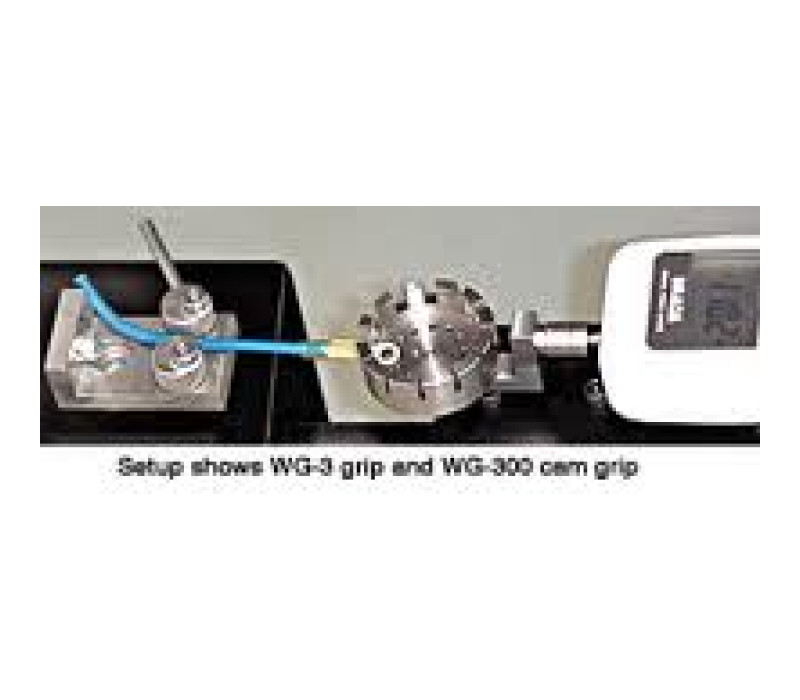

Cam Cable Grip: WG-300

Optional:
Optional pull test attachments wedge grip, cam grip, vise chuck, WG-1 or WG-2 wire grip to suit your application (attachments for other applications are available).

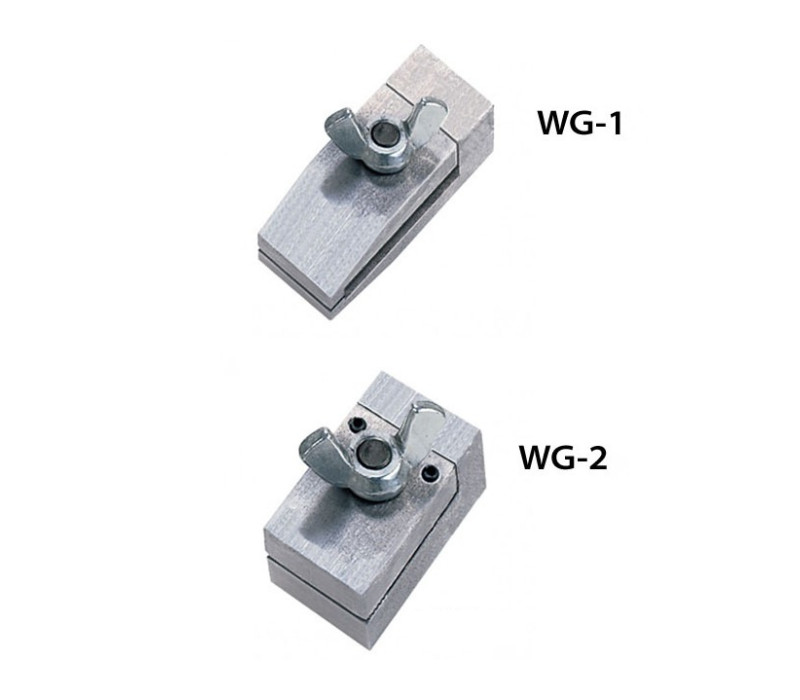

WG-1 is perfect for pull testing crimp on wire terminals. Set the opening size by turning the wingnut until jaws contact sample, then back off a little until the sample slides into the jaws from the side. Then you can simply slide the next sample into the jaws when you are ready to test.

WG-2 grips the actual wire or sample tested with serrated jaws. Ideal for a variety of shapes.

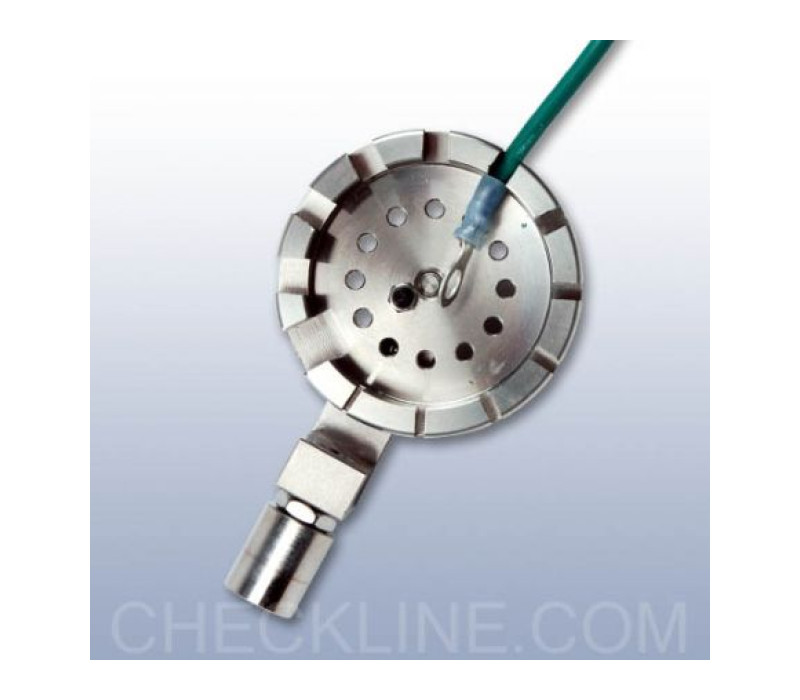

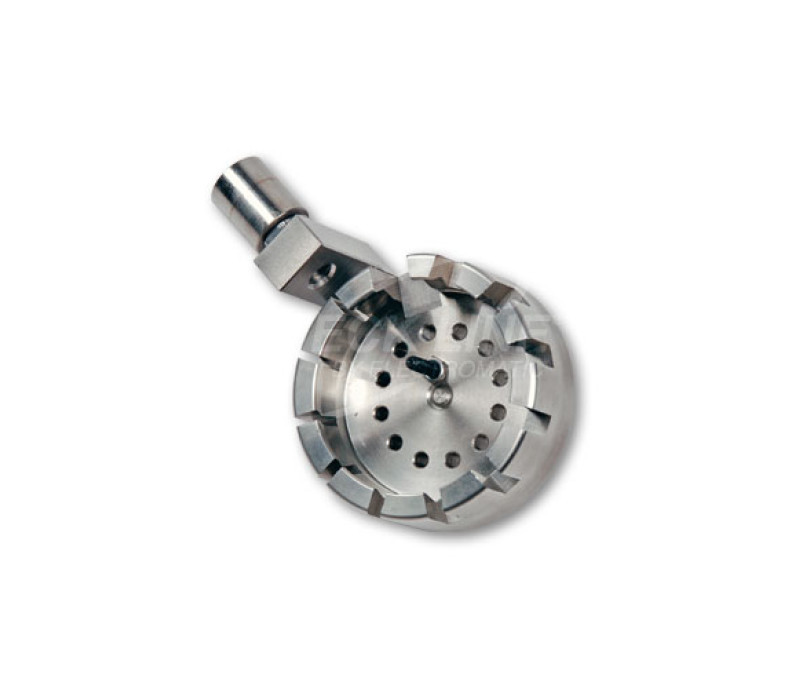

WG-3 multi wire terminal grip has 12 wire gauge apertures on the turret. Locate the appropriate size, lock in position and you’re ready to test.

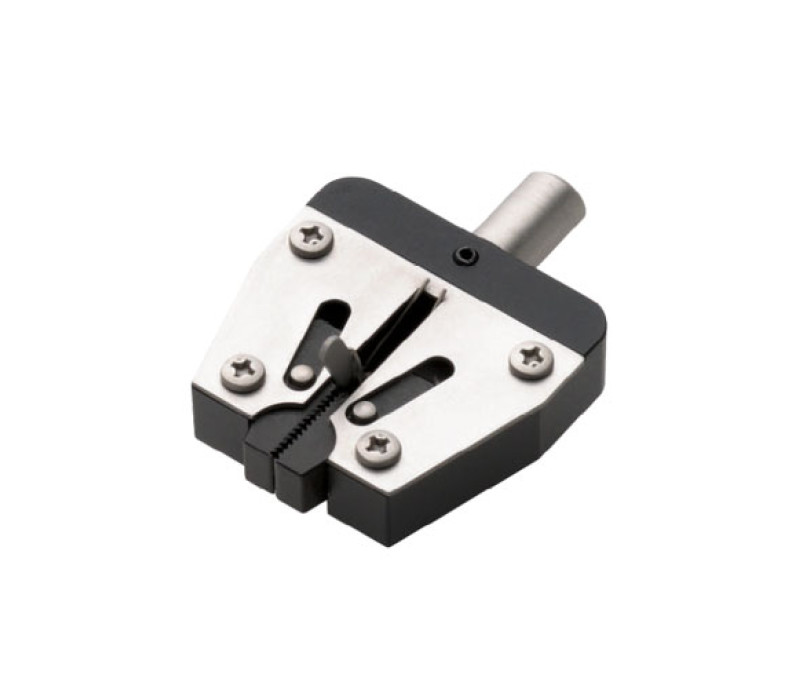

The KC-100 spring- loaded wedge grip is ideal for tensile measurements of thick materials (up to 10mm thick). The serrated jaw is 15mm wide

For checking the pull-off force values of electrical leads, crimped terminals, connectors, and all other pull tests
Accuracy: ±0.2% ±1 LSD
Measuring Range: 0-100 Kg / 0-1000N / 0-220 lbs
Resolution: 0.01 Kg / 0.1 N / 0.1 lbs

Measuring Range	0-100 Kg / 0-1000N / 0-220 lbs
Accuracy:	±0.2% ±1 LSD
Resolution:	0.01 Kg / 0.1 N / 0.1 lbs
Display:	4 digit, 12 mm high
Overload capacity:	200% Full scale,
Data Processing Speed:	1,000 data/second (30 data/second rate selectable)
Display Update:	10 times per second
Outputs:	RS-232, Mitutoyo Digimatic and ±1 VDC analog output
Temperature range:	0 - 40° C (32° to 100° F)
Low battery indicator:	Display flashes when battery is low
Power supply:	Rechargeable NiMH battery pack or AC adapter (included)
Setpoints:	Programmable high/low setpoints with LCD indicators

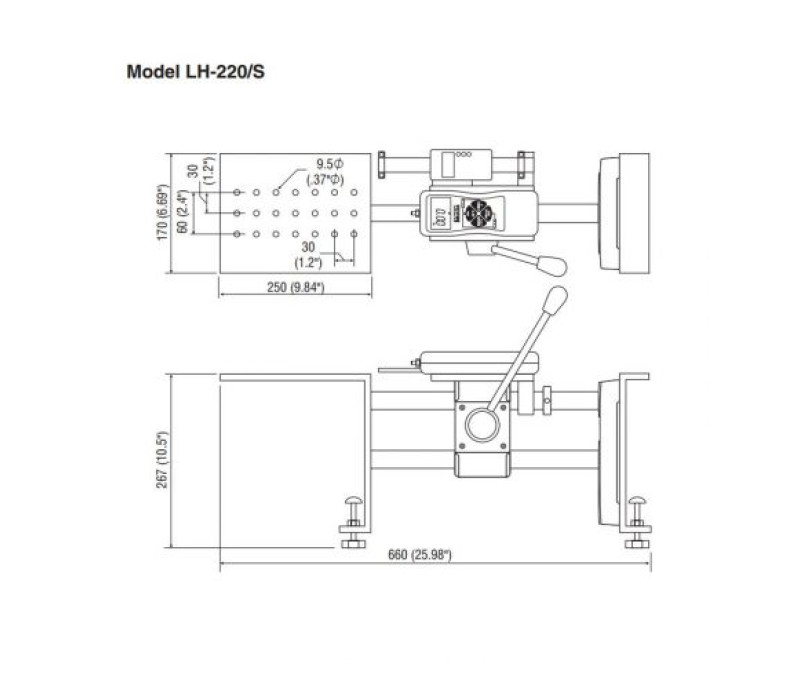

Dimensions:	66cm x 17cm x 27cm (L x W x H)
Warranty:	2 years

Accessories

Item	Product	Price
131806	WG-1 Wire Grip - 1000N smooth jaw
132118	WG-2 Wire Grip - 1000N serrated jaw
131792	KC-100 Wedge Grip (500N)	€ 360,00
131794	KC-5000 Wedge Grip (5000N)	€ 477,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
