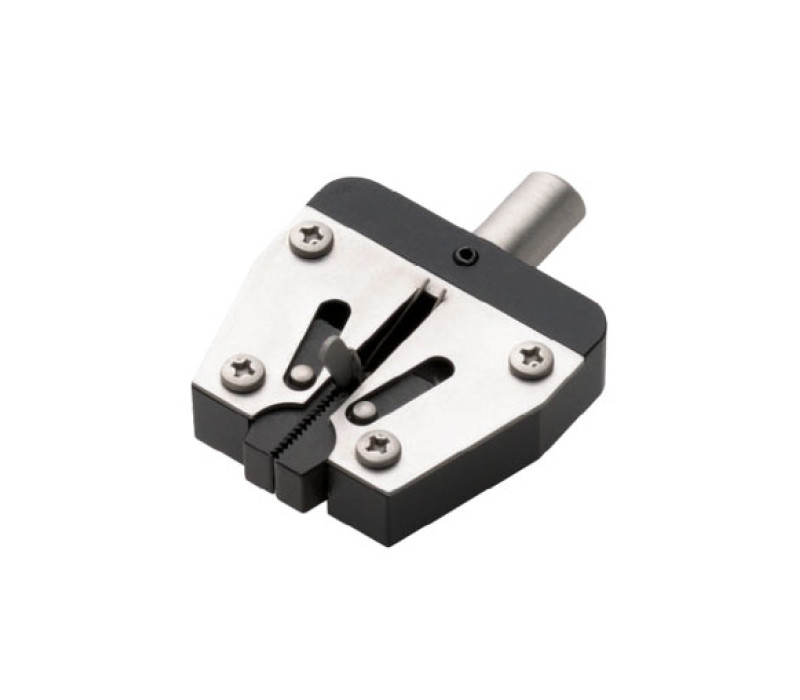

KC Heavy-duty Wedge Grips

Name: KC Heavy-duty Wedge Grips
SKU: 126674

This spring-loaded wedge grip is ideal for tensile measurements of high capacity materials. Attachment/detachment of a test piece can be done by one-touch operation. The wedge grip is self-tightened by applying tensile force (spring-loaded wedge grip).

3 Models
KC-100: 0-50 Kg / 0-110 lbs / 0-500N Capacity
KC-1001: 0-100 Kg / 0-220 lbs / 0-1000N Capacity
KC-5000: 0-500 Kg / 0-1100 lbs / 0-5000N Capacity

Price from € 322,00

Order now

Spring-loaded wedge grip
Self-tightened
Attachment/detachment of a test piece can be done by one-touch operation
3 Models

Capacity	KC-100:500N KC-1001: 1000N KC-5000: 5000N
Width	KC-100: 46 mm KC-1001: 46 mm KC-5000: 75 mm
Height	KC-100: 59 mm KC-1001: 59 mm KC-5000: 94 mm
Depth	KC-100: 14.5 mm KC-1001: 14.5 mm KC-5000: 36 mm
Jaw Opening	KC-100: Max 2 mm KC-1001: Max 2 mm KC-5000: Max 5 mm
Jaw Width	KC-100: 9.8 mm KC-1001: 9.8 mm KC-5000: Max 23.8 mm
Mounting screw	KC-100: M6 P1 KC-1001: M6 P1 KC-5000: M10 P1.5

Products

Item	Product	Price
131792	KC-100 Wedge Grip (500N)	€ 360,00
130255	KC-1001 Wedge Grip Max. 1000N	€ 322,00
131794	KC-5000 Wedge Grip (5000N)	€ 477,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
