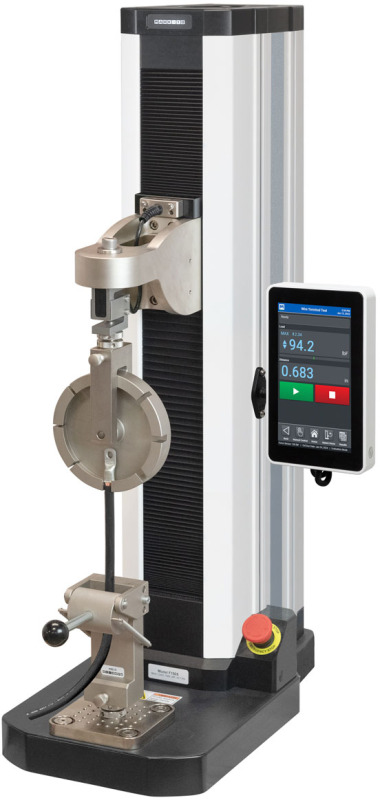

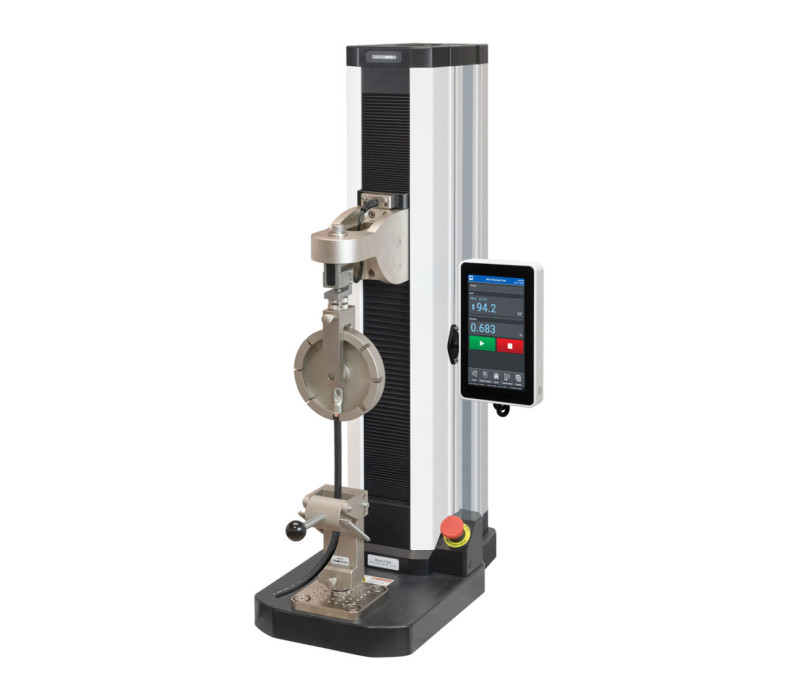

    WTT-EMHD High-Capacity Motorised Wire Terminal Test System

    The WTT-EMHD is a high-capacity motorised wire terminal test system, designed to evaluate crimp strength on cables with diameters up to 11.8 mm and pull forces up to 6.7 kN. Available in 3.7, 5 and 6.7 kN versions, this system supports both destructive testing and optional non-destructive load-holding tests according to UL486A, ISO 67 and SAE/USCAR-21 standards.

    With its intuitive touchscreen interface, test setup and execution is straightforward and efficient. The system can also be configured for other tensile or compression tests via optional fixtures or integrated with IntelliMESUR® systems for advanced applications.

    Key Features:
    • High load capacity: Available models to suit different test requirements: WTT-EM750HD (3.7 kN), WTT-EM1000HD (5 kN), and WTT-EM1500HD (6.7 kN).
    • Touchscreen interface: Simplifies test configuration and execution with high precision.
    • Non-destructive testing: Optional load-holding mode compliant with UL and SAE standards.
    • Slotted fixture: Accommodates cables up to 11.8 mm in diameter (AWG 4/0).
    • Data output: USB connection for transferring results to a PC or data acquisition system.
    • Modular system: Test stand can be reconfigured for other applications with alternative fixtures.


    Main Benefits:
    • Versatile use: Ideal for quality control, product development and certification testing.
    • Precision and repeatability: Reliable results even on large-diameter cables.
    • Workflow efficiency: Fast setup, reusable test profiles and traceable results.


    Not sure which configuration best suits your needs? Contact us for expert advice on the ideal solution for your application.
    Price from € 5.648,00
    Order now
    • Calibration certificate: Supplied with NIST-traceable certificate.
    • Warranty: Standard 3-year coverage.
    • CE certification: Compliant with European safety and quality directives.
    Complete Kit

    The WTT-EMHD is sold as a complete test system that includes the following items:

    • F1505S - Programmable Motorized Test Stand
    • MR07-750 / 1000 / 1500 - Digital Force Gauge

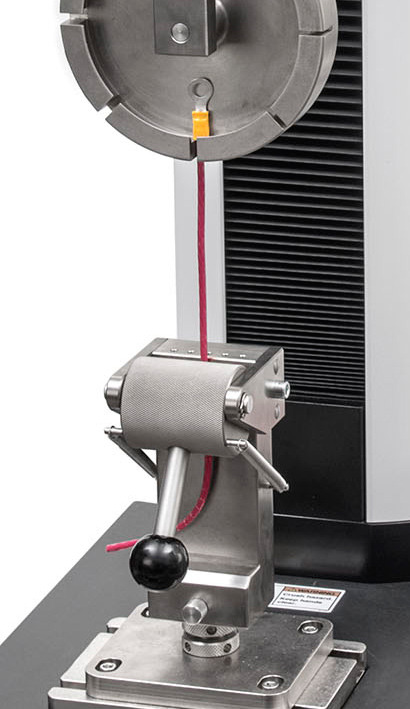

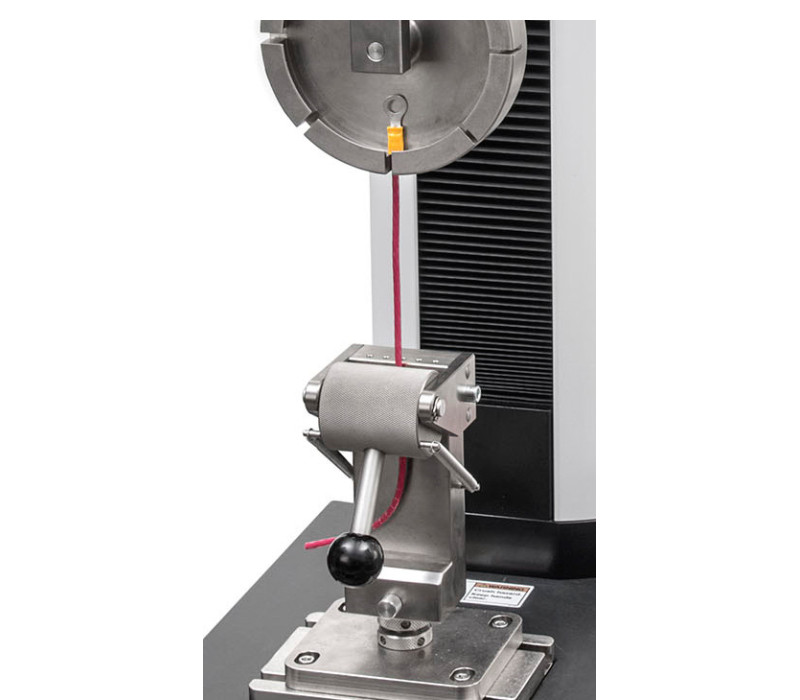

    • G1094 - Wire Cam Grip

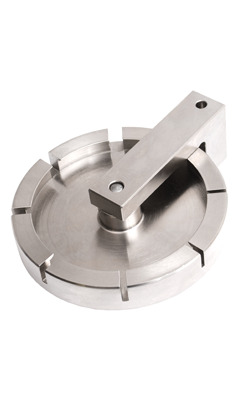

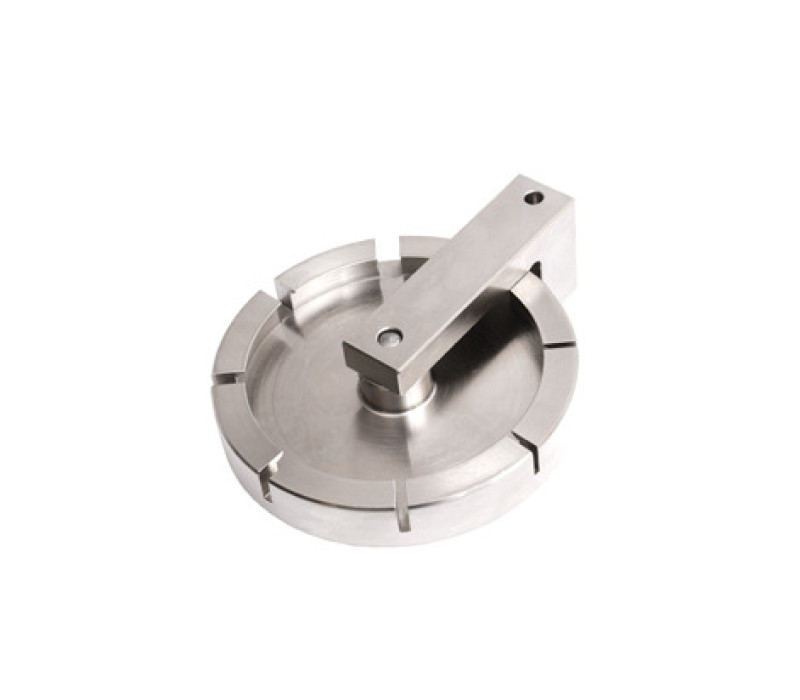

    • G1093 - Wire Terminal Grip
    • AC1045-2 - Eye end adapter



    Non-Destructive Testing Requires the following 2 Options:

    • EMF006-2 - Cycling Option for EasyMESUR Test Stand
    • EMF008-2 - Load Holding Option for EasyMESUR Test Stand
    Standard speed range10 - 600 mm/min
    Optional speed range0.5 – 1,100 mm/min
    Load accuracyTest stand: ±0.1% (excluding sensor inaccuracy)
    PowerUniversal input 100-240 VAC, 50/60 Hz, 120W
    Shipping weight118 KG
    Warranty3 years

    Related Products

    Browse Related Products

    WT-205 Manual Crimp Pull Tester

    WT-205 Manual Crimp Pull Tester

    WT-205M Motorised Crimp Pull Tester

    WT-205M Motorised Crimp Pull Tester

    WTT Wire pull tester for cable lugs

    WTT Wire pull tester for cable lugs

    WTT-HD Horizontal Wire Terminal Tester

    WTT-HD Horizontal Wire Terminal Tester

    Test Stand with IntelliMESUR® F755 / F1505

    Test Stand with IntelliMESUR® F755 / F1505

    Accessories

    Browse Accessories

    Series R07 Force Sensors for Series F Test Stands
    Series R07 Force Sensors for Series F Test Stands

    Order Now

    Products
    Item Product Price  Quantity Action
    140235WTT-EM750HD-Basic High Capacity Motorized Wire Terminal Tester € 13.214,00
    140230WTT-EM-E Motorized Wire Terminal Tester, Basic System, 1000 N Capacity € 5.648,00
    140240WTT-EM1500HD-Basic High Capacity Motorized Wire Terminal Tester € 13.214,00
    140236WTT-EM750HD-Advanced High Capacity Motorized Wire Terminal Tester € 14.613,00
    140232WTT-EM-E Motorized Wire Terminal Tester, Advanced System with Pull and Hold function, 1000 N Capacity € 6.947,00
    140238WTT-EM1500HD-Advanced High Capacity Motorized Wire Terminal Tester € 14.613,00
    Accessories
    Item Product Price  Quantity Action
    140189EMF010-2, Graphing & reporting function, F755/F755S/F1505/F1505S -EM € 1.538,00

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
