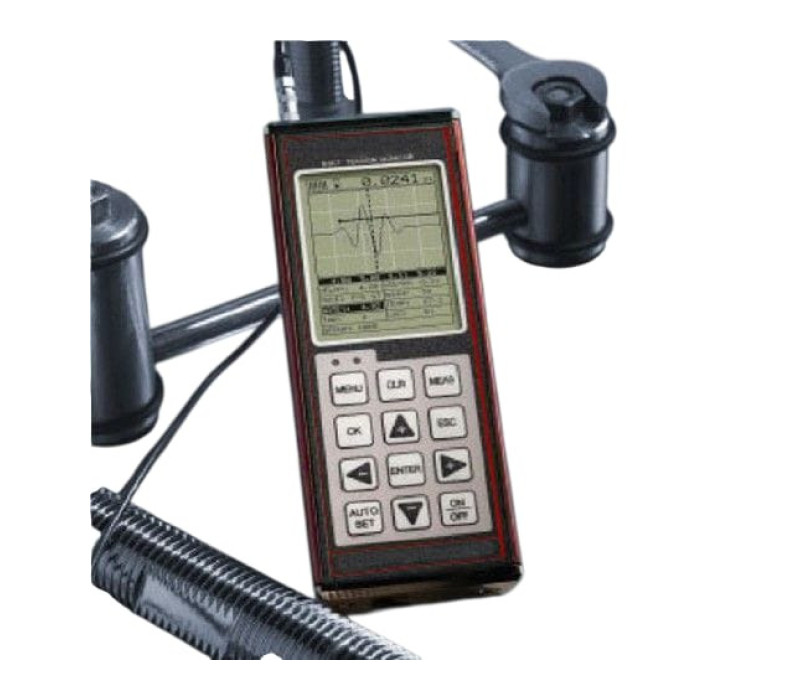

TI-MAX MiniMax Bolt Tension Meter

Name: TI-MAX MiniMax Bolt Tension Meter
SKU: 126158
Price: 4194.00 EUR

The TI-MiniMax, Ultrasonic Bolt Tension Monitor, defines the state of the art in the measurement of the actual elongation produced by tightening a threaded fastener.

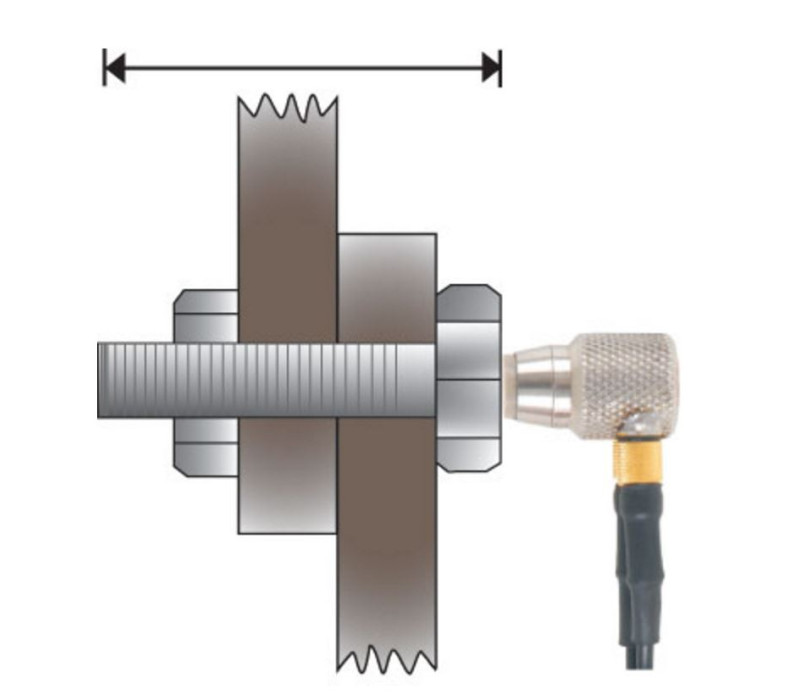

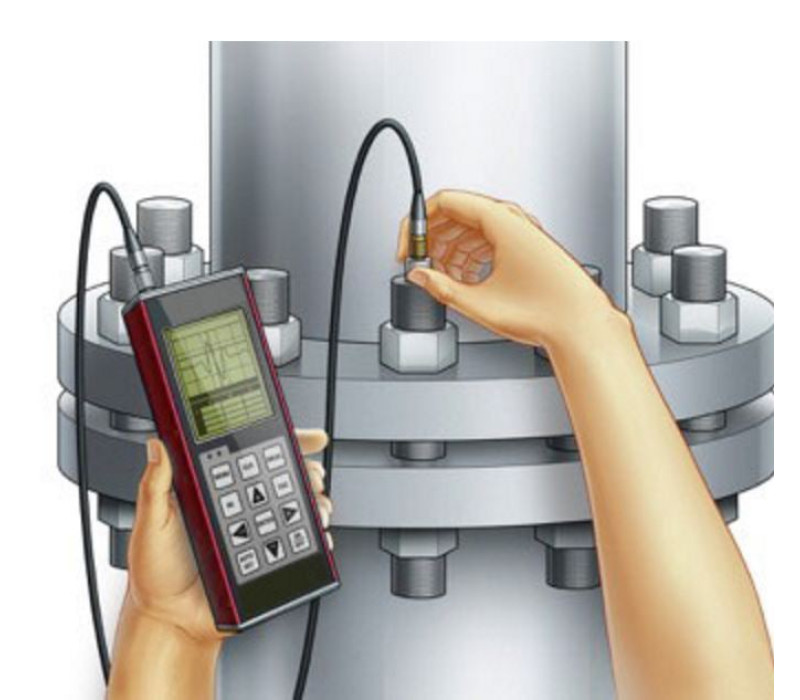

The TI-MiniMax can measure the elongation very accurately in fasteners of virtually any material from 1/2 inch to 4 feet in length. The measurement is achieved by determining the change in the transit time of an ultrasonic shock wave along the length of the fastener as the fastener is tightened by any method.

The on-board microcomputer automatically interprets this time measurement to display the time(nanoseconds), elongation, load, stress, or %strain from stretching a fastener.

€ 4.194,00

Order now

The first cost effective ultrasonic solution available on the market.
Visually compare the unloaded to the loaded waveform.
Display Options - RF, Rectified, Large Digits with Limits Bar.
Effectively monitor your bolts during periodic shutdowns over the service life of the fastener.
Measurement quantities - Time (nanoseconds), Elongation, Load, Stress, and %Strain.
Display Resolution - 1/8" VGA 240 x 160 pixels.
Built-in Linear regression or vector for optimizing load measurements.
The Auto Set feature automatically optimizes detection and adjusts display.
Hi/Lo alarm tolerance limits work in conjunction with the data port and external pump shut-off device.

The TI-MiniMax is supplied as a kit including:

Gauge
2 AA batteries
Bottle of coupling fluid
USB Transfer Cable
Lemo to Microdot Transducer Cable
Windows Utility Software
Carrying Case
Operation Manual
(probe/transducer needs to be ordered separately)

The TI-MiniMax-C (with temperature connector) can only be ordered with the purchase of a temperature sensor A- 156-8001.

Probes/Transducers and Calibration blocks are sold separately !!!

MiniMax View

MiniMax Brochure

Operation Manual

Measuring Range	From 1” to 48” (25.4mm to 15,24 m) bolts
Time	Nanoseconds
Elongation	Change in length (inches/millimeters)
Load	Force load applied (pounds kIP or kN Kilonewtons)
Stress	Force for unit area stress applied (pounds kPSI or megapascals MPa)
Strain %	Ratio of elongation to effective length
Resolution	+/- .00001 inches (0.0001 mm)
Velocity Range	.0492 to .5510 in m/s 1250 to 13995 m/s
Calibration	Fixed, Single, and Two point zero calibration options. Select bolt material types from a preset or custom list.
Units	English & Metric / Fahrenheit & Centigrade
Measuring Modes	Pulse-Echo (standard) Pulse-Echo w/Gate (fine adjust)
Pulser	Square wave pulser with adjustable pulse width (spike, thin, wide)
Receiver	Manual or Auto Set gain control with 40dB range
Timing	Precision TCXO timing with single shot 100 MHz 8 bit ultra low power digitizer.
Display Modes	A-Scan - Rectified +/- (half wave view), or RF (full waveform view)
Alarm Limits	Set hi and lo tolerances with audible beeper, viewable scan bar, and visual LEDs
Memory	4GB internal SD memory
Transducer	Single Element (1 to 10 MHz & 1/8” to 1” diameters)
Transducer Cable Length	10 foot (custom lengths available, inquire)
Temperature Probe	Automatic temperature compensation
Setup Memory	64 custom user defined setups. Factory setups can also be edited by the user
Gate	Gate used to fine adjust where the detection point occurs
Auto Set	Automates the detection, scope,and display setting process for each individual bolt
Field Calibration	Vector or Regression correction curve for increased accuracy using Load & Stress.
Power	Three AA cells. - Nicad 10 hrs - Alkaline 35 hrs - NI-MH 35 hrs Auto power off after 5 minutes idle.
Dimensions	Width (2.5in/63.5 mm) Height (6.5 in/165 mm) Depth (1.24 in/31.5 mm)
Weight	13.5 ounces (with batteries)
Operating Temperature	14 to 140F (-10C to 60C)

Products

Item	Product	Price	Quantity	Action
126703	TI-MINIMAX-C Bolt Tension Gauge (BT1-DL)	€ 4.194,00

Accessories

Item	Product	Price
135572	CF-AN-250ml Coupling Fluid 250ml Bottle	€ 15,00
126366	TICC-MVX Nylon Protective Pouch for TI-Series Large	€ 102,00
126906	X-000-0010 (3" and 6" Certified Cal Bars)	€ 778,00
130352	N-110-0020 Transducer Cable, Lemo to microdot Single ( 3 meter)	€ 111,00
132197	T-700-2405 1/8" 5mHz TI-MAX Probe Magnetic	€ 959,00
126774	T-700-4405 1/8" 10mHz TI-MAX Probe Magnetic	€ 983,00
132198	T-702-1405 1/4" 2.25mHz TI-MAX Probe Magnetic	€ 983,00
126854	T-702-2405 1/4" 5mHz TI-MAX Probe Magnetic	€ 983,00
132199	T-702-4405 1/4" 10mHz TI-MAX Probe Magnetic	€ 1.007,00
133047	T-703-1405 3/8" 2.25mHz TI-MAX Probe Magnetic	€ 995,00
132200	T-703-2405 3/8" 5mHz TI-MAX Probe Magnetic	€ 995,00
132201	T-704-1405 1/2" 2.25mHz TI-MAX Probe Magnetic	€ 1.007,00
132202	T-704-2405 1/2" 5mHz TI-MAX Probe Magnetic	€ 1.007,00
132204	T-5023-1855 1/4" 2.25 mHz Probe Non-Magnetic
130465	DT-209X-CA Analog Output Cable (laatste exemplaar)
130240	T-706-1405 3/4" 2.25mHz TI-MAX Probe Magnetic	€ 1.072,00
132203	T-706-2405 3/4" 5mHz TI-MAX Probe Magnetic	€ 1.072,00
126855	A-156-8001 Temperature Sensor	€ 643,00
139547	Li-Ion Rechargeable AA Batteries - 4 pcs (with USB to USB-C cable)	€ 25,00

All prices shown exclude VAT and shipping costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out

TI-MAX MiniMax Bolt Tension Meter

Features

Specifications

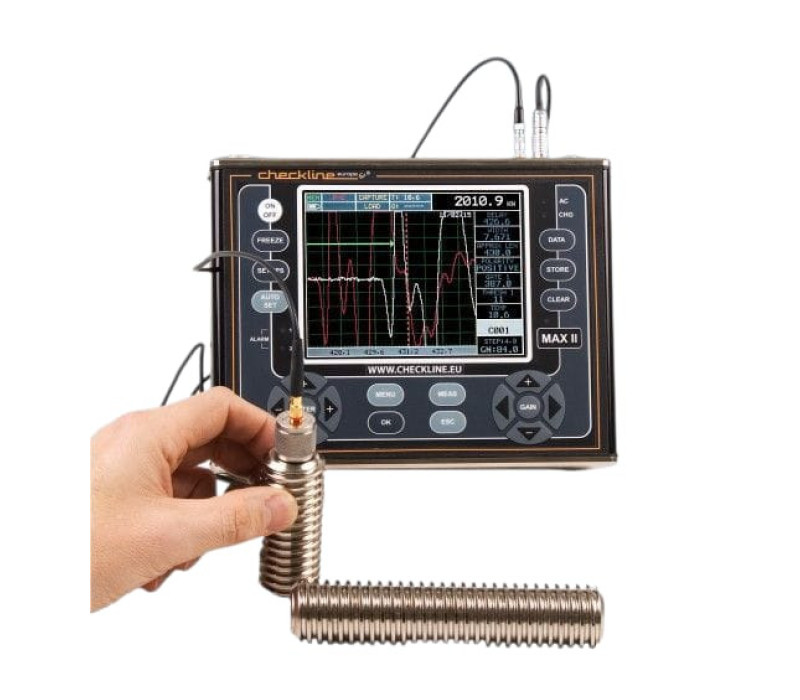

MAX-II Ultrasonic Bolt Tension Monitor
