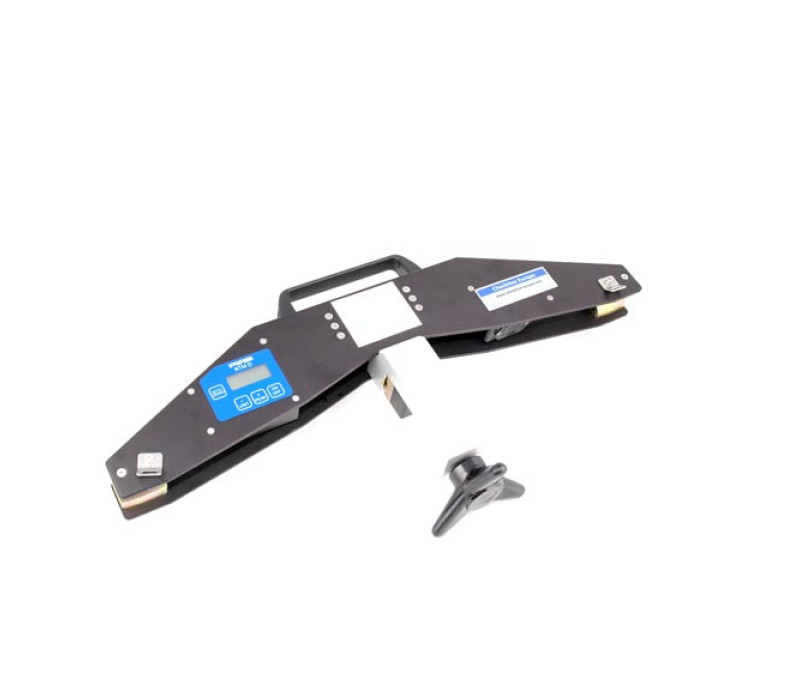

RTM-E Digital Cable Tension Meter

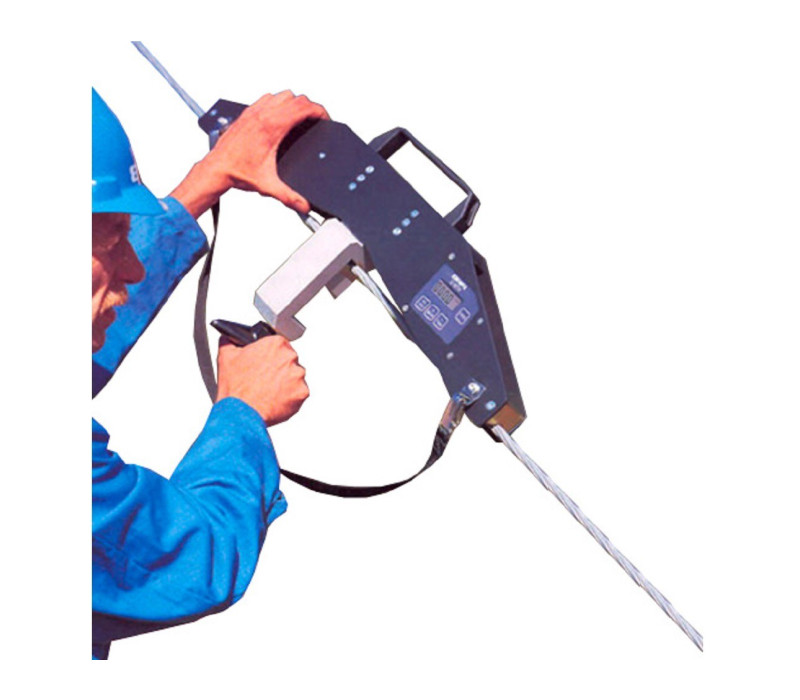

The RTM-E is a cable tension meter especially developed for the determination of (high) tension in cables like guy wires, support cables, architectural cables etc. The RTM-E can be placed directly on the cable. The device will show the tension on the display.

The RTM-E is suitable for measurements up to 30.000 KG and cable diameters up to 38 mm. The measured values are directly shown on the display without use of a reference table.

Measuring principle:

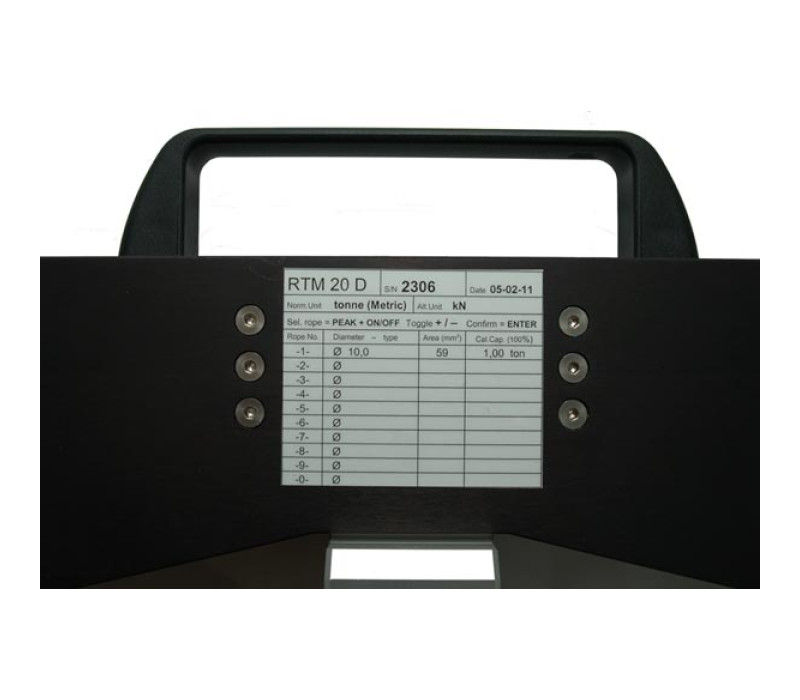

The RTM-E is placed on the cable under a pre-defined angle. This angle is then used to determine the tension in the cable. Since the gauge is calibrated to the cable that is measured it will directly show the tension value. These calibrations can be saved inside the gauge and it is possible to save up to 10 different cable calibrations. Values can be displayed in N, Lbs or Metric Tons

Safety:

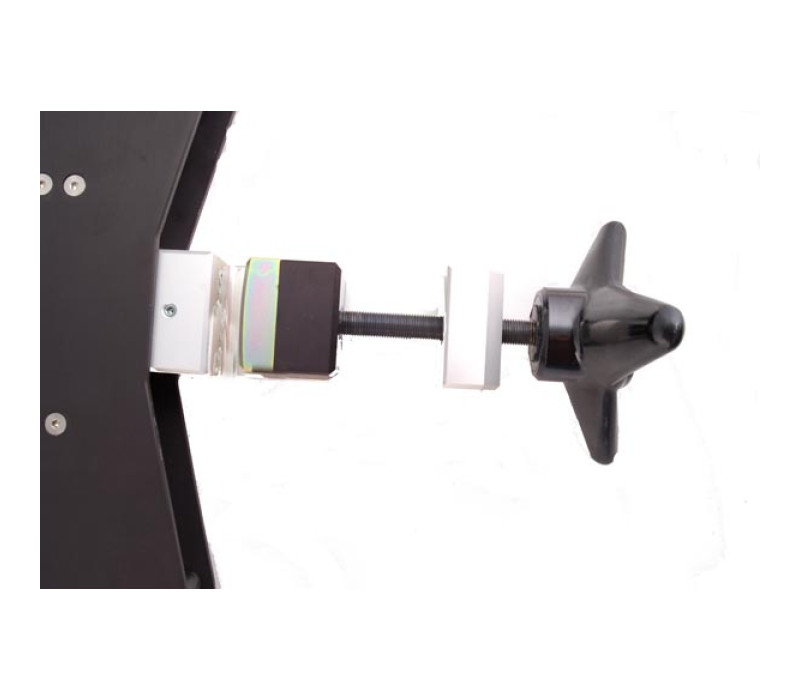

The RTM-E determines quickly, safely, accurately and conveniently cable tension. It can withstand force two times its rated capacity without damage. The RTM features hardened steel cable guides which ensures trouble free operation in the toughest outdoor environments.

MODEL:

RTM-E-5
RTM-E-20
RTM-E-30

Order now

The RTM 20E is delivered in a robust and lightweight transport case (760 x 400 x 170 mm) for easy handling and protection of the instrument.

Y1 no header

Typical applications include:
- Telecommunication and microwave towers
- Skilifts
- Bridges

Tension Ranges

Model	Ranges
RTM-E-5	0 - 5 tons	0- 5.000 Kg	0-50 Kn
RTM-E-20	0 - 20 tons	0- 20.000 Kg	0-200 Kn
RTM-E-30	0 - 30 tons	0- 30.000 Kg	0-300 Kn

REQUEST QUOTATION

Before the RTM-20E can be ordered, we first need to check if the cables you are going to test are available for calibration at the factory. Please download the link.

CABLE TENSION METER QUOTE REQUEST FORM.doc

and send the completed form to us by email. We can then check if your cables are available or if we require 12 meter samples for calibration.

List of available cables for calibration

RTM-E Data Sheet

Measuring Units:	kLbs / kN / Metric tons
Cable Diameter:	6 - 38 mm
Accuracy:	2 - 6 % of max. capacity
Calibration:	20 Different cables (1 included)

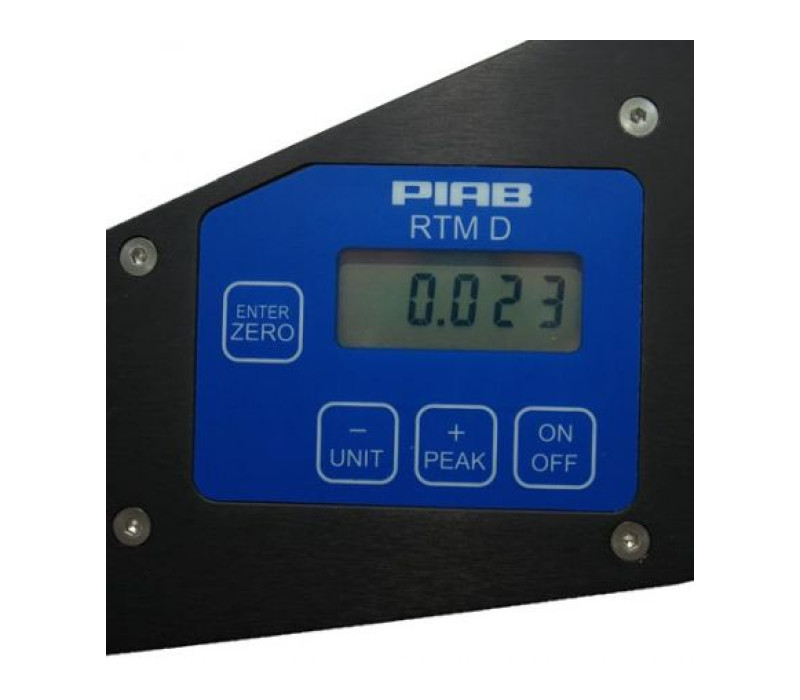

Display:	LCD, 0-19999, 0.5" high (12mm)
Battery:	Standard 9 volt Block
Battery Life:	25 hours
Housing material:	Corrosion proof anodised Aluminum
Dimensions:	5.3"x15.0"x27.0" (135x380x685 mm) Gauge 6.7"x15.7"x29.9" (170x400x760 mm) in casing
Weight:	6,2 kg net.
Shipping weight	13,5 kg
Working temperature:	-20 - + 60 degrees Celsius
Protection Class:	IP67 / NEMA 13 / IEC 529

Products

Item	Product	Price
139147	RTM-E-5 Cable Tension Meter 5 Ton / 5000 Kg / 50 Kn	€ 10.330,50
139079	RTM-E-20 Cable Tension Meter 20 Ton / 20.000 Kg / 200 Kn	€ 10.899,00
138845	RTM-E-30 Cable Tension Meter 30 Ton / 30.000 Kg / 300 Kn	€ 13.059,00

Accessories

Item	Product	Price	Quantity	Action
130239	RTM-ADDCABLE Cable Calibration For RTM-E	€ 577,50

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
