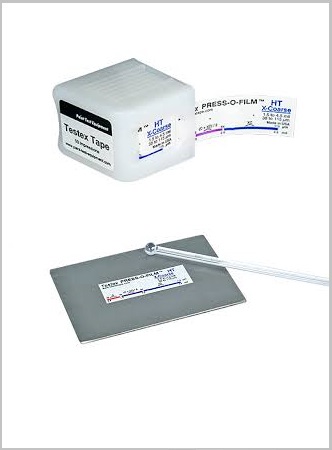

    Testex Press-O-Film Replica Tape – Surface Profile Measurement

    Replica tape for measuring the surface profile of blasted steel

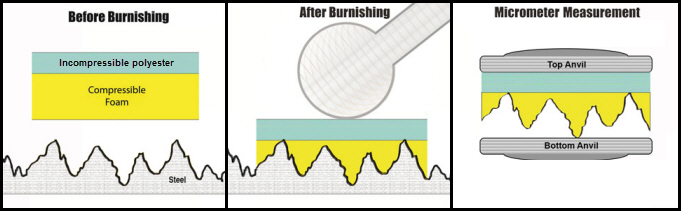

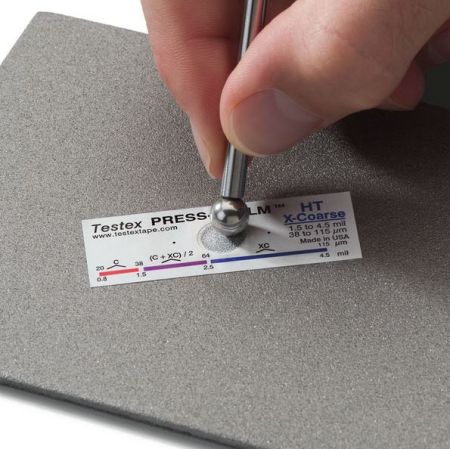

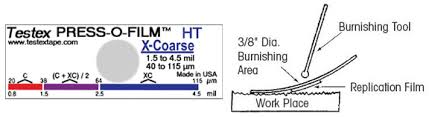

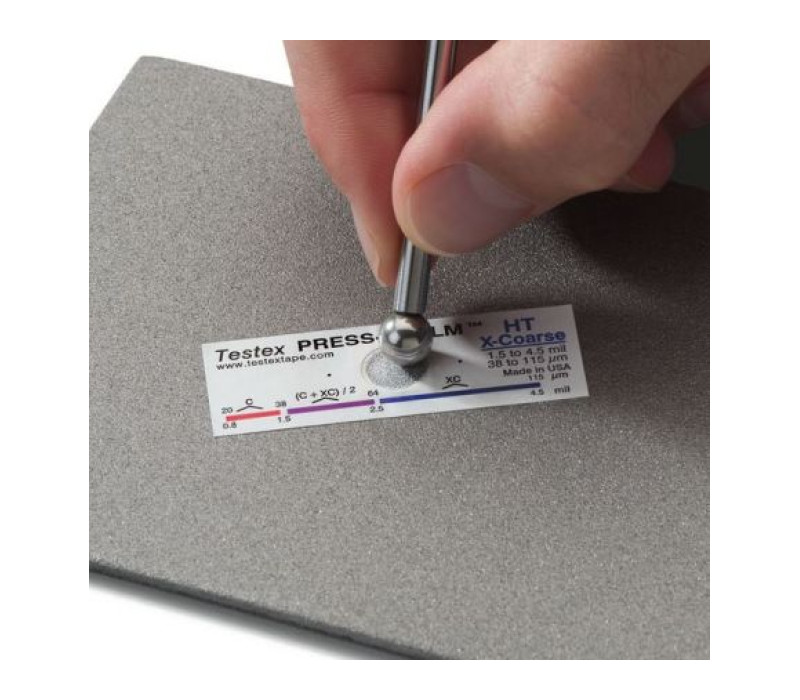

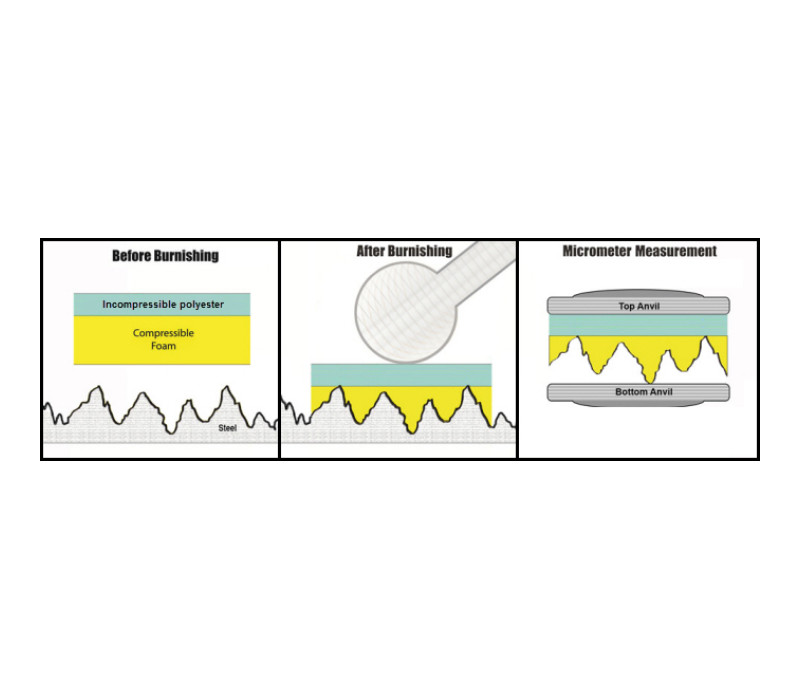

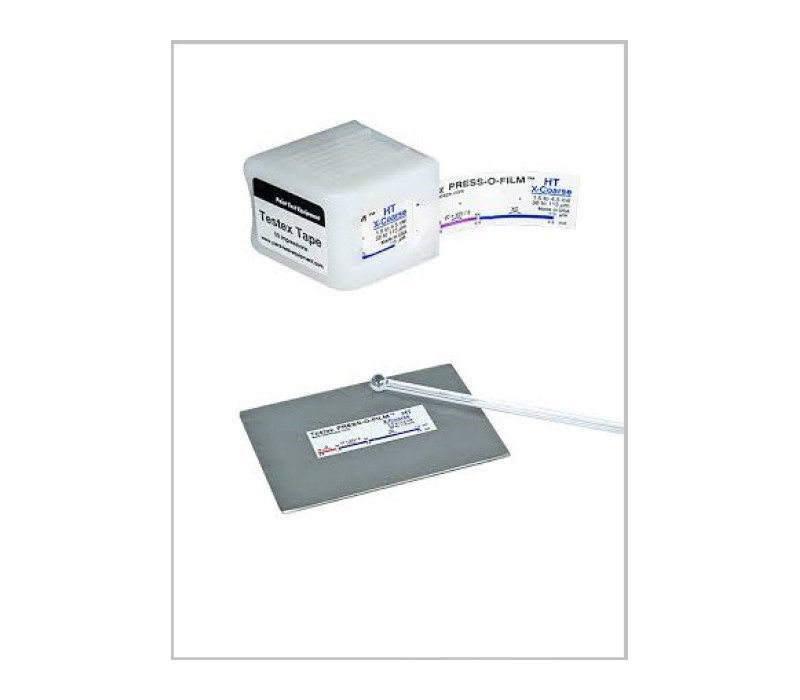

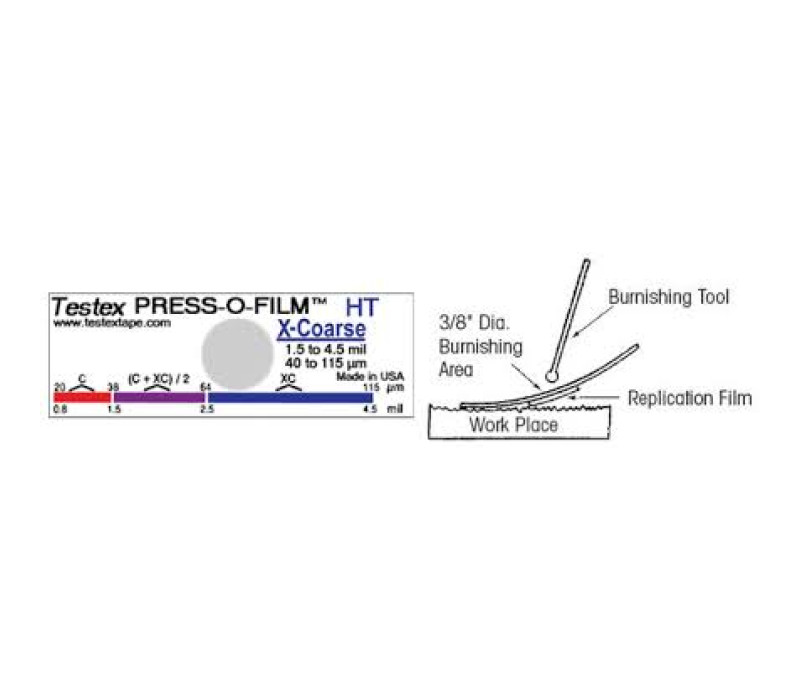

    Testex Press-O-Film Replica Tape provides a simple method for measuring peak-to-valley surface profile. The tape consists of a layer of compressible foam affixed to an incompressible polyester substrate. When burnished against a roughened surface, the foam forms a reverse replica of the surface profile.

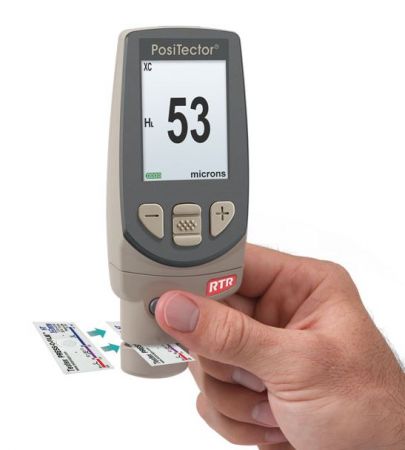

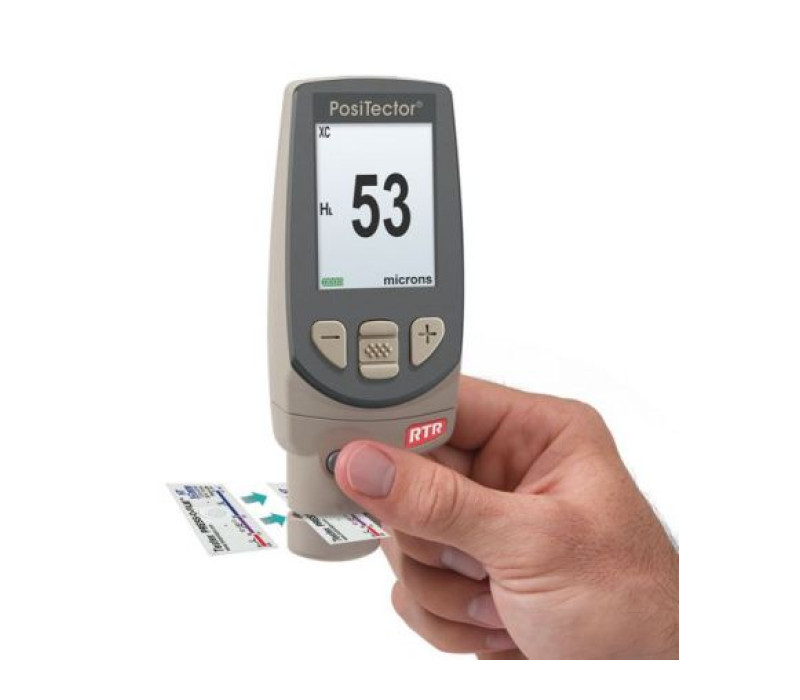

    The resulting replica can be measured using a compatible precision micrometer or PosiTector RTR Replica Tape Reader to determine the surface profile height. The physical replica can also be retained as a permanent record of the measured surface.

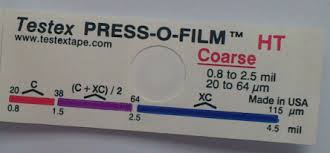

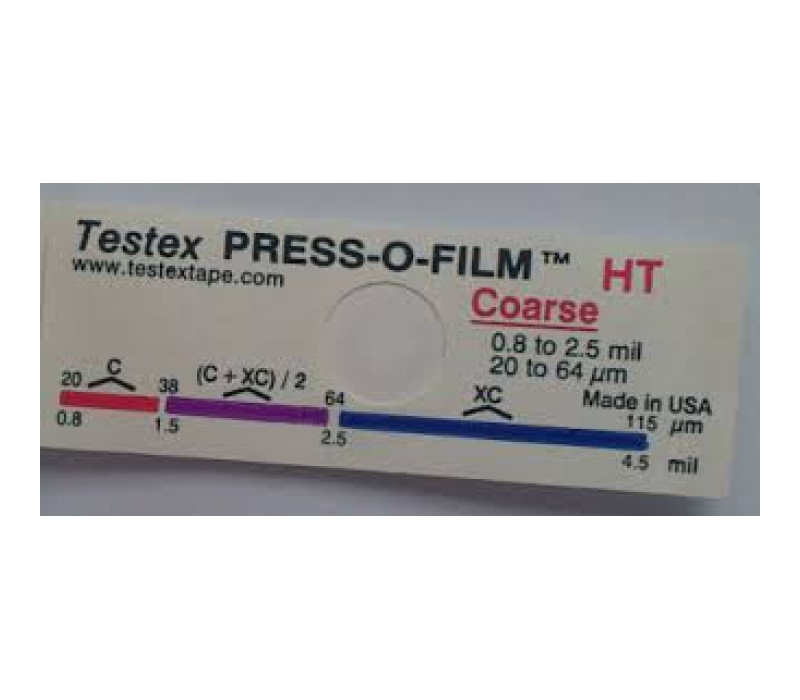

    Checkline supplies Coarse tape for surface profiles from 20 to 50 µm (0.8 to 2.0 mils), X-Coarse tape for profiles from 38 to 115 µm (1.5 to 4.5 mils), and Optical Grade X-Coarse tape for use with PosiTector RTR 3D. Each carton provides 50 impressions.
    Price from € 45,00
    Order now
    • Coarse grade measuring range: 20 to 50 µm (0.8 to 2.0 mils)
    • X-Coarse grade measuring range: 38 to 115 µm (1.5 to 4.5 mils)
    • Optical Grade X-Coarse: H range 38 to 115 µm (1.5 to 4.5 mils); 2D/3D range 10 to 115 µm (0.4 to 4.5 mils)
    • Creates a physical replica of blasted surface profiles for peak-to-valley measurement
    • Coarse and X-Coarse grades are compatible with the Testex Digital Micrometer and PosiTector RTR H; Optical Grade X-Coarse is for PosiTector RTR 3D only
    • 50 impressions per carton
    Tape typeConventional and Optical Grade Testex Press-O-Film Replica Tape
    Coarse grade20 to 50 µm (0.8 to 2.0 mils)
    X-Coarse grade38 to 115 µm (1.5 to 4.5 mils)
    Optical Grade X-CoarseH: 38 to 115 µm (1.5 to 4.5 mils); 2D/3D: 10 to 115 µm (0.4 to 4.5 mils)
    Quantity50 impressions per carton

    Linearization of Roughness Measurements

    Related Products

    Browse Related Products

    PosiTector RTR Replica Tape Reader - Digital spring micrometer

    PosiTector RTR Replica Tape Reader - Digital spring micrometer

    Order Now

    Products
    Item Product Price  Quantity Action
    134675R-PRESS Testex Press-O-Film Replica Tape - Coarse € 45,00
    134676R-PRESSX Testex Press-O-Film Replica Tape - X-Coarse € 45,00
    136175R-PRESSXOG Testex Press-O-Film Replica Tape X-Coarse Optical € 59,00

    All prices shown exclude VAT and shipping costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
