Picogloss Series Gloss Meters
Maintaining consistent surface quality is essential across industries such as automotive, coatings, plastics, and metal finishing. Variations in gloss, often caused by process inconsistencies, material differences, or supplier changes, can lead to product rejection and increased quality control costs. The Picogloss Series is designed to provide fast, accurate, and objective gloss measurements, helping manufacturers ensure compliance with strict visual and technical standards.
Engineered for both laboratory and on-site use, the Picogloss range offers flexible measurement solutions across different gloss levels, from high-gloss polished surfaces to low-gloss matte finishes. With models covering single, dual, and triple measurement geometries (20°, 60°, and 85°), users can select the ideal configuration for their application while maintaining consistency with international standards such as ISO, ASTM, and DIN.
Whether you require a compact instrument for routine inspections or a fully featured device for advanced statistical analysis and data management, the Picogloss Series delivers reliable performance, intuitive operation, and seamless integration into modern quality control workflows.
Key Features
- Multi-Angle Measurement Options: Available in 20°, 60°, and 85° geometries for high, medium, and low gloss evaluation
-
Automatic Range Switching: Seamless transition between gloss ranges for accurate readings across different surfaces
-
User-Friendly Operation: One-touch measurement with intuitive display and fast calibration routines
-
Data Management & Connectivity: Integrated memory, statistical functions, and USB interface for data transfer and analysis
-
Compact & Portable Design: Ideal for both laboratory environments and in-field inspections
Key Benefits
-
Consistent Product Quality: Detect surface variations early and ensure uniform finish across production batches
-
Versatile Application Range: Suitable for coatings, metals, plastics, wood, and more
-
Improved Quality Control Decisions: Advanced models support statistical evaluation and pass/fail criteria
-
Reduced Inspection Time: Fast measurements and automatic functions streamline workflow efficiency
-
Scalable Solution: From basic spot-checking to advanced multi-angle analysis, adaptable to your needs
The Picogloss Series offers a complete solution for accurate and reliable gloss measurement, supporting everything from routine quality checks to detailed surface analysis. With its combination of precision, flexibility, and ease of use, it is an essential tool for maintaining high-quality standards in modern manufacturing environments.
Contact us to help identify the most suitable gloss tool for your specific use case.
Features
- Suitable for quality control of coated and treated surfaces including metals, plastics, wood, paper, and composites.
- Ensures accurate readings across wide gloss ranges, including highly reflective metallic surfaces.
- Lightweight, ergonomic instruments ideal for both laboratory use and on-site inspections.
- Easy data transfer to PC for analysis and reporting via dedicated software.
- Storage of multiple readings with date/time and reference comparison capability.
- Designed in accordance with ISO, ASTM, DIN, and JIS gloss measurement standards.
Models

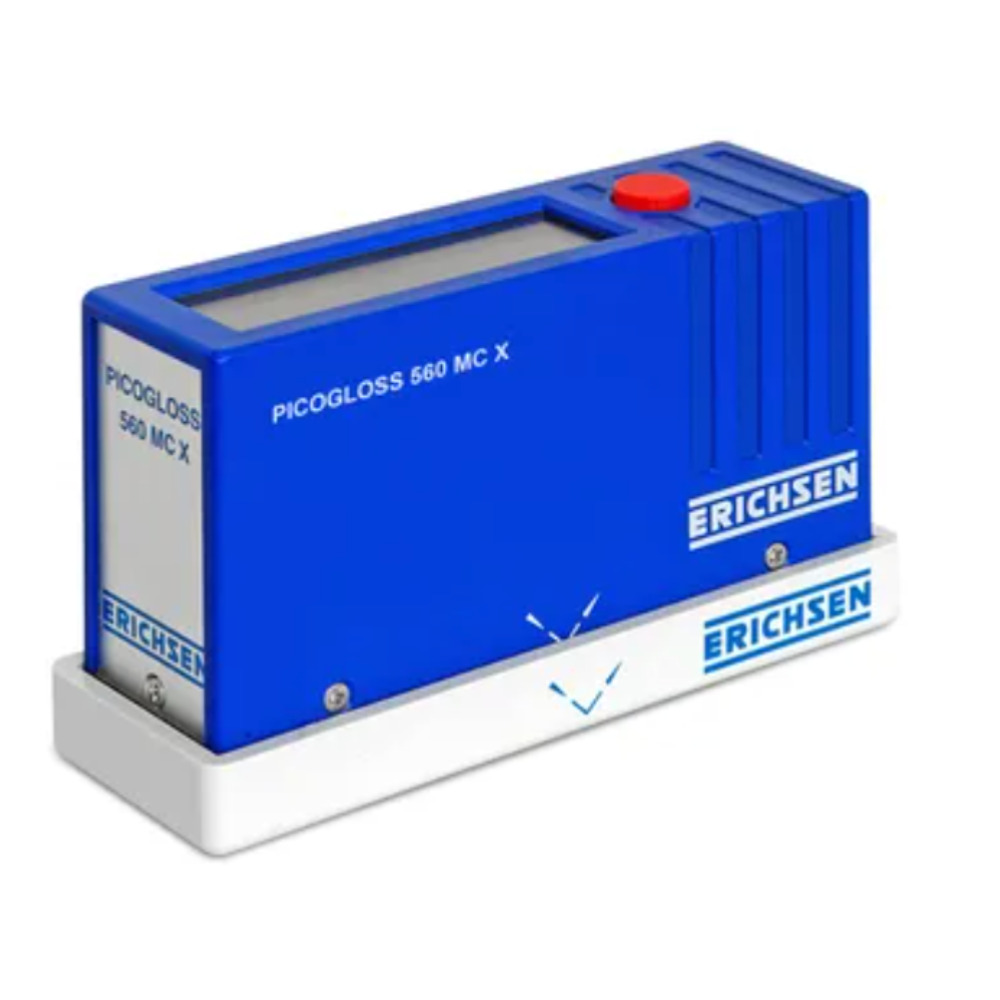

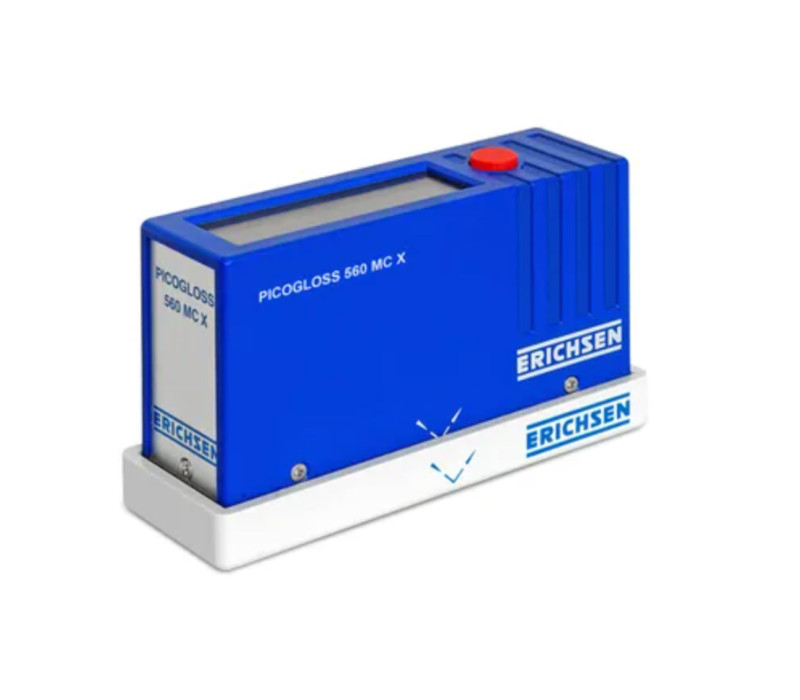

The Picogloss 560 MC-X is a compact and portable 60° gloss meter designed for fast, accurate measurement of medium-gloss surfaces such as coatings, plastics, and painted materials. As the most widely used geometry, 60° ensures reliable results in standard applications, while also accommodating non-standard measurement conditions often encountered in daily quality control.
Simple Operation & Efficient Workflow
One-touch operation allows quick and easy measurements with minimal training. The reading remains visible for approximately 10 seconds before automatic power-off, while the last measured value is retained and displayed when the device is switched back on.
Data Transfer & Analysis
A USB interface enables easy data transfer to PC for analysis using PICOSOFT III software, supporting documentation and reporting.
Basic Statistical Functions
Includes essential statistics such as number of measurements (up to 10), minimum, maximum, and standard deviation for quick evaluation.
___________________________________________________________________________________________________

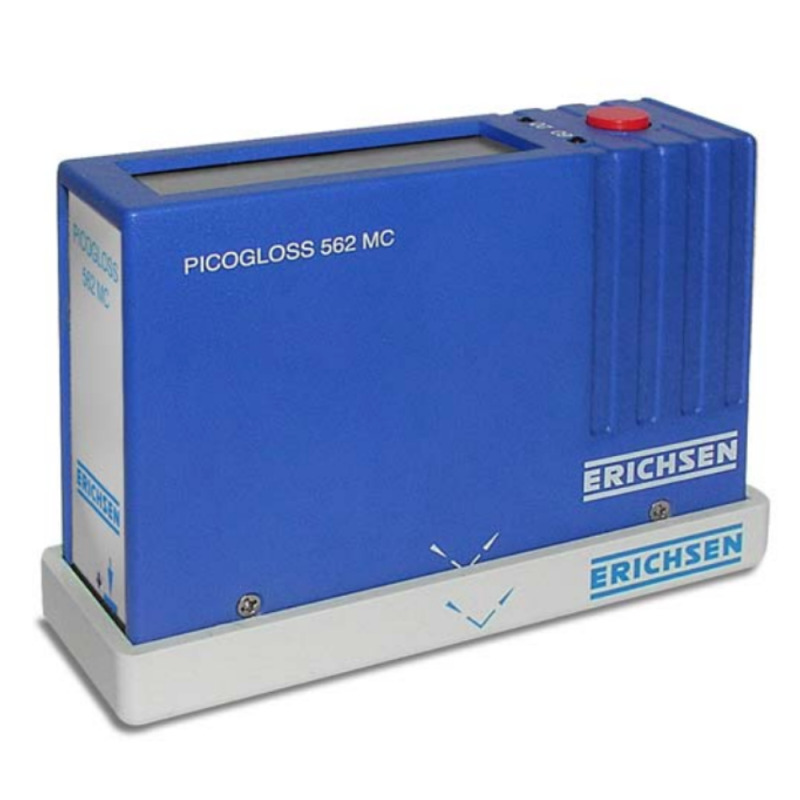

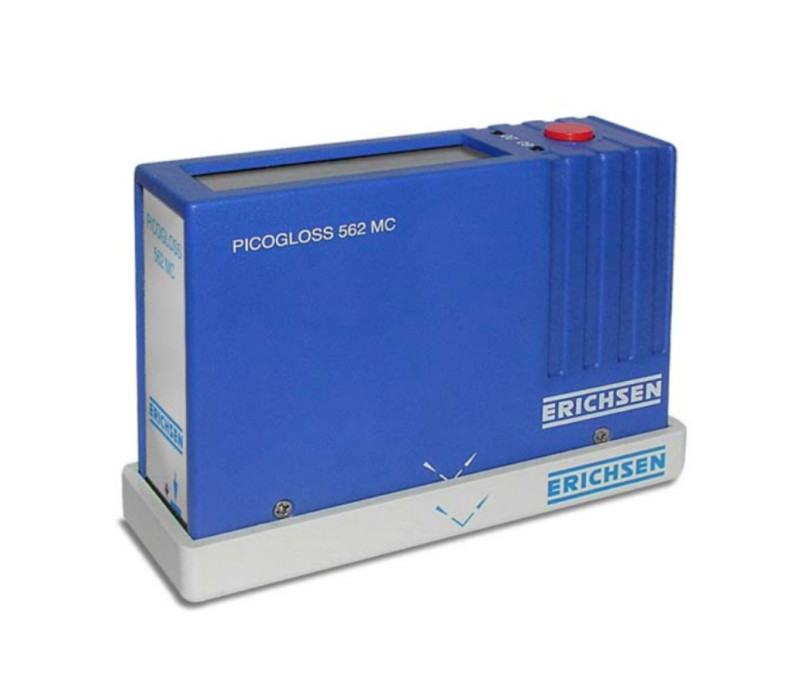

The Picogloss 562 MC is a compact and portable dual-angle gloss meter designed for accurate measurement of high-gloss (20°) and medium-gloss (60°) surfaces. Its small size and measuring aperture make it ideal for on-site inspections, including small parts and hard-to-reach areas.
Simple Operation & Efficient Workflow
One-touch operation enables fast measurements. Readings remain visible for about 30 seconds, and the last value is retained after auto power-off.
Compact Design for Difficult Areas
Ideal for small, narrow, or hard-to-access surfaces thanks to its compact design.
External Light Detection
Allows verification of ambient light influence by measuring with the lamp off.
___________________________________________________________________________________________________

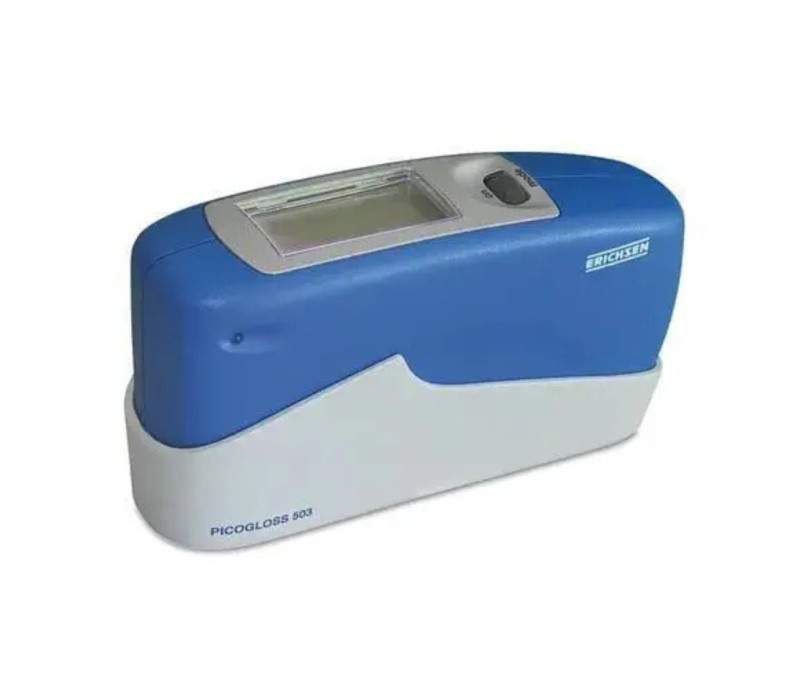

The Picogloss 503 is a compact and portable three-angle gloss meter designed for accurate measurement of high (20°), medium (60°), and low gloss (85°) surfaces. Its wide measurement range and compliance with international standards make it a versatile solution for advanced quality control across multiple industries.
Simple Operation & Efficient Workflow
Easy operation via scroll wheel and side button, with a clear color display for fast and intuitive measurements.
Advanced Statistics & Continuous Measurement
Provides real-time values and statistical analysis, including average, min/max, standard deviation, and Pass/Fail evaluation.
Automatic Calibration & Self-Check
Automatic calibration with built-in self-test ensures reliable and consistent measurements.
Data Transfer & Software Integration
USB connectivity with smart-lab Gloss software for data analysis and reporting.
| Picogloss 560 MC-X | Picogloss 562 MC | Picogloss 503 | ||
|---|---|---|---|---|
Measuring Range | up to 1000 GU | 20°: 150 - 2000 GU / 60°: 150 - 1000 GU | 20°: 150 - 2000 GU / 60°: 150 - 1000 GU / 85°: 0 - 160 GU | |
Measuring angle | 60° | 20° / 60° | 20° / 60° / 85° | |
Measuring Spot | 8 mm x 16 mm | 20°: 9 mm x 9 mm // 60°: 8 mm x 16 mm | ||
Primary Application | Medium gloss (standard) | High + medium gloss | High, medium & low gloss | |
Display | High-contrast LCD (180° rotatable) | High-contrast LCD | LCD with multilingual menu | |
Standards | EN ISO 2813 / DIN 67 530 / ISO 7668 / ASTM D 523 | EN ISO 2813 / DIN 67 530 / ISO 7668 / ASTM D 523 | ISO 2813 / ISO 7668 / ASTM D 523 / ASTM D 2457 / DIN 67530 / JIS Z8741 | |
Automatic Range Switching | Yes | Yes | Yes | |
USB Interfacce | Yes (PICOSOFT III) | Yes | Yes (smart-lab Gloss) | |
Power Supply | 1 × LR03 battery or USB | 2 × LR03 batteries or USB | 1 × AA battery or USB | |
Calibration | Automatic with standard (EPROM) | Automatic with standard (EPROM) | Automatic + calibration standard self-check | |
Dimensions | 105 × 31 × 59 mm | 105 × 31 × 73 mm | 48 × 155 × 73 mm | |
Weight | 200 g | 820 g | 400 g (approx) | |
|
(GU = brightness units) |
||||

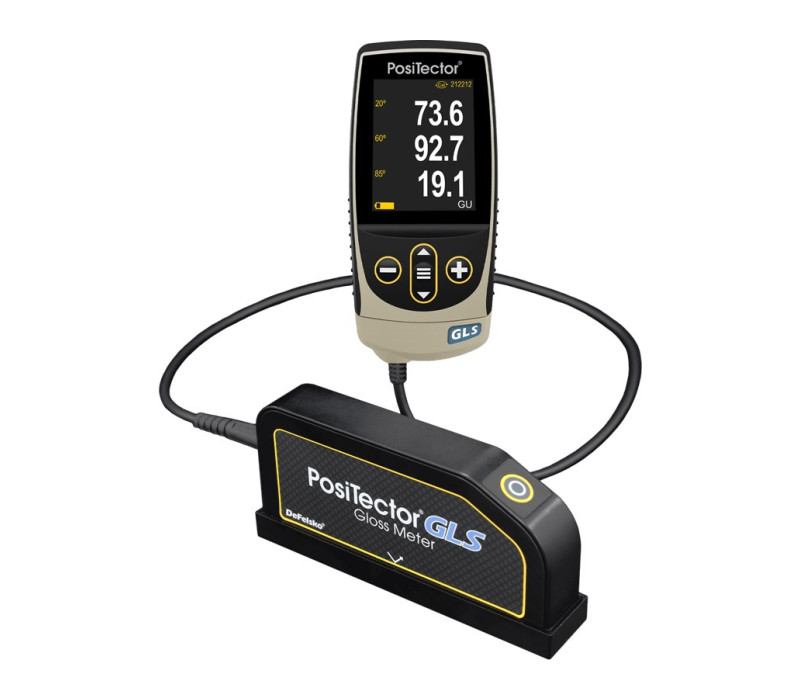

PosiTector GLS Portable Gloss Meter
- Featuring a larger 2.8" impact-resistant color touchscreen, the device offers a redesigned keypad for easy and quick menu navigation.
- The gauge body is built to be weatherproof, dustproof, and water-resistant, boasting an IP65-rated enclosure.
- Upon power-on, the device automatically performs diagnostics and auto-calibration using a protective base plate with an integrated calibration standard (tile).
More details
Buy Now
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
