OS-300-Auto

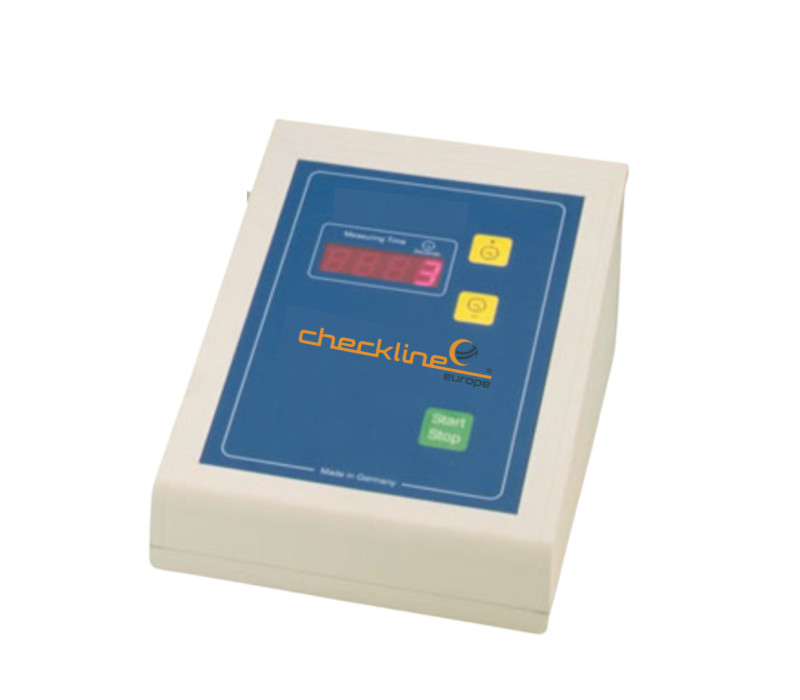

Control Panel

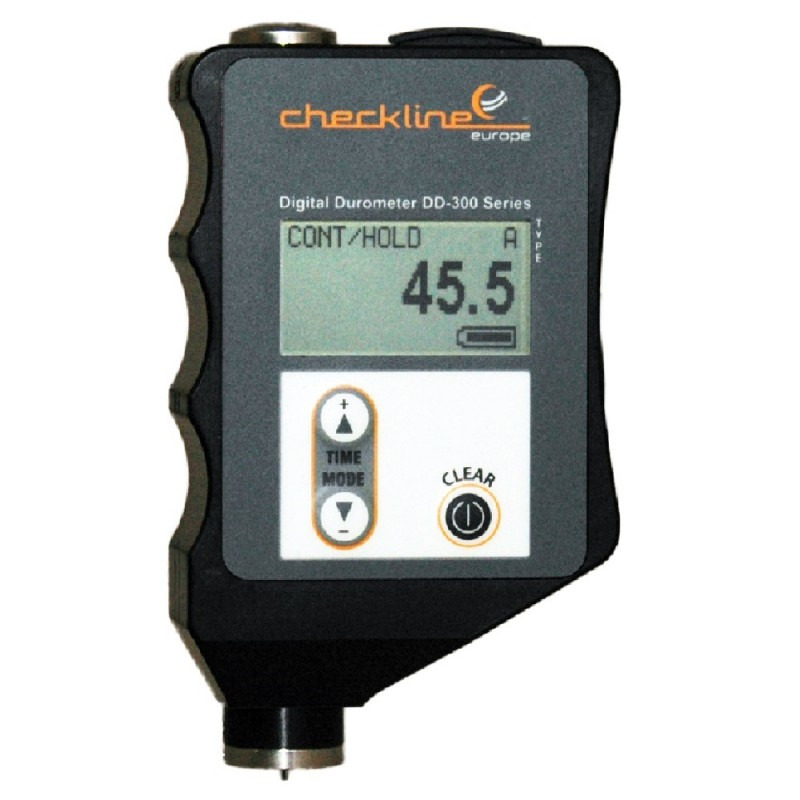

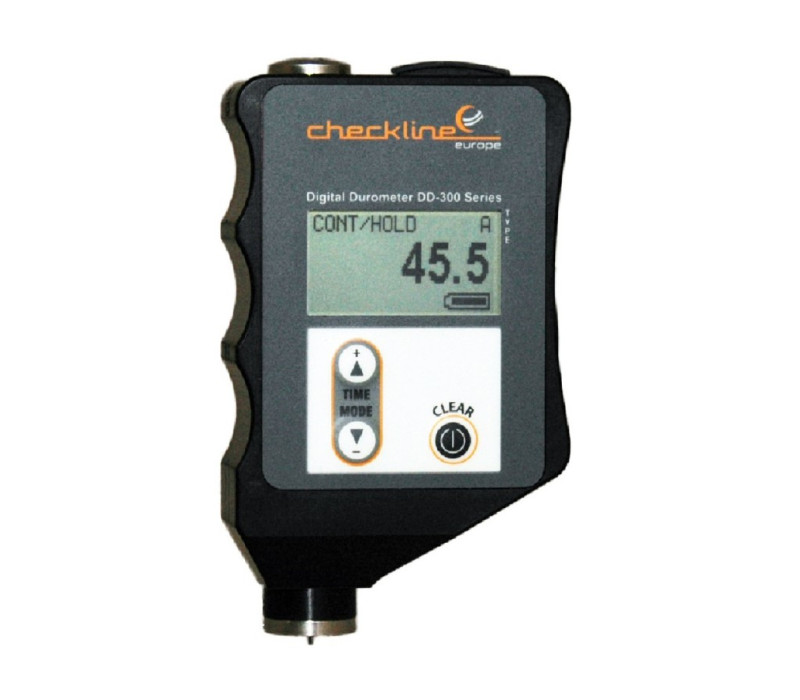

Digital Durometer DD-300 (not included with OS-300-3MS)

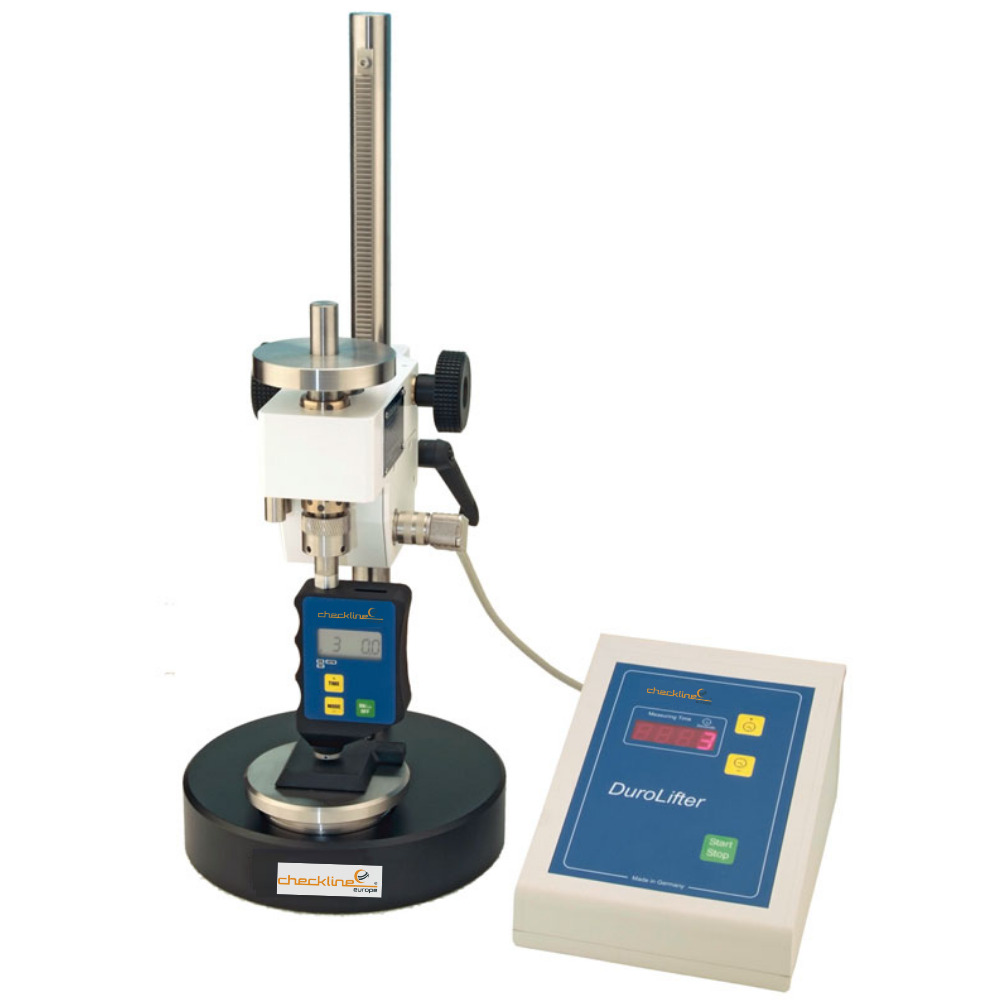

Auto Motorized Durometer Test Stand

Motorized Durometer Test Stand for Repeatable Shore Hardness Testing

The Checkline Europe OS-300-Auto is a fully automatic durometer test stand designed to deliver precise, repeatable, and operator-independent Shore hardness measurements. This advanced system combines the OS-300-3MS operating stand with the intelligent Control unit, ensuring consistent test conditions in accordance with international standards.

Ideal for quality control laboratories and production environments, the OS-300-Auto eliminates user variability and guarantees uniform test speed, dwell time, and contact force, critical factors in reliable hardness testing.

Key Features & Benefits

Fully Automatic Test Cycle

A precision stepping motor controls the vertical movement of the durometer (including optional weights), ensuring a constant approach speed to the sample. This eliminates subjective operator influence and significantly improves measurement repeatability.

Wide Durometer Compatibility

Supports both analogue and digital durometers, including seamless integration with the Checkline DD-300 digital durometers for enhanced functionality and timed measurements

Precise Height Adjustment

The integrated rack-and-pinion system with handwheels allows smooth and accurate vertical positioning of the durometer unit, accommodating a wide range of sample sizes.

Anti-Swivel Mechanism

The durometer mounting unit features an anti-rotation system, ensuring stable alignment and consistent contact with the test specimen.

Need assistance? Contact us, and our team of specialists will be happy to help you with your inquiry.

Request price >>

Compatible with Durometers: A, D, C, B, AO, DO, O, OO, OO. (OO durometers require a special mounting unit)
Rubber and elastomer hardness testing
Laboratory testing according to ISO and ASTM standards: ISO 868, ISO 48-4, ASTM D 2240
Data Transfer to PC with USB

OS-300-Auto Control Unit

The control box offers intuitive control and advanced testing capabilities :

Start / Stop Function for easy operation
Adjustable dwell time (1 to 99 seconds) for analog durometers
Digital connectivity with the DD-300 durometer for data transfer via USB to a PC
Compatible with its own software for complete system control, data logging, and analysis
Optional pedal for hands-free operation

Delivery includes:

Operating Stand OS-300-3MS
Control panel
Adjusting disk
Operating instructions

Optional Accessories:

Additional weight for Shore D testing
OO Holder
Foot switch (Start / Stop)
Dust cover
Factory calibration certificate

Digital Durometer not included *

Projection	105 mm
Test table diameter	98 mm
Max. Specimen thickness	180 mm
Standards	ISO 868, ISO 48-4, ASTM D 2240
Compatible with Durometers	A, D, C, B, AO, DO, O, OO (OO requires an additional holder)
Operating panel	with the functions START/STOP
Connectivity	Data transfer via USB-Port
Housing	Sturdy aluminium construction
Net weight	18 kg

Durometer Test Stand OS-300-Auto - Data Sheet

Products

Item	Product
140636	OS-300 Auto Fully Automatic Durometer Test Stand, Needs Durolifter Control Unit.

Accessories

Item	Product
134579	OS-300-WEIGHT Test Stand Weight for Shore D
136717	DD-300-USBAD - Opto-RS232 to USB Adapter
134859	DD-300-OS adapter for DD-300 Series to OS-300 Test Stand

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
