MiniTest FN-Probes Sensors for non-magnetic and insulating coatings

Designed for the use with the MiniTest 7400, different FN-probes make high precise coating thickness measurements of both non-megnatic coatings on steel and insulating coatings on non-ferrous metals possible. Checkline Europe offers different probes for multiple measurement ranges and applications op to 5 mm coating thickness.

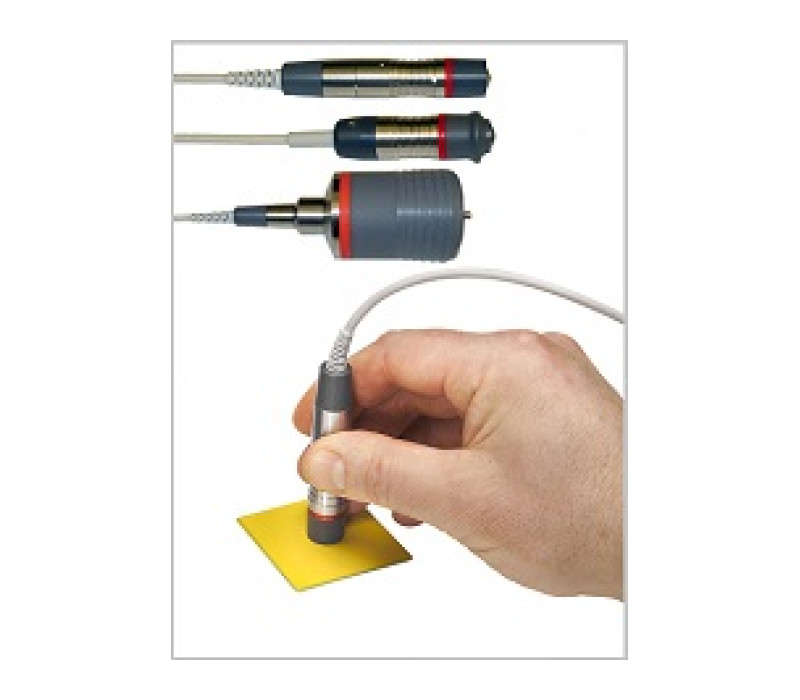

Checkline Europe offers 5 FN-probes:

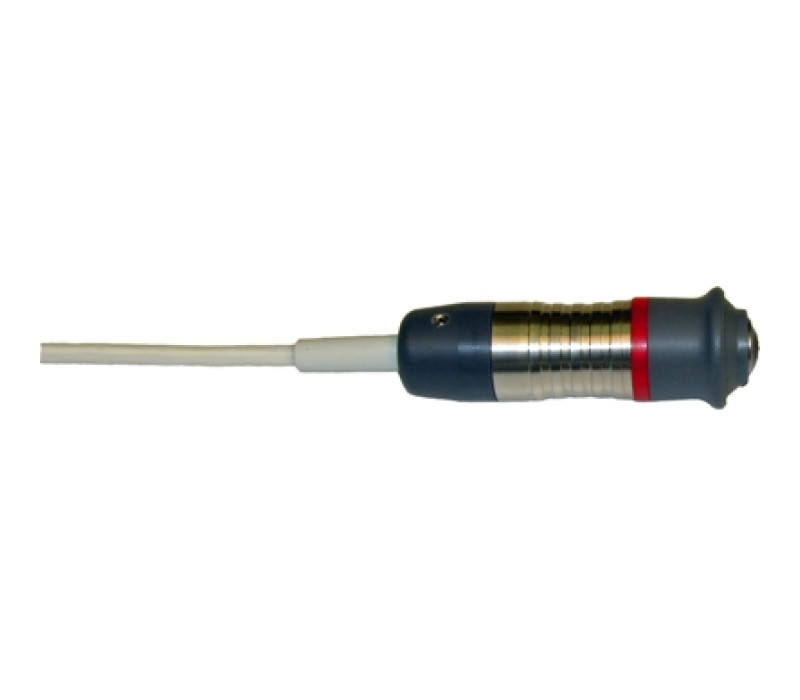

FN1.5 / FN 1.5 HD:
F: 0 – 1.5 mm
N: 0 – 0.7 mm
FN1.5-90
F: 0 – 1.5 mm
N: 0 – 0.7 mm

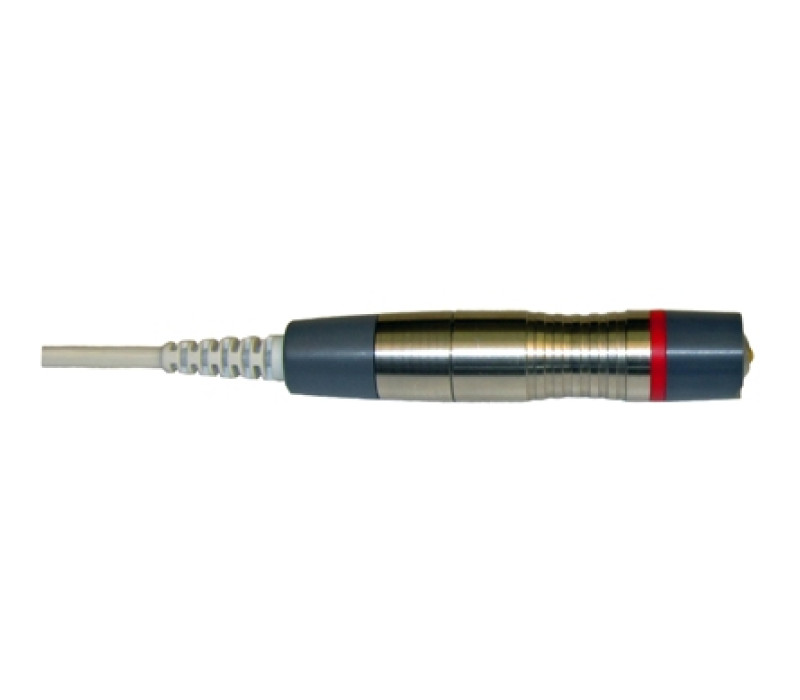

FN5 / FN5 HD:
F: 0 – 5 mm
N: 0 – 2.5 mm

Different probes for both non-magnetic coatings on steel and insulating coatings on non-ferrous metals
Dual sensor: magnetic induction/eddy currents principle
Measuring range up to 5 mm coating thickness

FN1.5 / FN1.5 HD	Measuring range: F: 0 – 1.5 mm N: 0 – 0.7 mm Accuracy: +/- 1 μm + 0.75 % of reading Repeatability: +/- 0.5 μm +0.5 % of reading Low range resolution: 0.05 μm Minimal substrate thickness: F: 0.3 mm N: 40 μm Right-angle cable outlet: 62.5 mm length; 15.3 mm Ø Straight cable outlet: 100 mm length; 15.3 mm Ø HD version: 78.0 mm length; 20.5 mm Ø
FN1.5-90	Measuring range: F: 0 – 1.5 mm N: 0 – 0.7 mm Accuracy: +/- 1 μm + 0.75 % of reading Repeatability: +/- 0.5 μm +0.5 % of reading Low range resolution: 0.05 μm Minimal substrate thickness: F: 0.3 mm N: 40 μm Total length: 310 mm lang Immersion length: 165 mm lang, 10 mm Ø Special lengths on request
FN5 / FN5 HD	Measuring range: F: 0 – 5 mm N: 0 – 2.5 mm Accuracy: +/- 1.5 μm + 0.75 % of reading Repeatability: +/- 0.8 μm +0.5 % of reading Low range resolution: 0.1 μm Minimal substrate thickness: F: 0.5 mm N: 40 μm Right cable outlet: 62.5 mm length; 15.3 mm Ø Straight cable outlet: 78 mm length; 20.5 mm Ø
