MiniTest FH New MiniTest FH

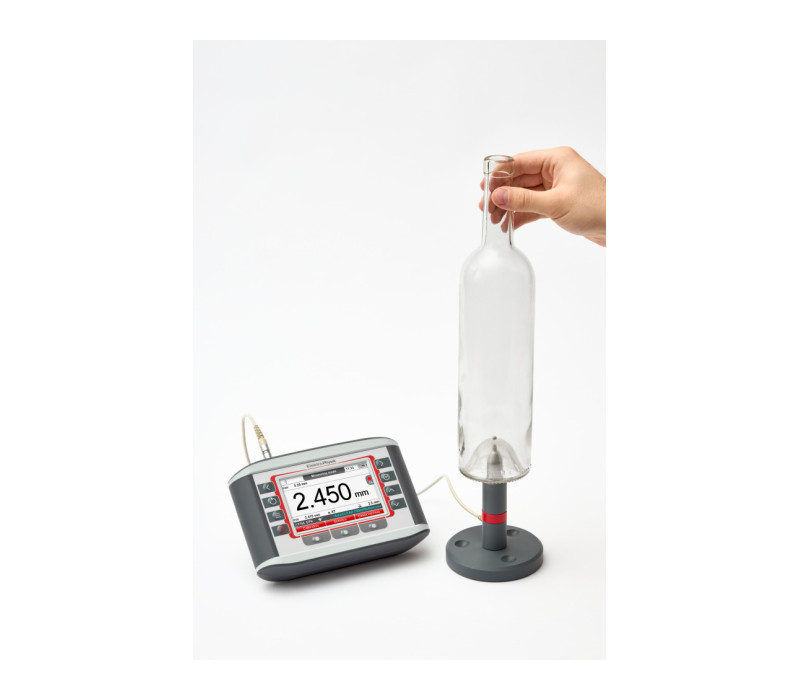

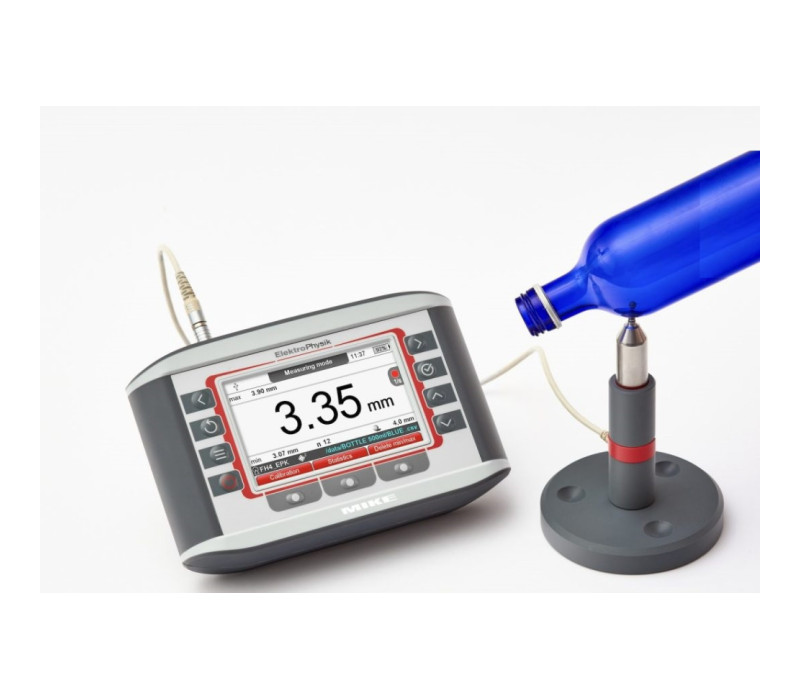

MiniTest FH with standard probe FH 4 in stand for measuring the thickness of a glass bottle

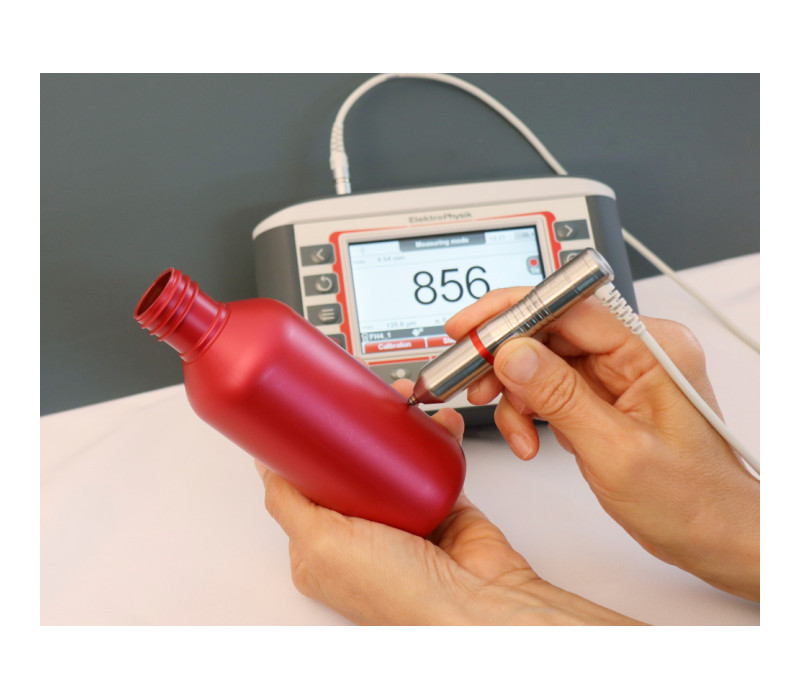

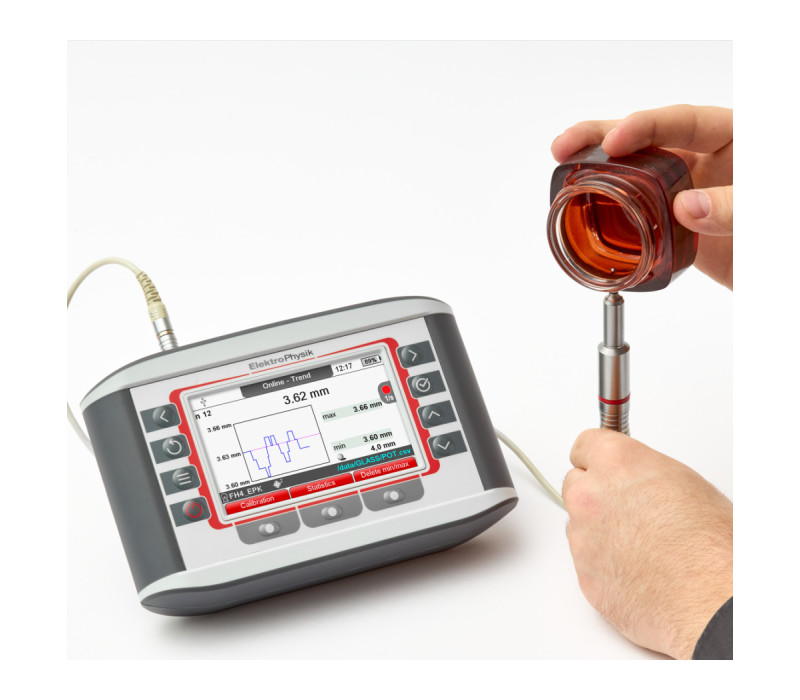

fast and efficient thickness measuring on a plastic bottle for production or Quality control

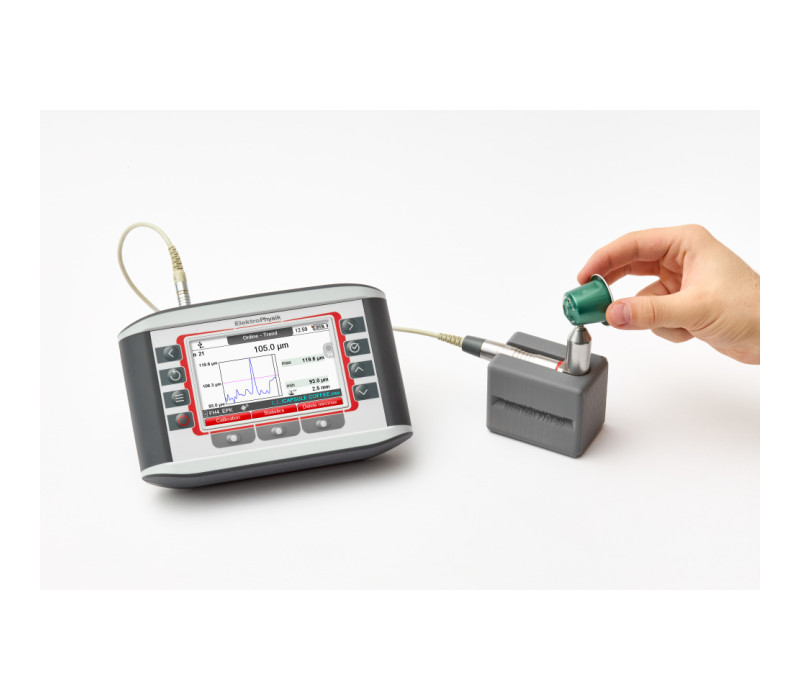

A 90 degree FH 4 sensor used in a stand measuring the thickness of an aluminium Nespresso cup with the online trend screen on the gauge, showing statistical graph and real time trend.

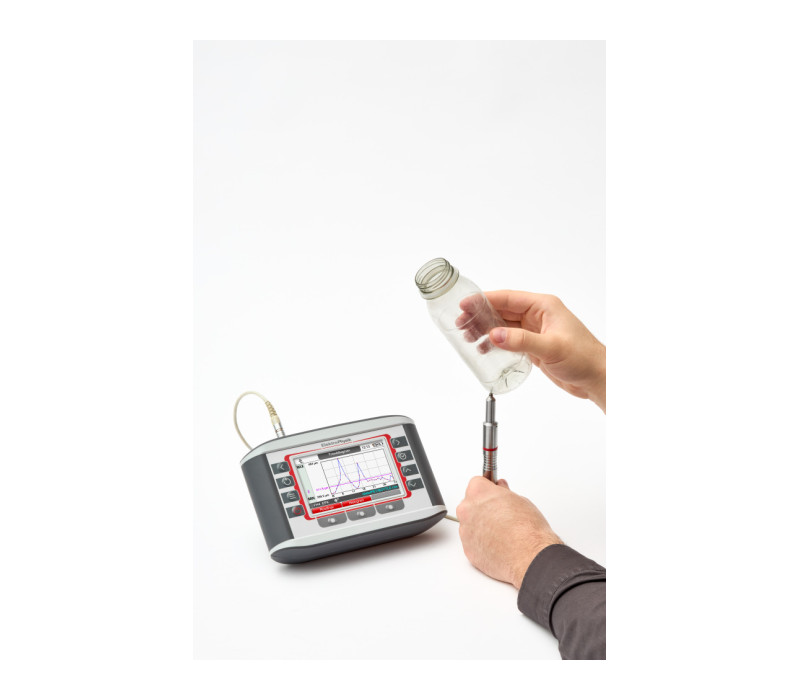

The FH 2 sensor can be used in places where the FH 4 can't get a proper access to measure

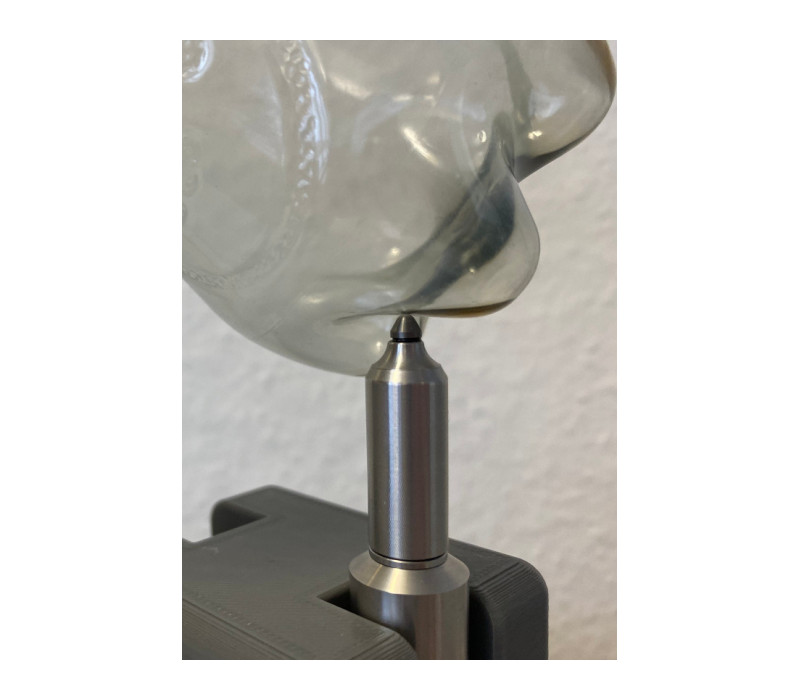

The HH 2 sensor with a measuring range of 0-2 mm, for use on small components with cavities and difficult to access geometry

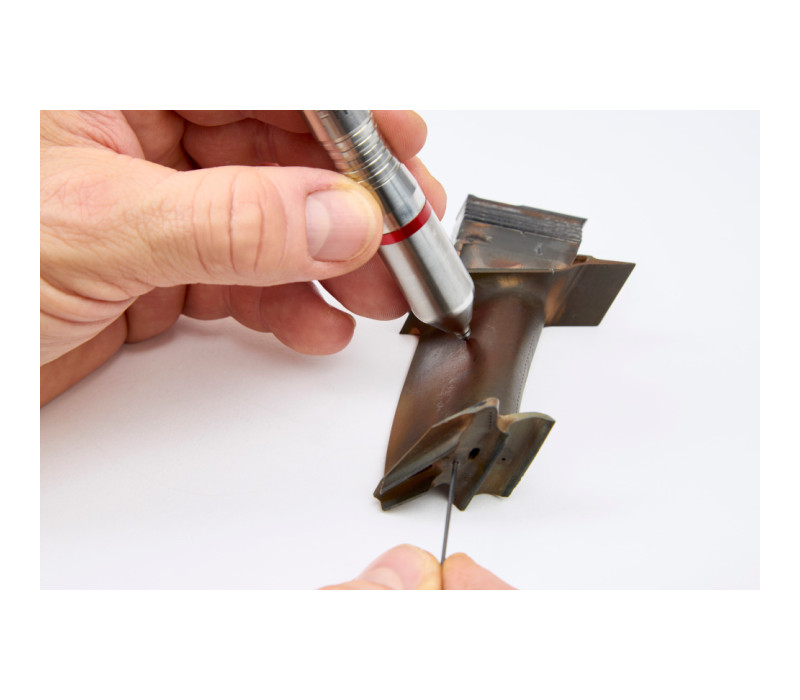

Special version of the FH 4 sensor using a steel wire as reference instead of a steel ball. This FH sensor offers wall thickness measurement in turbine blades or any other applications that do not allow the risk of dropping and irretrievably losing the steel ball.

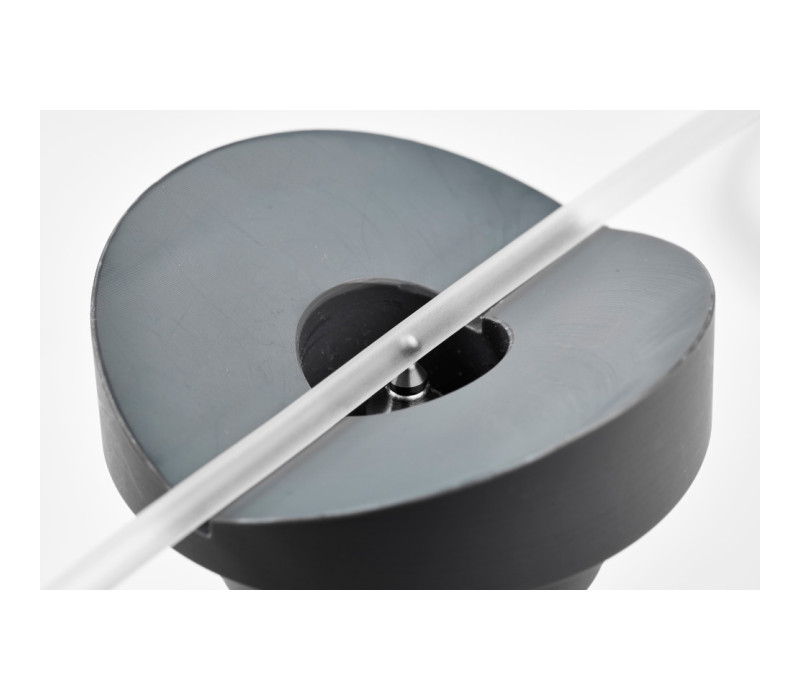

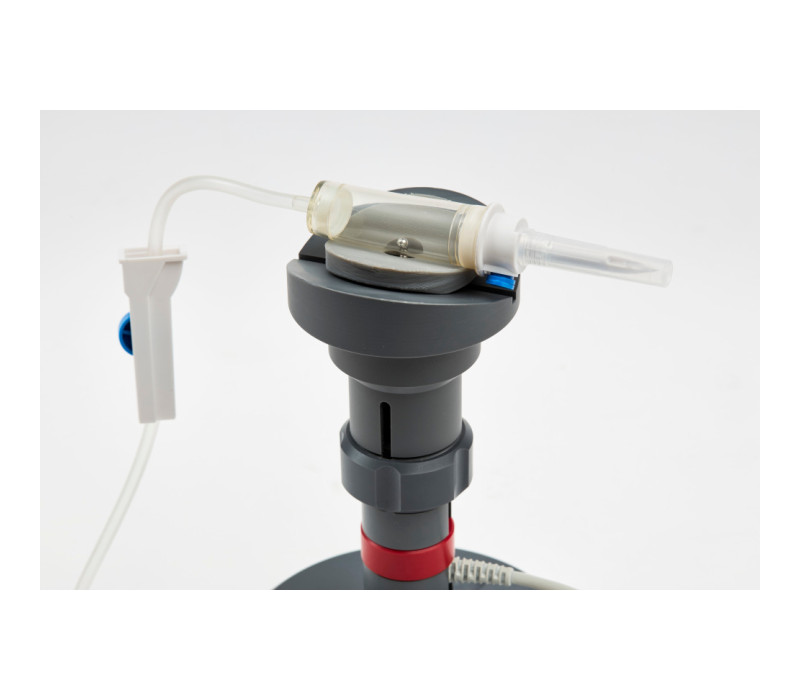

The FH4-1 is, for example, used with Medical products such as syringes, infusion sets, synthetic hearts, stents etc..

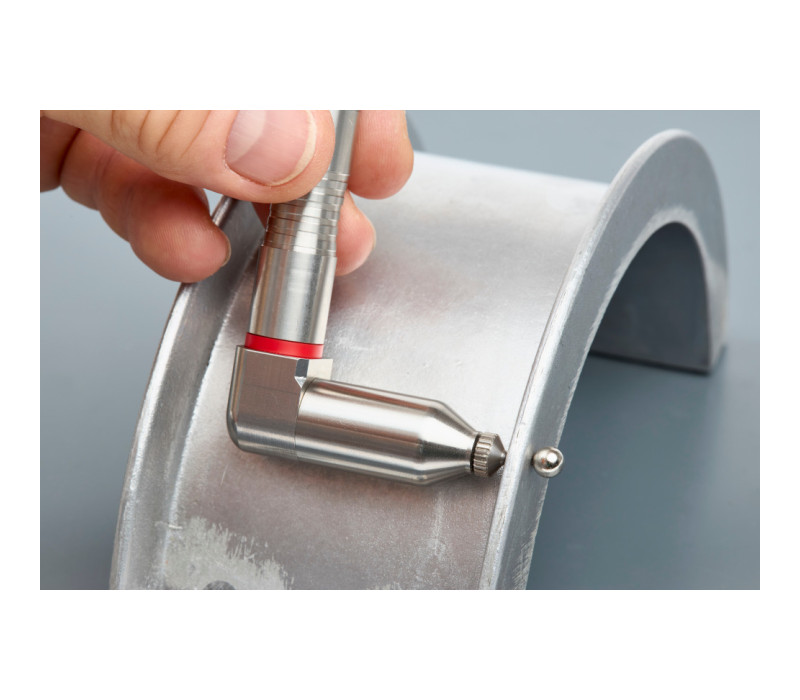

Sensor types FH 4 and FH 10 as well as their magnetic versions can be equipped with replaceable sensor caps. Wherever the customer encounters the issue that the sensor tip may suffer from mechanical shocks (punctual placement on hard material), it may be advisable to work with a sensor that offers to replace the sensor cap.

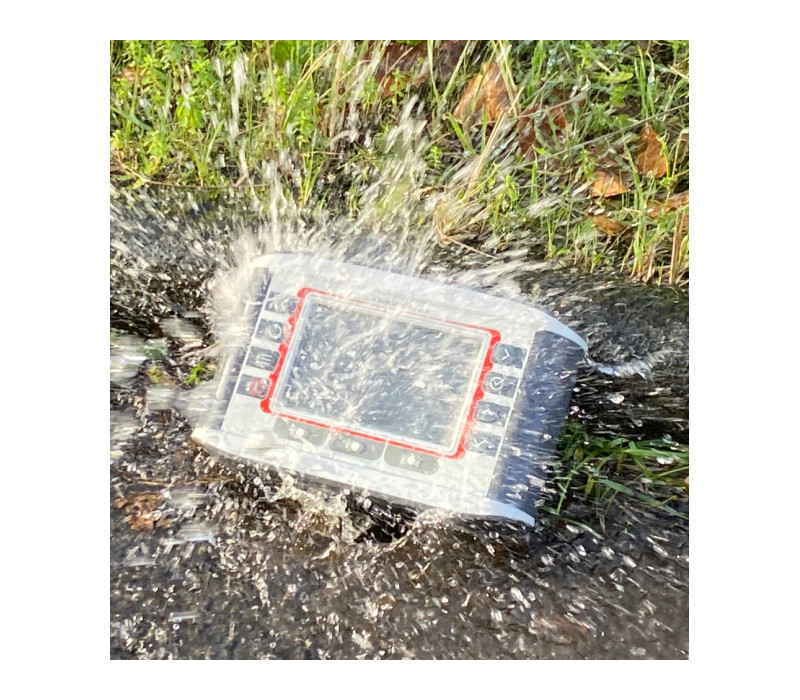

The MiniTest FH is rated IP65, splash proof and can be used in harsch conitions

Precision Wall Thickness Tester

New MiniTest FH Magnetic Thickness Gauge Innovation and Precision in Compact Measurement

Discover the New MiniTest FH from Checkline, a high-precision magnetic thickness gauge that offers advanced solutions for measurement across a wide variety of materials, including plastics, non-ferrous metals, and glass. This device is ideal for those seeking reliability and precision in a compact, easy-to-handle gauge.

Key Features:

Application Versatility: Capable of measuring up to 24 mm wall thickness, it is perfect for both production environments and quality laboratories.
SIDSP® Technology: All sensors implement integrated digital signal processing, ensuring accurate and reliable measurements.

Special Features:

AI-Based Quick Calibration: Allows for zero adjustments in less than ten seconds, significantly enhancing the precision of measurements.
Various Connectivity Options: Includes interfaces such as USB, RS-232C, and Bluetooth, enabling easy data transfer to quality control systems.

User Benefits:

Intuitive Handling: With ergonomic design that facilitates use and a 4.3" color display that clearly shows data, this gauge ensures an optimal user experience.
Resistance to Tough Conditions: Certified with IP65, it is ideal for working in demanding industrial environments.

This gauge is a superior choice for professionals who require an efficient and adaptable tool for precise thickness measurement across a range of industrial materials, from packaging to automotive components and more.

High precision wall thickness measurement of non-ferrous materials up to 24mm thickness
Exceptional accuracy and repeatability through sensor-integrated digital signal processing (SIDSP®)
2 million readings storable in more than 200 batches
Suitable for all types of packaging such as bottles and containers made of glass and plastic
As well as for composite materials, aluminium and titanium parts with complex geometries in aerospace and automotive production
Up to 20 readings per second
Wear-resistant sensors with hardened sensor tips
Direct data import into evaluation software
Bluetooth, USB and RS 232 C interfaces
AI-based quick calibration function
IP 65, splash-water resistant

MiniTest FH Basic Unit
Solid plastic case for transport and storage
Sensor at choice including:
- Target balls or wires
- Zero and calibration caps
- A spring-loaded measuring stand, all sensors except 90° version.
- a special protective cap and a shielding tube for transport.
Manufacturer Certificate
USB connection and charging cable

MiniTest FH Measuring Principle

	MiniTest FH uses a Hall element to capture variations in the electromagnetic field and converts them into at thickness value. Thickness is determined by measuring the distance of a reference ball or other reference object to the sensor tip. A powerful magnet attracts the reference ball to the sensor and holds the ball in exact place on the sensor tip. The magnetic field varies according to the distance between target ball and sensor tip. The variations of the magnetic field increase with the distance between target ball and sensor tip getting smaller. The variation can be taken as a reference for the material thickness of the sample to be measured.

MiniTest sensor information

Sensor	Standard ball/wire size, mm	Number of balls/wires	Magnetic ball sizes, mm	Number of balls	Measuring range in mm
FH2	1,5/2,5/4	100/100/50	-	-	0-2,3
FH2-M	1,5/2,5/4	100/100/50	1,5/3	20/20	0-4,5
FH2-90	1,5/2,5/4	100/100/50	-	-	0-2,3
FH2-M-90	1,5/2,5/4	100/100/50	1,5/3	20/20	0-4,5
FH4	1,5/2,5/4	100/100/50	-	-	0-6
FH4-90	1,5/2,5/4	100/100/50	-	-	0-6
FH4-1	1/1,5/2,5/4	100/100/100/50	-	-	0-6
FH4-1-90	1/1,5/2,5/4	100/100/100/50	-	-	0-6
FH4-M	1,5/2,5/4	100/100/50	1,5/3	25/20	0-9
FH-4-M-90	1,5/2,5/4	100/100/50	1,5/3	25/20	0-9
FH4cc	1,5/2,5/4	100/100/50	-	-	0-4
FH4cc-90	1,5/2,5/4	100/100/50	-	-	0-4
FH4cc-M	1,5/2,5/4	100/100/50	1,5/3	25/20	0-8
FH4cc-M-90	1,5/2,5/4	100/100/50	1,5/3	25/20	0-8
FH4-WIRE	0,66/1,15	20/20	-	-	0-13
FH4-WIRE-90	0,66/1,15	20/20	-	-	0-13
FH10	2,5/4/6/9	100/50/25/10	-	-	0-13
FH10-M	2,5/4/6/9	100/50/25/10	4/6	20/20	0-24
FH10cc	2,5/4/6/9	100/50/25/10	-	-	0-12
FH10cc-M	2,5/4/6/9	100/50/25/10	4/6	20/20	0-23

MiniTest FH Sensor Options

	Spring loaded measuring stand All sensors, excluding the 90° version, come with a spring-loaded measuring stand included in the package. This stand serves the purpose of securing the sensor in an upright position, facilitating the precise measurement of objects by guiding them comfortably over the sensor tip.
	1mm ball or Wire reference FH4-1 In addition to its standard applications, the FH4 sensor is available in specialized versions tailored for specific measuring tasks. Particularly in the medical sector, where measuring small parts with narrow passages is common, the FH4-1 sensor type is ideal. This variant is designed for tasks like measuring the wall thickness of tubes, artificial organs, stents, infusion sets, etc., using a target ball with a diameter as small as 1 mm. FH4-Wire Certain applications pose challenges that preclude the use of measuring balls, often due to the risk of irretrievability within the object being measured. In such cases, the FH sensor offers a unique solution in the form of the FH4-Wire sensor. This variant employs a measuring wire instead of a ball, making it indispensable for testing turbine blades, where the wall thickness can be accurately determined against a wire inserted into the cooling holes.
	FH2 Sensors The small tip FH2 sensor is used for measuring in small spaces and areas that are difficult to access. Like the bottom cavities of pet bottles and small components with a difficult to access geometry.
	Repleceable tip caps for heavy wear applications For situations where ther is a lot of wear to be expected on a measuring tip, a sensor with a replaceable wear tip is available

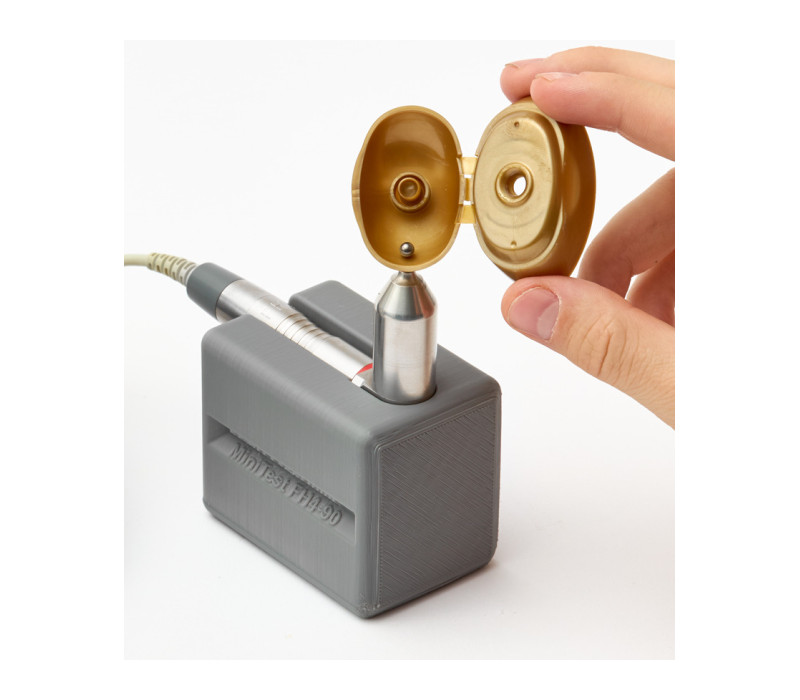

	90° sensors for hard to reach area's The FH2 and FH4 sensors are also available in a 90° angle version for acces where standard sensors are not able to measure. Angled sensors are technically similar as their straight versions.

FH4 sensor

All dimensions are in mm

FH2 sensor

All dimensions are in mm

FH10 sensor

All dimensions are in mm

FH2 and FH4 90° sensor

All dimensions are in mm

Video

Measuring principle	Magnetostatic
Repeatability	Better than ± (1 μm + 0.5 % of reading)
Initial resolution	0.1 μm (FH2)
Calibration modes	Factory calibration, zero calibration, zero + 4 calibration points
Measuring units	Metric (μm, mm), imperial (mils, inch)
Statistical evaluation	Numerical, trend and histogram
Available display Languages:	English, German, Spanish, French, Swedish and Vietnamese
Data logging rate	1, 2, 5, 10, 20 readings per second (selectable)
Data memory	2,000,000 readings storable in more than 200 batches
Interfaces	USB, Bluetooth, RS 232 C
Ambient temperature	-10°C … + 60°C (Storage temperature -20°C … + 80°C)
Supply	8 x NiMH AA batteries – charging via USB
Dimensions	19.5 x 12 x 5 cm
Weight	775 g

Products

Item	Product	Price	Quantity	Action
139371	MiniTest FH - Basic unit without sensor	€ 5.053,00		' title='Description'>

Accessories

Item	Product	Price	Action
139513	MiniTest FH-2 - Magnetic Wall Thickness Probe (range 0-2,3 mm)	€ 3.756,00
139514	MiniTest FH-2-M - Magnetic Wall Thickness Probe (range 0-4,5 mm)	€ 4.186,00
139515	MiniTest FH-2-90 - Magnetic Wall Thickness Probe (range 0-2,3 mm)	€ 3.756,00
139516	MiniTest FH-2-M-90 - Magnetic Wall Thickness Probe (range 0-4,5 mm)	€ 4.186,00
130078	MiniTest FH-4 - Magnetic Wall Thickness Probe (range 0-6 mm)	€ 3.756,00	' title='Description'>
139503	MiniTest FH-4-90 - 90 degree Magnetic Wall Thickness Probe (range 0-6 mm)	€ 3.756,00
135527	MiniTest FH-4-1mm - Wall Thickness Probe with 1mm ball option	€ 3.932,00
139505	MiniTest FH4-1-90 - 90 degree Wall Thickness Probe with 1mm ball option (range 0-6 mm)	€ 3.932,00
135528	MiniTest FH-4-M - Probe Extended range (magnetic balls)	€ 4.186,00
130079	MiniTest FH-10 - Magnetic Wall Thickness Probe (range 0-13 mm)	€ 4.166,00
135529	MiniTest FH-10-M - Probe Extended range (magnetic balls)	€ 4.568,00
139517	MiniTest FH-10-cc - Magnetic Wall Thickness Probe (range 0-12 mm)	€ 4.166,00
139518	MiniTest FH-10-cc-M - Magnetic Wall Thickness Probe (range 0-23 mm)	€ 4.568,00
130088	MiniTest Steel Balls Ø1,5mm - ±100 pieces	€ 43,00
130089	MiniTest Steel Balls Ø2,5mm - ±100 pieces	€ 43,00
130090	MiniTest Steel Balls Ø4,0mm - ±50 pieces	€ 44,00
130091	MiniTest Steel Balls Ø6,0mm - ±25 pieces	€ 53,00
130092	MiniTest Steel Balls Ø9,0mm - ±10 pieces	€ 42,00
130087	MiniTest Foot Switch	€ 460,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out
