Macro IRHD Durometer hardness system with different inserts
The automatic operation eliminates operator and manual errors.
The Macro IRHD hardness system can be used with different inserts to meet the requirement of your specific application.

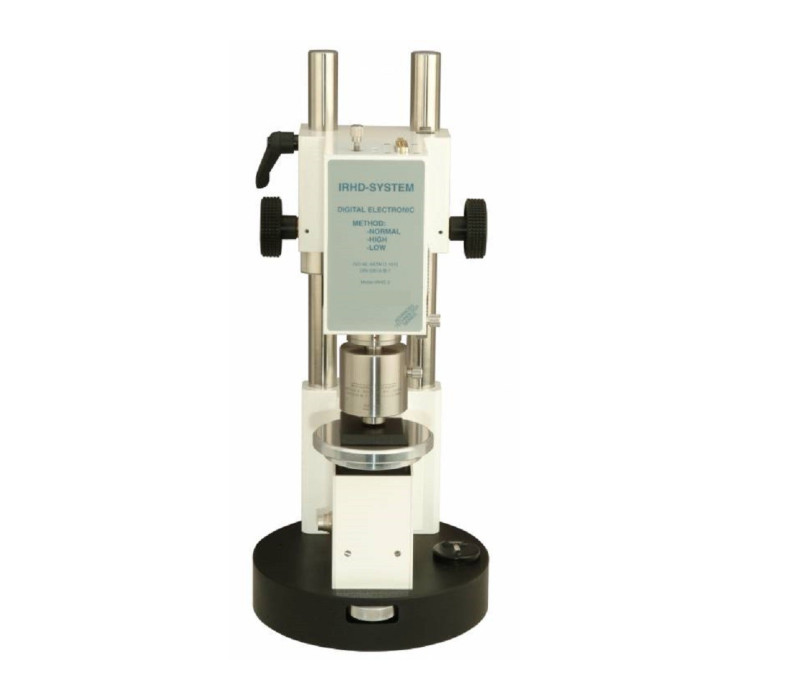

Macro IRHD Durometer hardness system with different inserts
The Macro IRHD Durometer hardness system is the professional measurement system for hardness tests on elastomers and plastics with a thickness of minimal 6 mm according to IRHD and durometer hardness. This hardness measuring systems meets the requirements of DIN ISO 48, ISO 48, ASMT D 1415 and DIN 53505 international standards.The Macro IRHD conducts hardness measurements with use of an insert that can be inserted without the use of tools. Different inserts are available to fulfill the requirements of your specific application: 1.0 mm, 2.5 mm, 5.0 mm and Durometer Shore A. The electronic identification in each insert ensures the electronic identification. Each insert has its own corresponding software, which starts up automatically. Operator errors are prevented!

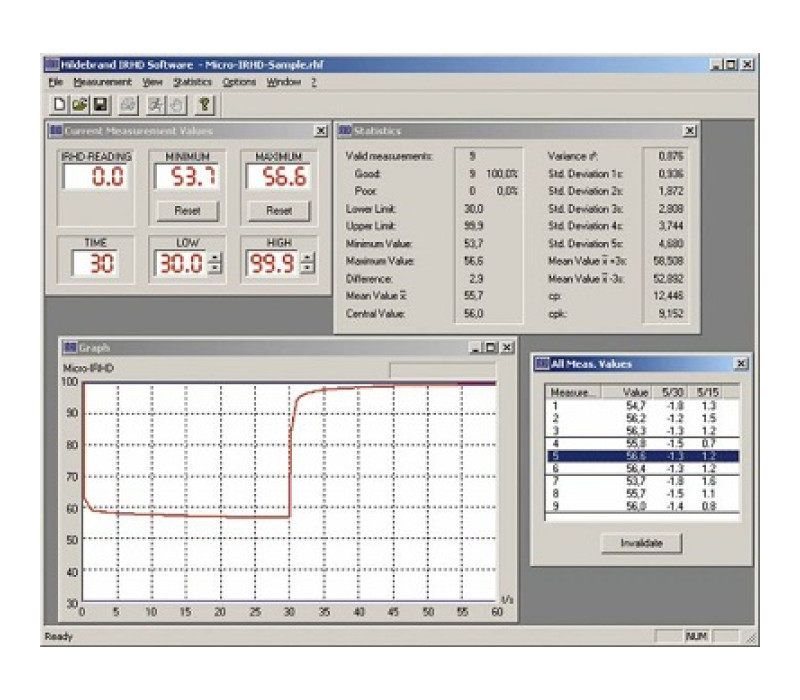

The whole measuring system is controlled by a PC and PC software, which works under Microsoft Windows and provides multiple measurement features, like the output of hardness values, graphs, statistics, test reports and many more. All data can be transferred by the ASCII-output. Due to the modular construction the measuring head can be changed easily.

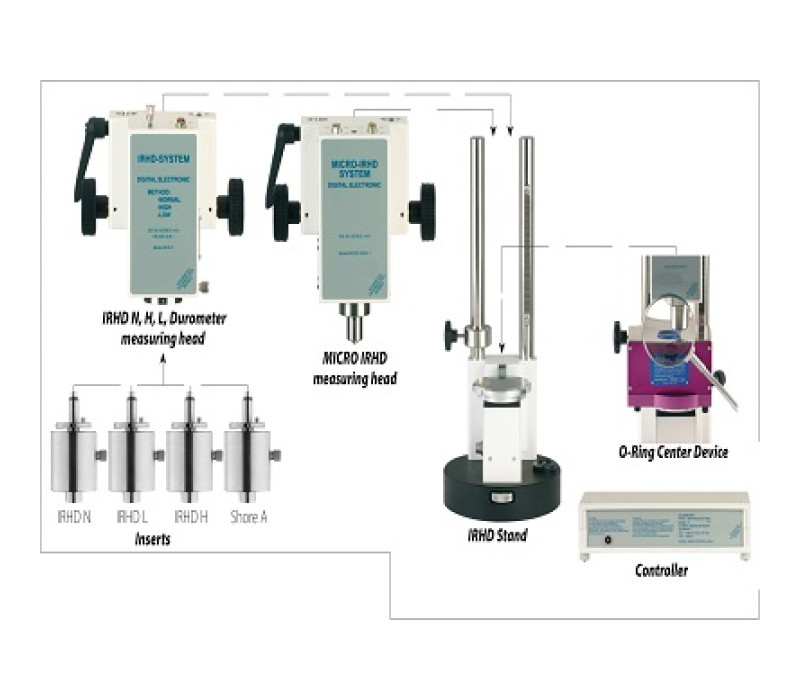

Available Inserts:
IRHD TYPE N (Normal hardness) round indenter Ø 2,5 mm
- DIN ISO 48, ISO 48
- ASTM D 1415
IRHD TYPE H (High hardness) round indenter Ø 1,0 mm
- DIN ISO 48, ISO 48
- ASTM D 1415
IRHD TYPE L (Low hardness) round indenter Ø 5 mm
- DIN ISO 48, ISO 48
- ASTM D 1415
3.Shore A
- DIN ISO 7619-1
- ISO 868
- ISO 7619-1
- ASTM D 2240
