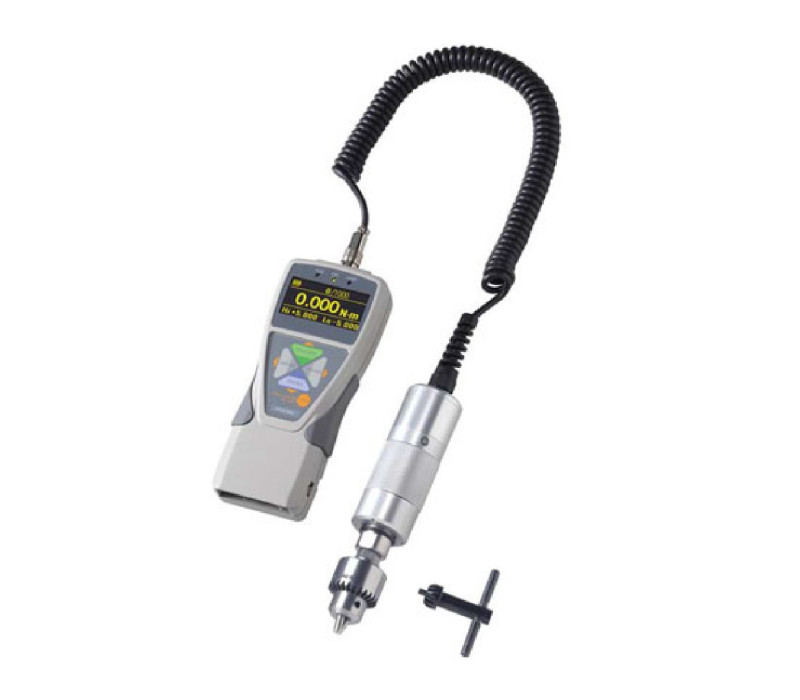

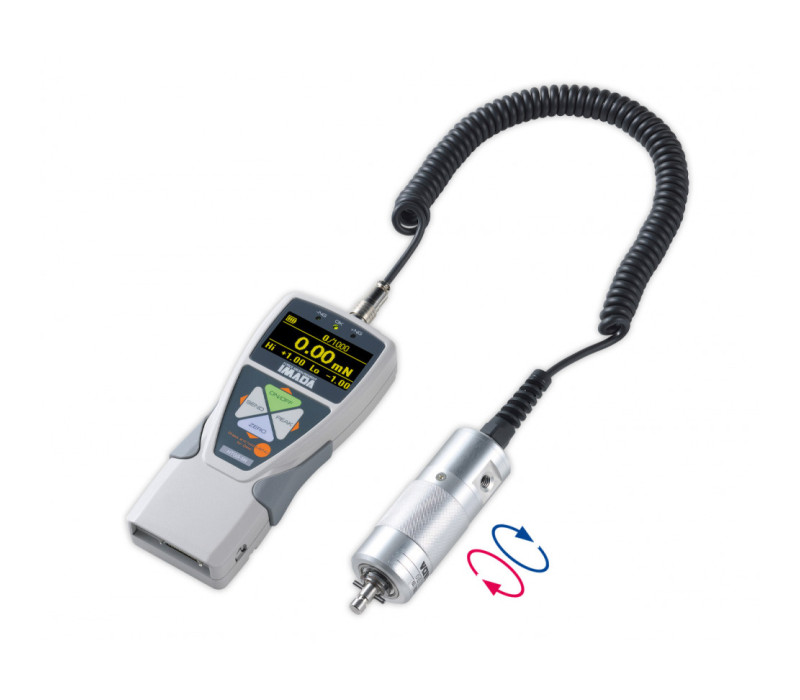

HTG Series - Handheld Type Digital Torque Gauge

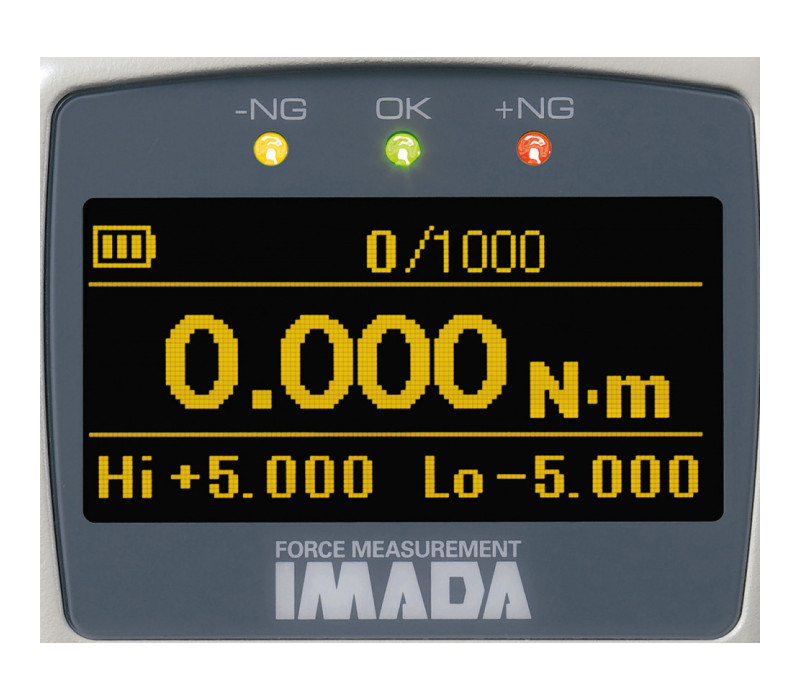

LED display and colour-coded indicators for go/no-go testing

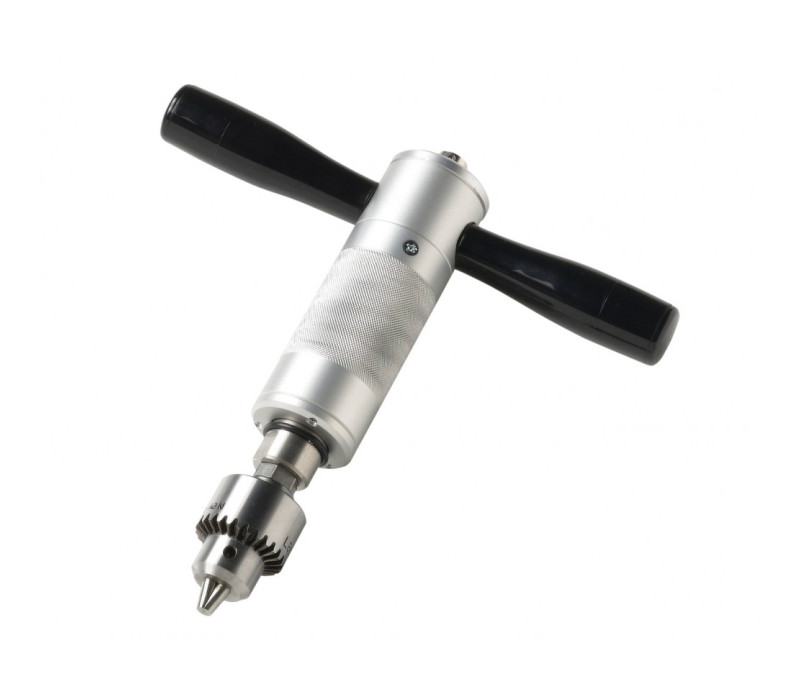

Handle for HTG-10N for better operation

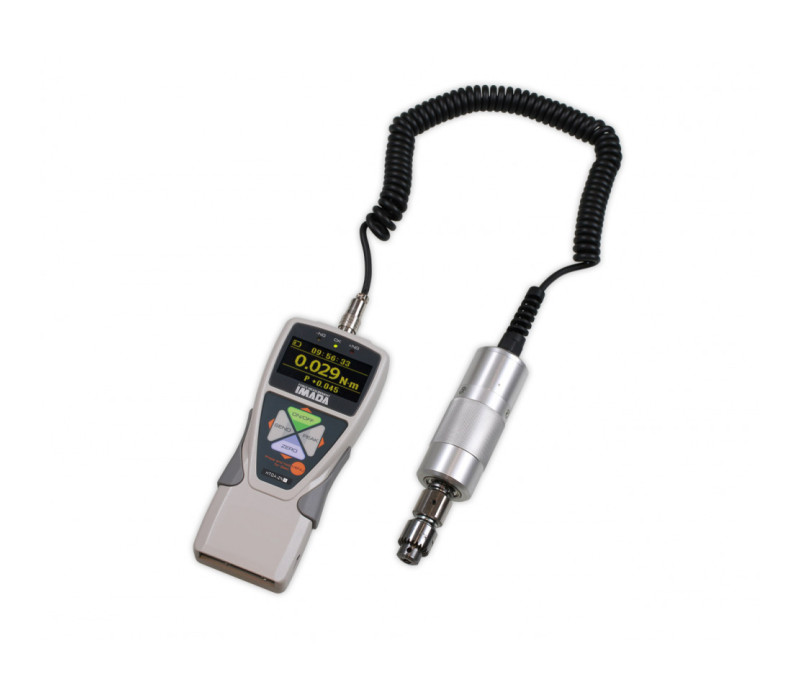

HGTA with torque pin chuck HT-DC-4 (optional)

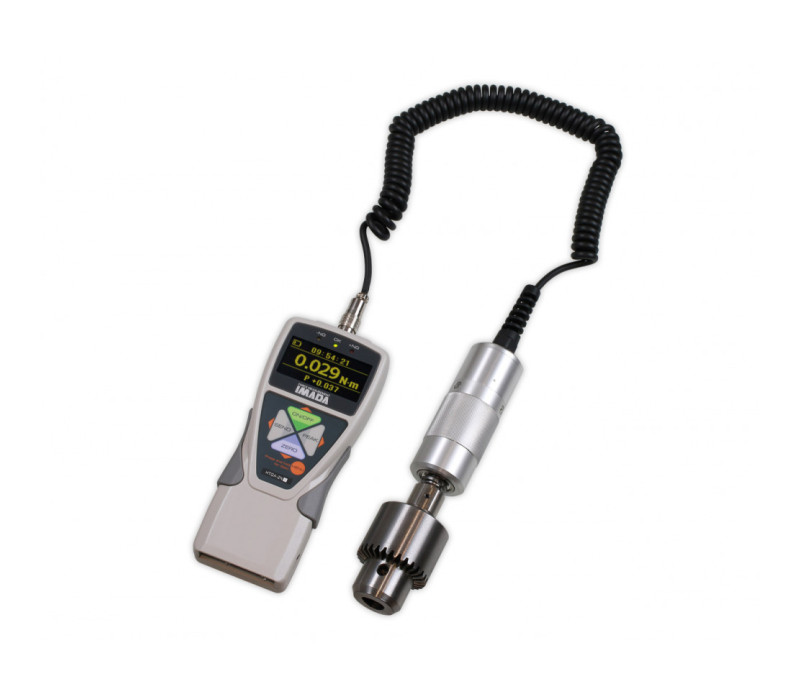

HGTA with torque pin chuck HT-DC-13 (optional)

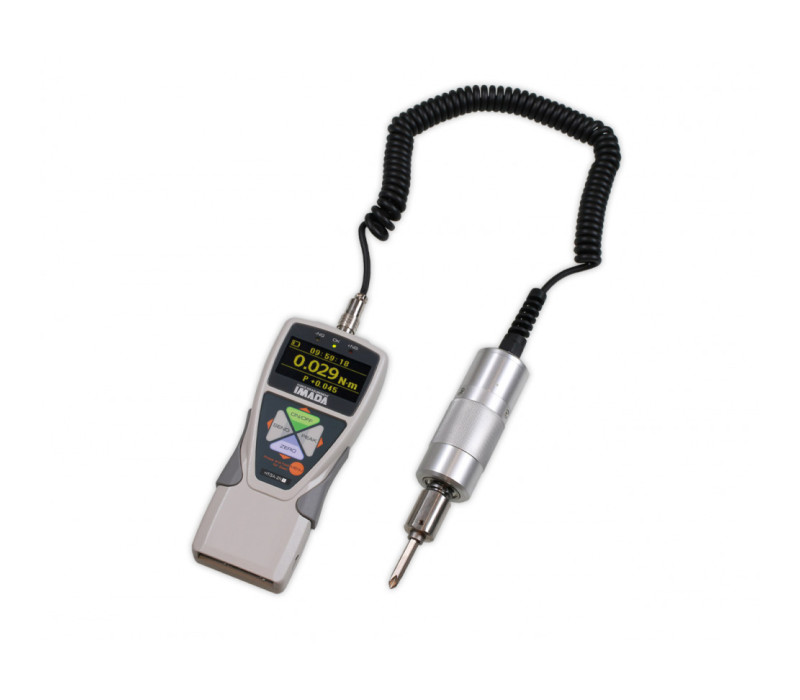

HGTA with bit-adapter HT-DBH (optional) and philips insert

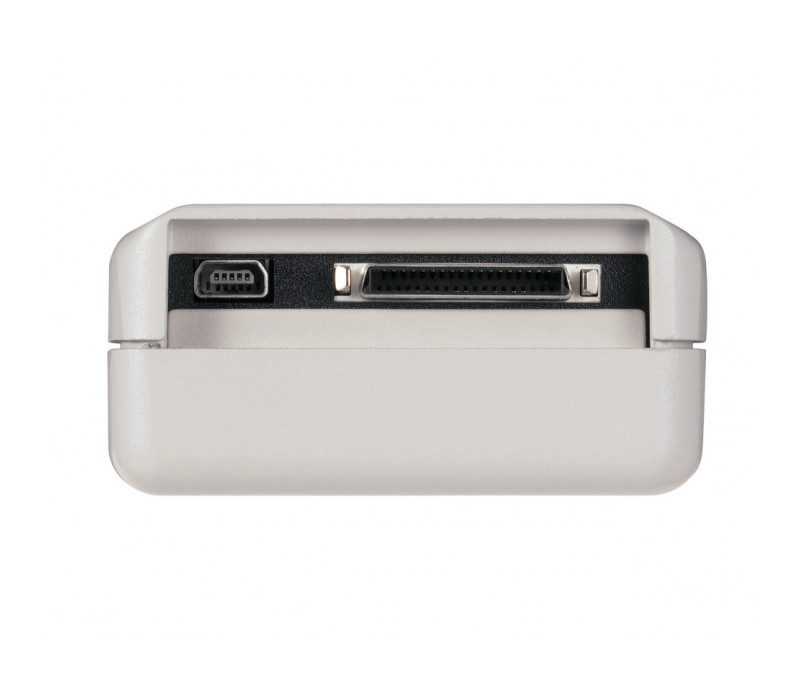

Interfaces - USB, as well as interface for RS-232 and analog (optional cable required)

HTG Series - Handheld Type Digital Torque Gauge

The HTGA versions are currently not available

The HTG-Series Digital Torque Gauge is equipped with an electro luminescent display, which is highly visible in dark locations. It is a very user friendly handheld torque meter with his easy-to-use menus. It has multi-language program menus: English, Spanish, French, Chinese, German, Italian, Korean and Japanese.

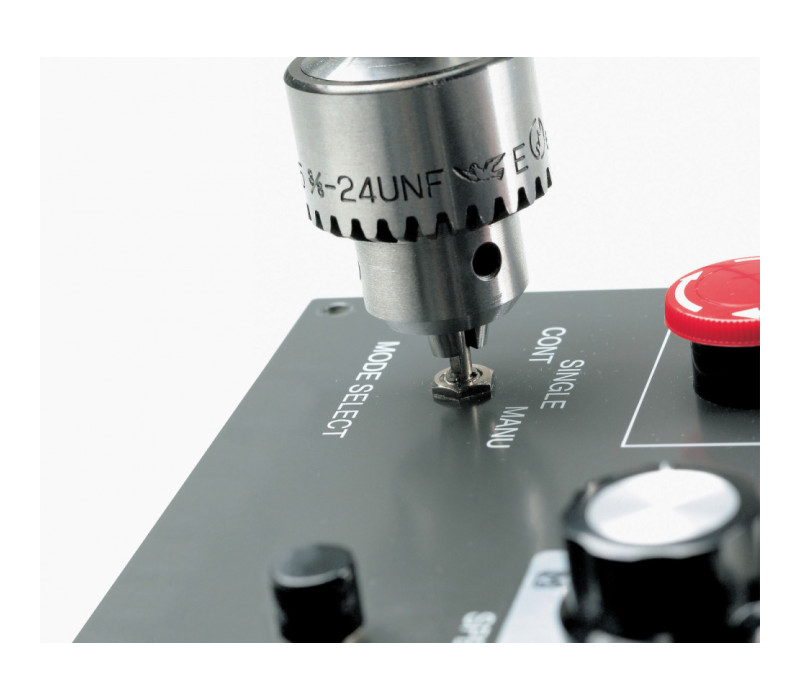

The HTG-Series Digital Torque Gauge can be used for measuring the torque of:

Screws
Components
Drive shafts
Plug connectors
Etc.

Electro luminescent EL display shows torque value, unit, and peak, and can be configured with additional user-selectable data including memory data, +NG count, high/low setpoints, 1st and 2nd peaks, torque angle, etc.

Color-coded LED indicators alert the user to Go/NoGo conditions. Orange lights for less than low setpoint, green lights between high and low, and red for over the high.

Process and transmit 2,000 actual data per second, not just the peak from a high sampling rate. Optional Force Recorder data acquisition software is required to record at speeds up to 2,000 data per second.

Save data to USB flash drives. Export peak data or capture continuous data at 100 data/second to flash drives with HTGA models.

The included data logger software ZT-Logger downloads data from the gauge memory or captures a continuous stream of data at 10 data/second. (You can make a graph with Excel later). Zero the gauge or capture data while at the computer. All gauge programming can be set and saved from the software.

The HTG-Series Force Gauge are available in 2 versions:
Series HTGS (Standard) & Series HTGA (Advanced)

The HTGA versions are currently not available

The HTGA (advanced) has more useful functions:

1st/2nd peak
Angle detection at torque peak value (*1)
Angle zero reset at selected torque(*1)
Sub comparator 2 steps (output of large or small judgment)
Angle (displacement) (*1)

Even in the case when you cannot connect PC during measurement, you can save data in USB flash drive, and later transfer data to PC via the USB drive. On PC you can draw the data into a graph with Excel.

(*1) Angle(displacement) function is required (Only HTGA).

Price from € 1.590,00

Order now

Selectable units: lbf-in, ozf-in, N-m, N-cm, kgf-m, kgf-cm.
Selectable units: lbf-in, ozf-in, N-m, N-cm, kgf-m, kgf-cm.
USB (virtual COM port), RS-232C, Digimatic and Analog outputs
External switch display hold and clear
Real time and peak mode (selectable)
Overload capacity 200% of F.S
Programmable high/low setpoints with color-coded LED indicators and output signal for quick Go/No Go testing
Sample and transmit 2,000 data/sec using optional Force Recorder software
Internal Ni-MH batteries or AC adapter
Overload alarm and output signal
1,000 data memory for recall or download

Kit includes:

6.5mm chuck,
ZT Logger data acquisition software,
USB cable,
Allen wrench,
AC adapter/charger,
calibration certificate traceable to NIST and
carrying case (handles for "85" range only).

Optional: 13mm Jacobs chuck available

HTG-Series Feature Comparison Chart

Electroluminescent display (ELD)
Functions	HTGS	HTGA
Peak hold (clockwise and counter-clockwise)
Comparator (judgment of OK or NG)
Reversible display
Sign inversion
Multi display
Internal memory	1000 data	1000 data
+/- Force
Auto zero timer
+NG alarm
Auto shut off
Time display
1st/2nd peak	-
Angle detection at torque peak value (*1)	-
Angle zero reset at selected torque (*1)	-
Output	HTGS	HTGA
Serial (RS232C)
Mitutoyo digimatic [*2]
Analog	2 VDC (D/A)	2 VDC (D/A)
USB
Comparator 3 steps (-NG/OK/+NG)
Overload warning
Sub comparator 2 steps (output of large or small judgment)	-
Memory in USB flash drive [USB flash drive is not included]	-
Angle(displacement) (*1)	-
(1) Angle (displacement) function is required (2) Not always available for Mitutoyo digimatic products

Chuck Sizes & Min / Max Sample Diameters

Model	Standard	Optional (*L)
HTGS-4	4.0mm / 0.157"	NA
HTGS-15	6.5mm / 0.260"	13mm / 0.512"
HTGS-40	6.5mm / 0.260"	13mm / 0.512"
HTGS-85	6.5mm / 0.260"	13mm / 0.512"
*For 13mm Chuck add "-L" to part # ie: HTG2-15L

Min/Max Sample Diameters
Chuck Size	Min Sample	Max Sample
6.5mm / 0.260"	0.5mm / 0.020"	6.5mm / 0.260"
13mm / 0.512"	0.7mm / 0.028"	13mm / 0.512"

Accuracy	± 0.5% Full Scale ± 1 LSD
Selectable Units	lbf-in, ozf-in, N-m, N-cm, kgf-m, kgf-cm
Overload warning	Approx. 110% F.S. (Warning message and alarm )
Overload Capacity	200% of F.S.
Power	Rechargeable Ni-MH battery pack or AC adapter
Battery Indicator	Indicates three charge states high, med and low
Memory	Non-volatile, recall up to 1,000 data
Setpoints	Programmable high/low setpoints w/ color-coded LEDs & output signal
Outputs	USB (virtual COM port), RS-232C, Digimatic and ± 2 VDC analog output
Operating Temperature	0° to 40°C
Weight	Display : approx.490g
Warranty	1 year

Torque Ranges

Model	Capacity	Resolution	Included Chuck Size	Included Handle
HTGS-4 / HTGA-4	4,000 lbf-in 5,000 kgf-cm 50,00 N-cm	0.01 lbf-in 0.001 kgf-cm 0.01 N-cm	4 mm	No
HTGS-15 / HTGA-15	1,00 lbf-in 20,00 kgf-cm 200,0 N-cm 2 N-m	0.01 lbf-in 0.01 kgf-cm 0.1 N-cm 0.001N-m	6.5 mm	No
HTGS-15L / HTGA-15L	1,00 lbf-in 20,00 kgf-cm 200,0 N-cm 2 N-m	0.01 lbf-in 0.01 kgf-cm 0.1 N-cm 0.001N-m	13 mm	No
HTGS-40 / HTGA-40	40,00 lbf-in 50,00 kgf-cm 500,0 N-cm 5 N-	0.01 lbf-in 0.01 kgf-cm 0.1 N-cm 0.001N-m	6.5 mm	No
HTGS-40L / HTGA-40L	40,00 lbf-in 50,00 kgf-cm 500,0 N-cm 5 N-	0.01 lbf-in 0.01 kgf-cm 0.1 N-cm 0.001N-m	13 mm	No
HTGS-85 / HTGA-85	85,0 lbf-in 100,0 kgf-cm 1000 N-cm 10 N-m	0.01 lbf-in 0.01 kgf-cm 0.1 N-cm 0.001N-m	6.5 mm	Yes
HTGS-85L / HTGA-85L	85,0 lbf-in 100,0 kgf-cm 1000 N-cm 10 N-m	0.01 lbf-in 0.01 kgf-cm 0.1 N-cm 0.001N-m	13 mm	Yes

Products

Item	Product	Price
134709	HTGS-0.5N Digital Torque Tester without sensor attachment	€ 1.708,00
134711	HTGS-2N Digital Torque Tester without sensor attachment	€ 1.590,00
134710	HTGS-15L Digital Torque Tester (Jacobs Chuck) (15 lb-in, 13 mm Chuck)
134712	HTGS-5N Digital Torque Tester without sensor attachment	€ 1.590,00
134686	HTGS-40L Digital Torque Tester (Jacobs Chuck) (40 lb-in, 13 mm Chuck)
134714	HTGS-10N Digital Torque Tester without sensor attachment	€ 1.679,00
134715	HTGS-85L Digital Torque Tester (Jacobs Chuck) (85 lb-in, 13 mm Chuck)

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
