FG-7000 Series Digital Force Gauges

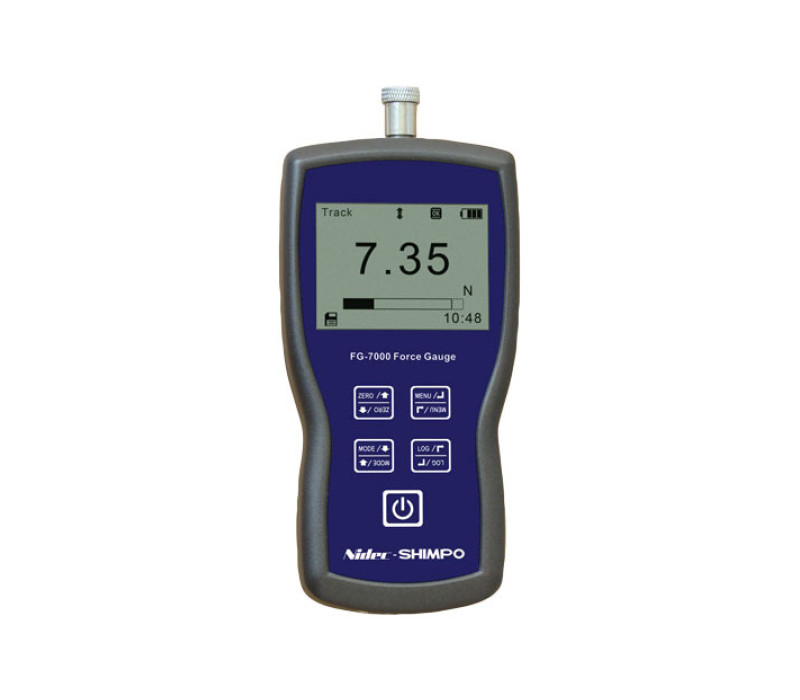

FG-7000

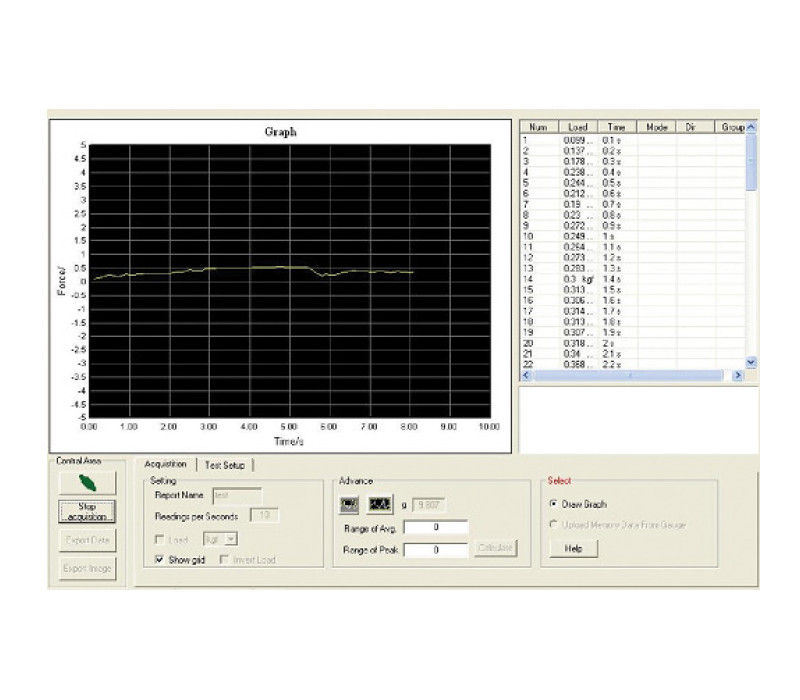

Data Management Program Available from Website

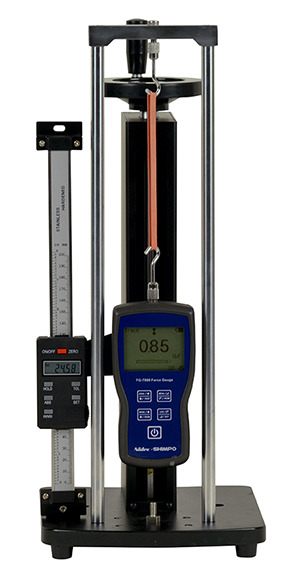

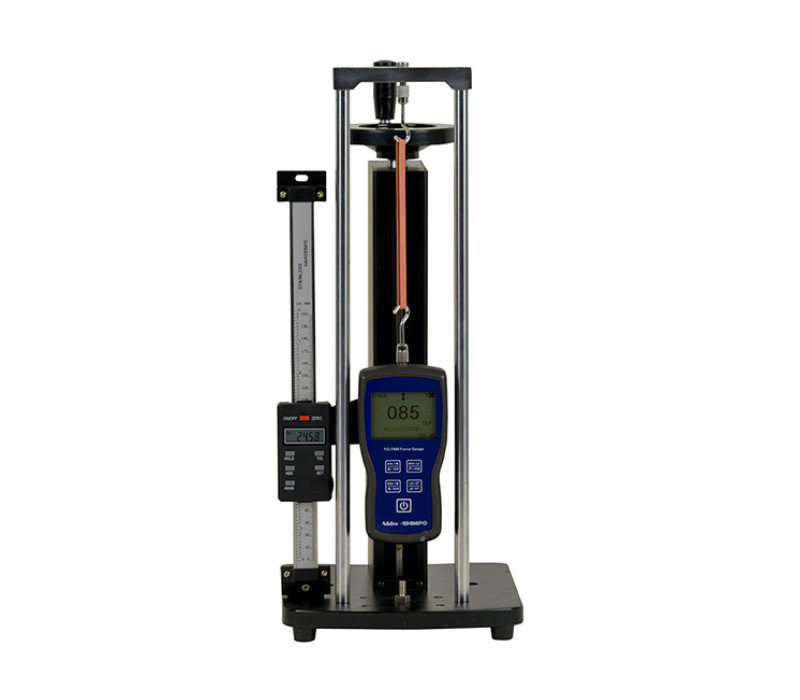

FG-7000 Force Gauge with FGS-250W Shown Performing Tensile Test

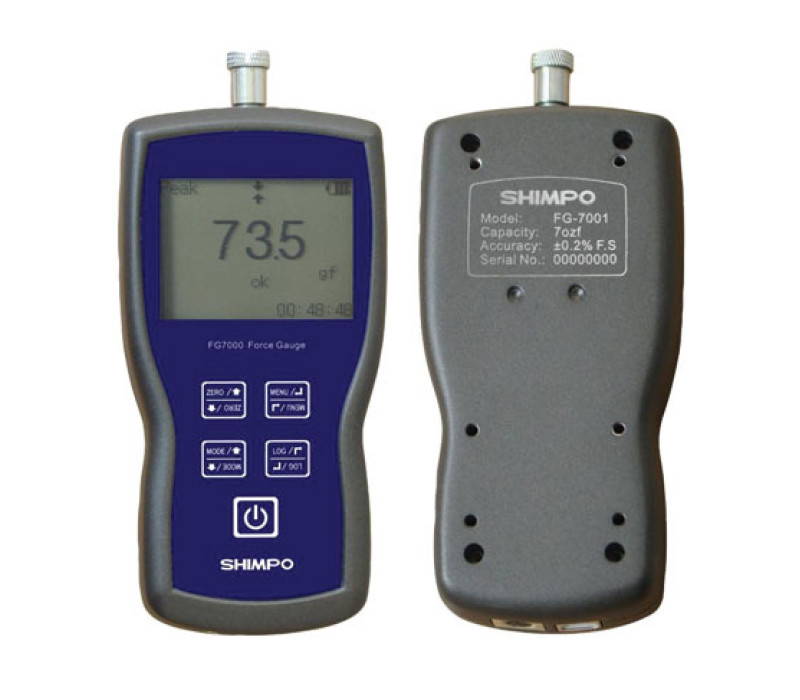

FG-7001

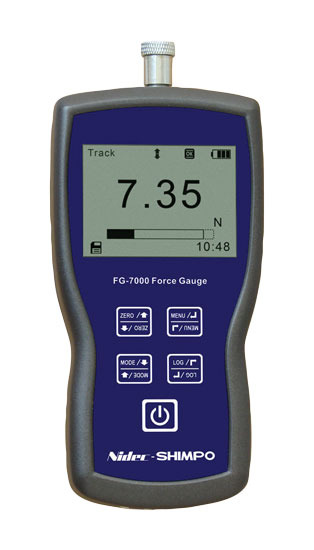

FG-7000 Series Digital Force Gauges
The Checkline FG-7000 Series Digital Force gauges are available in 8 models from 5 N up till 1000 N.The FG-7000 robust housings are designed to fit perfectly in the hand for portable testing.
The large backlit, 180° auto-reversible display, compression/tension icons, combined with the dual labeled key pad allows for instant switching from push to pull testing for portable or test stand applications.
The multiple-language FG-7000’s provide menu programming for easy selection and set-up of the instrument to your desired requirements.
3 modes of operation are selectable:
- Track mode for live readings,
- Peak mode for displaying the peak reading that remains until a higher peak is sensed, and
- Auto Peak mode which is similar to Peak mode except the peak on the display will additionally reset after a programmed time period.
Programmable limits provide a quick visual and audible indication if a test passed or failed on the LCD. In addition, the comparator output can be set up for integration of the instrument into your quality system for repetitive testing such as on a production line.
The FG-7000 can easily data log a reading at the push of a button for simple data acquisition, or be set to continuous data storage.
Data can be viewed on the screen, sent to the optional printer, or loaded to be analyzed and graphed on the free software program.
The 1,000 point memory with programmable groups allows for multiple tests to be recorded and easily separated upon loading.
- 1. Battery icon: Battery level or charging status. Flashes when gauge needs to be recharged.
- 2. OK/OV Indicator: under lower limit; between low limit and upper limit; over upper limit
- 3. Force icon: Indicates force direction. means tension means compression
- 4. Test mode icon: Three measurement modes: Track, Peak and Auto Peak.
- 5. Current measured value
- 6. Analog bar: Indicates current position within full scale. When the bar enters the area enclosed by the dotted line, it means full scale capacity is exceeded and overload.
- 7. Storage icon: Indicates data is being saved.
- 8. System time
- 9. Units Indicator: Selected engineering unit.
All models are supplied as a complete kit, including:
- AC adapter/charger
- USB cable
- Hook attachment
- Flat tip attachment
- Cone tip attachment
- Notched tip attachment
- Extension shaft attachment
- Calibration certificate
- English operating instruction manual
- Supplied in a foam-fitted carrying case.
The software for the FG-3000 Series Force Gauges provides full testing capabilities with live analysis of test results. Users can set a delay or time period for data recording and start or stop tests when a specific load threshold is reached. The load can be inverted to display the desired force direction in the graph. Automatic calculations of average and peak values are available, and users can zoom in on a graph section to recalculate new averages and peaks. In addition to live data acquisition, the software can also upload previously stored measurements and export data to a spreadsheet or save the graph as an image for later use.
