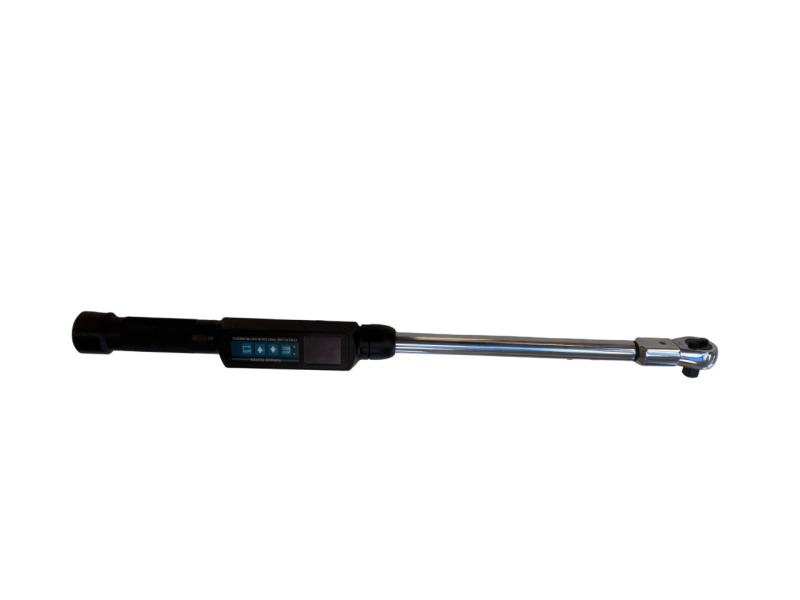

    Digital Torque & Angle Wrenches

    The ETW-NX Digital Torque & Angle Wrenches represent the pinnacle of torque measurement technology, designed to meet the exacting demands of modern manufacturing environments. Engineered with intelligent tightening and auditing strategies, these wrenches deliver unparalleled accuracy and reliability for critical fastening applications across automotive, aerospace, and industrial sectors. With wireless communication capabilities and comprehensive data traceability, ETW-NX wrenches are purpose-built for Industry 4.0 environments where precision and documentation are paramount.


    Key Features

    ETW-NX wrenches combine cutting-edge technology with robust construction to deliver exceptional performance in any environment:

    • Intelligent tightening & auditing strategies including automatic Residual Torque detection for quality assurance
    • Robust aluminium body with Ingress Protection for reliable operation in all environments, IP54
    • Available in torque ranges from 1 N.m to 2000 N.m covering all manual torque applications
    • Exceptional accuracy of ±1% of actual value for stringent quality requirements CW and CCW

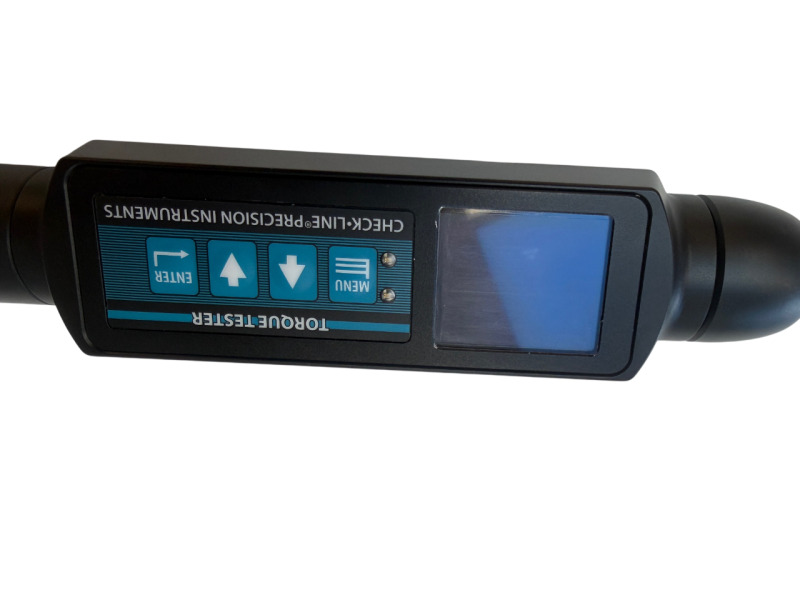

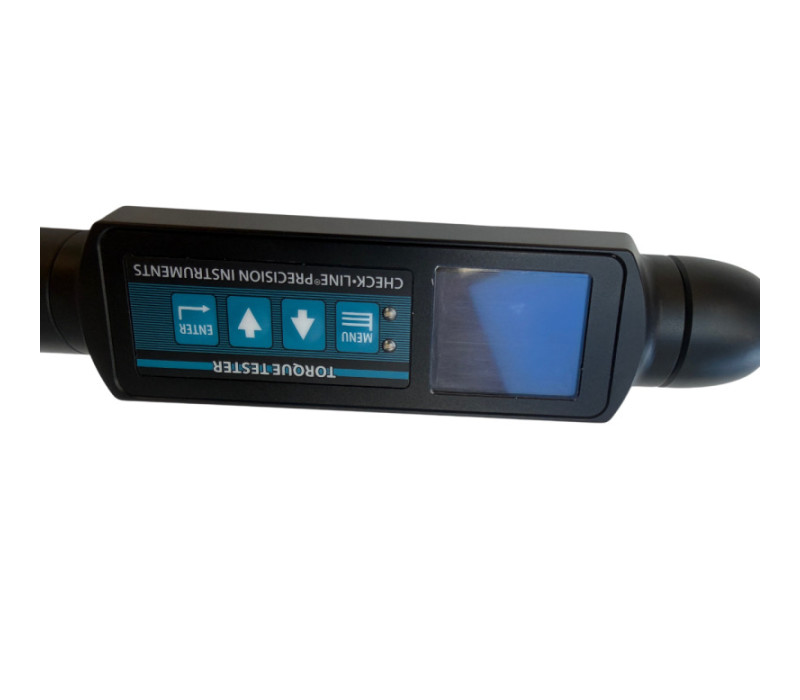

    • Bright OLED screen with buzzer and optional vibration for precise operator control
    • Designed for Industry 4.0 with wireless communication options for complete data traceability
    • FCC & CE certified for global compliance and confidence
    • Torque Control: Achieve precise torque targets with real-time monitoring
    • Torque Control and Angle Monitoring: Combine torque precision with angle verification for enhanced quality
    • Angle Control and Torque Monitoring: (Coming Soon) Advanced strategy for specialized applications

    Software & Connectivity

    Free PC Software via USB. The included PC software provides comprehensive data management capabilities:

    • Collect results and export to Excel for easy reporting and analysis
    • Backup and restore functionality for data security
    • Password-protected calibration activation for security compliance
    • Generate standard ISO reports for regulatory compliance

    Remote operating Solutions for Windows, iOS & Android

    Wireless connectivity options enable seamless integration into modern digital workflows:

    • Option 1: Integrate the protocol into 3rd party software for custom solutions
    • Option 2: Connect to remote app for torque control and QA/QC purposes
    • Set-up torque operations with user guidance and real-time data collection
    • Visual guidance and data collection for enhanced operator performance

    Tool Compliance Made Simple

    ETW-NX wrenches feature built-in self-check functionality that monitors calibration date and total torque applications. This proactive system provides automatic alerts for validation and calibration requirements, ensuring your tools remain compliant without manual tracking. Optional swappable load transducer enables calibration without the torque wrench. The result is reduced downtime, simplified audit preparation, and continuous confidence in measurement accuracy.

    Request price >>

    • Robust aluminium body with IP54 rating
    • Storage of settings and measured data
    • Optional wireless connection with app control for setup and quality control
    • Free PC Software via USB
    • Accuracy of ±1% of actual value
    • Built-in self-check functionality
    • Optional swappable load transducer for calibration without the torque wrench

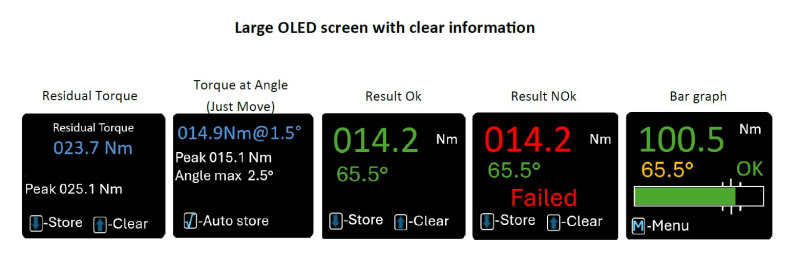

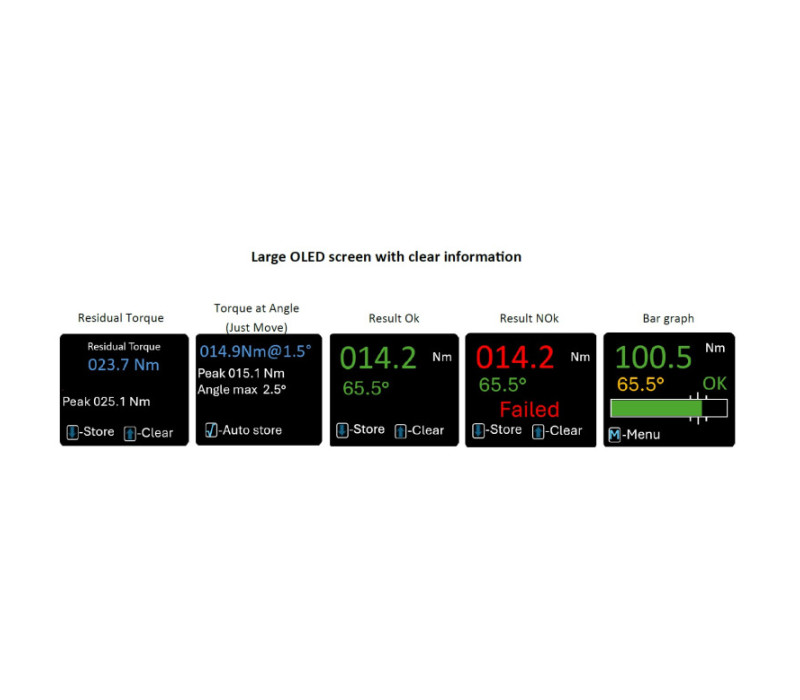

    Display:Bright OLED screen with bar graph
    Alerts:Buzzer, LED, vibration (vibration is optional)
    Accuracy:+/- 1% of actual reading CW and CCW
    Memory:99 tightening pre-sets
    10.000 measured values
    Connectivity:USB-C, Wireless (optional)
    Units selectable:Nm, ozf.in, lbf.in, lbf.ft, kgf.cm, kgf.m
    Languages:English, German, French, Spanish, Italian, Russian, Polish, Portuguese, Chinese
    Certifications:FCC & CE certified
    Power:Standard 21700 Lithium-ion cell (not included)

    Optional Functionalities

    W-Wireless connection:

    The wireless connection makes it possible to use the ETW-NX with an app that can set the torque value and monitors the applied torque loads.
    The app can forward applied torque information for quality control and verification.

    VF-Vibration Feedback:

    Vibration feedback vibrates the handle when the desired torque load is achieved.

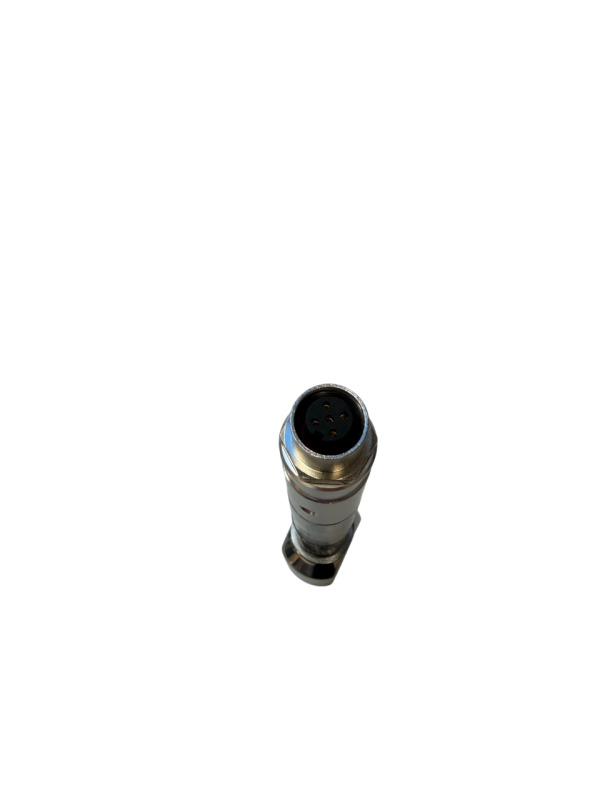

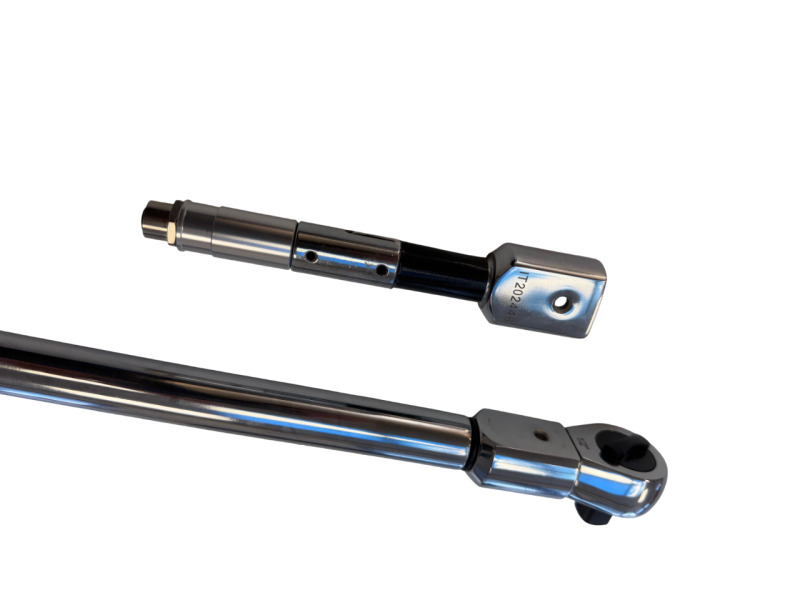

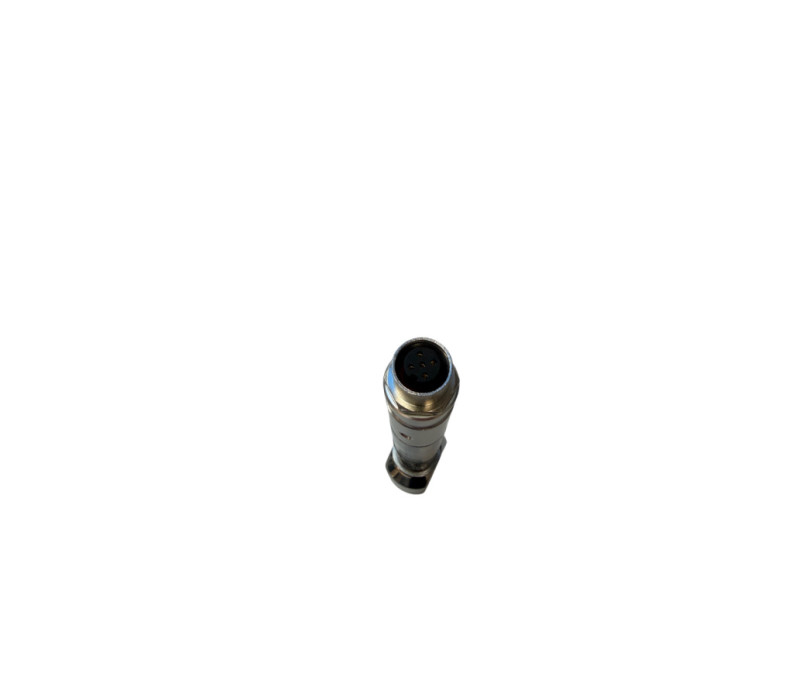

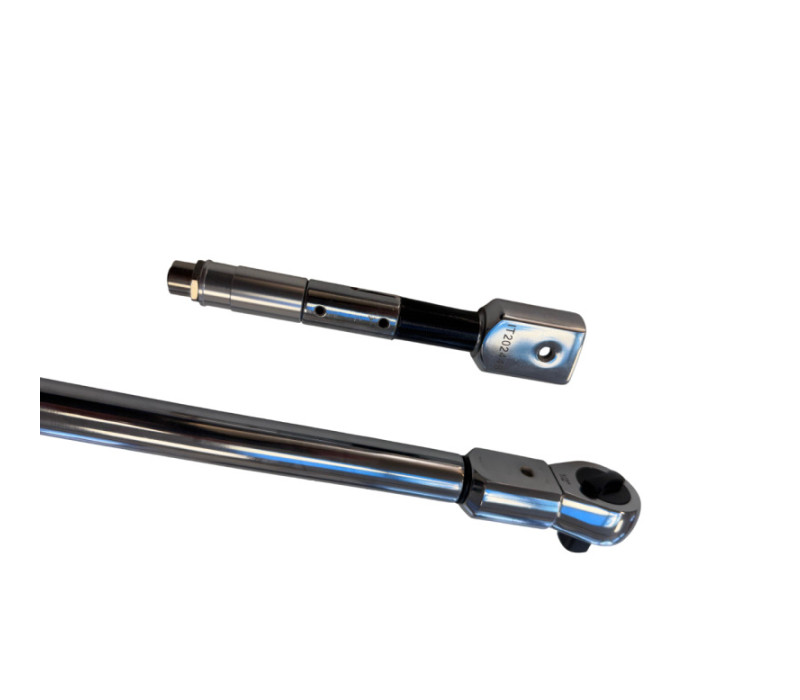

    ST-Swappable transducer:

    With this version, it is possible to send only the transducer for calibration and install a second calibrated transducer in the wrench. This eliminates the need to send the entire wrench. For example, when multiple wrenches or locations use the same type of wrench, one or more additional transducers can be used to make more efficient use of this tool.

    Options can be combined

    ETW-NX Available torque ranges
    Model Capacity in Nm Ratchet size Length in mm Weight in Kg
    ETW-NX-10 1-10 1/4 450 1,2
    ETW-NX-20 2-20 1/4 450 1,2
    ETW-NX-50 5-50 3/8 450 1,2
    ETW-NX-135 13,5-135 3/8 450 1,2
    ETW-NX-200 20-200 1/2 660 1,65
    ETW-NX-340 34-340 1/2 660 1,65
    ETW-NX-1000 100-1000 3/4 1375 6,35
    ETW-NX-2000 200-2000 1 1600 8,2

    Each of these torque wrenches is vailable with the following add-ons:

    ETW-NX-xxx-W: Torque Wrench with Wireless connection

    ETW-NX-xxx-VF: Torque Wrench with Vibration Feedback

    ETW-NX-xxx-ST: Torque wrench with Swapable Transducer

    Related Products

    Browse Related Products

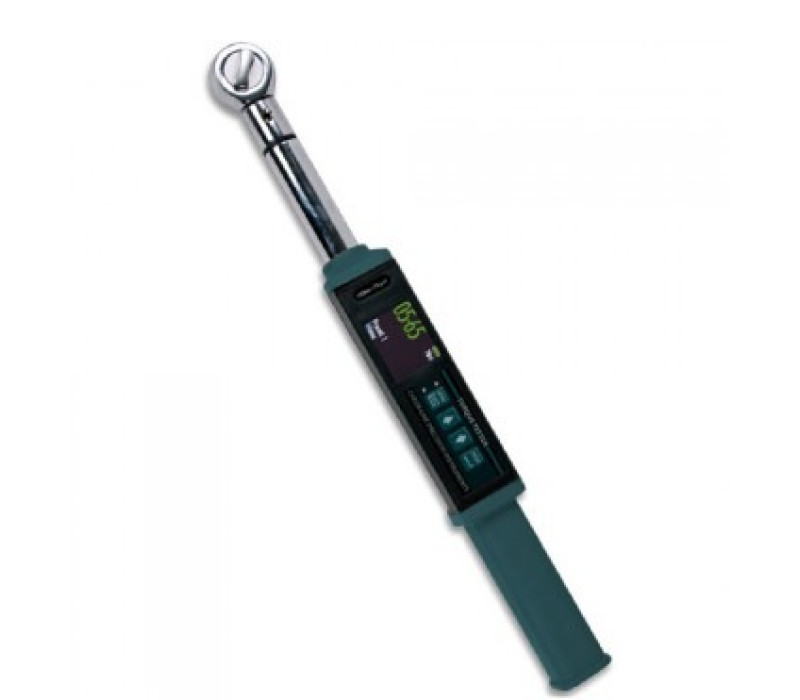

    Premium Digital Torque Wrench

    Premium Digital Torque Wrench

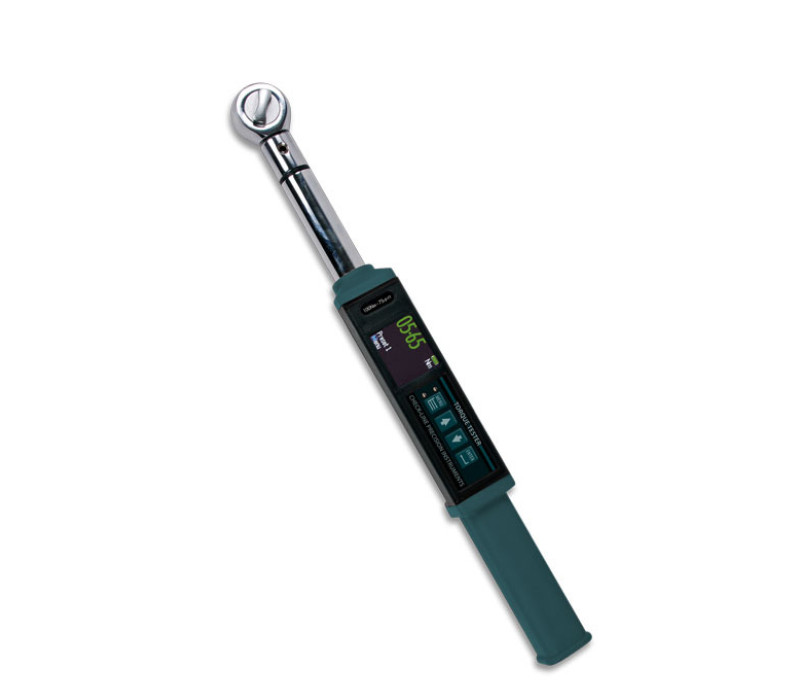

    Angle Measuring Digital Torque Wrench for highest accuracy

    Angle Measuring Digital Torque Wrench for highest accuracy

    Buy Now

    Products
    Item Product
    140627ETW-NX-010 Torque & Angle Wrench 1/4" - 1-10 Nm
    140625ETW-NX-020 Torque & Angle Wrench 1/4" - 2-20 Nm
    140626ETW-NX-050 Torque & Angle Wrench 3/8" - 5-50 Nm
    140624ETW-NX-135 Torque & Angle Wrench 3/8" - 13.5-135 Nm
    140592ETW-NX-200 Torque & Angle Wrench 1/2" - 20-200 Nm
    140585ETW-NX-340 Torque & Angle Wrench 1/2" - 34-340 Nm
    140628ETW-NX-1000 Torque & Angle Wrench 3/4" - 100-1000 Nm
    140629ETW-NX-2000 Torque & Angle Wrench 1" - 200-2000 Nm
    Accessories
    Item Product
    140590ETW-340 Spare transducer for ETW-A-340 and ETW-NX-340 Torque and Angle wrenches
    140593ETW-NX-Rechargeable Battery

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
