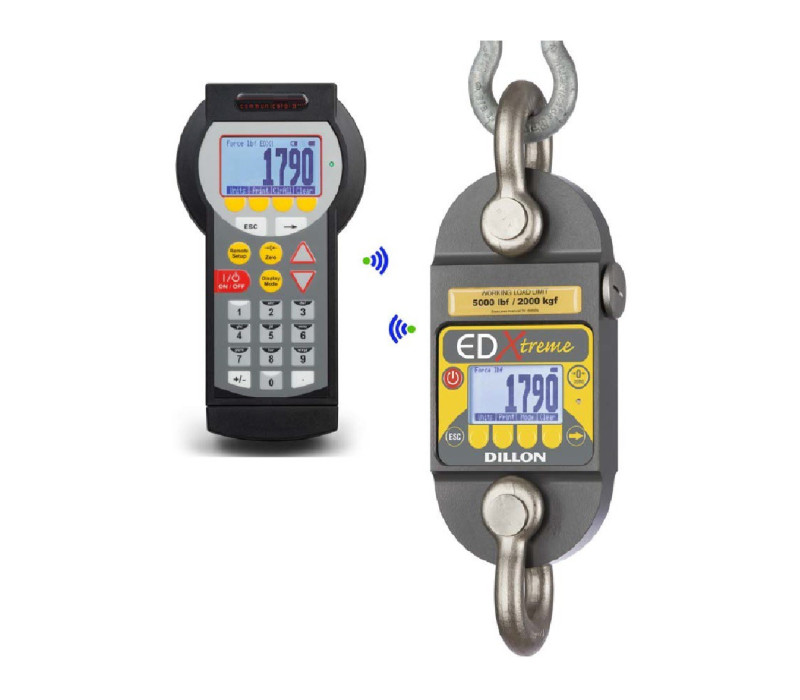

EDxtreme Red Heavy Duty Digital Dynamometer

Name: EDxtreme Red Heavy Duty Digital Dynamometer
SKU: 126544

The EDxtreme exemplifies the trademark precision and rugged construction of Dillon dynanometers. Its highly refined design draws on the inherent strengths of premium-grade materials to achieve a 5:1 minimum factor of safety.

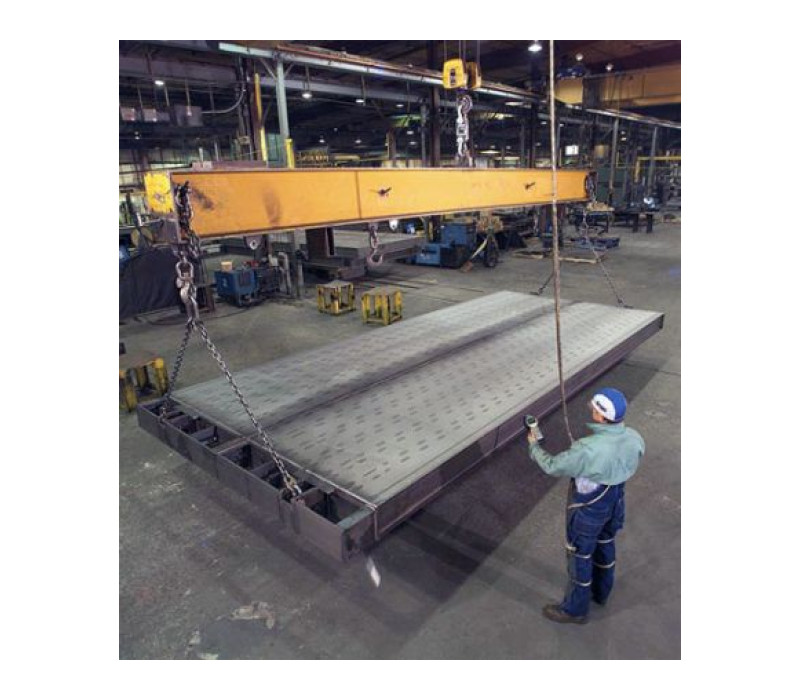

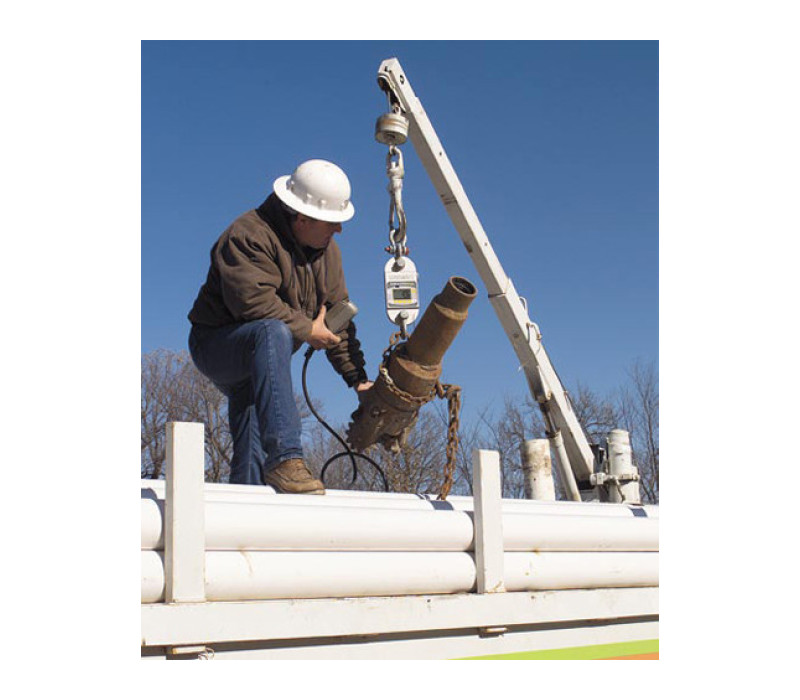

While the EDxtreme may be configured for something as simple as a digital hanging scale, it offers a higher level of intelligence. With user-defined functions and sophisticated communication options, the EDxtreme readily adapts to multi-tasking operations or multi-link systems capable of monitoring a series of critical stress points from a single locations - it is the definition of application versatility.

Xtreme Engineering Building a precision instrument that can survive real-world punishment requires masterful engineering. This is where Dillon's experience shines through. The engineers assigned to the EDxtreme drew on a depth of industrial application knowledge and conducted exhaustive materials testing to achieve the highest structural integrity.

Superior strength and corrosion resistance - High capacity models are constructed of electroless nickel-plated aircraft-quality alloy steel. Lower capacity models are anodized aircraft-quality aluminum
5:1 factor of safety - This measure of strength and safety is maintained at all capacities. Computer modeling confirms the low stress and long product life that is inherent in the EDxtreme design.
Retained hardware - Allows permanent attachment of centering spacers, which eliminates fumbling during high capacity rigging.
NEMA 4X/IP55 - The EDxtreme is clearly the choice for reliability in any environment - in-plant or out on the job site.

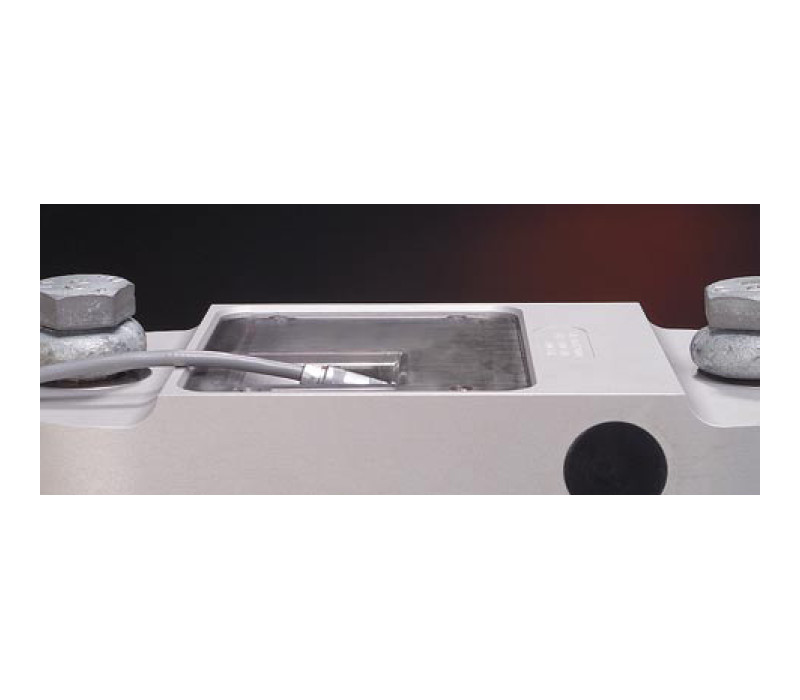

Xtreme Accuracy: 0.1% High resolution and accurate repeatable readings are essential to proper weighing. The higher standards set for the EDxtreme meant taking the time to ensure that material characteristics, load element design and strain gage meshed perfectly. The result of that effort is a typical accuracy of 0.1% of full scale capacity. The enhanced resolution mode of 1 part in 5000 provides the level of readability needed for refined weighing.

Xtreme Ease

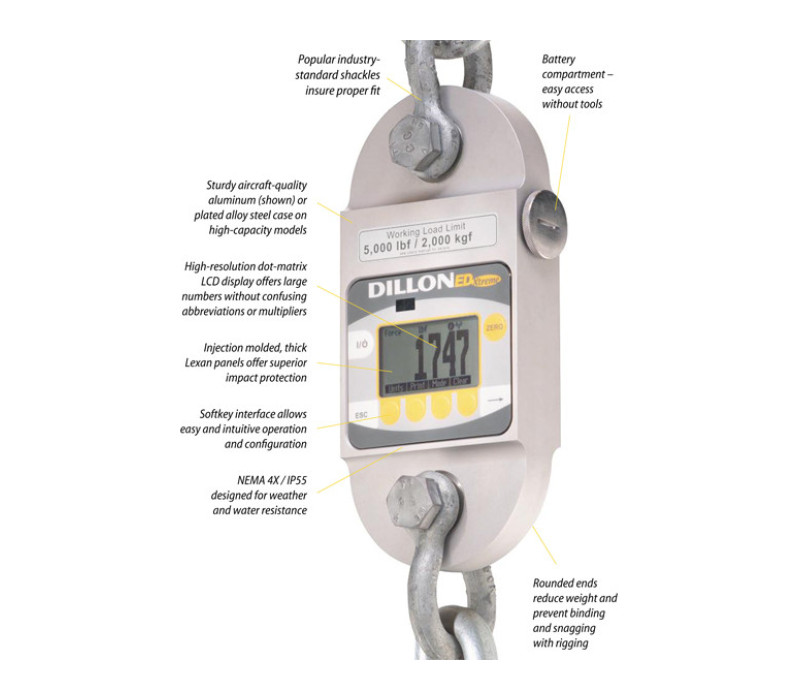

Exclusive SOFTKEY interface -Dillon has eliminated confusing menus for faster setup and simple operation. IN addition to lbf, kgf and Newtons, programmable functions can correct for gravitational variations and allow the use of custom units of measurements.
Wide-angle LCD -Provides improved readability over a wider viewing angle and is available with back lighting for low light conditions.
Battery operation -The EDxtreme is powered by two standard C-cell batteries. Batteries are easily accessible for fast replacement.

NIST Traceable - The EDxtreme comes with a NIST traceable calibration certificate.

Request price >>

Enclosure	Designed to NEMA4X/IP55 Suitable for continuous outdoor use.
Accuracy	0.1% of capacity up to EDx-50T 0.3% of capacity for EDx-75T and above
Repeatability	.1% of capacity up to EDx-50T 0.3% of capacity for EDx-75T and above
Proof load	150% of capacity up to EDx-75T. 110% of capacity EDx-100T and above.
Safe Overload	200% of capacity
Body Protection	Aluminum capacities are anodized. Alloy steel capacities are elctroless-nickel plated.
Bearings	Unmatched repeatability attained by needle bearings in shackle pin holes up to EDx-5T. Shackle pin acts as inner race.

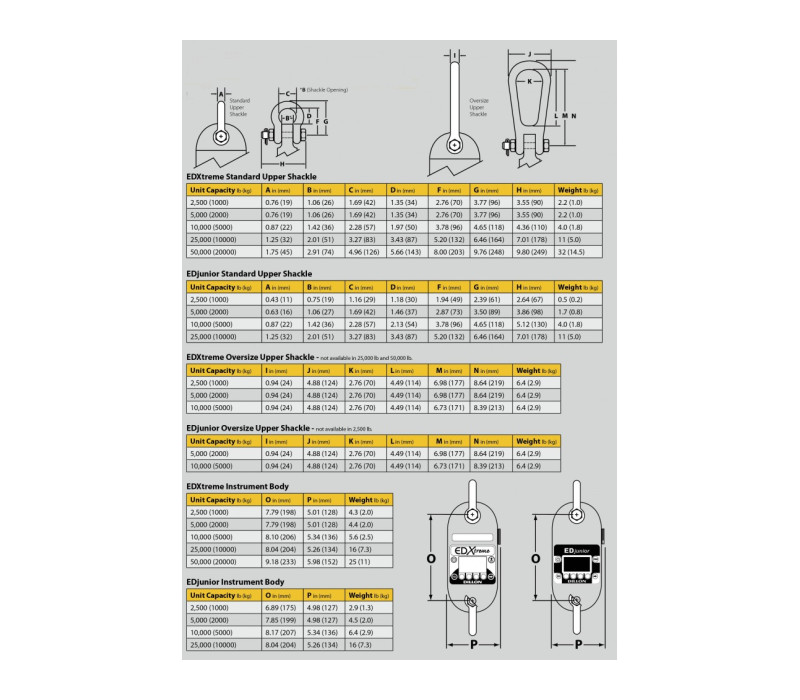

Shackles	Forged industry standadrd anchor shackles. Models up to EDx-5T use precision machined shackle pin. Higher capacities use bar stock pin.
Display	128 x 64 dot-graphic LCD display shows up to 6 digits 1.0" (26 mm) high plus annunciators and softkeys. Digits are .11 inches (3 mm) thick for unmatched readability.
Display update rate	2 times per second
RS-232 / RS-485 communication	Print or extract data easily. Continuous output can drive a scoreboard. Configurable poll character.
Calibration	Traceable to the NIST. Certificate included with curve of readings. Passes only with threee consecutive confirming runs, with all points in specification.
Battery life	320 hours typical use with two C-cell alkaline batteries. 40 hours typical with Radio Link system.
Operating Temperature	-4º F to 140º F (-20º to 60º C)
Calibration Certificate	NIST Certified Certificate Included

Tension Ranges

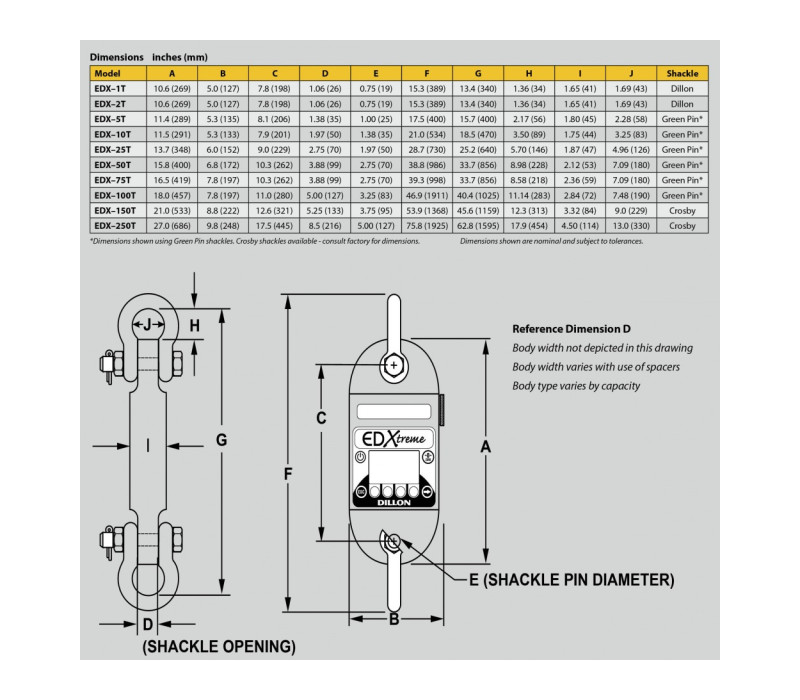

Model	Ranges	Std. Res.*	Enh. Res.*	Body Construction
EDx-1T	2,500 lbf 1,000 kgf 10,000 N	2 1 10	0.5 0.2 2	Aircraft quality 2024 Aluminum 700% overload
EDx-2T	5,000 lbf 2,000 kgf 20,000 N	5 2 20	1 0.5 5	Aircraft quality 2024 Aluminum 700% overload
EDx-5T	10,000 lbf 5,000 kgf 50,000 N	10 5 50	2 1 10	Aircraft quality 2024 Aluminum 700% overload
EDx-10T	25,000 lbf 10,000 kgf 100,000 N	20 10 100	5 2 20	Aircraft quality E4340 Alloy Steel 500% over
EDx-25T	55,000 lbf 25,000 kgf 250,000 N	50 20 200	10 5 50	Aircraft quality E4340 Alloy Steel 500% over
EDx-50T	100,000 lbf 50,000 kgf 500,000 N	100 50 500	20 10 100	Aircraft quality E4340 Alloy Steel 500% over
EDx-75T	160,000 lbf 75,000 kgf	100 50	50 20	Aircraft quality E4340 Alloy Steel 400% over
EDx-100T	220,000 lbf 100,000 kgf	200 100	50 20	Aircraft quality E4340 Alloy Steel 400% over
EDx-150T	330,000 lbf 150,000 kgf	200 100	100 50	Aircraft quality E4340 Alloy Steel 400% over
EDx-250T	550,000 lbf 250,000 kgf	500 200	200 50	Aircraft quality E4340 Alloy Steel 400% over
Std. Res. = Standard Resolution Enh. Res. = Enhanced Resolution Standard vs Extended resolution can be selected by an option in the menu.

Products

Item	Product
138056	EDx-1T - EDxtreme 1.000KG - With shackles
132364	EDx-1T - EDXtreme 1.000KG - Radio ready / with shackles
137223	EDx-2T - EDxtreme 2.000KG - With shackles
132365	EDx-2T - EDXtreme 2.000KG - Radio ready / with shackles
137541	EDx-5T - EDxtreme 5.000KG - With shackles
132366	EDx-5T - EDxtreme 5.000KG - Radio ready / with shackles
137542	EDx-10T - EDxtreme 10.000KG - With shackles
131993	EDx-10T - EDxtreme 10.000KG - Radio ready / with shackles
137543	EDx-25T - EDxtreme 25.000KG - With shackles
132367	EDx-25T - EDxtreme 25.000KG - Radio ready / without shackles
138057	EDx-35T - EDxtreme 35.000KG - Radio-ready / without shackles
132368	EDx-50T - EDxtreme 50.000KG - Radio ready / without shackles
132369	EDx-75T - EDxtreme 75.000KG - Radio ready / without shackles
132370	EDx-100T - EDxtreme 100.000KG - Radio ready / without shackles
132371	EDx-150T - EDxtreme 150.000KG - Radio ready / without shackles
132372	EDx-250T - EDxtreme 250.000KG - Radio ready / without shackles

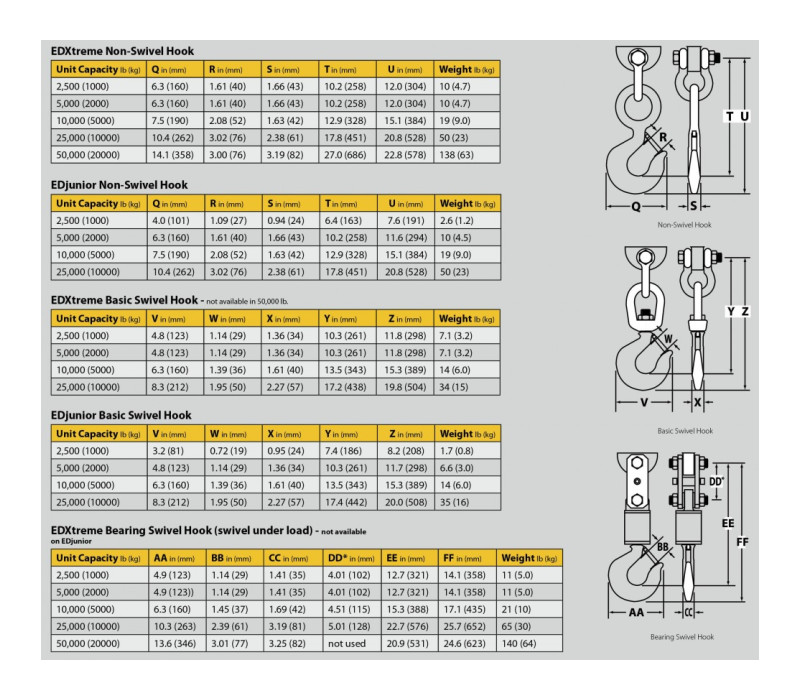

Accessories

Item	Product

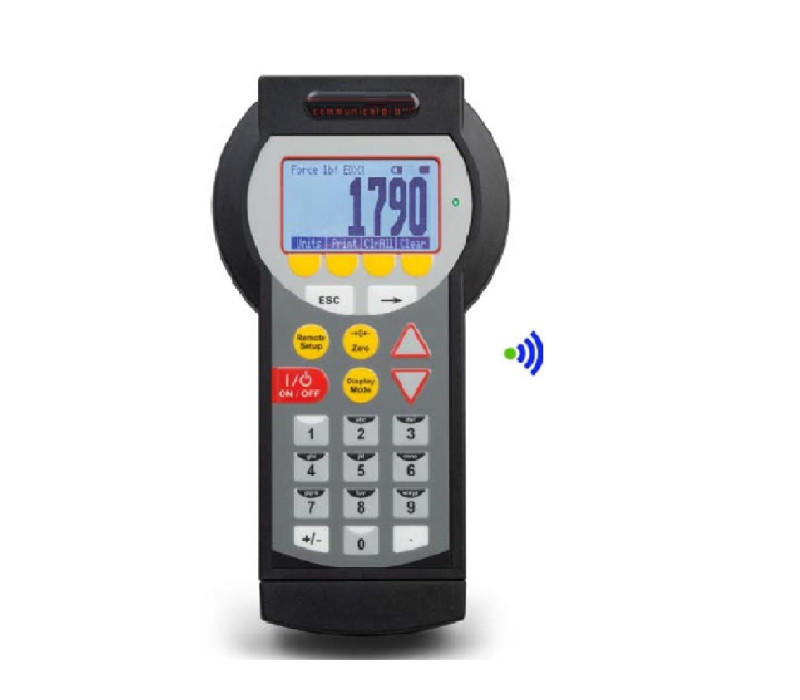

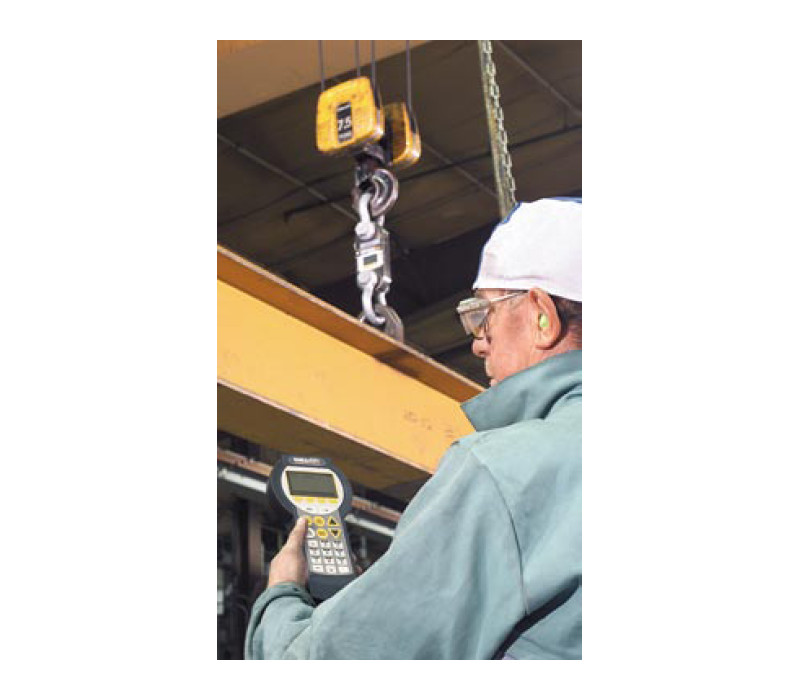

132386	EDx-COMM-RB - Standard Communicator II handheld unit with radio & display backlight
132374	EDx-S Cable - computer serial with 9-pin D connector, 12-ft (3.6 m)
132375	EDx-COMBO Cable, 100-240 VAC power supply and 5V to RS-232 for "Red" EDx
137119	AWT05-509279 - Data export pack
139704	DELTALOCK - Bow shackle with screw collar pin - 12 ton
139760	DELTALOCK - Bow shackle with screw collar pin - 25 ton
139816	DELTALOCK - Bow shackle with screw collar pin - 35 ton
139761	DELTALOCK - Bow shackle with Nut Bolt - 55 tons

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
