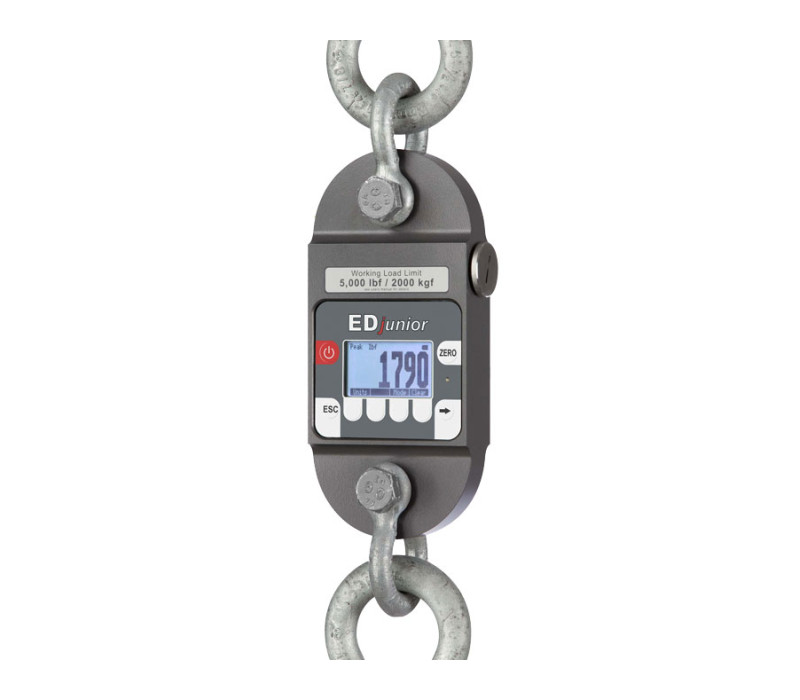

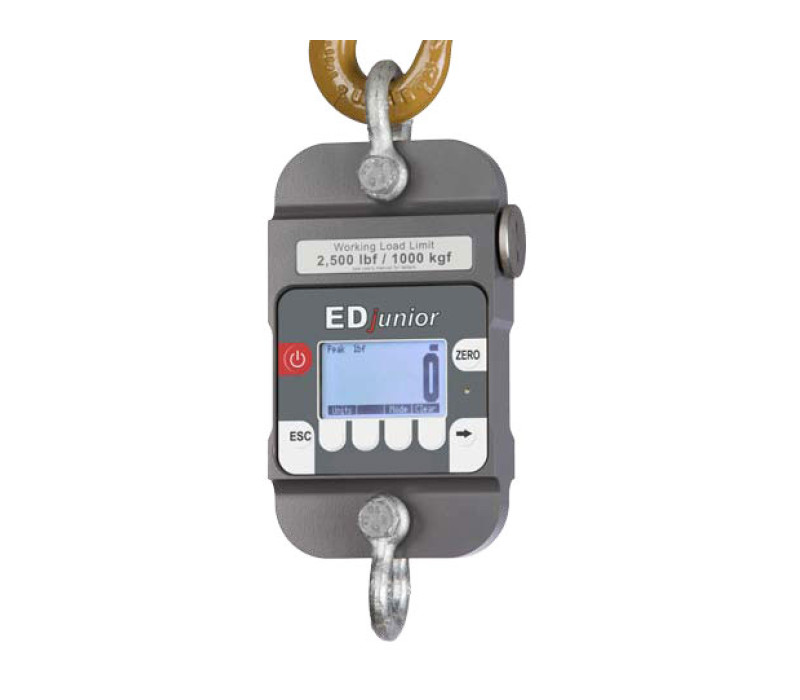

    EDjunior Digital Dynamometer

    The EDjunior dynamometer gets straight to the point - apply a load; take a reading. Its Spartan design is a direct response to industries that have wanted an extremely well-built instrument that could be relied upon for simple, yet critical measurements of weight and force.



    Measurement Capabilities The EDjunior provides peak detection as well as sustained load readings. Selectable units of measure include lbf, kgf and Newtons.

    • Accuracy - The load element design and strain gauges chosen for the EDjunior produce an accuracy of 0.2%(full scale). This level of precision offers flexibility for use in a broad range of applications.
    • Resolution - Readings are displayed with a resolution of 1 part in 1000 to ensure the level of readability required of critical lifting applications.


    Control Interface The exclusive SOFTKEY interface provides direct access to setup and diplay functions without the typical confusing menu structure. The 6-digit-dot-matrix display features 1 inch(26 mm) high numerals for greater visibility.



    High Strength, Low Weight Heavy cumbersome tools make tough jobs even harder. Through the use of aircraft quality materials, Dillon has made the EDjunior an easy-to-position, highly mobile instrument with exceptional strenght. It offers an impressive factor of safety at all capacities.



    Battery Operation Power is supplied by two C-cell batteries that are easily accessable through a side loading port. Battery replacement, however, is a rare event. With the EDjunior's low power consumption, typical battery life is over 200 hours.

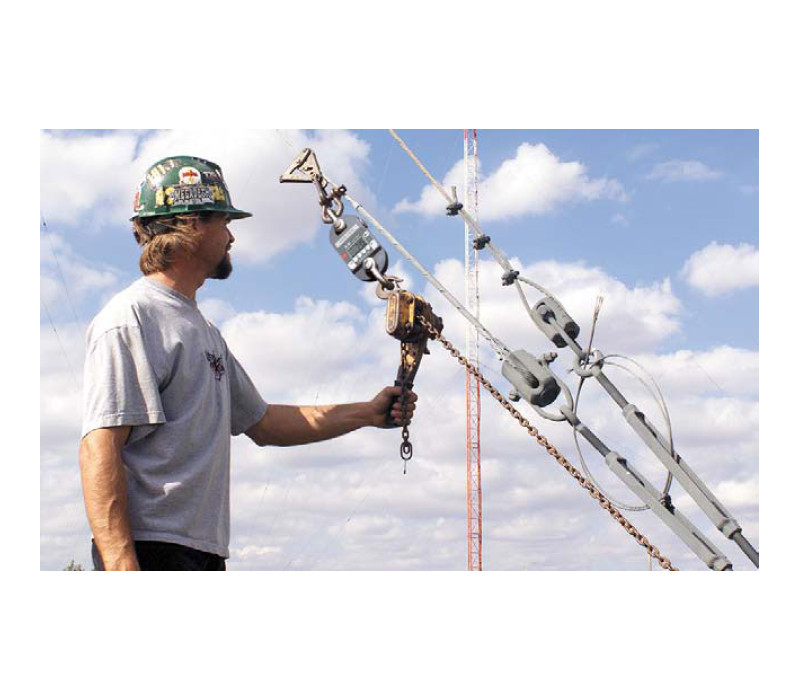

    All Environments With its NEMA4/IP55 design, the EDjunior is at home in virtually any environment and ideally-suited to exterior job-site applications as well as in-plant use.

    NIST Traceable - The EDjunior comes with a NIST traceable calibration certificate.

    Request price >>

    • Capacities from 1000-10000kg
    • Broadest range of capacities and resolutions are certain to fit your needs
    • Includes high strength case. Resists heavy blows.
    • High specification materials on all load components. Heat treated to tight tolerances
    • 2 Year Warranty
    • 0.2% accuracy
    • Largest safety factor for overload protection and long life
    • Generous shackle openings mate with most hooks and hardware
    • NIST Traceable Certificate Included
    • CE Certified
    Complete Kit
    The EDjunior Dynamometer is supplied as a complete kit with Carrying Case, Batteries, manual and calibration card

    Tension Ranges

    Model Capacity Resolution Body Construction
    EDjr-1T 1000 kgf<br>10000 N 2<br>1<br>10 Aircraft quality<br>2024 Aluminum<br>700% overload
    EDjr-2T 2000 kgf<br>20000 N 5<br>2<br>20 Aircraft quality<br>2024 Aluminum<br>700% overload
    EDjr-5T 5000 kgf<br>50000 N 10<br>5<br>50 Aircraft quality<br>2024 Aluminum<br>700% overload
    EDjr-10T 10000 kgf<br>100000 N 20<br>10<br>100 Aircraft quality<br>E4340 Alloy Steel<br>500% over
    EnclosureDesigned to NEMA4X/IP55
    Suitable for continuous outdoor use.
    Accuracy0.2% of capacity
    Repeatability0.2% of capacity
    Proof load150% of capacity
    Safe Overload200% of capacity
    Display128 x 64 dot-graphic LCD display shows all digits 1.0" (26 mm) high plus annunciators and softkeys.
    Display update rate2 times per second
    Peak hold sampling rate10 times per second typical
    CalibrationTraceable to the NIST. Calibration card included.
    Battery life320 hours typical use with two C-cell alkaline batteries.
    Operating Temperature-20º to 60º C (-4º F to 140º F)
    Included with instrumentBatteries, manual and calibration card.
    BacklightConfigurable using backlight will consume more battery power, reducing battery life.
    Warranty2 years
    WeightEDjr-1T 1.3 kg
    EDjr-2T 2.0 kg
    EDjr-5T 2.9 kg
    EDjr-10T 8.2 kg

    Related Products

    Browse Related Products

    Cic-Force Calibration Force Gauge

    Cic-Force Calibration Force Gauge

    EDxtreme Red Heavy Duty Digital Dynamometer

    EDxtreme Red Heavy Duty Digital Dynamometer

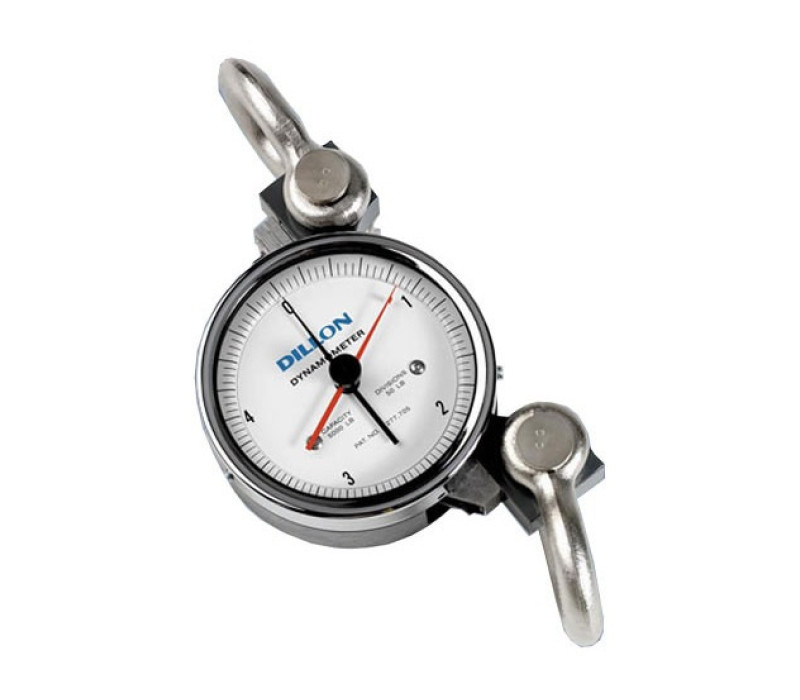

    AP Dynamometer Mechanical Dynamometer

    AP Dynamometer Mechanical Dynamometer

    Buy Now

    Products
    Item Product
    132379EDjr-1T - EDjunior 1000KG Capacity with Anchor Shackles
    132380EDjr-2T - EDjunior 2000KG Capacity with Anchor Shackles
    132381EDjr-5T - EDjunior 5000KG Capacity with Anchor Shackles
    131994EDjr-10T - EDjunior 10000KG Capacity with Anchor Shackles

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
