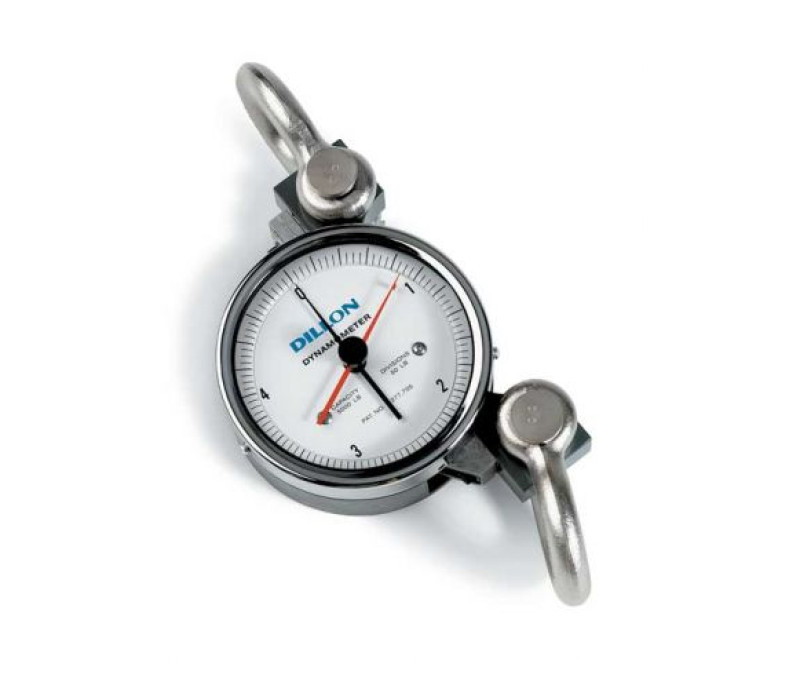

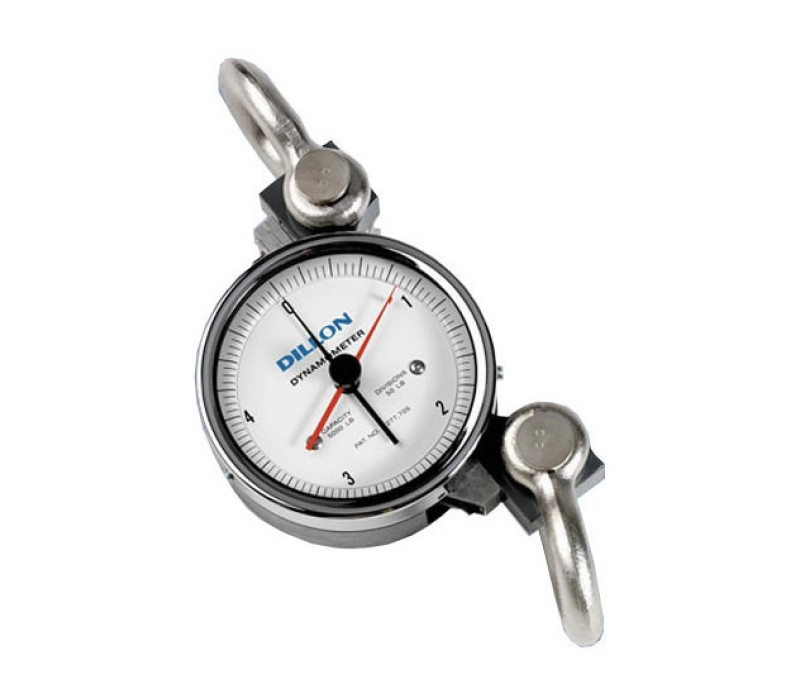

AP Dynamometer Mechanical Dynamometer

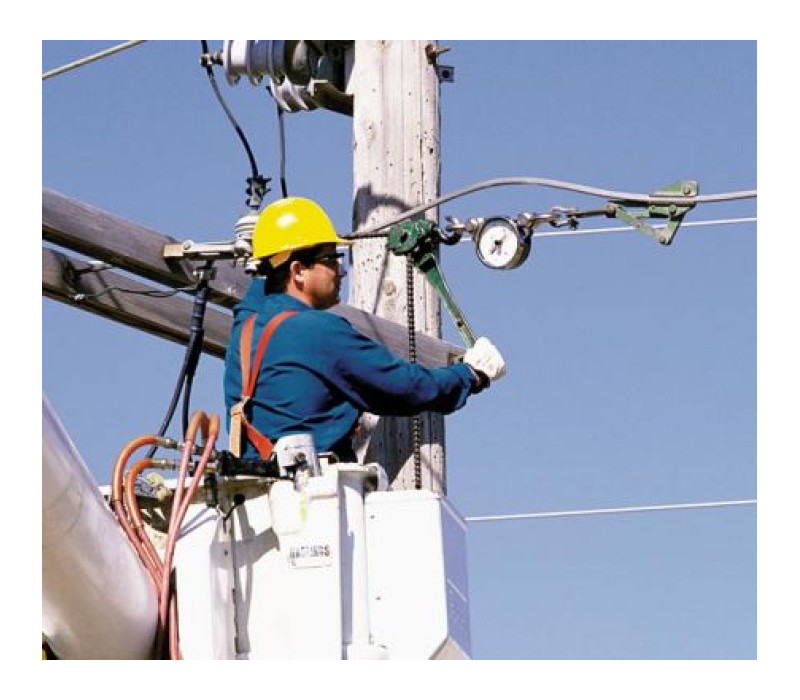

The Dillon AP Mechanical Dynamometer exhibits limitless versatility as a tension, traction and weight measuring instrument.

Full selection of capacities
Available in capacities from 500 to 20,000 kilograms. Models with a Newton or pound scale are optionally available.

Long life
The core of the device is a steel flexing beam. The enclosure is a heavy aluminum alloy case with baked on protective finish. The dial face is sealed and cushioned with a rubber gasket.

Safe for overhead applications--
Most models have a 5:1 ultimate safety factor.

Zero control
Use it like a tare. It can cancel preset load values up to 20% of device capacity.

NIST Traceable The AP Dynamometer comes with a NIST traceable calibration certificate.

Request price >>

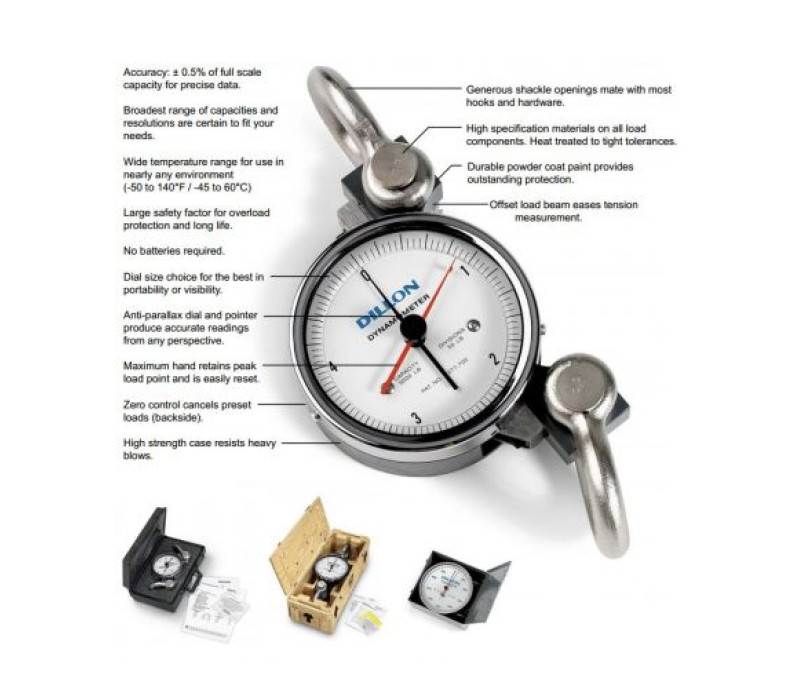

Accuracy: ± 0.5% of full scale capacity for precise data.
Broadest range of capactities and resolutions are certain to fit your needs
Wide temperature range for use in nearly any environment (-50 to 140°F / -45 to 60°C)
Largest safety factor for overload protection and long life
No batteries required
Dial size choice for best in portability or visibility
Anti-parallax dial and pointer produce accurate readings from any perspective
Maximum hand retains peak load point and is easily reset
High strength case resists heavy blows
Generous shackle openings mate with most hooks and hardware
High specification materials on all load components. Heat treated to tight tolerances
Offset load beam eases tension measurement
NIST Traceable Certificate Included
2 year warranty

Tension Ranges

Model	Capacity	Resolution	Dial Size
AP5-500KG	500 kg	5	125 mm (5")
AP5-1000KG	1,000 kg	10	125 mm (5")
AP5-2000KG	2,000 kg	20	125 mm (5")
AP5-4000KG	4,000 kg	25	125 mm (5")
AP5-10000KG	10,000 kg	100	125 mm (5")
AP5-500LB	500 lbs	5	5" (125 mm)
AP5-1000LB	1,000 lbs	10	5" (125 mm)
AP5-2000LB	2,000 lbs	20	5" (125 mm)
AP5-4000LB	4,000 lbs	25	5" (125 mm)
AP5-5000LB	5,000 lbs	50	5" (125 mm)
AP5-8000LB	8,000 lbs	50	5" (125 mm)
AP5-10000LB	10,000 lbs	100	5" (125 mm)
AP5-15000LB	15,000 lbs	100	5" (125 mm)
AP5-20000LB	20,000 lbs	200	5" (125 mm)
AP10-500KG	500 kg	2	250 mm (10")
AP10-1000KG	1,000 kg	5	250 mm (10")
AP10-2000KG	2,000 kg	10	250 mm (10")
AP10-5000KG	5,000 kg	50	250 mm (10")
AP10-10000KG	10,000 kg	50	250 mm (10")
AP10-20000KG	20,000 kg	100	250 mm (10")
AP10-1000LB	1.000 lbs	5	10" (250 mm)
AP10-2000LB	2,000 lbs	10	10" (250 mm)
AP10-5000LB	5,000 lbs	20	10" (250 mm)
AP10-8000LB	8,000 lbs	50	10" (250 mm)
AP10-10000LB	10,000 lbs	50	10" (250 mm)
AP10-15000LB	15,000 lbs	100	10" (250 mm)
AP10-20000LB	20,000 lbs
AP10-30000LB	30,000 lbs	200	10" (250 mm)
AP10-50000LB	50,000 lbs	200	10" (250 mm)

Options

Klaxon signal alarm

Mounted on rear of the Dynamometer and sounds an alarm at a preset load point. For capacities through 20,000 pound (10,000 kg) only

Zero positioning

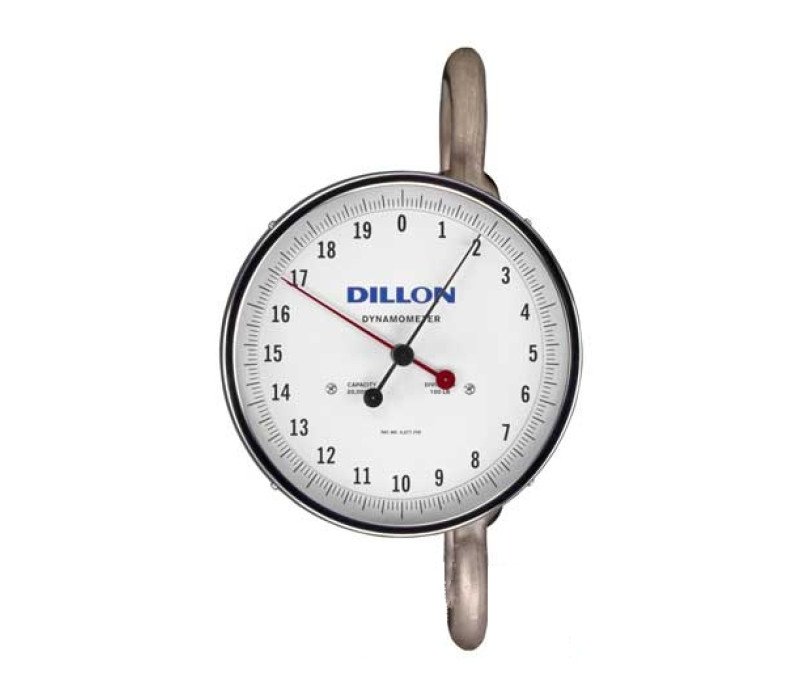

The standard zero position is 9 o'clock for both the 5" and 10" dial sizes. Capacities up to 20,000 lb can be supplied with the zero at 12, 3 or 6. Photo shows a nonstandard position of 12 o'clock.

Oversized shackle and pin assembly. Available with all AP5 models and up to AP10-20000LB/AP10-10000KG models only. Addition to standard shackle & pin (sold as an accessory at time of order or after sale)

Steel storage case For 10" (250 mm) diameter model AP10-20000LB/AP10-10000KG and lower

Hook Accessories

Part#	Hook Rating	For Dynamometer Rating
AP-H3	3-ton	500-6,000 lb / 200 - 2.000 kg
AP-H5	5-ton	8,000-10,000 lb / 4,000-5,000 kg
AP-H10	10-ton	15,000-20,000 lb / 10,000 kg

5" (125 mm) diameter AP dynamometer includes a rugged ABS plastic carry case with die-cut foam inserts. Capacities of 30,000 lb (15,000 kg) and above are shipped in a heavy-duty reinforced plywood crate. An optional steel carry case is available for 10" (250 mm) diameter dynamometers up to 20,000 lb (10,000 kg) capacity.

Accuracy:	+ 0.5% of capacity
Temperature Range:	-45° to 60° C (-50° to 140° F)
Calibration:	Traceable to NIST
Carry Case/Crate:	Low/Med capacity 5" dial – includes plastic carry case Low/Med capacity 10" dial – optional steel carry case All high capacity – includes reinforced plywood crate
Construction:	Pressure bar - High-grade E4340 alloy steel or 7075-T651 aluminum Shackles - A4140 forged steel (machined from E4340 steel) Shackle Pins - Machined from E4330 steel
Corrosion protection:	Pressure bar protected with durable powder coat paint. Shackles and pins are electroless nickel plated. All integral machining and fasteners are produced from noncorrosive materials or have suitable plating.
Zero control:	Zero up to 20% of capacity
Netto Weight:	5" Low and Med capacities: 4.1 kg 10"Low and Med capacities: 4.6 kg 30,000 – 50,000 lb High capacity: 29.0 kg
Shipping weight:	5" Low and Med capacities: 6.8 kg 10"Low and Med capacities: 7.3 kg 30,000 – 50,000 lb High capacity: 44.5 kg

Specifications

Datasheet

Installation and Operation Guide

Products

Item	Product
131247	AP5-500KG - AP Dynamometer 500KG Capacity 5" Dial Size
132347	AP5-1000KG - AP Dynamometer 1,000 KG Capacity 5" Dial Size
132346	AP5-2000KG - AP Dynamometer 2,000 KG Capacity 5" Dial Size
132345	AP5-4000KG - AP Dynamometer 4,000 KG Capacity 5" Dial Size
131991	AP5-10000KG - AP Dynamometer 10,000 KG Capacity 5" Dial Size
132358	AP5-500LB - AP Dynamometer 500 LB Capacity 5" Dial Size
132359	AP5-1000LB - AP Dynamometer 1,000 LB Capacity 5" Dial Size
132360	AP5-2000LB - AP Dynamometer 2,000 LB Capacity 5" Dial Size
132361	AP5-4000LB - AP Dynamometer 4,000 LB Capacity 5" Dial Size
132362	AP5-5000LB - AP Dynamometer 5,000 LB Capacity 5" Dial Size
132363	AP5-8000LB - AP Dynamometer 8,000 LB Capacity 5" Dial Size
132357	AP5-10000LB - AP Dynamometer 10,000 LB Capacity 5" Dial Size
134887	AP5-15000LB - AP Dynamometer 15,000 LB Capacity 5" Dial Size
132356	AP5-20000LB - AP Dynamometer 20,000 LB Capacity 5" Dial Size
132343	AP10-1000KG - AP Dynamometer 1,000 KG Capacity 10" Dial Size
132342	AP10-2000KG - AP Dynamometer 2,000 KG Capacity 10" Dial Size
132341	AP10-5000KG - AP Dynamometer 5,000 KG Capacity 10" Dial Size
131992	AP10-10000KG - AP Dynamometer 10,000 KG Capacity 10" Dial Size
132340	AP10-20000KG - AP Dynamometer 20,000 KG Capacity 10" Dial Size
132355	AP10-1000LB - AP Dynamometer 1,000 LB Capacity 10" Dial Size
132354	AP10-2000LB - AP Dynamometer 2,000 LB Capacity 10" Dial Size
132353	AP10-5000LB - AP Dynamometer 5,000 LB Capacity 10" Dial Size
132351	AP10-10000LB - AP Dynamometer 10,000 LB Capacity 10" Dial Size
132349	AP10-20000LB - AP Dynamometer 20,000 LB Capacity 10" Dial Size
131811	AP10-30000LB - AP Dynamometer 30,000 LB Capacity 10" Dial Size
132348	AP10-50000LB - AP Dynamometer 50,000 LB Capacity 10" Dial Size

Accessories

Item	Product
133972	AP-CASE Steel Carrying Case for AP-10 Series

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
