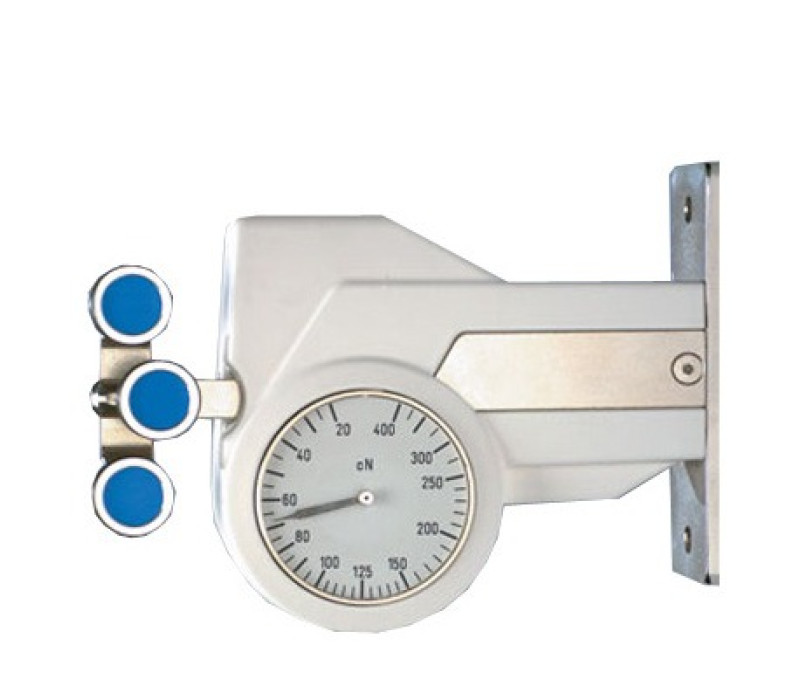

DX2S Stationary Tension Meter

Name: DX2S Stationary Tension Meter
SKU: 126834

A precise jeweled movement, choice of ball bearing mounted rollers and rugged cast aluminum housing makes the DX2S ideal for the toughest production floor application.

Built-in mounting holes permit fixed installation for continuous in-line use.

Fixed mount design for continuous measurement
DX2S' hard-coated aluminum, V-grooved rollers are rated for speeds up to 2000 m/min or, optionally, up to 5000 m/min
Option adjustable "max" & "min" tension detector contacts can provide a low voltage signal when tension exceed user-set limits
Certificate of Compliance with the order 2.1 according DIN EN 10204 is included
Optionally available: Inspection Certificate 3.1 according DIN EN 10204 with calibration report

Accuracy	± 1% of full scale or ± 1 graduation mark on scale
Diameter of Scale	41 mm
Maximum Speed	2000 m/min (standard) 3500 m/min (K) 5000 m/min (HS)
Outer Roller Distance, c:c	DX2S-5 to DX2S-EX: 38 mm DX2S-200 to DX2S-1k: 100 mm DX2S-2K: 150 mm DX2S-3K to DX2S-5K: 250 mm
Roller Material	Hard-coated aluminum (standard) Hardened steel (ST) Chromed Steel (w) Ceramic (CE) Plastic (PL)
Housing Material	Die-cast aluminum
Dimensions	127 x 85 x 45 mm (L x W x H)

DX2 Series Data Sheet

Tension Ranges

Model	Ranges
DX2S-50	10-50 cN
DX2S-120	20-120 cN
DX2S-20 0	20-200 cN
DX2S-40 0	20-400 cN
DX2S-1000	50-1000 cN
DX2S-2000	50-2000 cN
DX2S-5000	400-5000 cN
DX2S-8000	1000-8000 cN
DX2S-10K	2.5-10 daN
DX2S-20K-L	5-20 daN

Products

Item	Product	Price	Quantity	Action
133850	DX2S-200 Stationary Tension Meter 20-200 cN
133849	DX2S-400 Stationary Tension Meter 20-400 cN
133982	DX2S-1000 Stationary Tension Meter 50-1000 cN
133981	DX2S-2000 Stationary Tension Meter 200-2000 cN
132891	DX2S-10K Stationary Tension Meter 2.5-10 daN

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
