SW-TI3 Software Tension Inspect 3

Name: SW-TI3 Software Tension Inspect 3
SKU: 127418

The program can be used for following instruments:

Tension meter series: DT, DTX, ETX, KXE, MST, TS and FS with outputs USB, RS232, RS422 or WI-FI
Display instruments series: SCD-1, SC-PM, SC-PM4, SC-PM4-WL with outputs USB, RS232 or RS422

Tension Inspect is an easy-to use program designed to display, record, graph and print data of a tension meter (online or handheld).
Readings can be viewed in real time. A tension –time graph is being recorded and statistical data are calculated continuously. On request all readings can be stored in a file.
The program is available for single and multi chanel systems (1, 4, 8, 12, 16 or 32 connected tension meters)

sw-ti3-checkline_europe

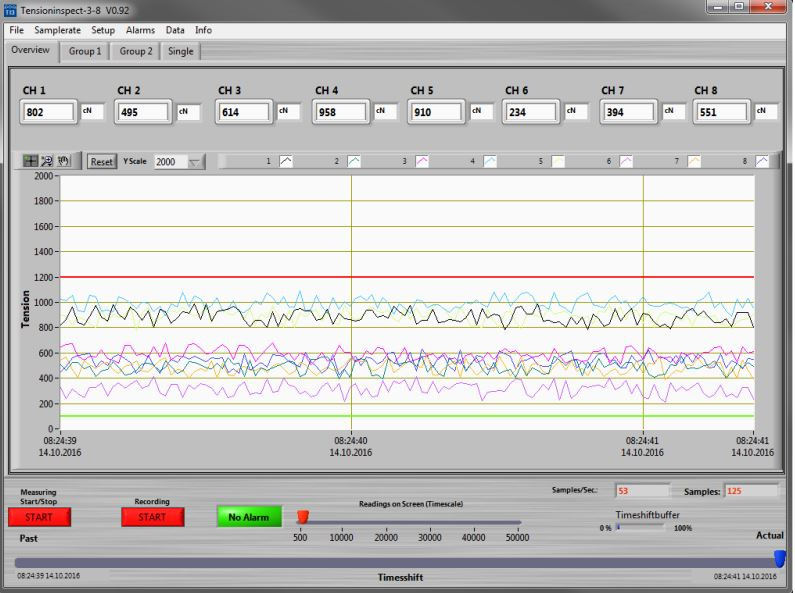

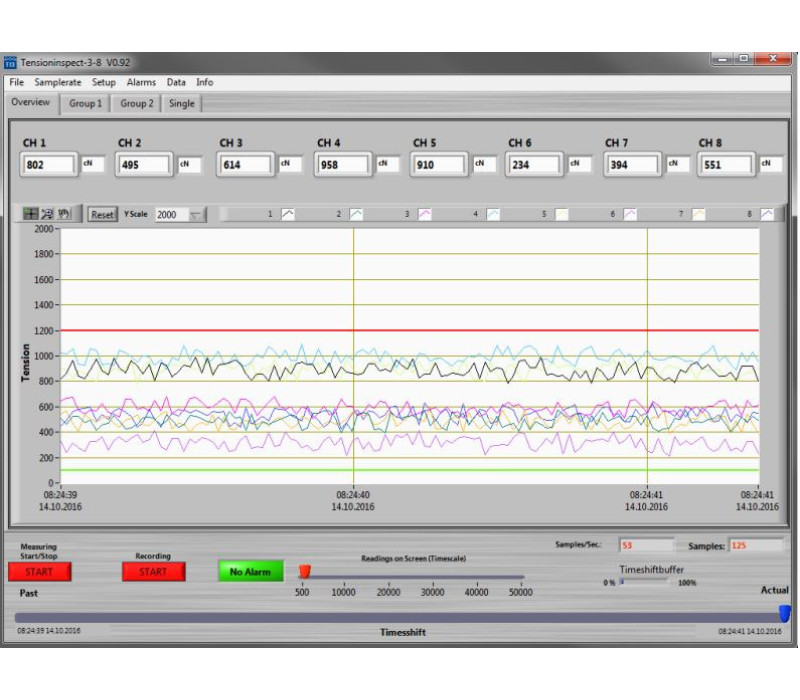

Real time display
Tension-time trend graph; with the time-shift procedure stored readings can be analyzed
Statistical values are automatically calculated and displayed as maximum, minimum, average, number of readings and standard deviation
Readings can be stored automatically as a file in CSV format for record-keeping purpose. These files can be reloaded in Exel spreadsheets. Stored readings of the PC can be reloaded
Set Up Menu to determine settings as instrument, range, units, sampling rate, com port etc.
Adjustable Min. Max Alarms; a alarm protocol can be created
For save and import the readings • A summarized report including the X-Y Chart can be printed in HTML format
The memory of a instrument with memory can be downloaded (model DT, ETX, DTX; MST, KXE and DTX)

General:

Adjustable sampling rate (depending on unit): max. 1000 readings/sec min. 1 readings/sec
Automated detection of the connected unit Model MST can be connected to a PC with the RS-232 cable.

Requirements:

Interface: Depending to the connected unit USB, RS232, RS422 or WLAN
System requirements: WIN XP or higher (32, 64 Bit)

Versions:

SW-TI3 for 1 chanel
SW-TI3-4 for 4 chanel
SW-TI3-8 for 8 chanel
SW-TI3-12 for 12 chanel
SW-TI3-16 for 16 chanel
SW-TI3-20 for 20 chanel
SW-TI3-24 for 24 chanel
SW-TI3-28 for 28 chanel
SW-TI3-32 for 32 chanel

Request price >>

Real-time reading
Voltage-time trend graph; with the time shift procedure the stored readings can be analyzed.
For data analysing the buffered diagram can be zoomed and scaled
Recording of the buffered readings as CSV-file (on user request)
Download of values to Excel
The memory of a instrument with memory can be downloaded (model DT, ETX, DTX; MST, KXE and DTX)

Delivery includes: CD with operating instruction

Datasheet SW-TI3

Products

Item	Product
134844	SW-TI3 Software „Tension Inspect 3“ to display and store measurings on PC (Win 7 und höher; 32 Bit und 64 Bit)

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
