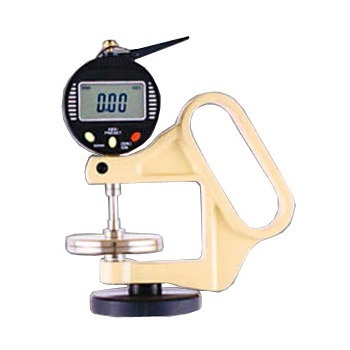

    Digital Thickness Gauges

    Explore the DTG-50 digital thickness gauges, designed to accurately determine the thickness of a variety of materials such as leather, textiles, cardboard, felt, rubber, sheet metal, plywood, and plastic. These models are distinguished by their self-closing mechanism that ensures maximum accuracy and a resolution of 0.01 mm across the measurement range. Two models available:

    - DTG-50-10: Measuring range from 0 to 10 mm, suitable for standard measurements.

    - DTG-50-25: Measuring range from 0 to 25 mm, ideal for thicker materials.



    Key Features:

    • Self-Closing Mechanism: Ensures precise and repeatable measurements, ideal for high-precision applications.
    • RS-232 Output: Allows for efficient digital data collection, facilitating integration with other digital systems.
    • LCD Display: Shows user-selectable measuring units, in millimetres or inches, providing flexibility and convenience.
    • Zero Button: Enables quick calibration of the device before each measurement, ensuring the accuracy of the results.
    Key Benefits:

    • Application Versatility: Suitable for measuring a wide range of materials, making it an essential tool in numerous industrial sectors.
    • Reliability and Durability: Constructed with high-quality materials that ensure durability and reliability in demanding industrial environments.
    • Ease of Use: Its intuitive design and ease of operation allow any user to perform quick and accurate measurements.


    Contact us for more information on how the DTG-50 thickness gauges can enhance the precision in your measuring processes.
    Price from € 331,00
    Order now
    • Thickness Gauge with Calibration Certificate: Each device comes with a calibration certificate, ensuring that measurements meet precision standards from the first use.
    • Compatible Accessories: Availability of various feelers to adapt to different types of materials and applications, further enhancing the functionality of the gauge.
    Available models

    Available models

    ModelRangeResolutionDepth of Jaw
    DTG-50-100 - 10 mm0.01 mm50 mm
    DTG-50-250 - 25 mm0.01 mm50 mm
    DTG-200-100 - 10 mm0.01 mm200 mm
    DTG-200-250 - 25 mm0.01 mm200 mm
    DTG-300-100 - 10 mm0.01 mm300 mm
    DTG-300-250 - 25 mm0.01 mm300 mm
    DTG-500-100 - 10 mm0.01 mm500 mm
    DTG-500-250 - 25 mm0.01 mm500 mm
    Feeler Types

    To place the order, please specify the desired feeler, for example: DTG-50-10-B for a gauge with feeler B. This means that NOT all feelers are included in the package!

    Feeler RMU A

    Feeler: A

    For hard leather, glass, metal sheets.
    Feeler RMU B

    Feeler: B

    For wood, rubber, soft leather, foil, etc.
    Feeler RMU C

    Feeler: C

    For soft rubber, felt, fleece.
    Feeler RMU D

    Feeler: D

    For rubber rings, round materials.
    Feeler RMU E

    Feeler: E

    For paper, cardboard, chipboard and fiberboard, and plywood.
    Feeler RMU F

    Feeler: F

    For metal sheets, glass, round materials.
    Feeler RMU G

    Feeler: G

    For very rigid materials.
    Feeler RMU H

    Feeler: H

    For foams and insulating materials.
    Feeler RMU I

    Feeler: I

    For very soft foams and insulating materials.
    Feeler RMU M

    Feeler: M

    For rubber sheets, felt, soft materials.
    Resolution:0.01 mm
    Measuring range:DTG-50-10: 0-10 mm
    DTG-50-25: 0-25 mm
    Depth of jaw:50 mm
    Measuring pressure:2 N
    Measuring principle:Self closing
    Feeler shape:A/B/C/D/E/F/G/H/I/M
    Display:LCD 4 digit, 8 mm high
    Measuring system:Sylvac
    Weight, net (gross):300 g (350 g)

    Order Now

    Products
    Item Product Price  Quantity Action
    137774DTG-50-10-A Thickness gauge with feeler A (⌀ 6 mm) € 340,00
    137782DTG-50-10-B Thickness gauge with feeler B (⌀ 10 mm) € 331,00
    137214DTG-50-10-C Thickness gauge with feeler C (⌀ 25 mm) € 331,00
    137291DTG-50-10-D Thickness gauge with feeler D (⌀ 5 mm) € 331,00
    134653DTG-50-10-E Thickness gauge with feeler E (⌀ 16 mm) € 331,00
    137775DTG-50-10-F Thickness gauge with feeler F (⌀ 3.5 mm) € 331,00
    134829DTG-50-10-G Thickness gauge with feeler G (⌀ 1.5 mm) € 331,00
    136500DTG-50-10-H Thickness gauge with feeler H (⌀ 30 mm) € 340,00
    136115DTG-50-10-I Thickness gauge with feeler I (⌀ 50 mm) € 355,00
    136619DTG-50-10-M Thickness gauge with feeler M (⌀ 20 mm) € 331,00
    136506DTG-50-25-B Thickness gauge with feeler B (⌀ 25 mm) € 345,00
    136140DTG-50-25-C Thickness gauge with feeler C (⌀ 25 mm) € 345,00
    137566DTG-50-25-D Thickness gauge with feeler D (⌀ 5 mm) € 345,00
    135593DTG-50-25-E Thickness gauge with feeler E (⌀ 16 mm) € 345,00
    134869DTG-50-25-F Thickness gauge with feeler F (⌀ 3.5 mm) € 345,00
    138257DTG-50-25-G Thickness gauge with feeler G (⌀ 1.5 mm) € 345,00
    135791DTG-50-25-H Thickness gauge with feeler H (⌀ 30 mm) € 355,00
    136116DTG-50-25-I Thickness gauge with feeler I (⌀ 50 mm) € 370,00
    137190DTG-50-25-M Thickness gauge with feeler M (⌀ 20 mm) € 345,00
    Accessories
    Item Product Price  Quantity Action
    137722CIC-THICKNESS-NEW GAUGE - Calibration Thickness Gauge (ordered with new gauge) € 58,00

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
