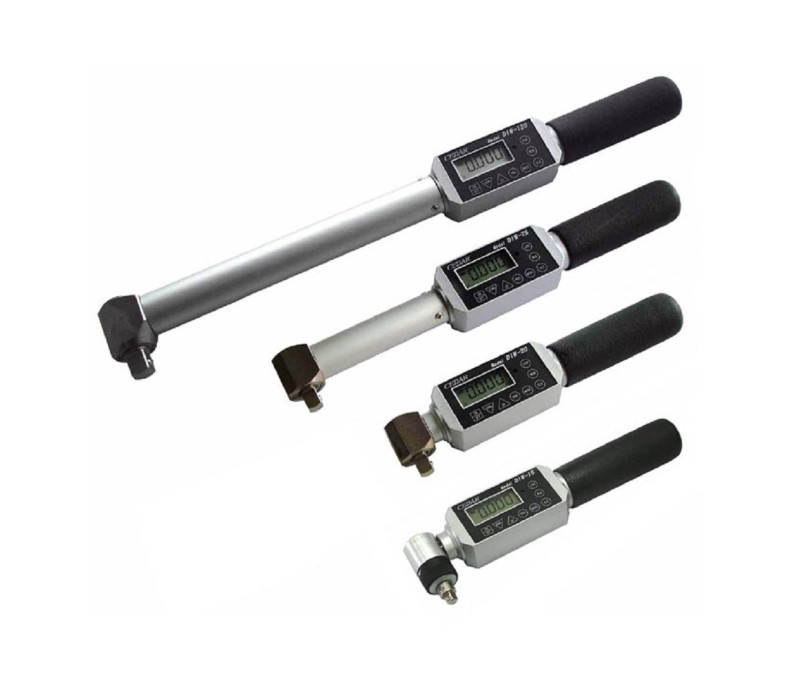

DIW Digital Torque Wrench

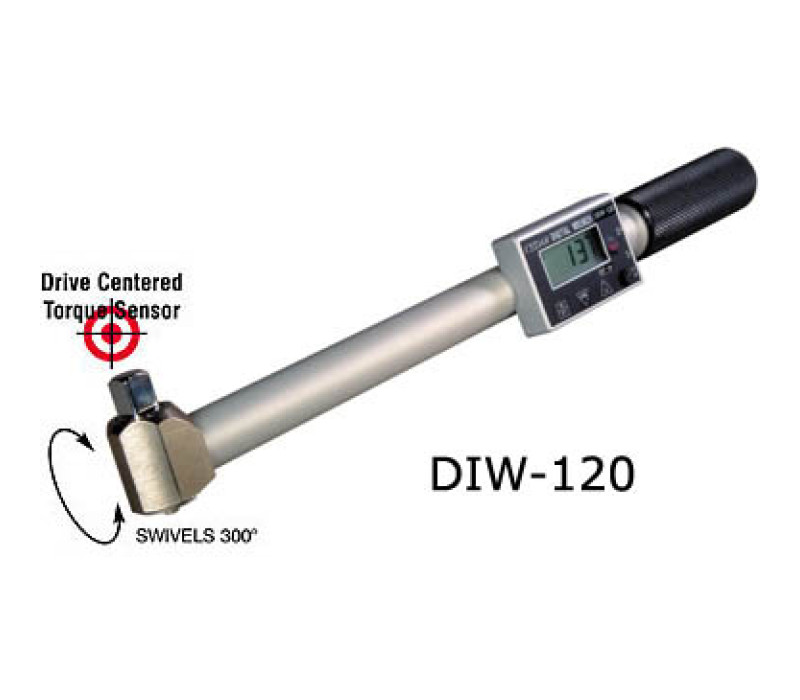

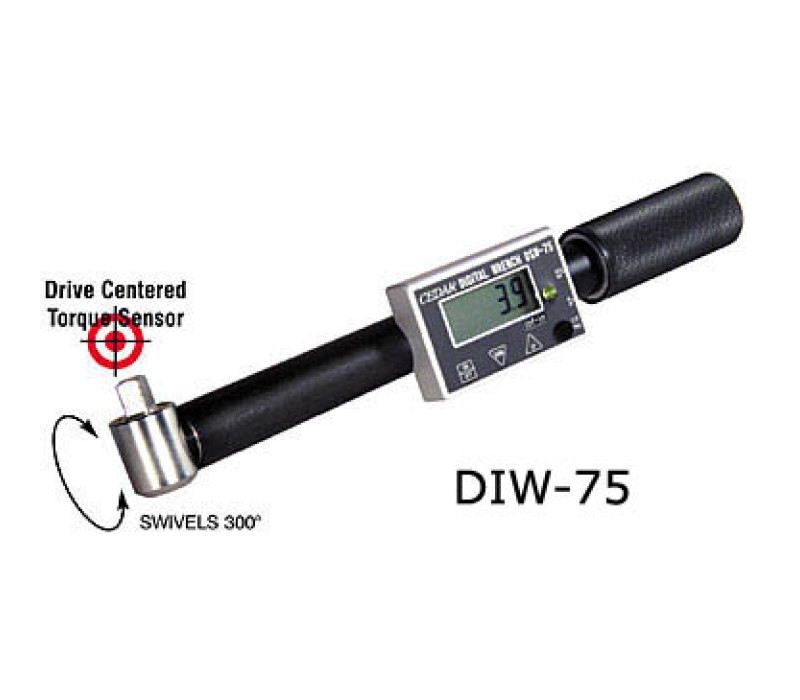

DIW Drive Centered Torque Sensor

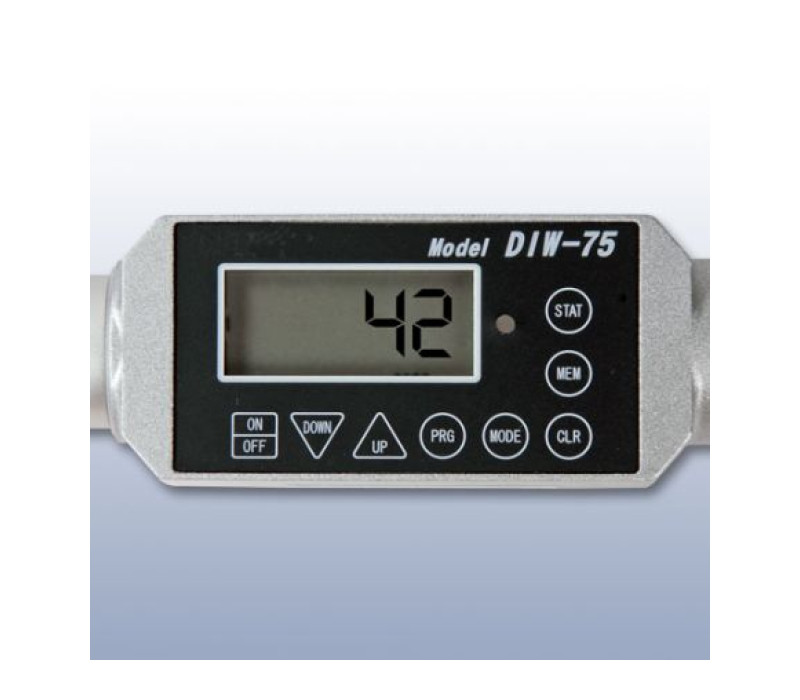

DIW Digital Torque Wrench Display

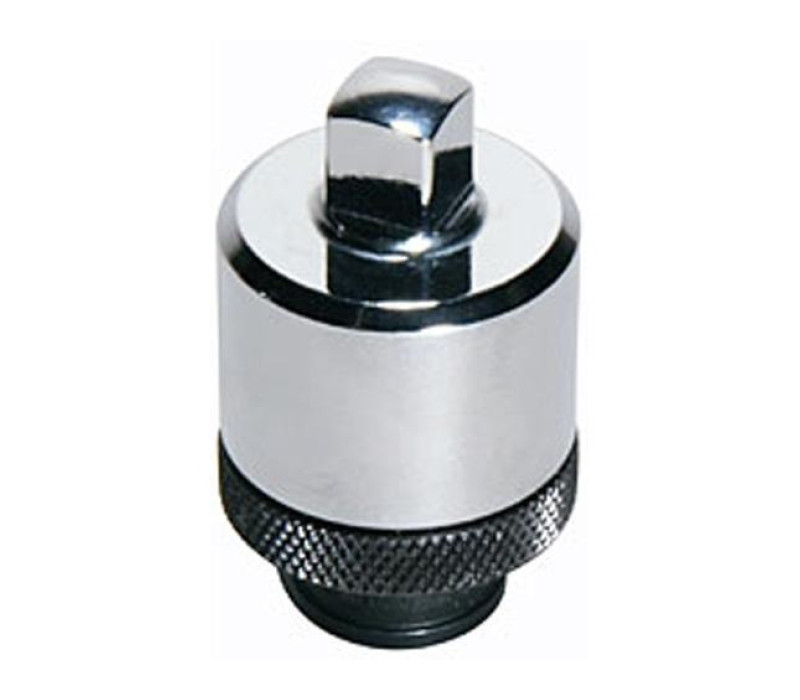

RA-700 clutch ratched

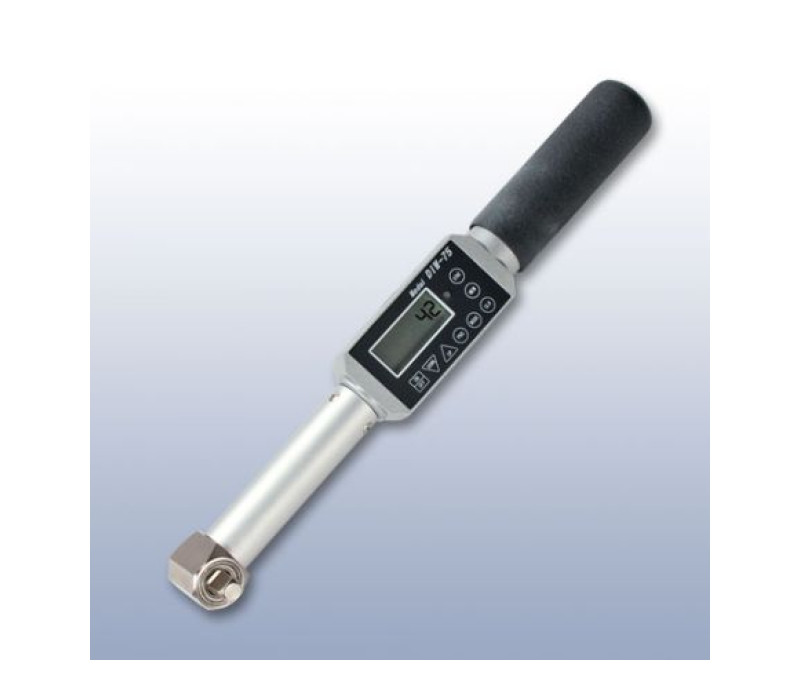

DIW Digital Torque Wrench

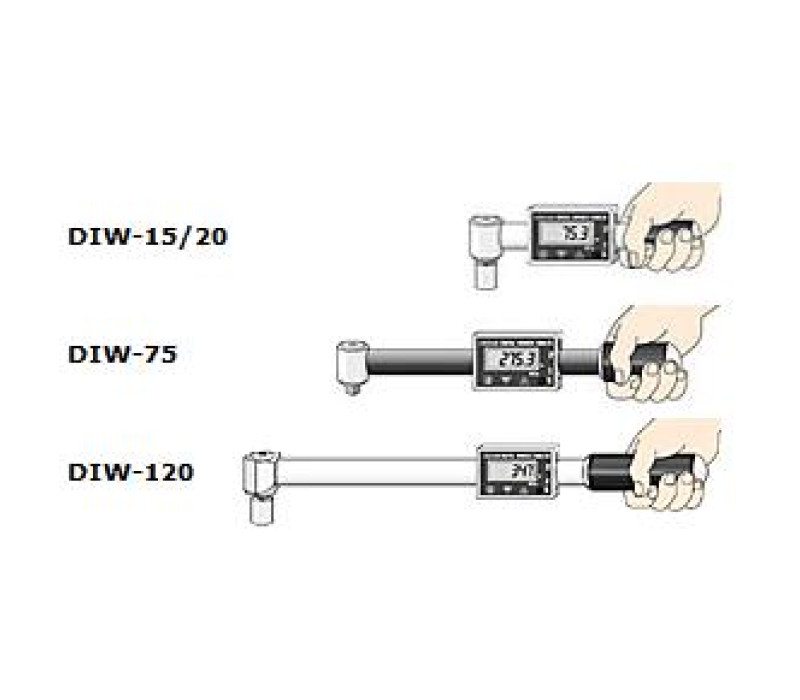

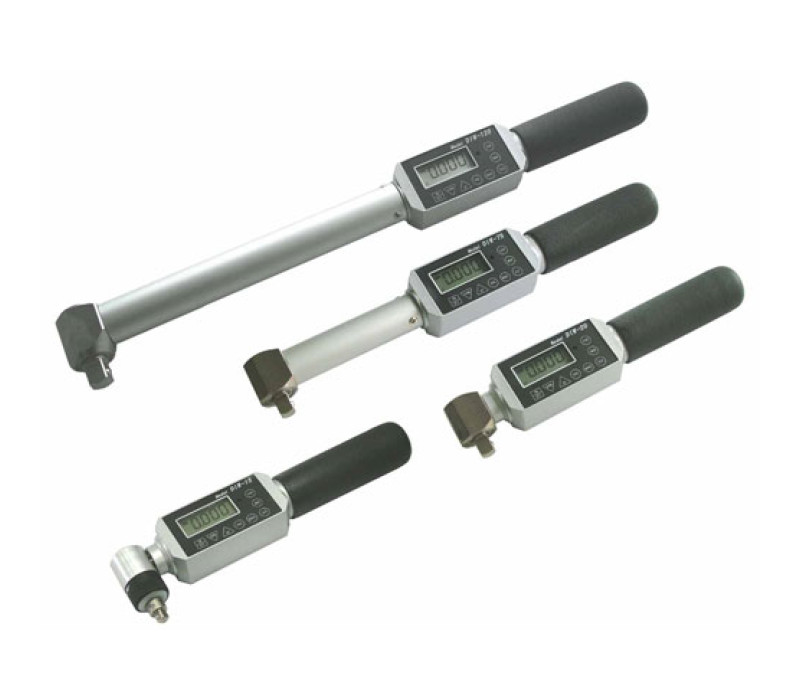

4 Ranges AvailableDIW-4W Capacity: 4 N-m (35 lb-in), 1/4" dr
DIW-15 Capacity: 15 N-m (130 lb-in), 1/4" dr
DIW-20 Capacity: 20 N-m (180 lb-in), 3/8" dr
DIW-75 Capacity: 75 N-m (55 lb-ft), 3/8" dr
DIW-120 Capacity: 120 N-m (87 lb-ft), 1/2" dr
The DIW is a torque measuring manual wrench designed for verifying application or removal torque of bolts. The wrench head swivels 300° and can be used in tight places. You'll get consistent readings no matter where or how the wrench is gripped because the torque sensor is centered on the drive and not up in the handle. Torque controlled wrenches can also be evaluated by comparative tests on a given fastener. Both breakaway and loosen tests can be performed. Rugged enough to be used in production. Wrench head swivels 300°

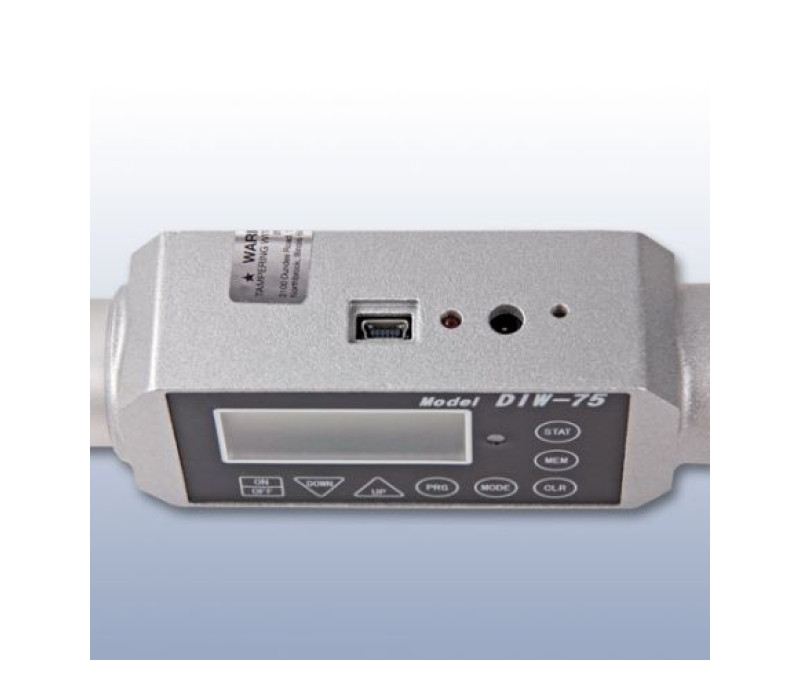

This tester has an accuracy of ±0.5%, ±1 LSD. It offers a programmable setpoint for uniform tightening or Go/No Go testing and also provides peak data for SPC (statistical process control) via the USB port.

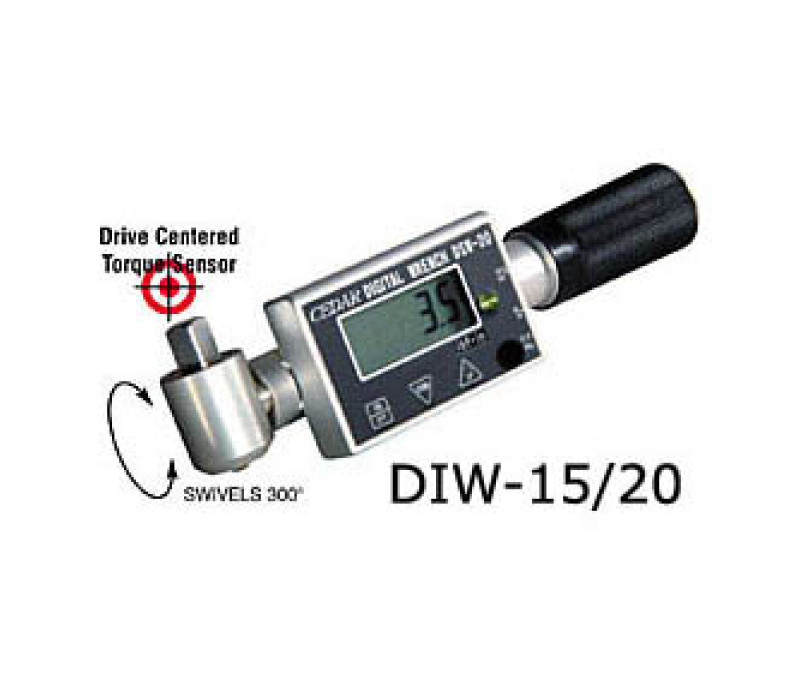

Consistent readings no matter where the wrench is gripped because the torque sensor is centered on the drive.
Price from € 1.642,50
The DIW-wrench comes with:
- DIW-wrench
- AC adapter/charger
- 3-Point Certificate traceable to NIST
- Manual
(ISO-17025 - ISO/IEC 17025 Certificate is available at an additional charge)
For data export the optional SW-1SV-USB Data Acquisition Software & CB-209 USB Data Output Cable is available.
DIW Operation Video
