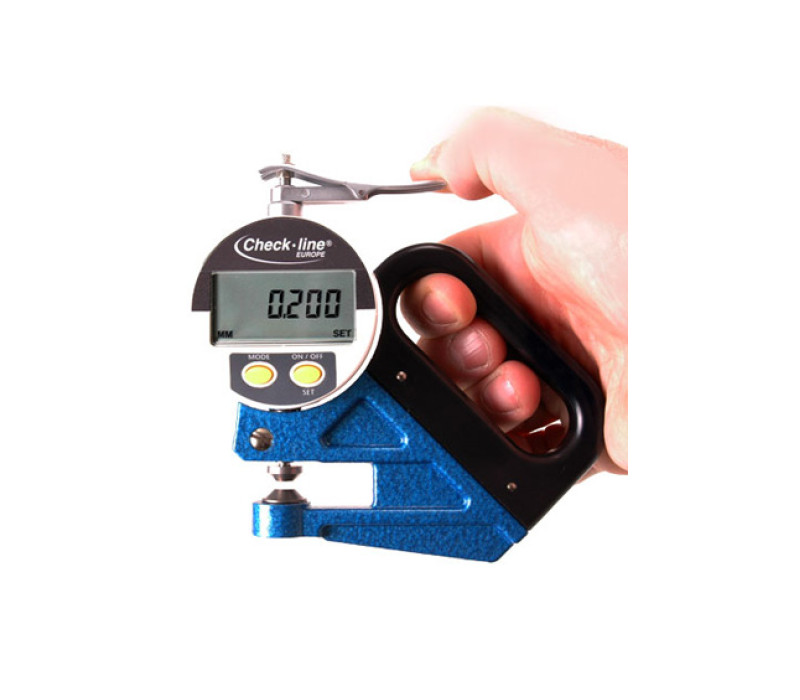

    DDM-2000 Series Digital Precision Foil Thickness Gauge

    Made in Germany 2 models available:
    - DDM-2007 with feeler pressure of 0.7 N
    - DDM-2020 with feeler pressure of 2.0 N

    Measuring range: 3 mm (.1")
    Resolution: 0.001 mm (1 µm / .00005")
    Maximum error: ± 3 µm (.00012")

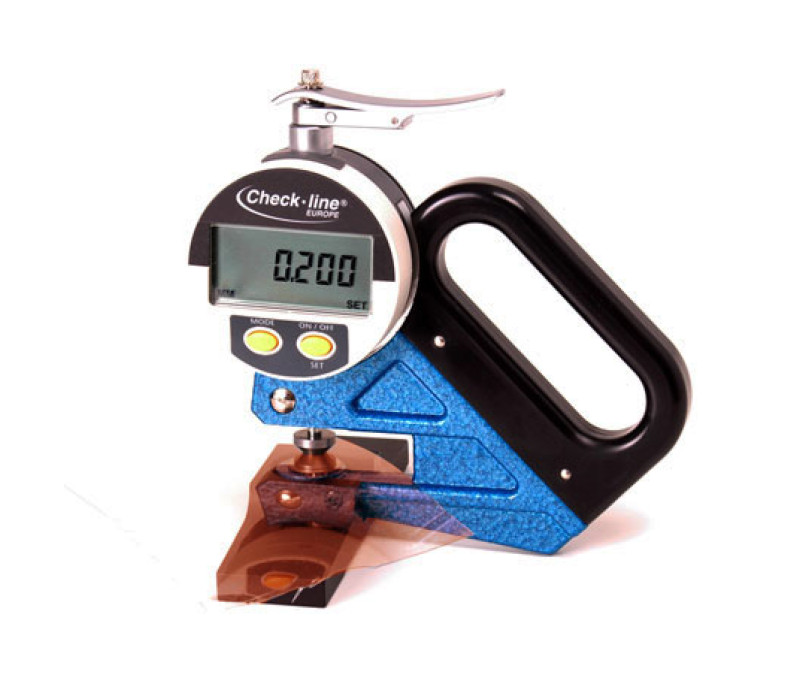

    This handy thickness gauge is used exclusively to measure the thickness of thin foils. The frame has the required rigidity, the insulation of the handle prevents transfer of heat from the hand of the user to the sensitive mechanical parts of the Gauge.
    Price from € 819,00
    Order now

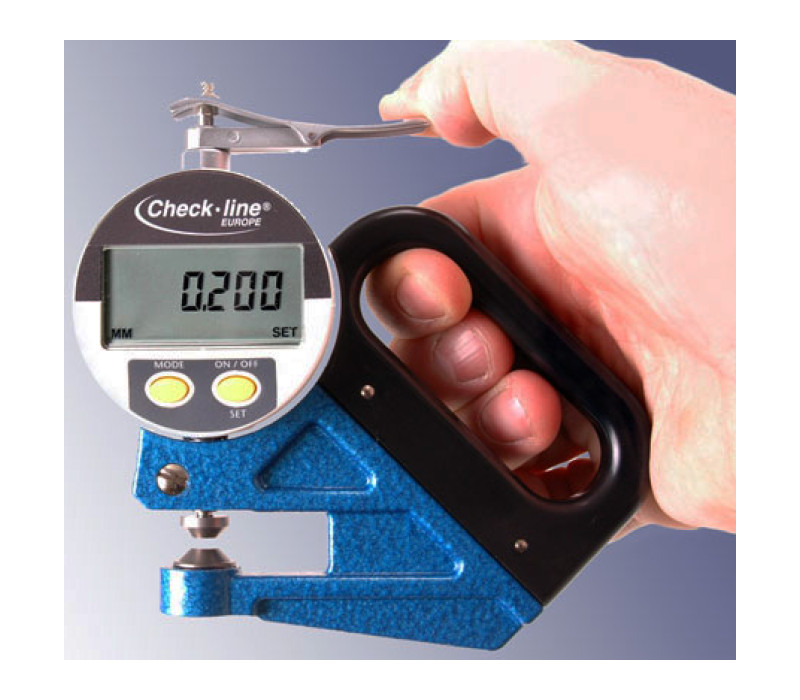

    • Insulated handle prevents transfer of heat from the hand of the user to the sensitive mechanical parts of the Dial Gauge
    • Operated by lifting device, self closing, available with 0.7 N or 2.0 N pressure
    • Special purpose model with resolution of 0.001 mm (1 µm)
    • Accuracy of ± 3 µm (.00012")
    Feeler Shape

    Feeler
    Feeler: F

    For soft leather, cardboard, paper, foils, knitting needles etc.;

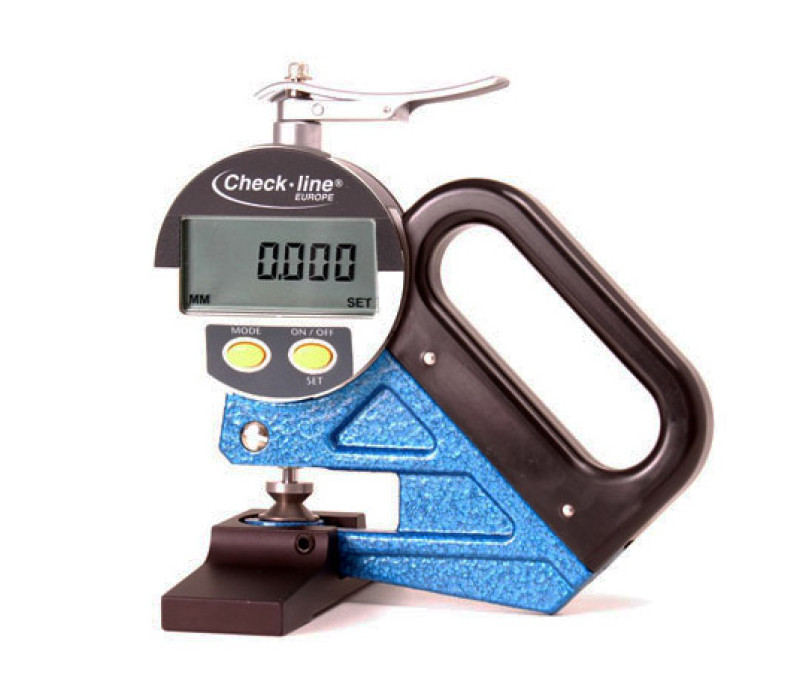

    Optional Table Stand

    An optional table stand is available to convert a the handheld thickness gauge into a table model.

    Simply place the thickness gauge into the table stand and tighten the Hex screws with the included Allen Hex fastener.
    Resolution:0.001 mm (1 µm / .00005")
    Measuring range:3 mm (.1")
    Accuracy:± 3 µm (.00012")
    Depth of jaw:30 mm (1,18")
    Feeler Shape:F - 6,35 mm Ø flat
    Measuring pressure:available with 0.7 N and 2.0 N closing pressure
    Measurment by spring load:Operated by lifting device - self closing
    Warranty:1 year
    Calibration CertificateOptional

    Order Now

    Products
    Item Product Price  Quantity Action
    132524DDM-2020 Digital Thickness Gauge 2.0 N € 819,00
    132523DDM-2007 Digital Thickness Gauge 0.7 N € 952,00
    Accessories
    Item Product Price  Quantity Action
    126836Table Stand for Thickness Gauge € 85,00

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
