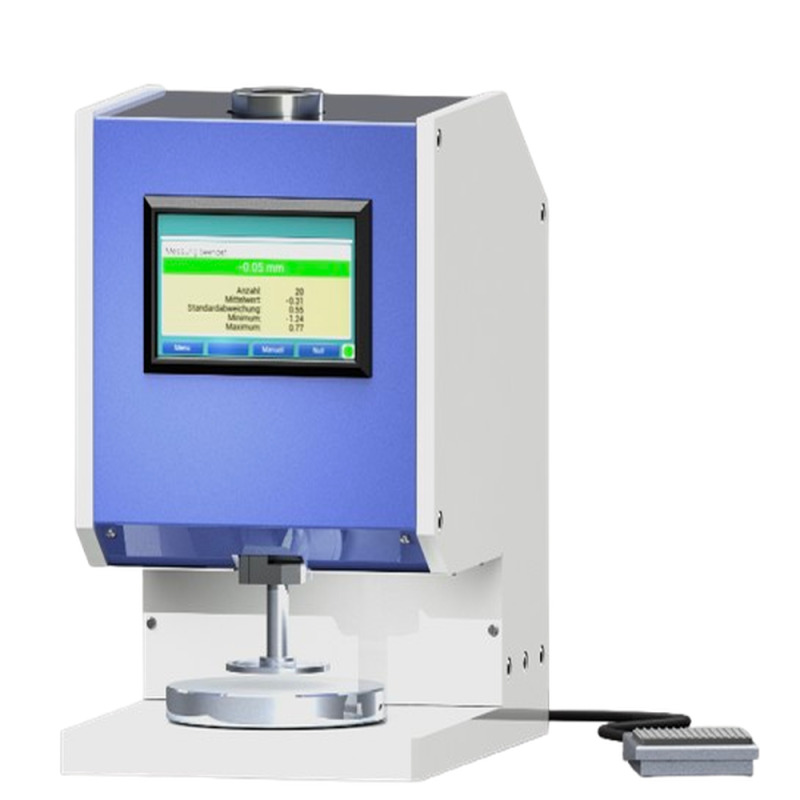

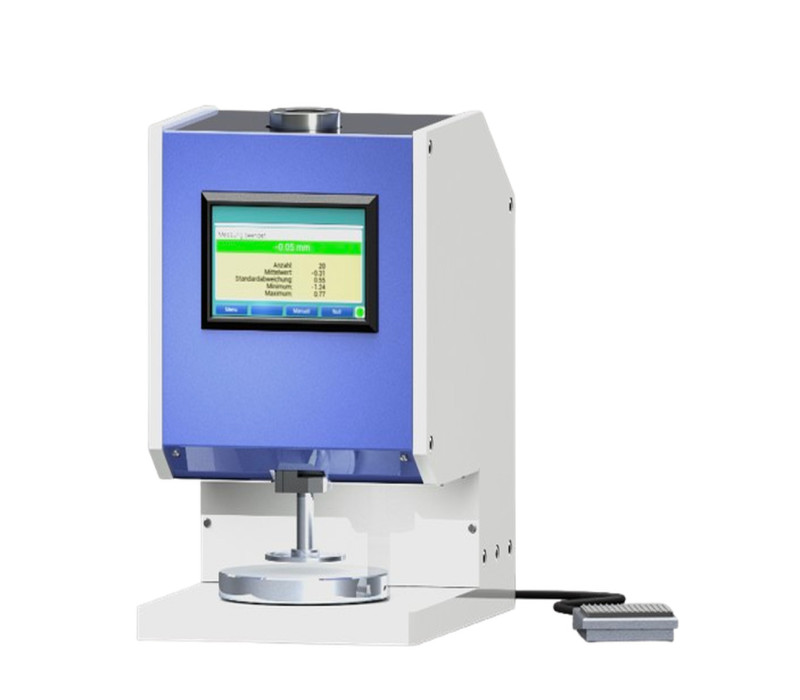

D-2006 Motorized Precision Material Thickness Gauge

The D-2006 Thickness Gauge is a precise, professional instrument with a robust and stable housing. It is ideal for users who value high resolution (down to 0.0001 mm), high measurement accuracy, automated processing, and reproducible, objective measurement results. Operation is simple via a 5" resistive touchscreen or a foot switch, and the motorized probe movement ensures consistent measurements across different material thicknesses.

The device can be adapted to various materials according to your requirements. By selecting appropriate measuring surfaces and load masses, the D-2006 can meet standards according to ISO, EN, DIN, or your own test regulations. Its modular design also allows for customer-specific implementations.

Common Standards
For textiles, nonwovens, geomaterials, paper, floor coverings, leather, films, and rubber – using variable measuring surfaces and load masses to match standard requirements.

Possible Measurement Ranges
0 – 10 mm, 0 – 25 mm, 0 – 50 mm, 0 – 100 mm

Resolution Options
0.01 mm, 0.001 mm, 0.0001 mm

Measuring Areas and Pressures

• Measuring area: up to 400 cm²

• Minimum measuring pressure: 2 kPa at 1 cm² (20 g mass)

• Maximum measuring pressure: 500 kPa at 1 cm² (5000 g mass)

The D-2006 allows motorized, automatic movement of the measuring probe. The measurement starts with the probe in its uppermost position and moves downward at a constant speed. When the probe contacts the sample, the electromechanical mechanism ensures that only the set measuring force is applied. The measured value is displayed, saved, and the probe returns to its initial position.
