TMG TMG - High Precision Thickness Gauges
TMG-3 thickness gauge side view
TMG-3 thickness gauge measuring process
TMG Thickness Gauge Software
TMG - High Precision Thickness Gauges

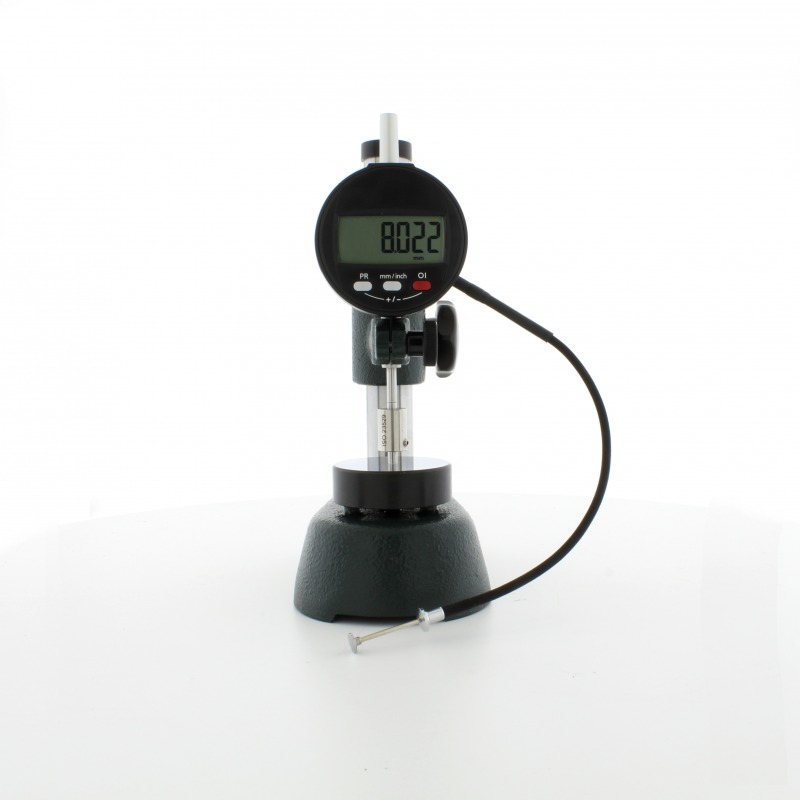

Important note: The following thickness gauges have been discontinued and replaced by the TMG model:- CTG-ASTM D1777-2
- FTG-ISO4593
- LTG-ISO2589
- RTG-ISO23529
- TTG-ISO-5084
The TMG series of thickness gauges provide extremely accurate and repeatable measurements for a wide range of applications. Their modular and robust design ensures compatibility with multiple international standards, including ISO, ASTM, DIN, and EN.
Available Models:
- TMG-1: Light configuration. Uses low weights with small footers to apply low pressure (e.g. 28 g with 22 kPa). Ideal for portable setups or sensitive materials.
- TMG-2: Medium configuration. Typically used with radius footers, suitable for applications requiring moderate pressure such as measuring films and foils.
- TMG-3: Heavy configuration. Designed for larger weights (e.g. over 2 kg) and wide footers to deliver low pressure with high structural stability. Ideal for industrial use.
- ISO 5084, ASTM D1777 for textiles.
- ISO 23529, ASTM D3767 for rubber and elastomers.
- DIN EN ISO 12625-3, ASTM D1777 for waterproofing membranes and more.
Key Features:
- Maximum Precision: The lifting trigger system ensures accurate measurement by applying the exact pressure required by each testing standard.
- High-Quality Construction: Laboratory-grade granite bases and stainless steel and aluminium components provide long-term durability, even in humid environments.
- Modular Versatility: Easily adaptable to different testing standards without the need for multiple devices, thanks to its interchangeable configuration system.
- Easy to Operate: User-friendly design, ideal for use in laboratory or production settings.
- Reliable Results: Stable pressure application ensures consistent, reproducible measurements over time.
- Standards Compliance: Fully compatible with leading international standards, offering a versatile solution for quality control and compliance.
Contact us for more information on how TMG thickness gauges can improve your measurement and quality control processes.
MODEL:
- TMG-1-T
- TMG-1-T1
- TMG-1-G
- TMG-1-G1
- TMG-1-PT
- TMG-1-AB
- TMG-1-FB
- TMG-1-FB1
- TMG-2-F
- TMG-3-L
- TMG-3-FI
- TMG-3-GE
- TMG-3-P
- TMG-3-C
- TMG-15 I
Shop now
Depending on the selected configuration, the TMG thickness gauge is delivered as a complete set consisting of:
- Granite measuring table
- Stainless steel column guide
- Gauge
- Measuring insert compliant with the desired standard
In addition and optional:
- Manufacturer Calibration Certificate
- DAkkS Calibration Certificate (only dial gauge)
- Software
Dimensions TMG-1
All sizes are in mm
Dimensions TMG-2
All sizes are in mm
Dimensions TMG-3
All sizes are in mm
