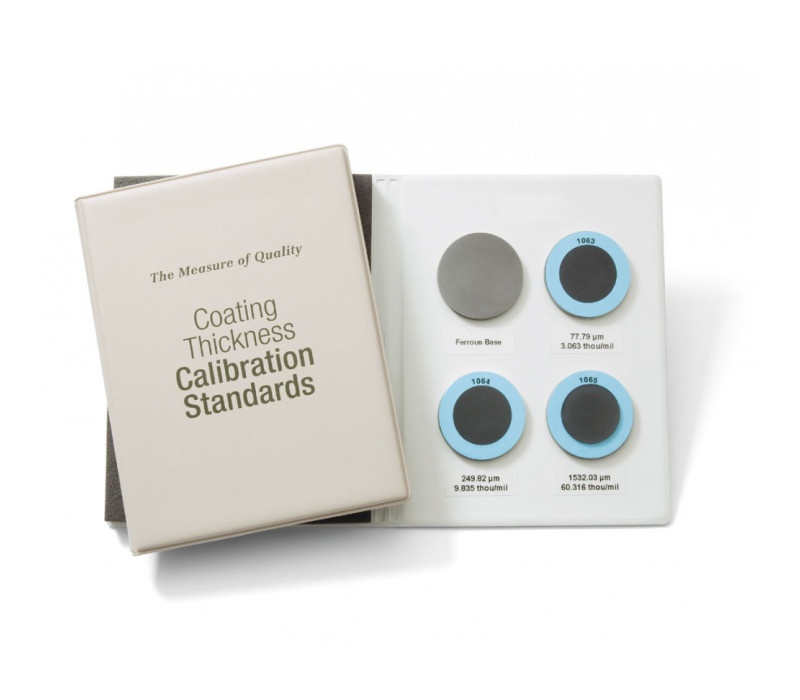

CMP CMP Certified Coated Metal Plates

CMP Certified Coated Metal Plates

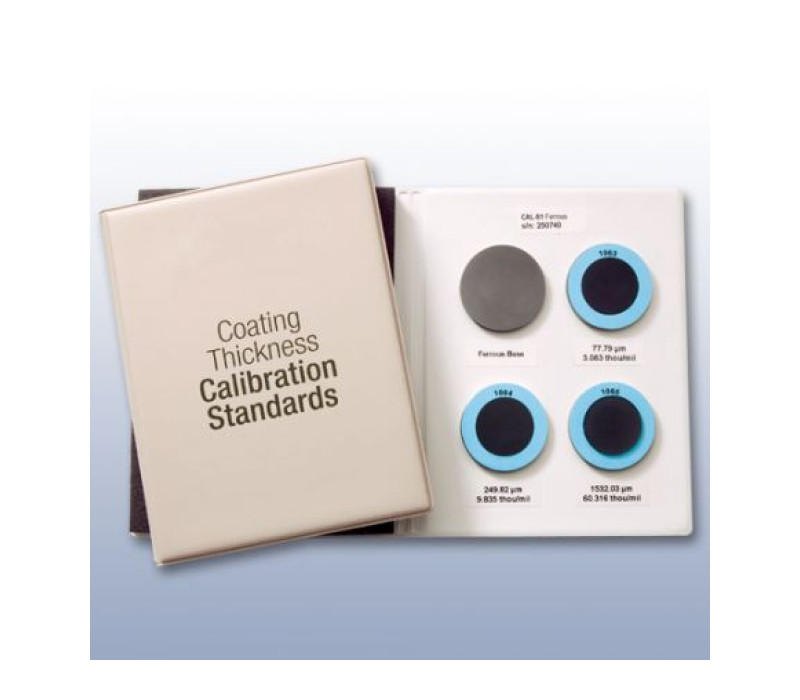

Certified CMP coated metal plates are essential tools for verifying the accuracy of coating thickness gauges. Ideal for meeting ISO quality control requirements and other international standards, these plates ensure your measuring equipment operates with utmost precision.

Highlighted Features:

Application Versatility: Suitable for use in calibration labs, on-site, or in production environments.
Standards Compliant Certification: Each plate comes with a calibration certificate that complies with DIN EN ISO standards and is traceable to National Metrology Institutions.
High-Quality Construction: Composed of steel or aluminum substrates, these plates are designed to withstand the rigorous use of the industrial environment.

Key Benefits:

Assured Compliance: The plates help keep your equipment in line with international quality standards, essential for audits and quality control.
Verified Accuracy: Certified measurements provide assurance that gauges are functioning correctly, ensuring the quality of your processes and products.

Contact us for more information on CMP certified coated metal plates and how they can help you meet your company's quality control requirements.

Price from € 383,00

Order now

Broad Compatibility: The plates can be used with a variety of coating thickness gauges, offering a flexible solution for different measurement needs.

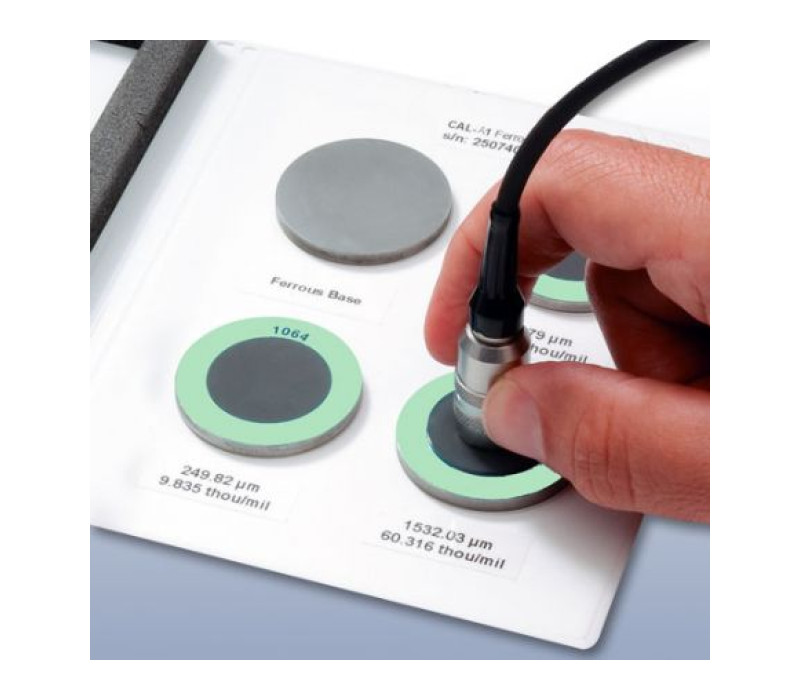

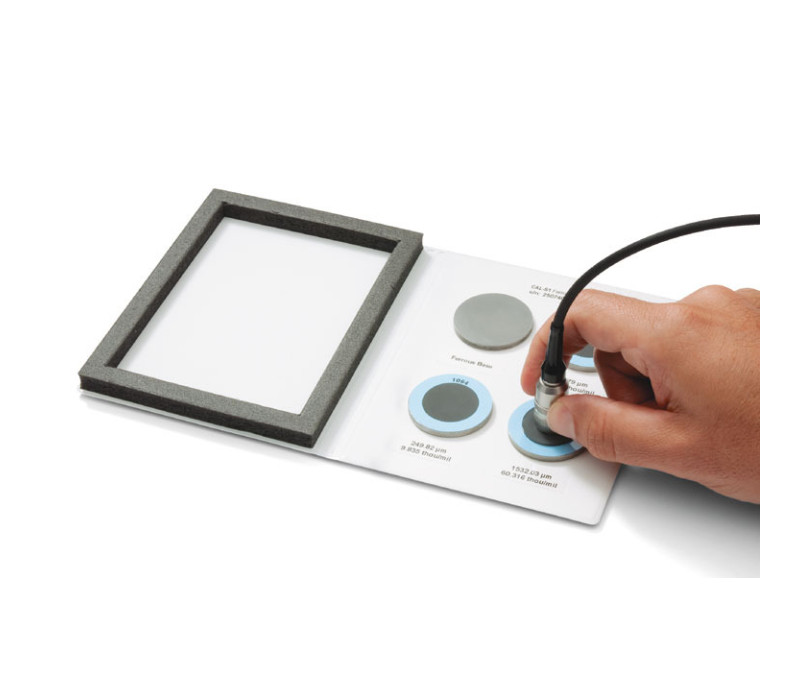

Utility Across Various Instruments: Suitable for verifying the accuracy of both magnetic and eddy-current as well as ultrasonic coating thickness gauges, including Type 1 (mechanical) and Type 2 (electronic).

Ordering Guide

Order Code	Ideal for	Coating / Substrate
S1	PosiTector 6000 F, FS, FRS, FN, FNS, FNRS PosiTest F & FM	Epoxy on Steel (Ferrous)
S2	PosiTector 6000 F0S, F45S, F90S PosiTest DFT Ferrous & Combo
S3	PosiTest G & GM PosiPen A, B & C
A1	PosiTector 6000 N ,NS, NRS, FN, FNS, FNRS	Epoxy on Aluminum (Non-Ferrous)
A2	PosiTector 6000 NAS , N0S, N45S, N90S PosiTest DFT Combo
A3	PosiTector 100B, 200, 200B

Order Code	Approximate Thickness				Accuracy
Order Code		Plate 1	Plate 2	Plate 3	Accuracy	Plate 4
S1	0	75 um 3 mils	250 um 10 mils	1500 um 60 mils	± 0.43 um ± 0.017 mil
S2	0	75 um 3 mils	250 um 10 mils	1000 um 40 mils
S3	0	15 um 0.6 mils	40 um 1.6 mils	100 um 4 mils
A1	0	75 um 3 mils	250 um 10 mils	1500 um 60 mils	± 0.43 um ± 0.017 mil
A2	0	75 um 3 mils	250 um 10 mils	500 um 20 mils
A3	75 um 3 mils	125 um 5 mils	250 um 10 mils	500 um 20 mils

Products

Item	Product	Price
134959	STD-S1 Certified Coated Metal Plates: F, FS, FRS, FN, FNS, FNRS: 75µm, 250µm, 1500µm	€ 403,00
139616	STD-S2 Certified Coated Metal Plates: F0S, F45S, F90S, F90ES: 75µm, 250µm, 1000µm	€ 403,00
139222	STD-S3 Certified Coated Metal Plates: PosiTest G(M), PosiPen A, B & C: 15µm, 40µm, 100µm	€ 403,00
134958	STD-A1 Certified Coated Aluminium Plates: N ,NS, NRS, FN, FNS, FNRS: 75µm, 250µm, 1500µm	€ 403,00
139615	STD-A2 Certified Coated Aluminium Plates: NAS, N0S, N45S, N90S: 75µm, 250µm, 500µm	€ 403,00
133458	STD-A3 PosiTector 200 Certified Shim Set for Calibration	€ 383,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out

CMP Certified Coated Metal Plates

Features

CPS Certified Shim Set

PTB Polystyrene Test Blocks

Order Now

CMP Certified Coated Metal Plates

Features

Related Products

CPS Certified Shim Set

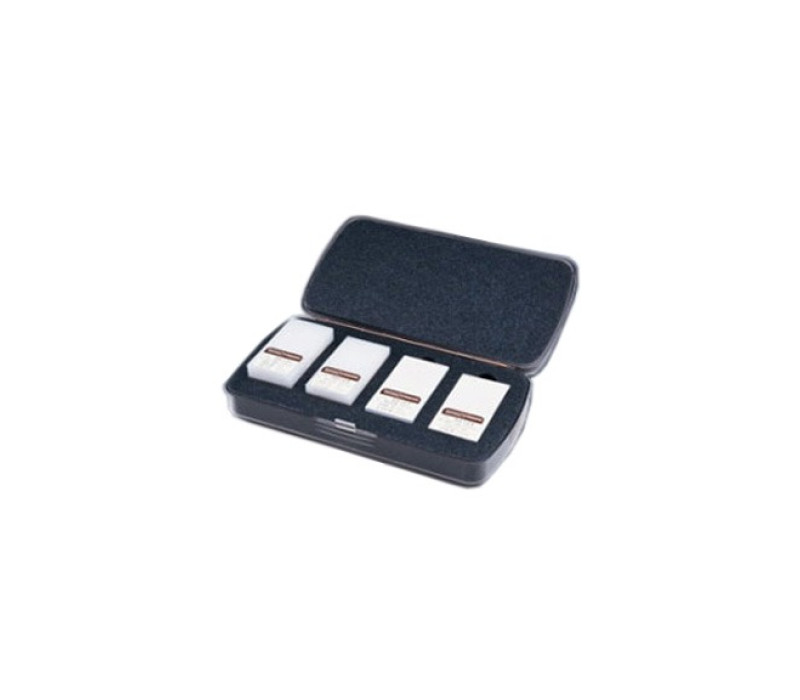

PTB Polystyrene Test Blocks
