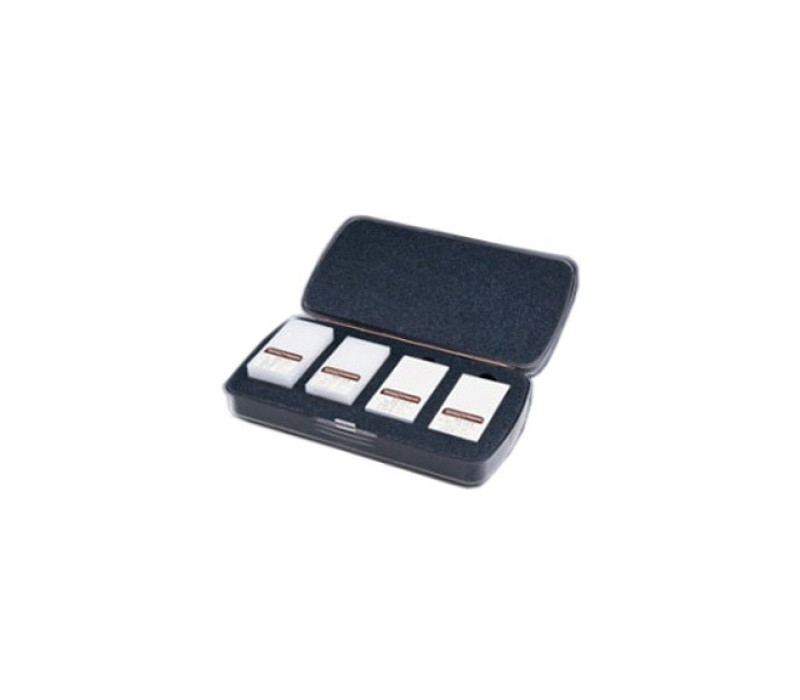

PTB PTB Polystyrene Test Blocks

PTB Polystyrene Test Blocks

Certified PTB polystyrene blocks are essential for ensuring the accuracy and proper functioning of coating thickness gauges, complying with rigorous ISO quality standards and internal regulations. Ideal for regular calibrations, these standards conform to measurements from the National Metrology Institution.

Highlighted Features:

Reliable Calibration: Each block is certified and labeled in both Metric and Imperial units, ensuring accurate measurements and compliance with NIST standards.
Versatile Use: Perfect for use in laboratories, the field, or on the factory floor, they facilitate the verification of Type 1 and Type 2 thickness gauges, whether magnetic, eddy-current, or ultrasonic.

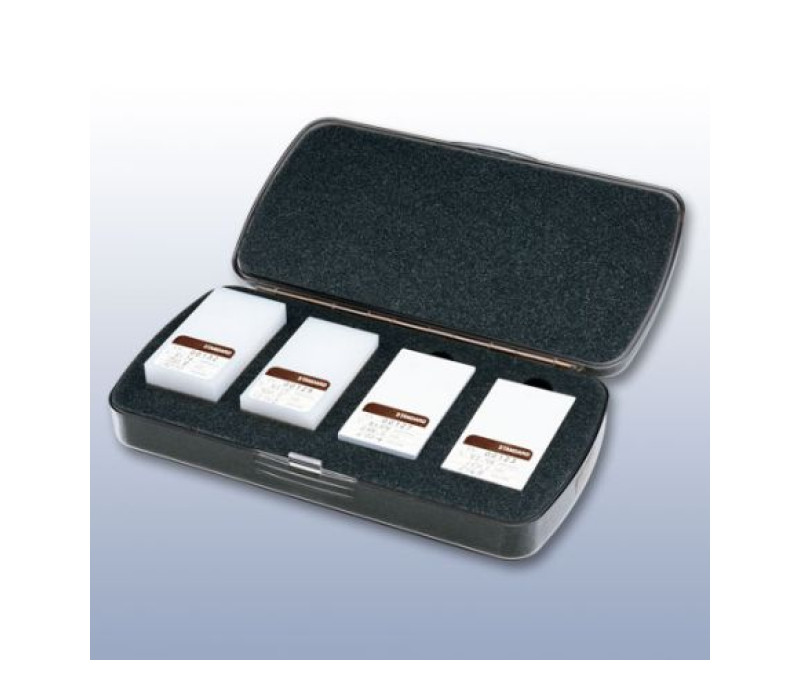

Durable Construction: Comprising 4 polystyrene blocks in a rugged acrylic storage box, they offer a robust solution for frequent testing.

Key Benefits:

Standards Compliance: Ensures each gauge meets quality standards before being put into service and during regular inspections.
Unique Serial Number: Each block is assigned a unique number, ensuring full traceability and compliance with calibration certificates.

Contact us for more information on how PTB polystyrene test blocks can help you maintain the accuracy of your coating thickness gauges.

Price from € 209,00

Shop now

Calibration Certificate: Includes a certificate traceable to NIST, providing clear and verifiable evidence of compliance.
Easy to Use: Designed for simple and safe handling, they facilitate hassle-free calibration operations.

Ordering Guide

Order Code	Ideal for	Approximate Thickness - Block 1	Approximate Thickness - Block 2	Approximate Thickness - Block 3	Approximate Thickness - Block 4
STD-P1	PosiTector 6000 FT, FTS, NTS, FNTS	375 um 15mils	2 mm 80 mils	4.5 mm 185 mils	6.5 mm 250 mils
STD-P2	PosiTector 6000 FHS, NHS, EOC	2.5 mm 100mils	6.5 mm 250 mils	13 mm 500 mils	19 mm 750 mils
STD-P3	PosiTector 100 C	375 mm 15mils	1.5 mm 60 mils	2.5 mm 100 mils	4.5 mm 185 mils
STD-P4	PosiTector 100 D	1.5 mm 60mils	2.5 mm 100 mils	4.5 mm 185 mils	6.5 mm 250 mils
STD-P5	PosiTector 6000 FKS, NKS	1.5 mm 60 mils	2.5 mm 100 mils	6.5 mm 250 mils	12 mm 480 mils
STD-P6	PosiTector 200 C	375 um 15 mils	1.5 mm 60 mils	2.5 mm 100 mils	3 mm 125 mils
Accuracy: ±(2.5 um + 0.05% of thickness) ± {0.1 mil + 0.05% of thickness)

Products

Item	Product	Price
134899	STD-P1 Certified Polystyrene Test Block Kit: 375 µm, 2 mm, 4.5 mm, 6.5 mm	€ 223,00
134900	STD-P2 Certified Polystyrene Test Block Kit: 2.5 mm, 6.5 mm, 13 mm, 19 mm.	€ 209,00
134901	STD-P3 Certified Polystyrene Test Block Kit: 375 µm, 1.5 mm, 2.5 mm, 4.5 mm.	€ 209,00
134902	STD-P4 Certified Polystyrene Test Block Kit: 1.5 mm, 2.5 mm, 4.5 mm, 6.5 mm.	€ 209,00
134903	STD-P5 Certified Polystyrene Test Block Kit: 1.5 mm, 2.5 mm, 6.5 mm, 12 mm.	€ 209,00
134904	STD-P6 Certified Polystyrene Test Block Kit: 375 µm, 1.5 mm, 2.5 mm, 3 mm	€ 209,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
