CDT-1000-HD Non-Contact Tachometer

CDT-1000-HD Non-Contact Tachometer

Name: CDT-1000-HD Non-Contact Tachometer
SKU: 125796
Price: 241.00 EUR
Availability: InStock

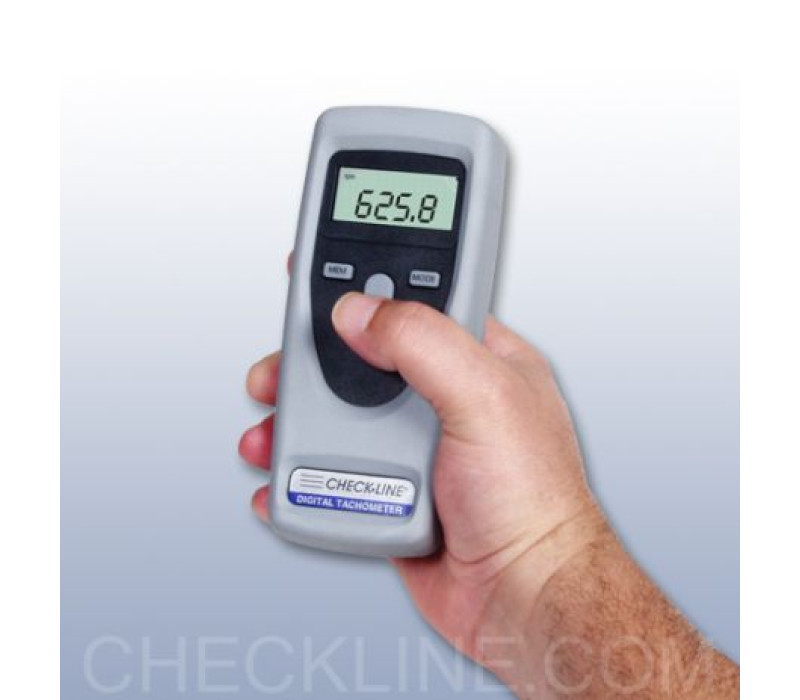

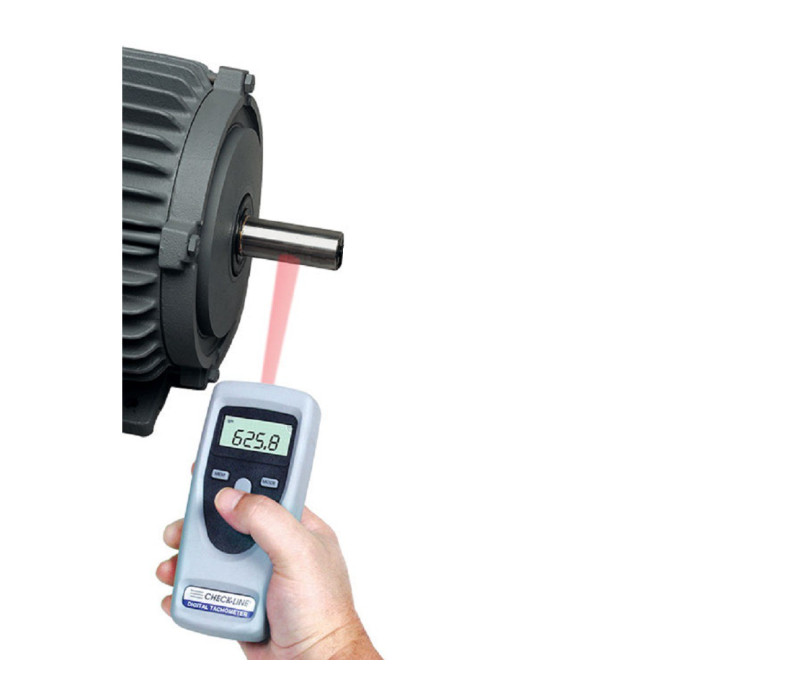

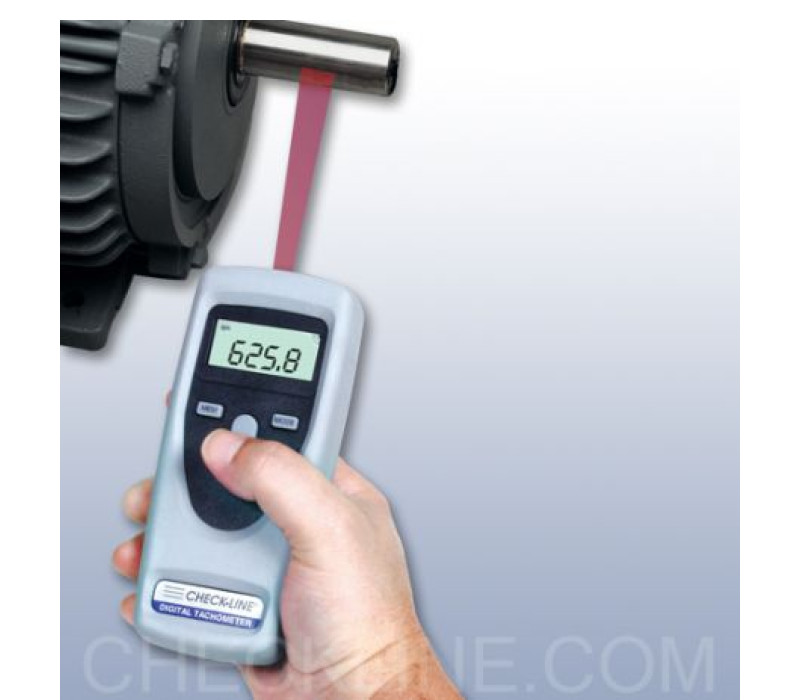

The CDT-1000 Hand-Held Digital Tachometer accurately measures rotational speed (RPM) using a visible beam of light. The CDT-1000 can be up to 14 inches away from the small piece of reflective tape that is affixed to the rotating element.

The CDT-1000's rugged construction, portability and outstanding features make It an ideal choice for maintenance personnel, machine operators or others in a wide variety of machinery and material handling applications.

A combination Contact & Non-Contact model, the CDT-2000HD, is also available.

€ 241,00

Order now

Accuracy of 0.02% with a resolution of 0.01 RPM
Non-contact sensing from up to 24" with visible red light source
Measures speeds from as low as 1.00 rpm up to 99,999 rpm
NIST Certification included at no additional cost
Five (5) year warranty!!
Built-in memory stores maximum, minimum and last reading for recall to the the display
Uses only two (2) AA batteries (included)
Rugged lightweight design for trouble-free operation
New - Molded Rubber Shell Provides Additional Physical & Environmental Protection

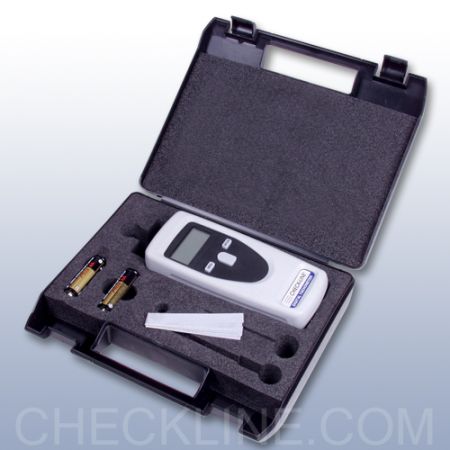

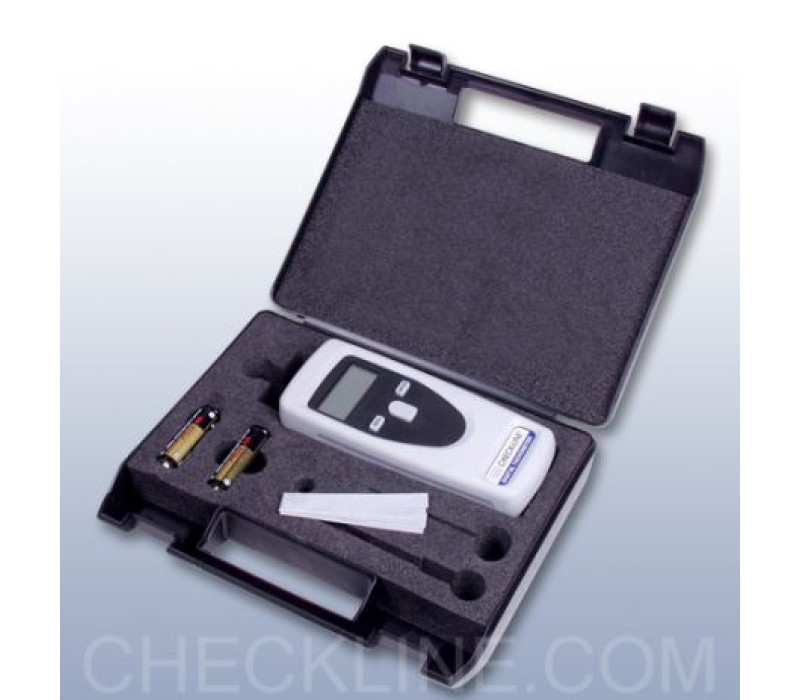

The CDT-1000HD complete kit includes:

the Tachometer
Reflective Tape
Two (2) AA Batteries (1.5 V)
Operating Instruction Manual and Traceable certificate -- all supplied in a foam-fitted
hard-plastic Carrying Case.

Units of Measure Indicators show the user-selected units of measure.

Low Battery Indicator alerts the operator if the batteries are low.

On-Target Indicator confirms that the measurements are reliable.

Memory Indicators are illuminated when the maximum, minimum and last readings are recalled to the display for viewing.

Datasheet CDT-1000HD

Measuring Range:	1.00 - 99,999 rpm
Resolution:	.01 from 0 - 100 .1 from 100 - 1,000 1 from 1000 - 99,999
Accuracy:	± 0.02% of reading or 0.01 digit (under 50)
Display:	5 - Digit LCD, 10mm high
Decimal Point:	Automatic
Memory sistem	Maximum, minimum, and last reading (retained in memory for the life of the batteries)
Measurement System:	Visible LED light beam
Sensing Distance:	Up to 24 inches (60 cm)
Display Update Time:	0.5 seconds or one measuring
Auto Power Off:	After 30 seconds of non-use (minimum, maximum and last reading retained in memory)
Battery Life:	40 hours continuous use
Battery:	2 AA (1.5 V) or rechargeable
Weight:	6 ounces (170 grams)
Housing Material:	ABS Plastic housing with removable protective rubber shell
Operating Temperature:	32 to 122º F (0 to 50º C)
Storage Temperature:	-4 to 150º F (-20 to 70º C)
Accessories included:	10 Strips of 1/2 x 4 inch reflective tape
Warranty:	5 years
Calibration Certificate:	Included

Products

Item	Product	Price	Quantity	Action
125803	CDT-1000HD-N Non-Contact Tachometer	€ 241,00

Accessories

Item	Product	Price
126135	10009S - Reflective Tape 4 Sheets 35 1/2	€ 15,00
131132	CDT-Tape 10 Strips of 1,25 cm x 10 cm	€ 10,00
139547	Li-Ion Rechargeable AA Batteries - 4 pcs (with USB to USB-C cable)	€ 25,00

All mentioned prices are excluding VAT & excluding shipment costs.
