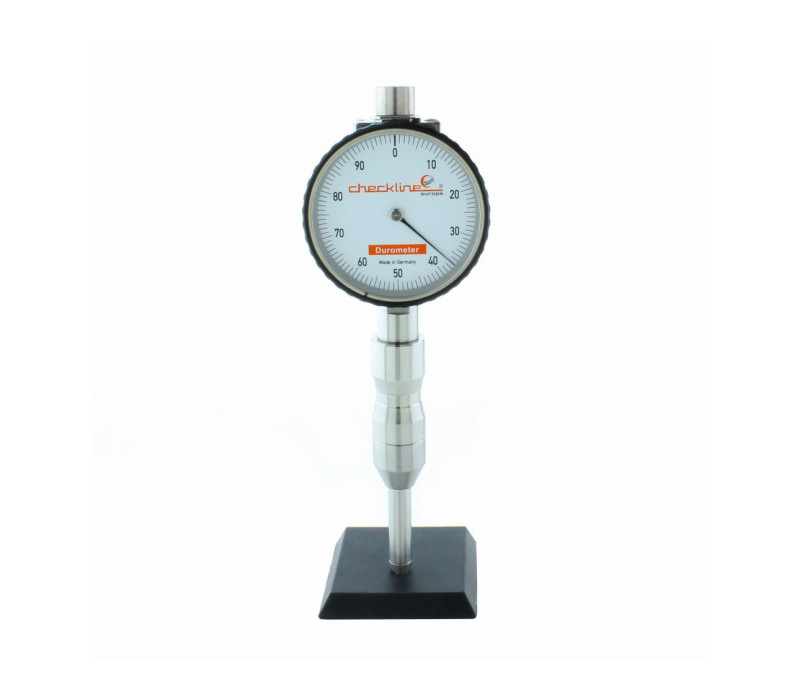

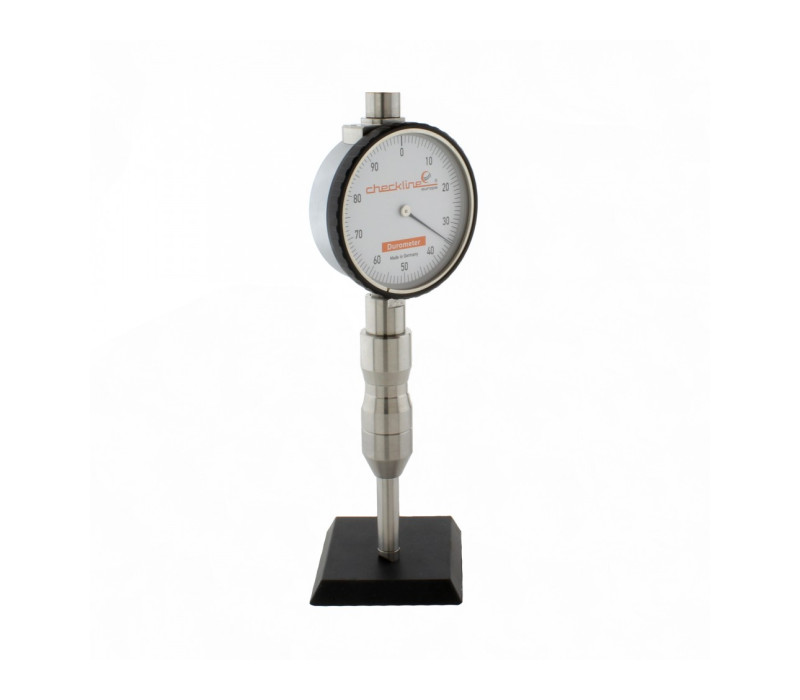

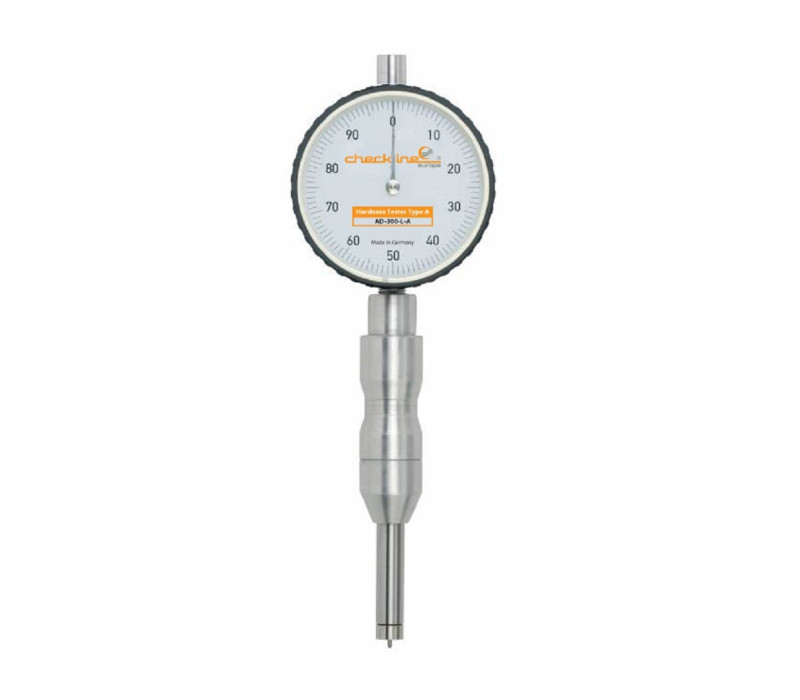

AD-300L Durometer with Slim Probe

AD-300L Durometer with Slim Probe

The AD-300-L durometer with slim probe is developed for hardness measurements on irregular shapes and areas that are hard to reach.

This new durometer series is built to the highest quality standards with internal friction reduced to an absolute minimum; it enables you to take highly accurate repetitive measurements on hard to reach places.

The AD-300-L is available in 2 versions (Shore A & Shore D) in 3 different types:

Dimensions Durometer Ad-300-L

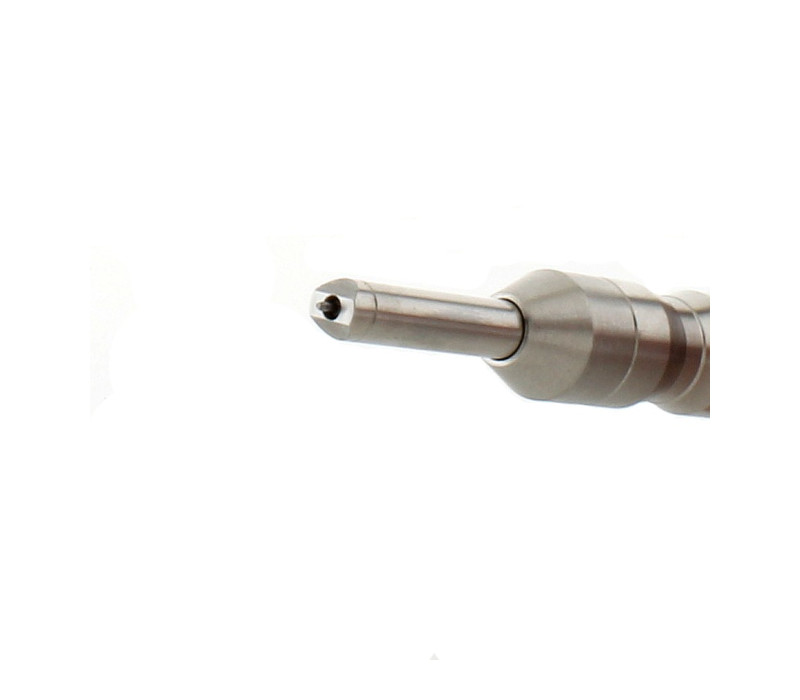

Type 1: Slim probe 1 with a foot diameter of 8 mm for hard to reach or irregular shapes
Type 2: Durometer with chisel shaped probe for hard to reach or narrow areas
Type 3: Slim probe 2 with a thinner foot, diameter of 5 mm, to reach narrow places or irregular shapes

The AD-300-L durometer meets the requirements of different international standards, including ASTM D 2240, DIN ISO 7619-1, ISO 868, ISO 7619-1. (With the exception of the diameter of the pressure foot because the pressure foot is not according to the national standards)

Price from € 996,00

Order now

Drag pointer optional available
Developed for hardness measurements on irregular shapes and narrow areas
3 different foots available
High accuracy of 1.0 points

Selection guide for Durometers

Operating Principle

Y1 no header

Type 1:Slim Probe 1, foot DIA. 8 mm for hard to reach areas or irregular shapes.

Type 2:Chisel shaped (angled foot) for hard to reach or narrow areas.

Type 3:Slim Probe 2, DIA. 5.0 mm.A thinner foot for reaching hard to get places or irregular shapes.

Conformance to International Standards

Model	ASTM D2240	DIN 53505	ISO 868	ISO 7619
AD-300L-A
AD-300L-D

Dial diameter:	57 mm
Total length:	166 mm
Range:	0 - 100
Accuracy:	± 1
Resolution:	1
Drag pointer:	Optional available
Net weight:	193 g
Standards:	DIN ISO 7619-1 ISO 868 ISO 7619-1 ASTM D 2240 (with the exception of the diameter of the pressure foot)

Products

Item	Product	Price
135041	AD-300L-1-A Durometer type A	€ 996,00
135042	AD-300L-2-A Durometer type A	€ 996,00
135043	AD-300L-3-A Durometer type A	€ 996,00
135044	AD-300L-1-D Durometer type D	€ 996,00
135045	AD-300L-2-D Durometer type D	€ 996,00
135046	AD-300L-3-D Durometer type D	€ 996,00
135047	AD-300L-1-A-M Durometer type A with Memory Pointer	€ 1.047,00
135048	AD-300L-2-A-M Durometer type A with Memory Pointer	€ 1.047,00
135049	AD-300L-3-A-M Durometer type A with Memory Pointer	€ 1.047,00
135050	AD-300L-1-D-M Durometer type D with Memory Pointer	€ 1.047,00
135051	AD-300L-2-D-M Durometer type D with Memory Pointer	€ 1.047,00
135052	AD-300L-3-D-M Durometer type D with Memory Pointer	€ 1.047,00

Accessories

Item	Product	Price	Quantity	Action
134567	AD-300-MEM Memory Pointer Option	€ 57,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out

AD-300L Durometer with Slim Probe

Features

Specifications

OS-300-2 Durometer Test Stand

OS-300-2-OO Durometer test stand for Shore OO Durometers

Order Now

AD-300L Durometer with Slim Probe

Features

Specifications

Related Products

OS-300-2 Durometer Test Stand

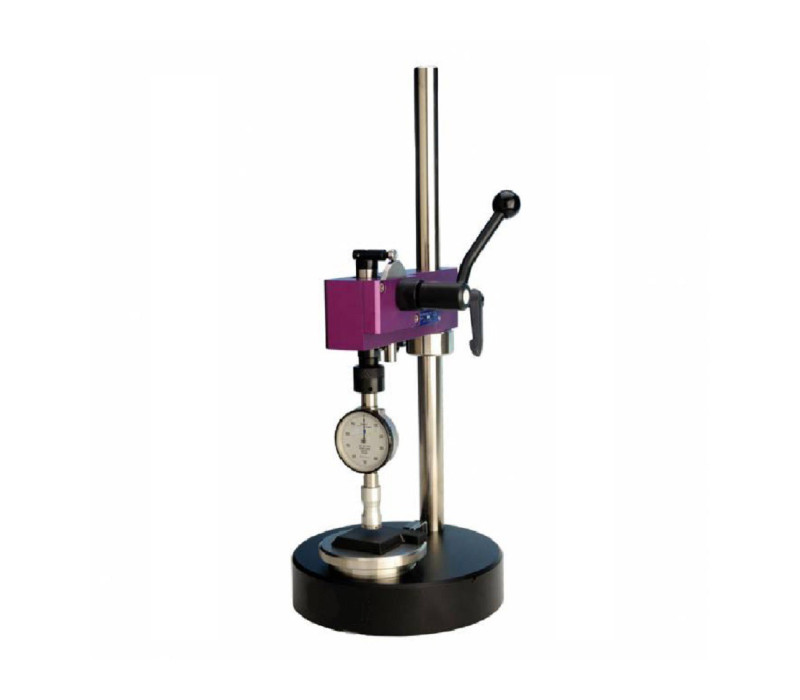

OS-300-2-OO Durometer test stand for Shore OO Durometers
