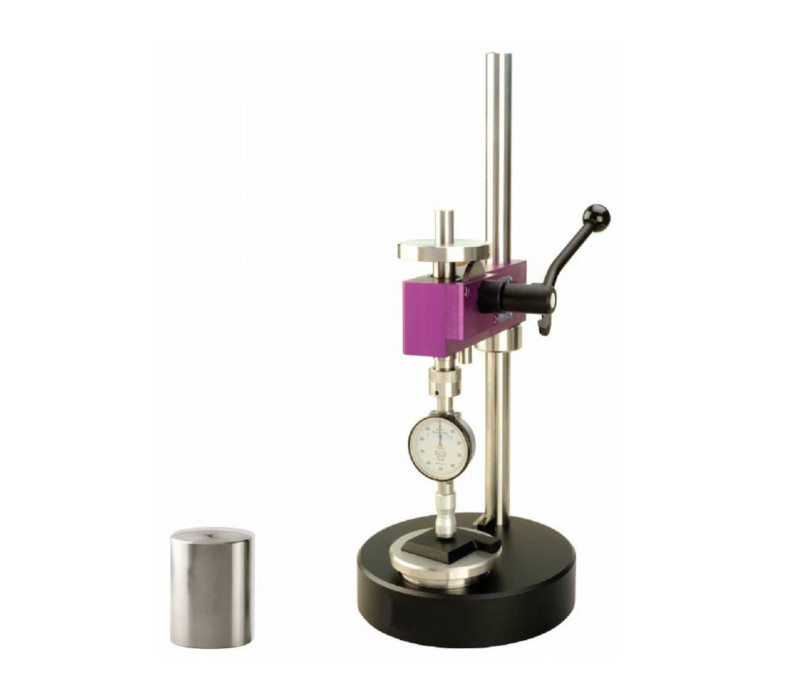

    OS-300-2 Durometer Test Stand

    Made in Germany The OS-300-2 Durometer test stand enables accurate and repeatable Durometer measurements. The essential advantage of this test stand is that subjective test errors, caused by differing load application forces or non-vertical application of the durometer to the test piece, are ruled out.

    The OS-300-2 durometer test stand works on the constant load principle. To conduct hardness measurements, the product sample is positioned on the support table. The support table is suitable for small and big samples. Lower the durometer shock-free by use of the manually operated lever. All measurement values are shown directly on the analogue durometer.

    The durometer is made of rugged and lightweight aluminum and its height can easily be adjusted. The integrated crash ring on the column prevents crashes between the durometer and the support table.

    € 1.246,00
    Order now
    • Accurate measuring results with constant load principle
    • Shock free lowering & integrated crash ring
    • Rugged and light weighed aluminum housing
    • Suited for small and big sample sizes
    • Durometer weight shore D optional available
    • Meets the requirements of international norms: DIN 53505, ISO 868, ISO 7619, ASTM D 2240
    Extension:115 mm
    Diameter support table:98 mm
    Maximum sample thickness:180 mm
    Material:Rugged aluminum design
    Weight (net):16.4 kg
    International standards:DIN 53505, ISO 868, ISO 7619, ASTM D 2240
    Durometer types:A, AO, D, B, C, DO, O

    OS-300-2 Data Sheet

    Related Products

    Browse Related Products

    OS-300-2-OO Durometer test stand for Shore OO Durometers

    OS-300-2-OO Durometer test stand for Shore OO Durometers

    DD-300 Digital Precision Durometer

    DD-300 Digital Precision Durometer

    Order Now

    Products
    Item Product Price  Quantity Action
    134577OS-300-2 Durometer Test Stand € 1.246,00
    Accessories
    Item Product Price  Quantity Action
    134579OS-300-WEIGHT Test Stand Weight for Shore D € 175,00
    134580OS-300-AD Test Stand- OS-1 adapter for AD-300 Series € 79,00
    135494OS-100-AD adapter for AD-100/DD-100 Series to OS-300-2 Test Stand € 67,00
    134859DD-300-OS adapter for DD-300 Series to OS-300 Test Stand € 22,00

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
