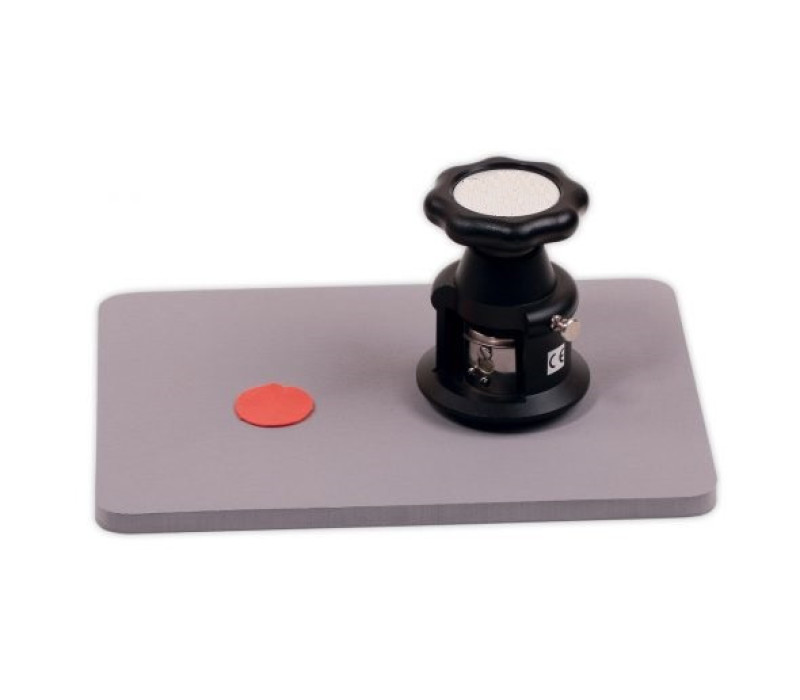

230/12 - Circular Sample Cutter

The 230/12 sample cutters are meticulously designed to extract samples from various materials such as fabrics, fleece, knitted fabric, foil, or paper,
adhering to international standards like ISO 3801, ISO 12127, ISO 536, ISO 186, ISO 1183-1:2012, ISO 9864, EN 12127, ASTM-D3776-D3776M-20, ASTM D2646
These samples, measuring 12 cm² with a diameter of 38 mm, are then weighed to calculate the mass per unit area in grams per square meter (g/m²).

The circular cutter is ideal for materials with a maximum thickness of 5 mm.

Crafted with precision in mind, our cutters are optimized to slice samples of different materials, including fabric, fleece, knitted fabric, foil, and paper, up to a maximum thickness of 5 mm. Our circular cutter enables efficient cuts, covering an area of 12 cm².

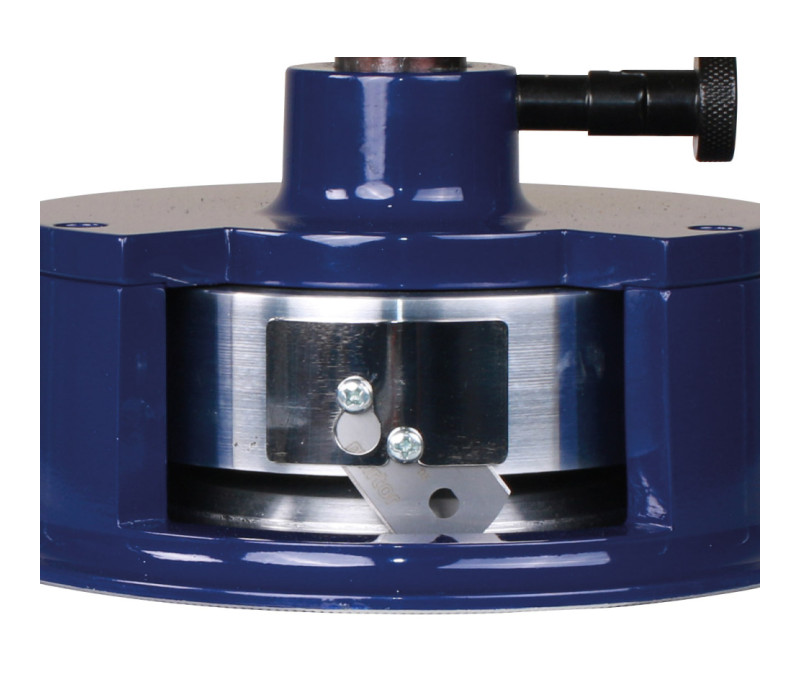

Introducing the Sample Cutter 230/12, featuring 4 high-quality blades made in Germany, ensuring accurate cuts for your requirements.

Model 230/12 - Sample cutout 12 cm², with Ø 38 mm, suitable for materials up to 5 mm in thickness.

Weight per m2, Textile	ISO 3801
Weight per m2, Knitted fabrics	ISO 12127
Weight per m2, Paper	ISO 536 // ISO 186
Weight per m2, Plastic/film	ISO 1183-1:2012 only par. 5.1.4.1
Weight per m2, Geotextile	ISO 9864
Pile weight/m2	EN 12127

€ 599,00

Shop now

Max. 5 mm material thickness
Sample cutout 12 cm2
Ø 38 mm
Designed to precisely cut samples of various materials, such as woven, non-woven, knitted fabric, carpet, films or paper

Sample cutter 230/12 with (4) blades installed
1 rubber plate
4 spare blades
Operating instructions

Cutting thickness	max. 5 mm
Sample Cut-Out	12 cm²
Sample Diameter	38 mm
Number of blades	4
Dimensions (HxØ):	113 x 85 mm
Weight net (gross):	750 g (1400 g)

Manual Sample Cutter

Products

Item	Product	Price	Quantity	Action
136141	Sample Cutter Model 230/12	€ 599,00

Accessories

Item	Product	Price

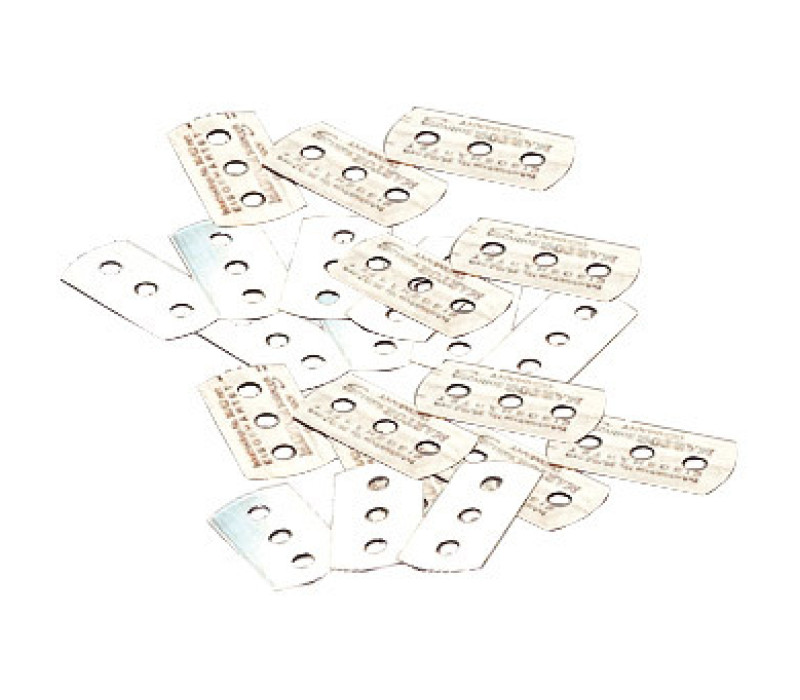

137460	60007M - Spare blades for sample cutter 230/10 & 230/12 (100 pcs)	€ 52,00

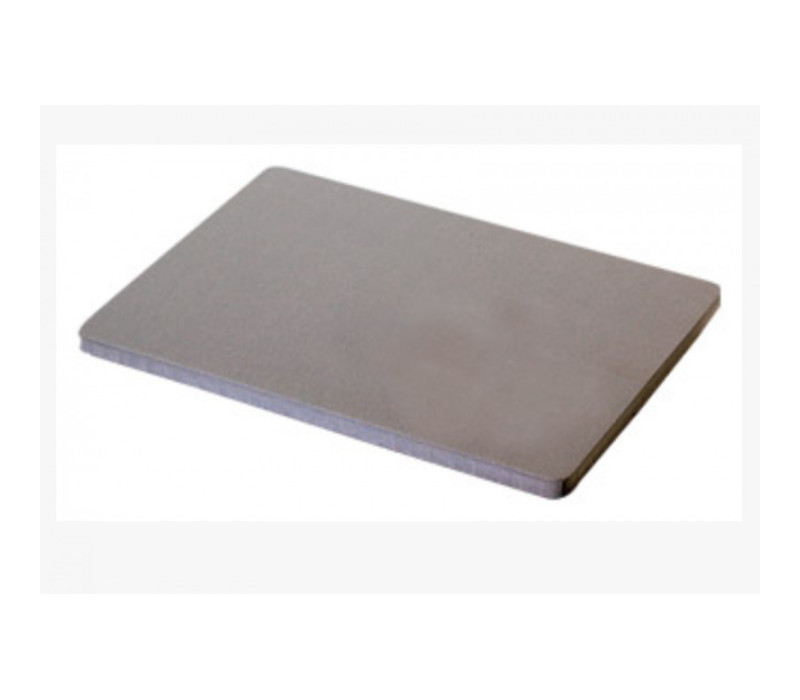

130586	60003M - Rubber plate for sample cutter / Size: 300x 200x10 mm (1pc)	€ 11,00

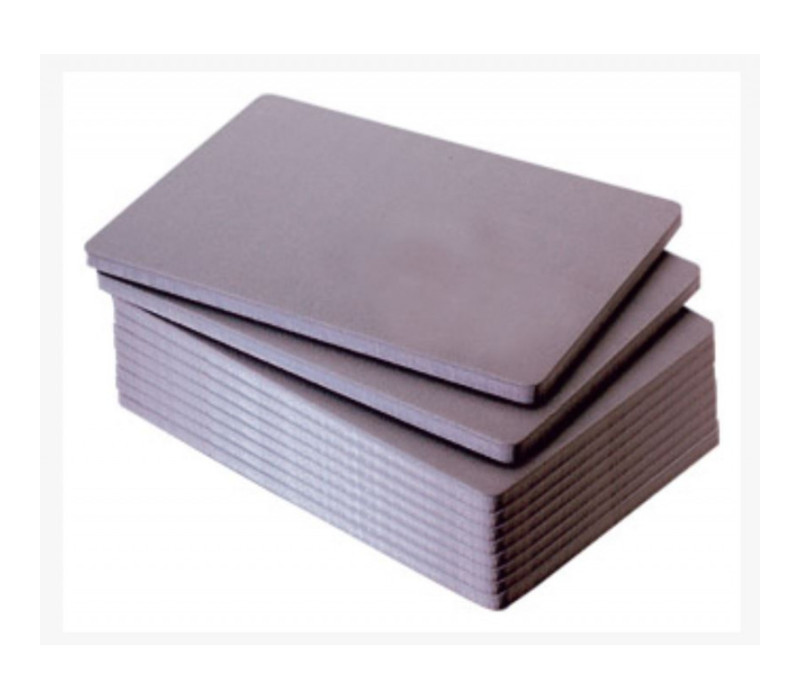

130417	60004M - 10 Pcs Rubber plates for sample cutter / Size: 300x 200x10 mm (10 pcs)	€ 110,00

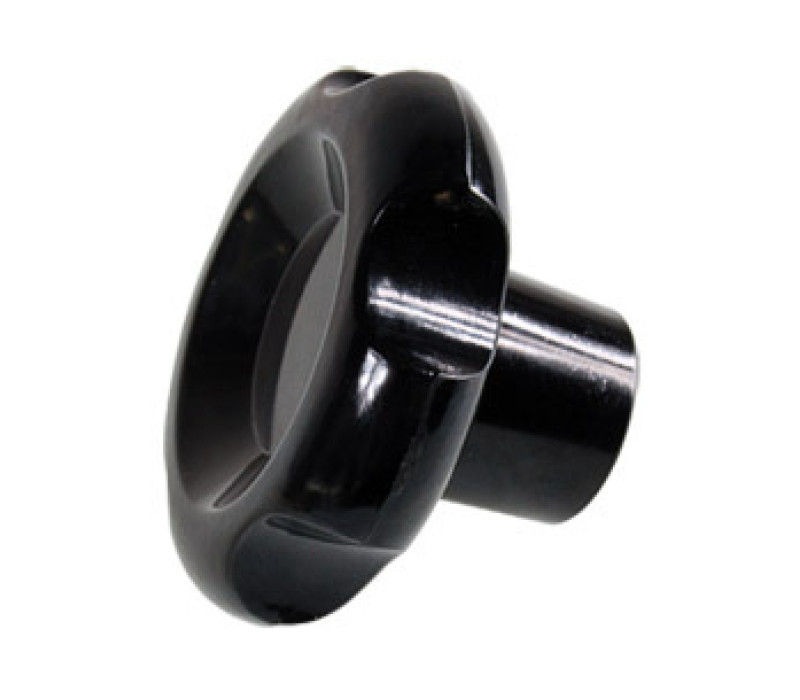

139359	60009M - Spare Handle for sample cutter series 230/231	€ 125,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
