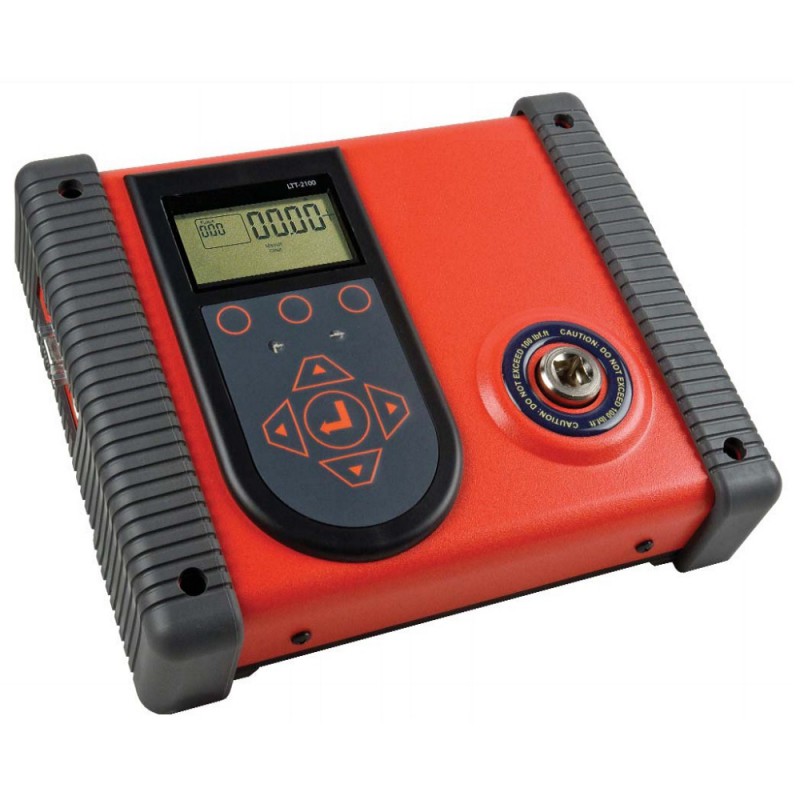

LTT Torque and Angle Analyzer with integrated Bench Stand


The new LTT is the next generation of torque analyzer. It offers “EZ-Plug & Play” with instant auto recognition with transducers. The LTT offers tool testing, graphing capabilities and a graphical menu for easy navigation.

The LTT includes three PC Windows based software programs:
Torque Meter Interface Program - for sensor calibrations, meter calibration and tool tests.
Torque Meter Bootloader - for updating the LTT operating systems.
Statistics Calculator - for SPC, CP & CPK calculations.


Features

  • Accuracy +/- 0.5% of reading from 20% to 100% of full scale.
  • Provides “EZ-Plug & Play.” Features an instant auto-recognition system of the transducer connected to the LTT.
  • Built-in Tool Tests operation.
  • Stores a total of 2500 data points.
  • Seven units of torque measurements: (ozf.in, lbf.in, lbf.ft, cN.m, N.m, kgf.m, kgf.cm). Two units of force measurements: (lbf and kN)
  • Recommended for all hand screwdrivers, wrenches or power tools.
  • "Flash" memory allows upgrades to be done by the user in the field & internet through the USB port.
  • Selection of six operating modes: (Track, Peak, First Peak, Audit, Torque + Angle, and Tool Test).
  • Supplied with NIST-Traceable Certification of Calibration

Tension Ranges

Model Ranges Range
LTT-10i 1-10 lbf-in
11.3 - 113 cN-m
1.2 - 11.5 kgf-c
1/4" F/Sq
LTT-25i 2.5-25 lbf-in
28.25 - 282.5 cN-m
2.9 - 28.8
1/4" F/Sq
LTT-50i 5 - 50 lbf-in
56.5 - 565 cN-m
5.8 - 57.6 kgf
1/4" F/Sq
LTT-100i 10 - 100 lbf-in
113 - 1130 cN-m
11.5 - 115 k
1/4" F/Sq
LTT-250i 25 - 250 lbf-in
282.5 - 2825 cN-m
28.8 - 288
1/4" F/Sq
LTT-50F 5 - 50 lbf-ft
6.8 - 67.8 N-m
0.7 - 6.9 kgf-m
3/8" F/Sq
LTT-100F 10 - 100 lbf-ft
13.56 - 135.6 N-m
1.4 - 13.8
1/2" F/Sq
LTT-250F 25 - 250 lbf-ft
33.9 - 339 N-m
3.5 - 34.5 kg
1/2" F/Sq

Related Products

BLRTSX Brushless Rotary Torque Transducer


  • Accuracy +/-.25% of full scale.
  • The common "brush bounce" that plagues the accuracy testing of pulse tools is cured when using a brushless rotary transducer.

More details

Cic-Torque Torque Instrument Calibration


  • Short turnaround
  • Easy planning of calibration

More details


Tool Tests & Graphing

The LTT allows you to set up and create tool tests and save the readings so you can export the data to a PC for documentation. It’s the ideal solution for organizing and storing test data for ISO and SPC documentation.

The ability to graph a dynamic rundown allows joint analysis. Great resource to evaluate create or confirm a torque specification or toll being used in production.

The "Statics Calculator" allows operators to perform basic SPC, CP and CPK calculations.


Cable Chart

Transducer Cable Item # List Price
RTSX-AA072000$120.000
BLRTSX072001$120.000
BMX072002$120.000
SDX072004$120.000
RTSX072005$120.000
ETX072006$120.000
*Contact Customer Service for connecting a SMX to the LTT
line
reddot Standard Accessories
line

Universal Charger (100 - 240 VAC)
USB Cable
Software - Torque Meter Interface Program
Software - Torque Meter Bootloader
Software - Statics Calculator
Protective Cover


Dimensions

Dimensions Torque Transducers LTT
