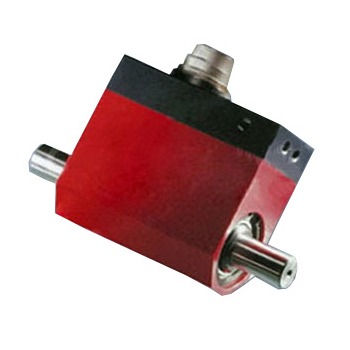

BLRTSX-R Compact Brushless Rotary Torque & Angle Shaft Transducer


This Brushless Rotary Torque & Angle Shaft Transducer is ideal for motor testings, high RPM Tools or rotational measurement applications.

This device is used in-line with rotating shafts or nutrunners for feed back control.

RA Models are as follows:

  • Angle output 2-channel quadrature
  • 360 pulses per rotation
  • Ability to measure the rotation angle of a fastener
  • Joint rate & breakaway tor.3que can be measured too

Features
  • Accuracy +/- 0.2% of full scale
  • Non-contact signal transfer and maintenance free
  • The brushless rotary torque & angle sensor is a compact design & bi-directional

Torque ranges
ozf.in lbf.in lbf.ft cN.m N.m

ModelRange
BLRTSX140z-R 0.17 - 1.00 N.m
BLRTSX140z-RA 0.17 - 1.00 N.m
BLRTSX18i-R 0.22 - 2 N.m
BLRTSX18i-RA 0.22 - 2 N.m
BLRTSX44i-R 0.45 - 5 N.m
BLRTSX44i-RA 0.45 - 5 N.m
BLRTSX89i-R 1 - 10 N.m
BLRTSX89i-RA 1 - 10 N.m
BLRTSX177i-R 2 - 20 N.m
BLRTSX177i-RA 2 - 20 N.m
BLRTSX36F-R 5 - 50 N.m
BLRTSX36F-RA 5 - 50 N.m
BLRTSX73F-RA 10 - 100 N.m
BLRTSX148F-RA 20 - 200 N.m
BLRTSX368F-RA 50 - 500 N.m
BLRTSX738F-RA 100 - 1000 N.m

Dimensions
Dimensions BLRTSX-R


Related Products

LTT Torque and Angle Analyzer with USB Output


  • Accuracy +/- 0.5% of reading from 20% to 100% of full scale.
  • Provides “EZ-Plug & Play.” Features an instant auto-recognition system of the transducer connected to the LTT.

More details

LTT Torque and Angle Analyzer with USB Output

PTT PTT Torque Analyzer


  • System Accuracy +/- 0.5% of reading from 20% to 100% of full scale
  • Selection of six operating modes: Track, Peak, First Peak, Audit, Torque + Angle, and Tool Test.

More details

PTT PTT Torque Analyzer

LS-REGSENSOR Registration Mark Sensor


  • Color Mark registration detection on transparent and translucent, including many metalized films and paper

More details

LS-REGSENSOR Registration Mark Sensor

Specifications
Accuracy± 0.2% of full scale
Rated Output± 5VDC ± 0.2% FS
Excitation Recommended11VDC to 26VDC (pole secure)
Nonlinearity0.2% FS
Usable Temperature Range41 to 122 F
Mating ConnectorTuchel Series 581 (98-2030-09-12)
Safe Overload150% of Rated Output
