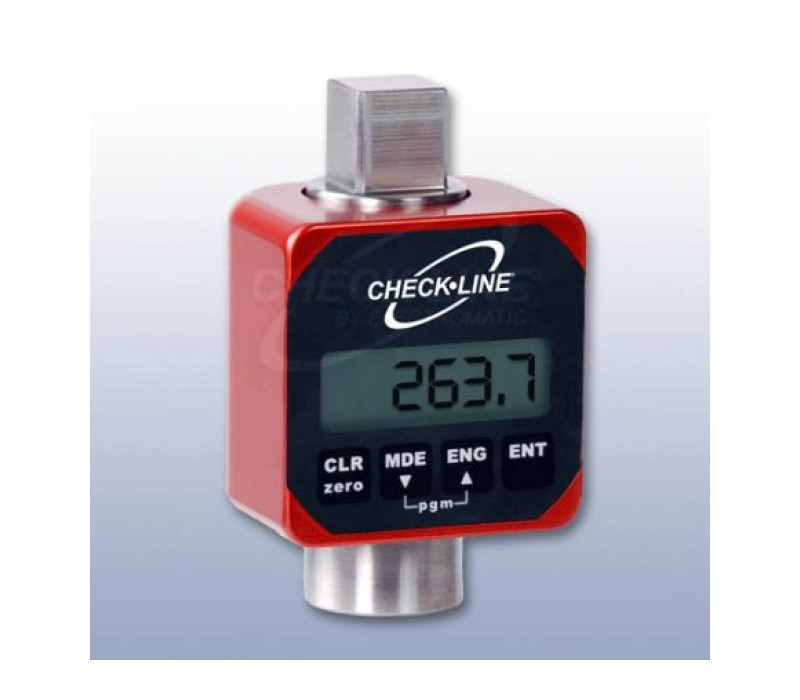

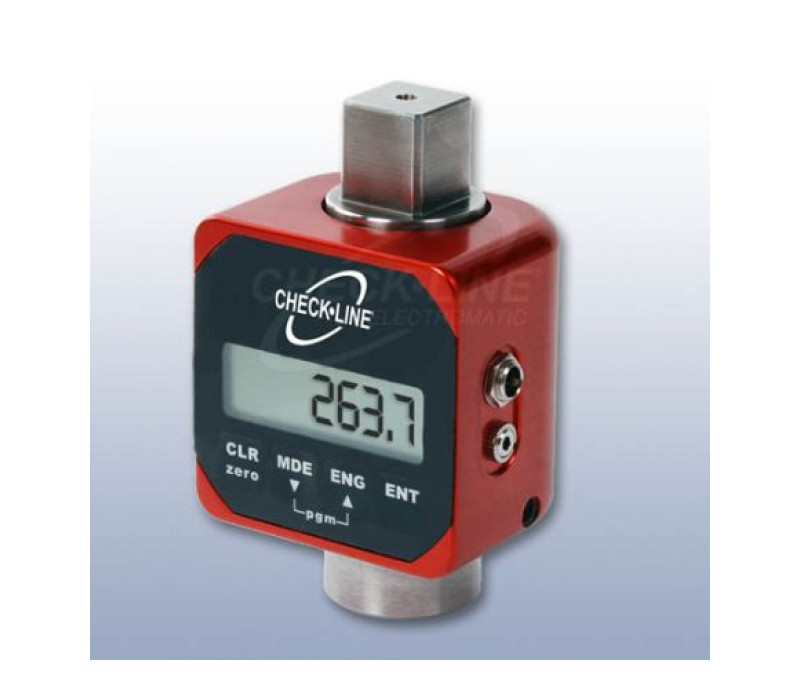

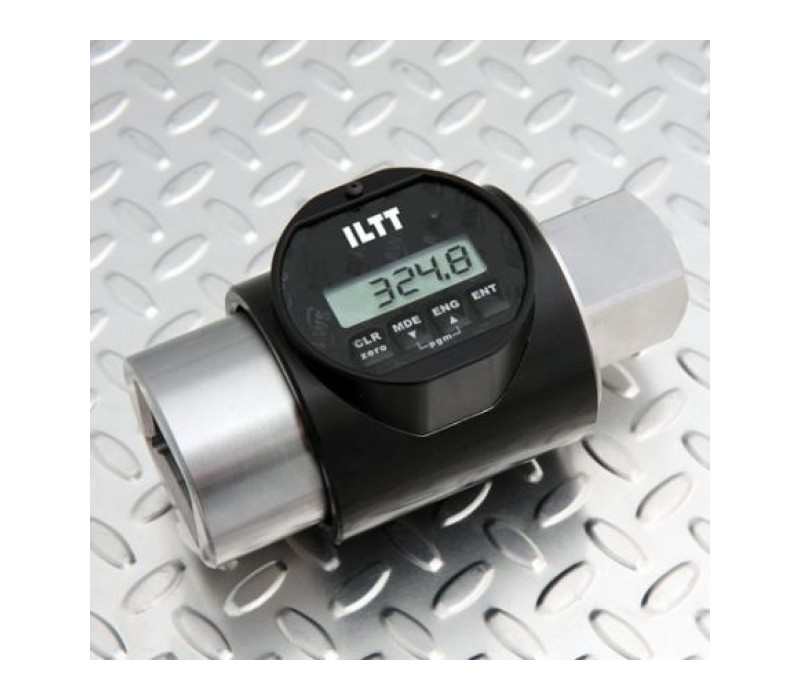

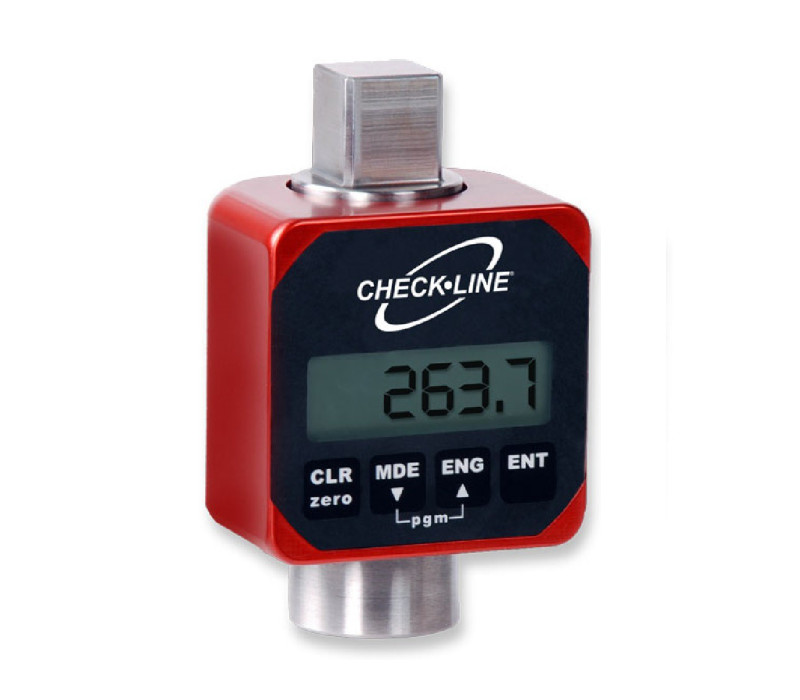

ILTT Inline Torque Tester


Made in the USA12 areas up to 5000 lb-ft available

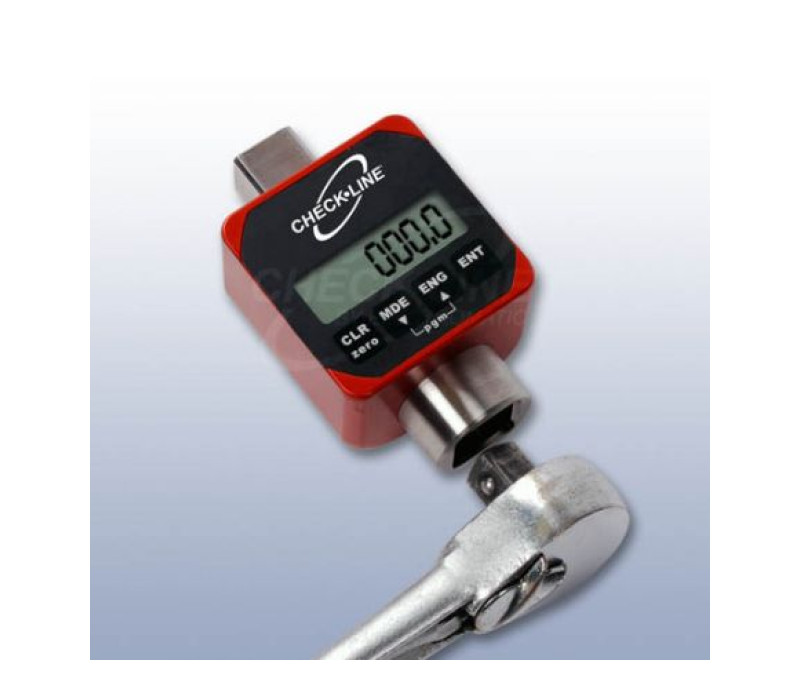

The versatile ILTT Inline torque tester transforms any non-impact torque tester into a complete torque measurement and analysis system. It connects the meter to the square drive, a socket can be inserted and then torque can be measured counterclockwise or clockwise.

Suitable for use with any manual tool, including torque wrenches, tie rods and more. The internal, rechargeable NiMH batteries guarantee 8-10 hours of continuous use.

The ILTT allows to change the test parameters within a few seconds and works in either one-button or in the automatic mode. Its outstanding reliability and ease of use are complemented with features such as character lock, peak suppression and Auto Clear.

N.B.: Not suitable for use with impact tools.


Features
  • Bidirectional accuracy of ±1% of indicated reading
  • Eight (8) selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm
  • 3 modes of operation: Track, Peak and 1st Peak
  • Rugged Aluminum Housing
  • NiMH rechargeable batteries provide 8-10 hours continuous use
  • Includes NIST-Traceable Calibration Certificate
  • Adjustable "auto-clear" for hands-free operation.
  • RS-232 Serial Output included for downloading data to PC's

Related Products

TT-QC Torque Tool Tester


  • Bidirectional accuracy of ±1% of indicated reading
  • 3 modes of operation: Track, Peak and 1st Peak
  • Eight (8) selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm

More details

TT-QC Torque Tool Tester

Cic-Torque Torque Instrument Calibration


  • Short turnaround
  • Easy planning of calibration

More details

Cic-Torque Torque Instrument Calibration

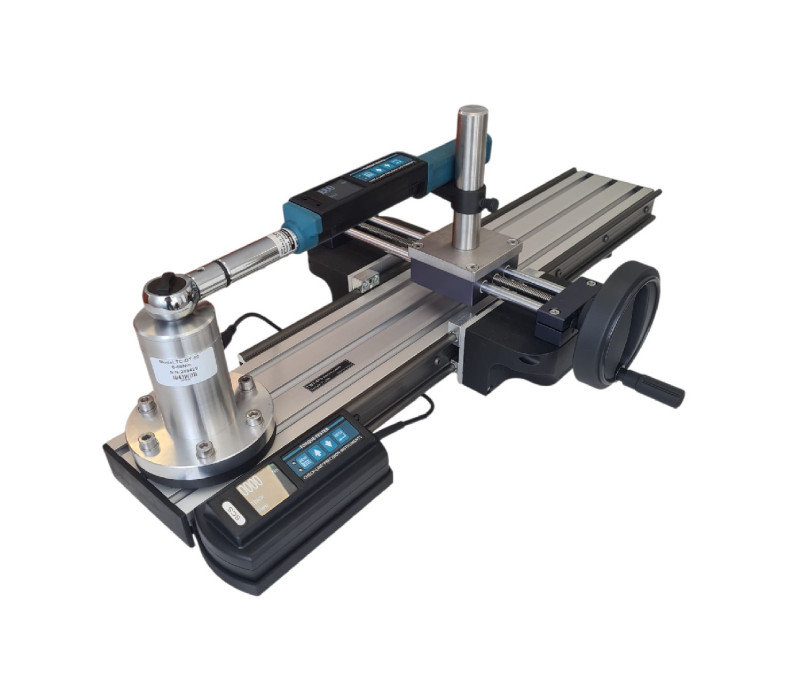

TWT-400 Torque Wrench Test Stand


  • The flexible design of the TWT-400 is easy to use and is suitable for various torque wrench lengths and brands
  • 3 modes of operation: Track, Peak and 1st Peak
  • Eight (8) selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm
  • Bidirectional accuracy of ±0,25% of indicated reading

More details

TWT-400 Torque Wrench Test Stand

Torque ranges
Oz-in Lb-in Lb-ft N-m N-cm Kgf-m Kgf-cm Gf-cm

ModelRangeDrive
Size
ILTT-100i 1.1 - 11 N-m 1/4"
ILTT-250i 2.8 - 28 N-m 3/8"
ILTT-500i 5.6 - 56 N-m 3/8"
ILTT-100F 13.5 - 135 N-m 1/2"
ILTT-150F 20 - 203 N-m 1/2"
ILTT-250F 33 - 338 N-m 1/2"
ILTT-600F 83 - 813 N-m 3/4"
ILTT-750F 101.0 - 1016 N-m 3/4"
ILTT-1000F 135 - 1350 N-m 1"
ILTT-2000F 271- 2710 N-m 1 1/2"
ILTT-3000F 406 - 4060 N-m 1 1/2"
ILTT-5000F 677- 6770 N-m 1 1/2"
ILTT-6000F 814 - 8135 N-m 1 1/2"
ILTT-10000F 1356 - 13558 N-m 2 1/2"

Downloads

Dimensions
Dimensions ILTT


Specifications
Calibrated Range10-100% Full Scale, bi-directional
Accuracy±1% of indicated (within calibrated range)
Resolution4 Active Digits
Overload Protection200% Full Scale bi-directional
Operating ModesTrack, Peak, 1st Peak
FilteringSelectable; 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz
Data OutputRS-232
PowerInternal NiMH battery, 9V Charger (included)
WeightAproximately 3lbs depending on transducer
Alarm LimitsPanel Mounted LED for Visual Alarm Limits
Operating Temp32 - 120 °F (0-50 °C)
Warranty1 Year
Calibration CertificateIncludes NIST Traceable calibration certificate with data

Buy Now
Products

Product name
Price
Quantity
ILTT-100i Inline Torque Tester 1/4" 1.1 - 11 N-m
€ 1.530,00
ILTT-250i Inline Torque Tester 3/8" 2.8 - 28 N-m
€ 1.530,00
ILTT-500i Inline Torque Tester 3/8" 5.6 - 56 N-m
€ 1.530,00
ILTT-100F Inline Torque Tester 1/2" 13.5 - 135 N-m
€ 1.727,00
ILTT-150F Inline Torque Tester 1/2" 20 - 203 N-m
€ 1.727,00
ILTT-250F Inline Torque Tester 1/2" 33 - 338 N-m
€ 1.727,00
ILTT-600F Inline Torque Tester 3/4" 83 - 813 N-m
€ 1.870,00
ILTT-750F Inline Torque Tester 3/4" 101.0 - 1016 N-m
€ 1.870,00
ILTT-1000F Inline Torque Tester 1" 135 - 1350 N-m
€ 1.969,00
ILTT-2000F Inline Torque Tester 1½" 271- 2710 N-m
€ 1.969,00
ILTT-3000F Inline Torque Tester 1½" 406 - 4060 N-m
€ 2.304,00
ILTT-5000F Inline Torque Tester 1½" 677- 6770 N-m
€ 2.304,00
ILTT-6000F Inline Torque Tester 1 1/2" 814 - 8135 N-m
€ 2.402,00
ILTT-10000F Inline Torque Tester 1 1/2" 1356 - 13558 N-m
€ 2.936,00

Accessories

Product name
Price
Quantity
TT-SOFT - Data Transfer Software
€ 209,00
TTS-SC - Advanced Software for TT-Series with cable
€ 347,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
