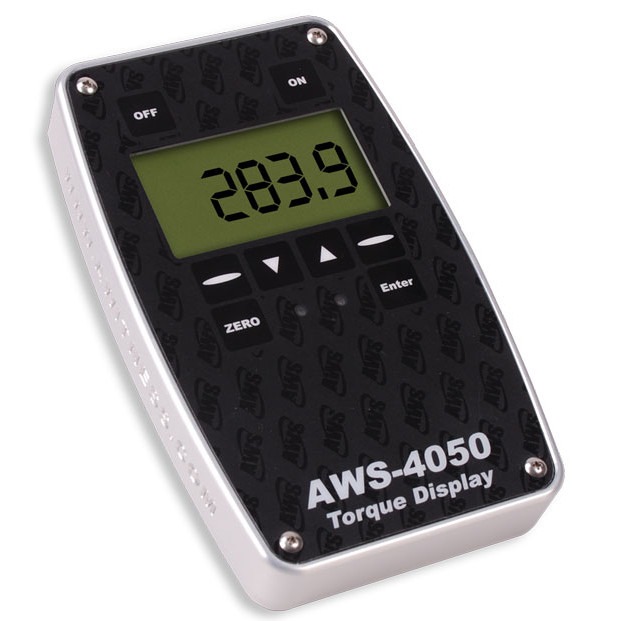

AWS-4050 Portable Digital Torque Display


Made in the USACombining accuracy with durability through repeatable performance, this torque display stands out with its superior quality.

Test parameters can be changed in only a few seconds and it works in either one button or automatic mode of operation.

This convenient Digital Torque Display allows any compatible transducer to be connected with proper calibration, but without the need of any further input from the operator,  making this portable AWS-4050 a very versatile and easy to use digital torque display.

Torque sensor is not included.


Features
  • Single-step access to all functions.
  • Eight (8) available engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm.
  • RS-232 output.
  • NiMH rechargeable batteries provide at least 8-10 hours continuous use.
  • Can be calibrated to virtually any manufacturer’s strain gauge transducers.
  • Bidirectional accuracy of ±0.5% of indicated reading with AWS transducers, ±1% of indicated reading with rotary transducers.
  • 3 modes of operation: Track, Peak and 1st Peak.
  • Visual limit alarms.
  • Selectable power tool filtering speeds: 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz.
  • For testing click, dial, and digital wrenches, plus most power tools including impulse and DC electric.

Related Products

Series IT Bench Mounted Torque Sensor



More details

Series IT Bench Mounted Torque Sensor

Specifications
Battery Type
NiMH
Line Input Power
12 VDC (mains adapter provided)
Operating Temp
0 - 50 °C
Dimensions (LxWxH)
6.5" x 3" x 2.75"
Weight
1.8 Lbs

Buy Now
Product

Product name
Price
Quantity
AWS-4050 - Digital Torque Display
€ 1.505,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
