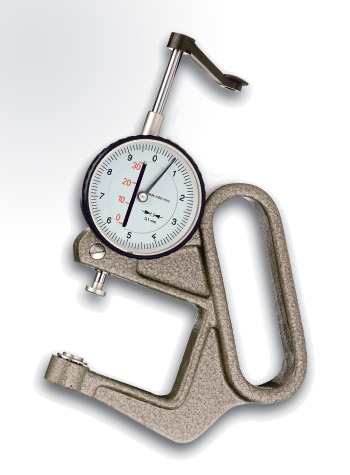

K-50 Series Thickness Gauges
The K-50 thickness gauges are designed to accurately measure the thickness of materials such as leather, textiles, cardboard, felt, rubber, sheet metal, films, plywood, and plastic parts of all kinds. Its aluminium housing is lightweight and robust, offering ease of handling and durability. It can be easily zeroed by turning the external knurled ring of the scale.
Available Models and Their Specifications:
- K-50: The standard model, with a measuring range of up to 10 mm and a jaw depth of 50 mm.
- K-50 with lifting device: Incorporates a lifting mechanism to facilitate measurement, maintaining the same measurement characteristics.
- K-50-2: Offers an extended measurement range of up to 20 mm, suitable for thicker materials.
- K-50-3: Increases the measurement range up to 30 mm, ideal for applications requiring greater reach.
- K-50-5: This model provides the widest measurement range, up to 50 mm, for the thickest materials and demanding industrial applications.
Each model is available with specific feelers (a, b, c, d, or e) tailored to various materials and applications, enhancing the versatility of this tool.
Key Features:- Measurement by manual pressure via plunger.
- Resolution of 0.1 mm.
- Self-opening by spring force.
- Available with 5 different feelers, adapting to various applications and materials.
- Versatility: Suitable for a wide range of materials, allowing its use in various industrial and research sectors.
- Durable Construction: Aluminium housing ensures a long lifespan and resistance to the most demanding work conditions.
- Ease of Use: Intuitive design that allows quick setup and precise measurement with minimal training.
Contact us to explore how the K-50 thickness gauges can be integrated into your measurement and quality control processes.
Features
- Simple Maintenance: Easy to clean and maintain, with components designed for quick access and replacement when necessary.
- Adaptability: Interchangeable feelers allow measurement of a variety of materials, ensuring flexibility in applications.
To place your order, please indicate the desired feeler, for example: K-50-B for a gauge with feeler B. This means that NOT all feelers are included in the package!
 |
Feeler: A For rubber, felt*, soft materials*, non-wovens*, etc. |
 |
Feeler: B For rubber, felt*, soft materials*, non-wovens*, etc. |
 |
Feeler: C For soft leather, cardboard, paper, films, etc. |
 |
Feeler: D For hard leather, plywood, fibre boards, etc. |
 |
Feeler: E For sheet metal, etc. |
 |
This table stand allows handheld thickness gauges to be converted into benchtop units, improving stability and ease of use. |
 |
Dimensions in mm |
Specifications
| Resolution: | 0.1 mm |
| Measuring range: | K-50: 0 - 10 mm K-50-2: 0 - 20 mm K-50-3: 0 - 30 mm K-50-5: 0 - 50 mm |
| Depth of jaw: | 50 mm |
| Scale diameter: | 58 mm |
| Feeler shape: | a, b, c, d or e |
| Spring force: | Self opening |
| Weight, net: | K-50: 300 g K-50-2: 300 g K-50-3: 330 g K-50-5: 350 g |
Buy Now
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
